DJI
Sprinkler Adapter Cable (T100) YC.XC.XX001409
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Part of the DJI Agras T100 impeller pump assembly, the sprinkler adapter cable is the wiring lead shown at callout 11 on the pump diagram.
| Part number | YC.XC.XX001409 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 impeller pump, callout 11 |

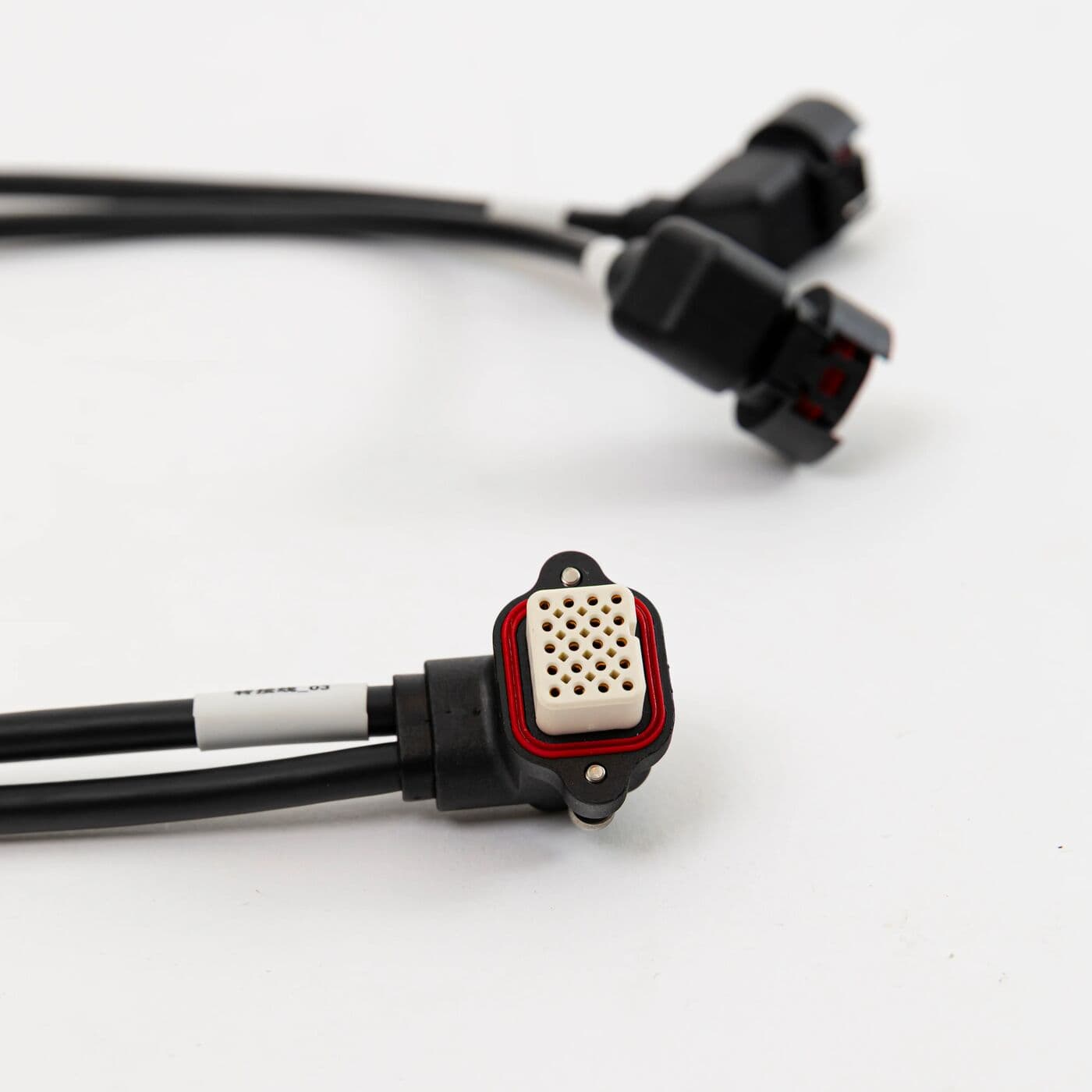

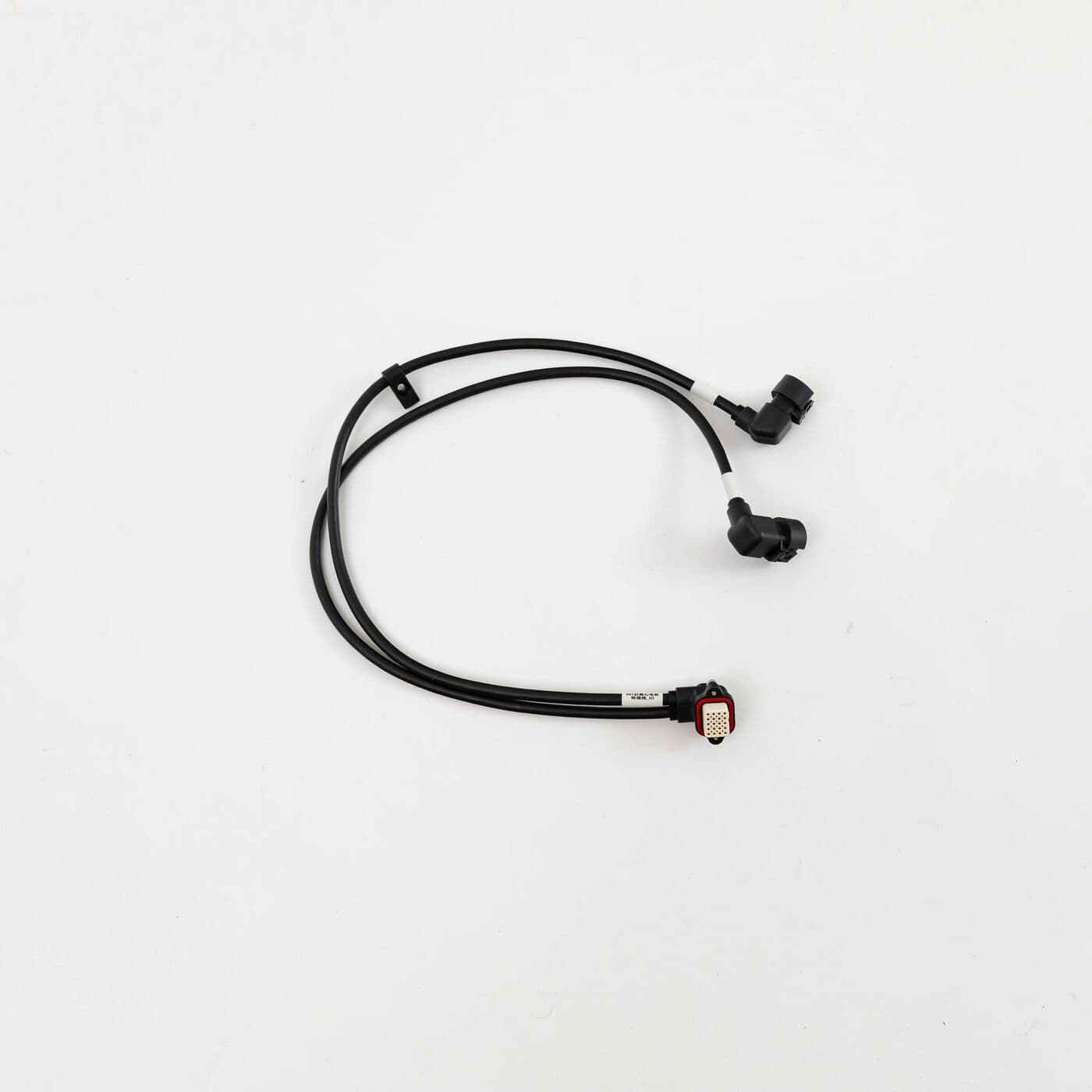

DJI's parts photo shows it as a branched lead: one screw-down plug at one end, with two cables leaving it that each finish in an angled plug. The parts list does not say what each end plugs into, so trace the old cable before ordering. Unsure it is the right lead? Send us a photo through the contact page and we can help identify it.
Spray system wiring lives with vibration, washdown water and chemical residue, so look for corroded or bent pins, a cracked plug housing, or a sheath worn through where it passes clamps and edges.
Take the flight battery out before unplugging anything, run the new cable along the original route, push each connector fully home and secure it so it cannot rub. When tracing a pump fault, rule out this lead alongside checks on the impeller module and impeller pump motor.
