DJI
Sealing Ring - OD 31.4 mm (T100/T70P/T25P) YC.JG.MY001315
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

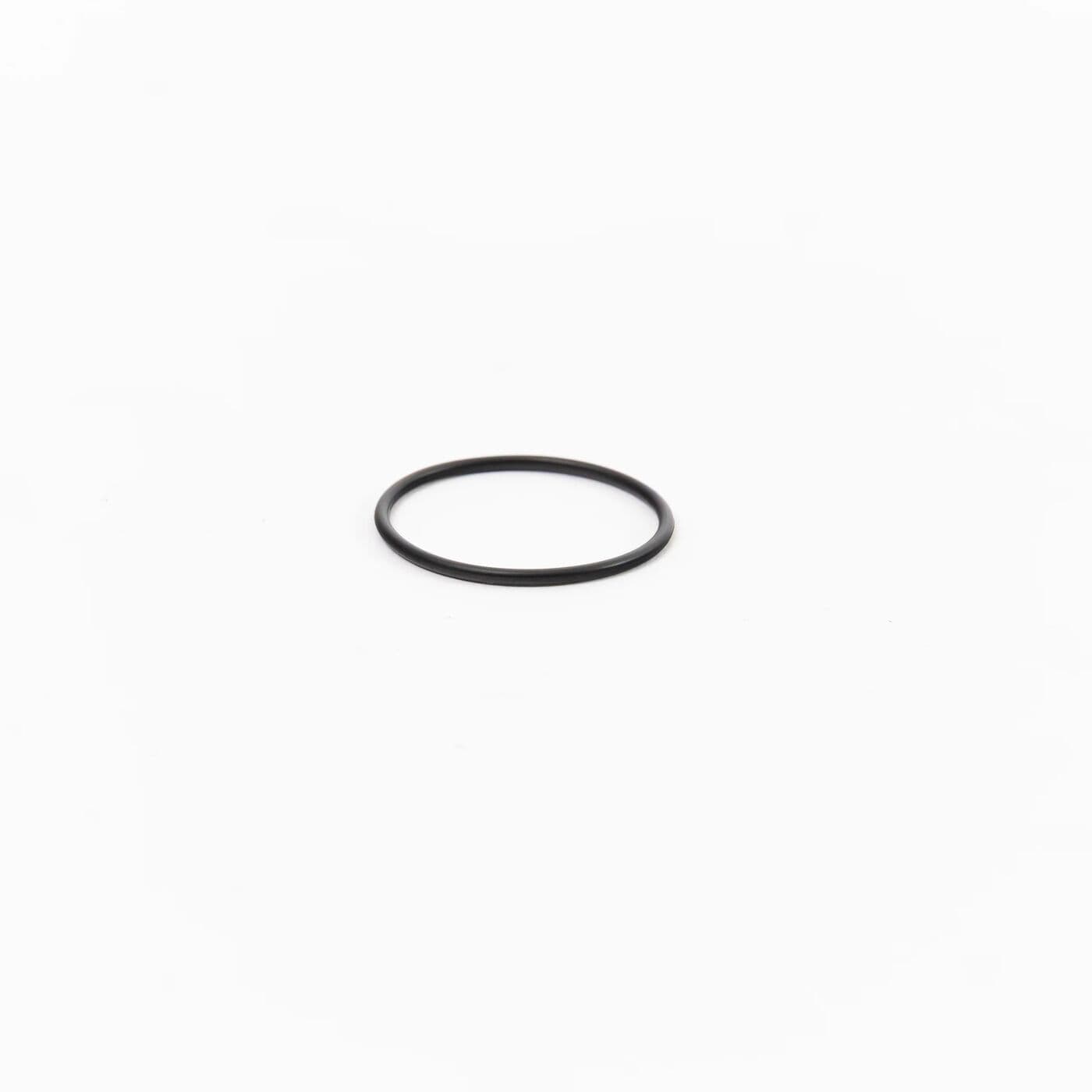

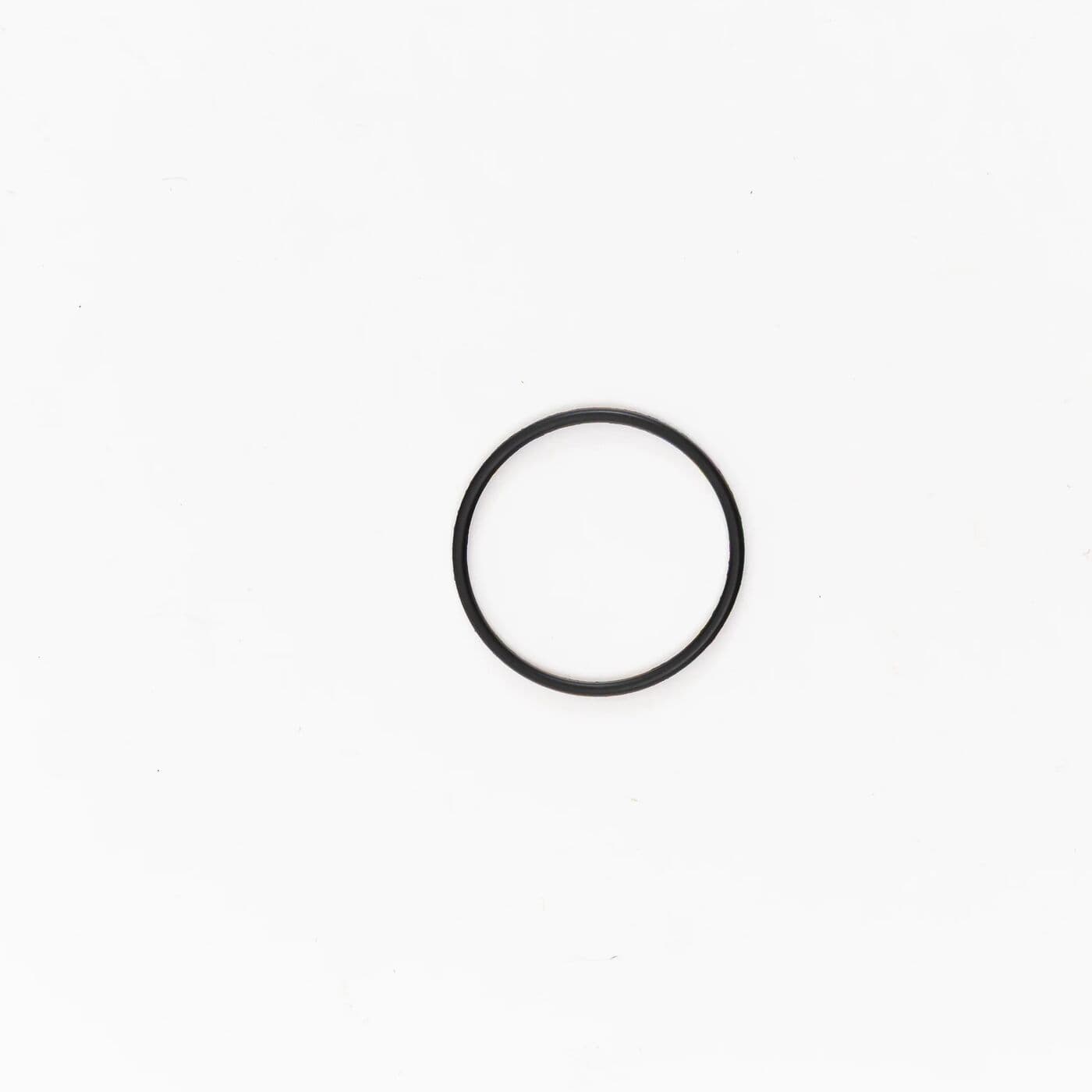

A 31.4 mm (outside diameter) sealing ring from the impeller pump of the DJI Agras T100, T70P and T25P, one of the seals that stops spray liquid escaping at a pump joint.
| Part number | YC.JG.MY001315 |
| Fits | DJI Agras T100, T70P, T25P |
| Parts diagram | T100 impeller pump, callout 1; T70P impeller pump, callout 11; T25P impeller pump, callout 10 |
Chemical contact, heat and every strip-down take a toll on pump seals. A ring that has flattened, taken a set, swollen or picked up a nick will start to weep, usually showing as residue or drips around the pump body after a job.
The pump uses more than one size of ring, so confirm the 31.4 mm size or the code before fitting. Seat the new ring evenly in its groove without twisting it, and fit a fresh one each time that joint is opened. While the pump is apart, consider renewing the 46.8 mm motor sealing ring (T100 and T70P) and the pump sealing ring too.
