DJI
Pump Shell (T100/T70P) YC.JG.ZS006166
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

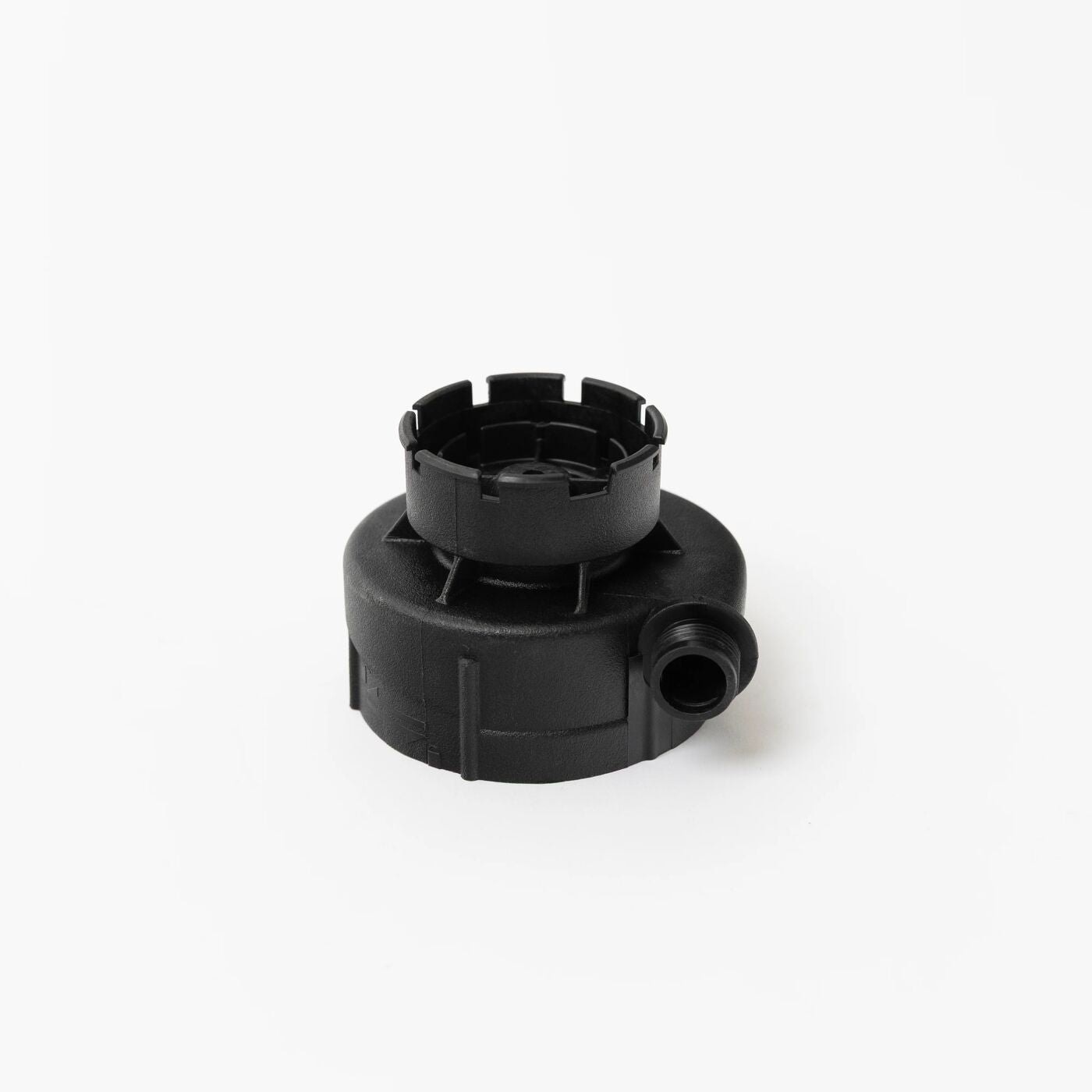

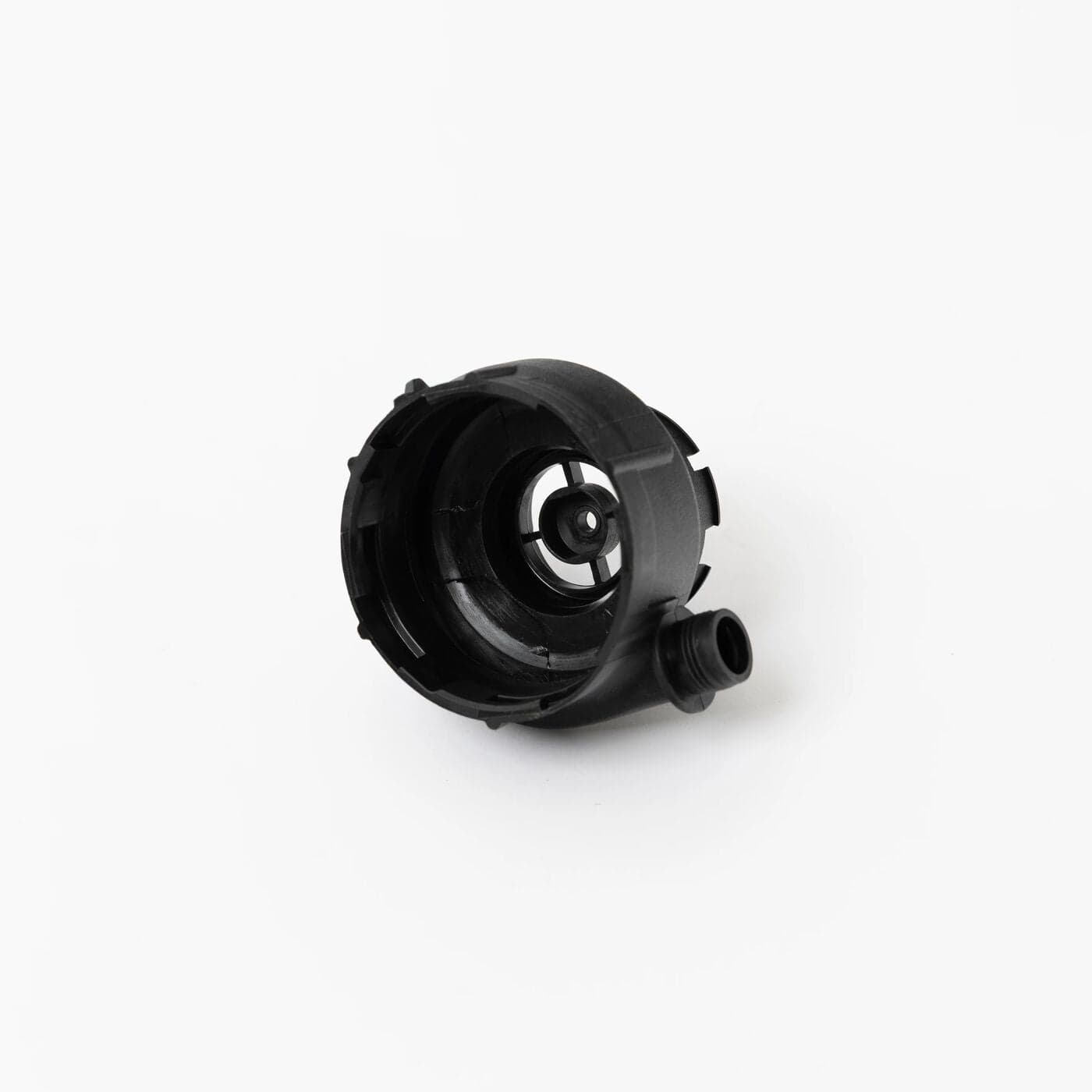

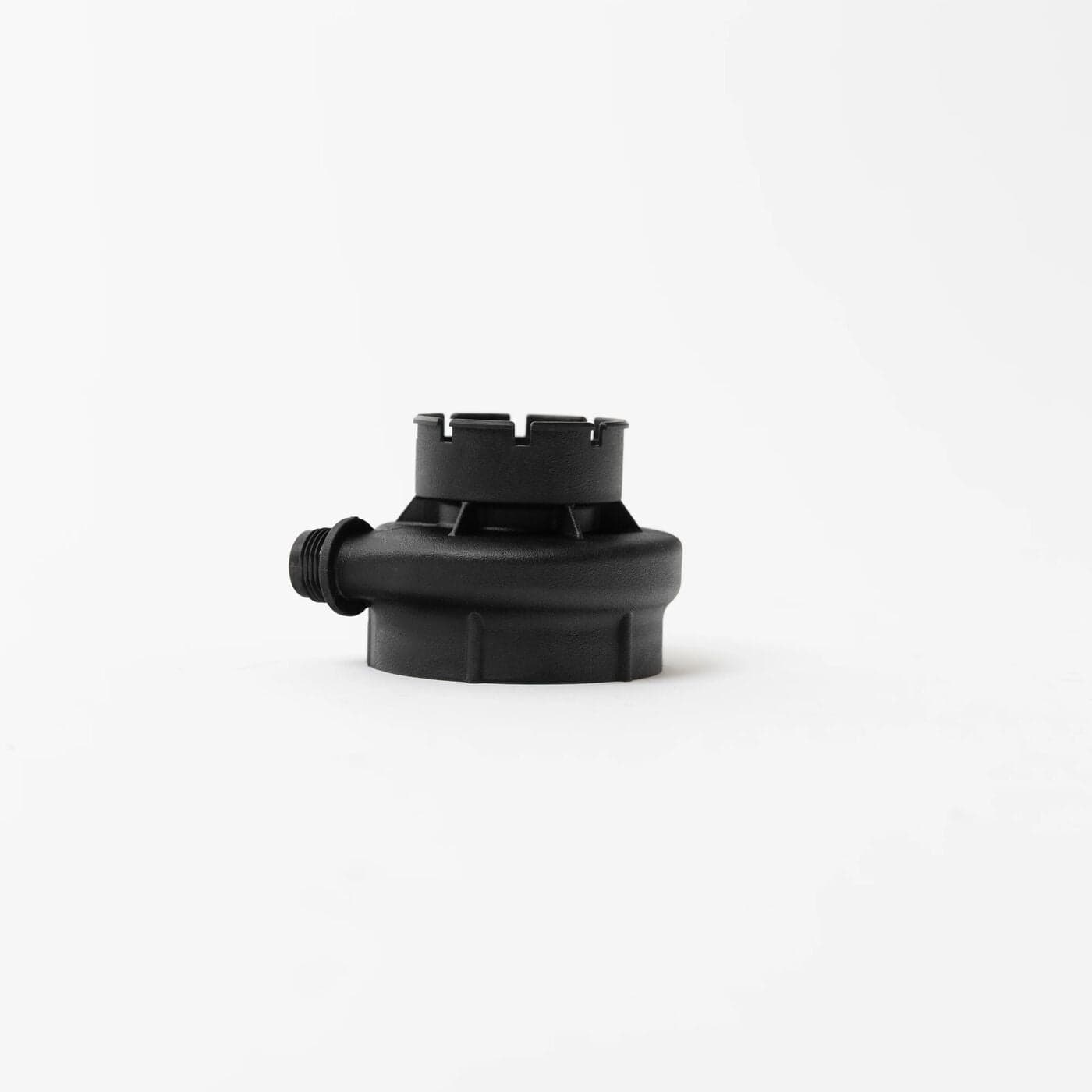

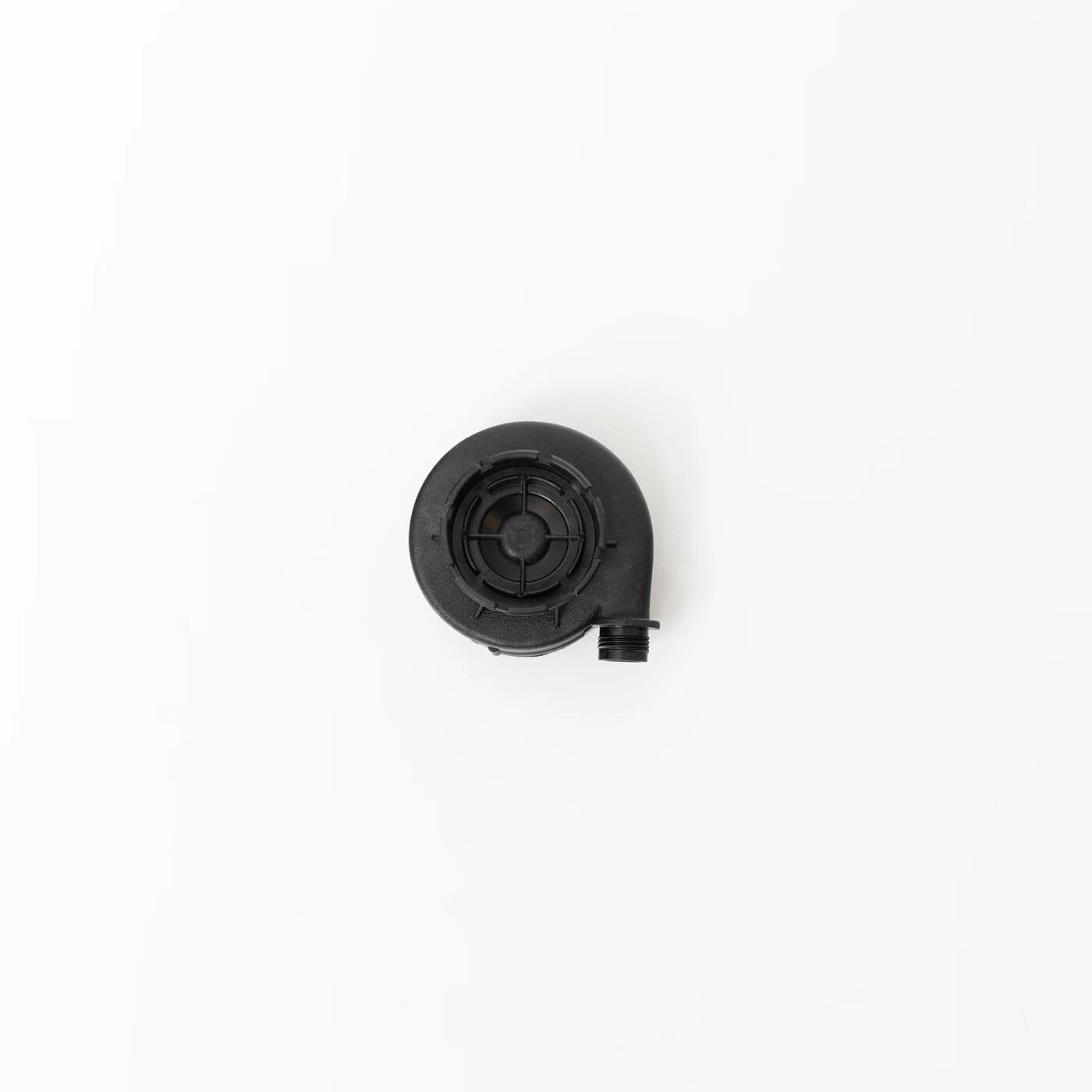

Pump shell is DJI's name for the casing of the DJI Agras T100 and T70P impeller pump, the housing that the impeller spins inside.
| Part number | YC.JG.ZS006166 |
| Fits | DJI Agras T100, T70P |
| Parts diagram | T100 impeller pump, callout 4; T70P impeller pump, callout 3 |
Replace it if the casing is cracked, the sealing faces are chipped, or debris has scored the inside deeply. Leaks that continue after new seals go in can trace back to a distorted or cracked shell.
Fit it with new seals, including the curving connector sealing ring, inspect the impeller module for chips before closing up, then fill and run the pump with clean water to look for leaks.
