DJI

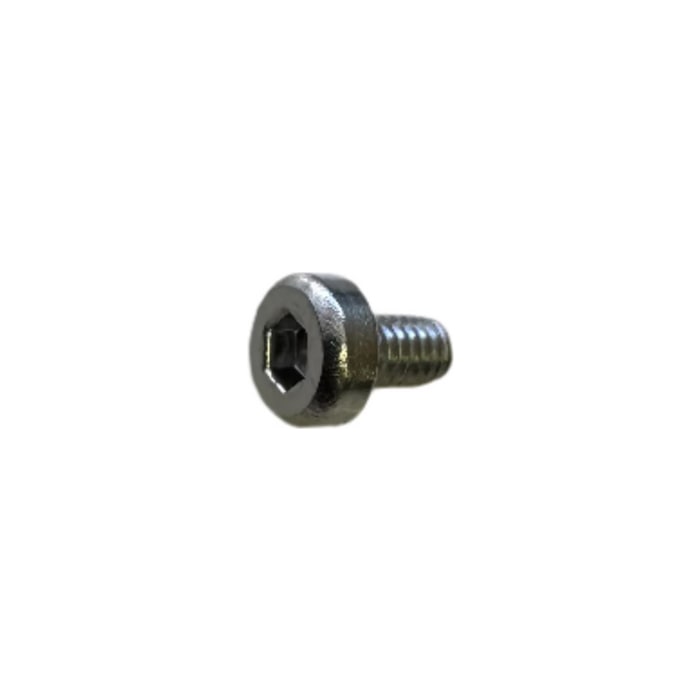

Screw M25-HC00400040-050020-0003-N (T100/T50/T25P) YC.WJ.LL000138
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Used on both the impeller pump and spray lance of the DJI Agras T50, and on the T25P spray lance, screw M25-HC00400040-050020-0003-N is one of the fasteners in the spraying system.
| Part number | YC.WJ.LL000138 |
| Fits | DJI Agras T100, T50, T25P |
| Parts diagram | T50 impeller pump, callout 15; T50 spray lance, callouts 8 and 15; T25P spray lance, callouts 10 and 14 |
Both spray lance sheets use it at two positions among the centrifugal sprinkler parts, and on the T50 pump sheet it is listed with the damping pad and the impeller pump spacing sleeve. EE Group's parts list also sells it as a T100 part, although no T100 parts diagram shows where it goes, so if you are ordering for a T100 and are unsure, send a photo of the old screw through our contact page and we can help identify it.
Spray drift and vibration reach these screws on every flight, so replace any showing corrosion, a rounded drive or a stripped thread. Several screws on the same sheets carry M30 codes, so confirm YC.WJ.LL000138 before fitting and tighten with care.
