DJI

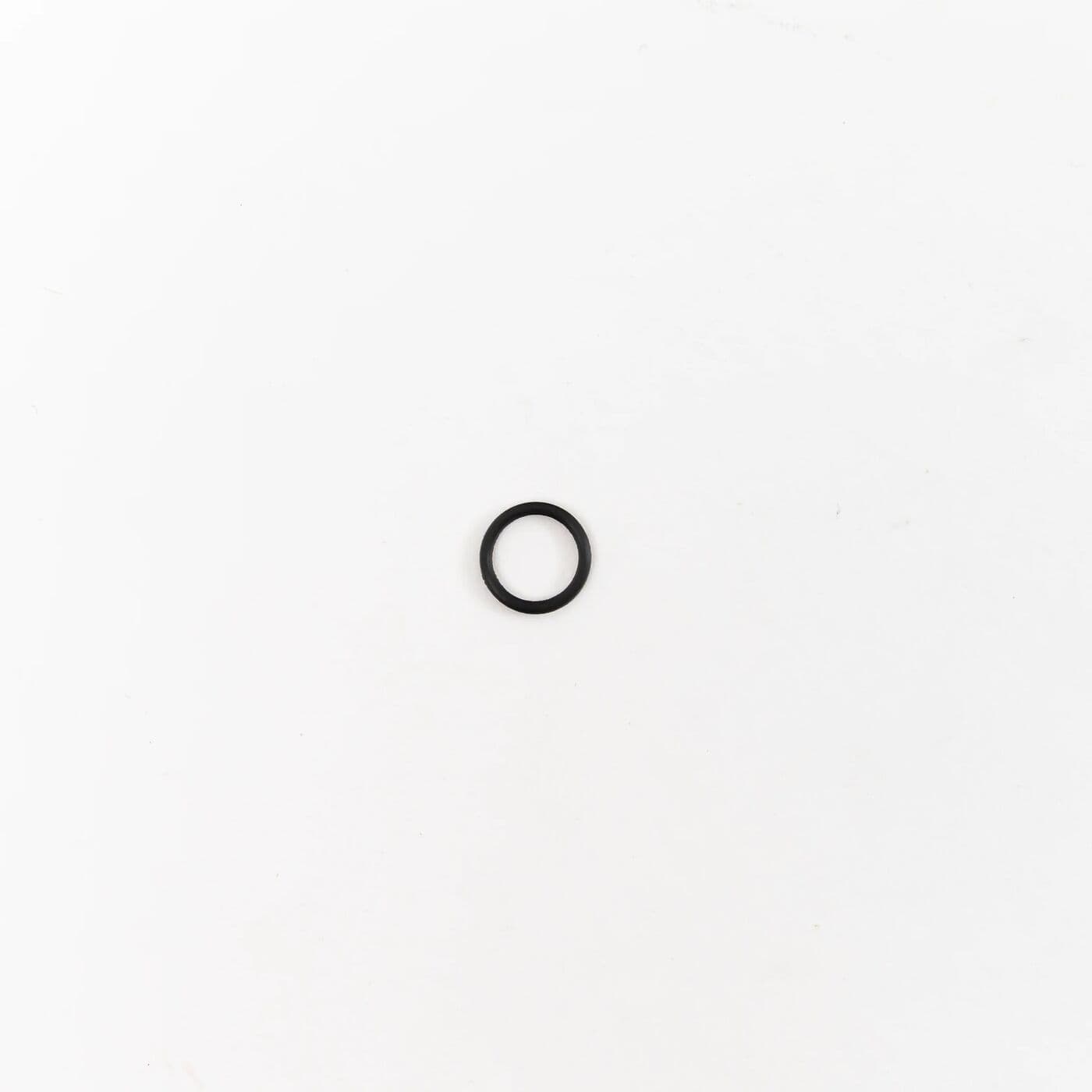

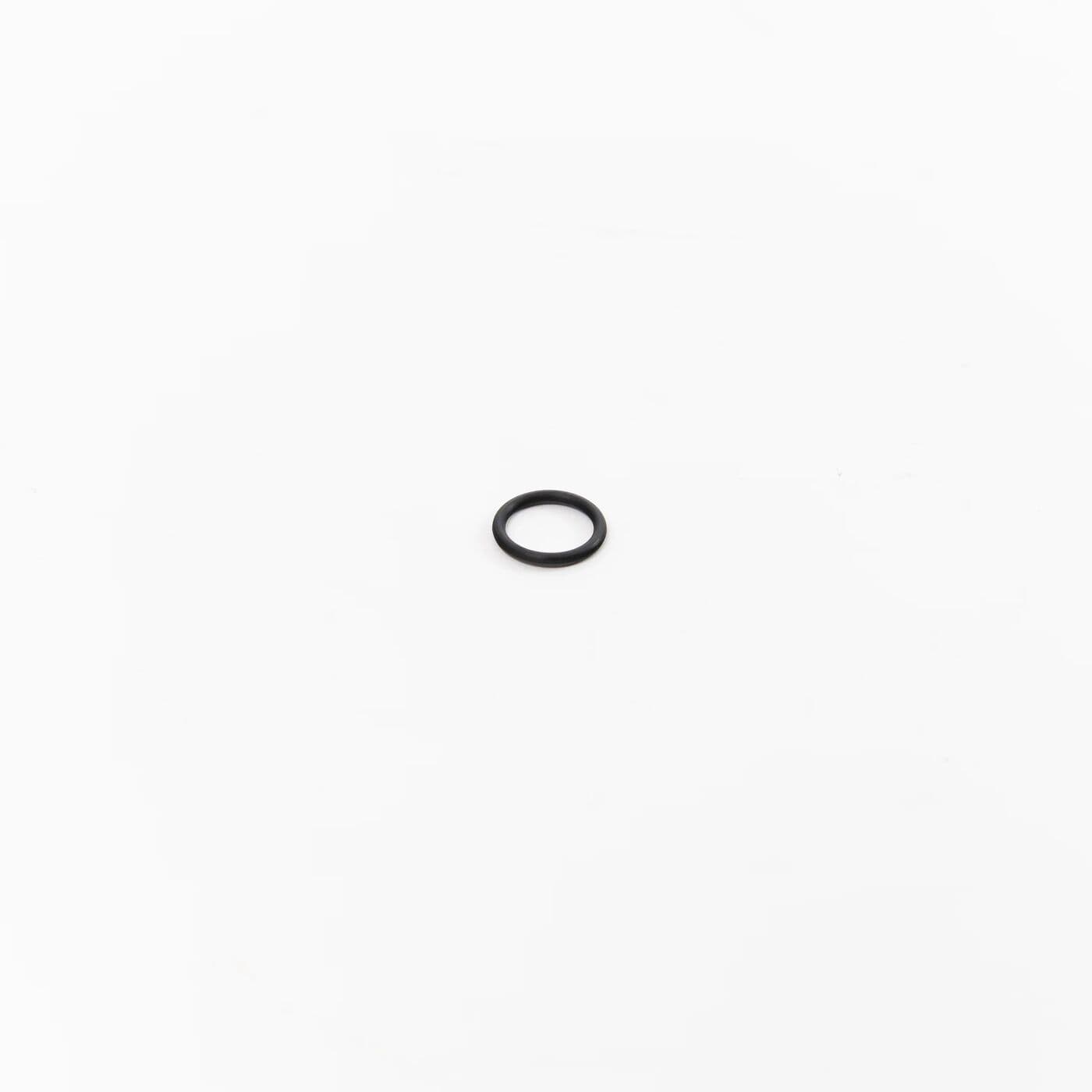

Curving Connector Sealing Ring (T100/T70P) YC.JG.MY001830
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Where the curving connector fits on the DJI Agras T100 and T70P impeller pump, this sealing ring keeps spray mix from escaping at the joint.
| Part number | YC.JG.MY001830 |
| Fits | DJI Agras T100, T70P |
| Parts diagram | T100 impeller pump, callout 6; T70P impeller pump, callout 2 |
Drips or a damp, crusty patch around the connector after spraying often point to this ring. A ring that has been flattened, nicked or pinched during assembly will not reseal, however well the connector is refitted.
Fit a new ring every time the connector comes off, seat it squarely without twisting it, and check the sealing face of the curving connector for cracks while you are there. Run the pump on clean water to confirm the joint is dry.
