DJI

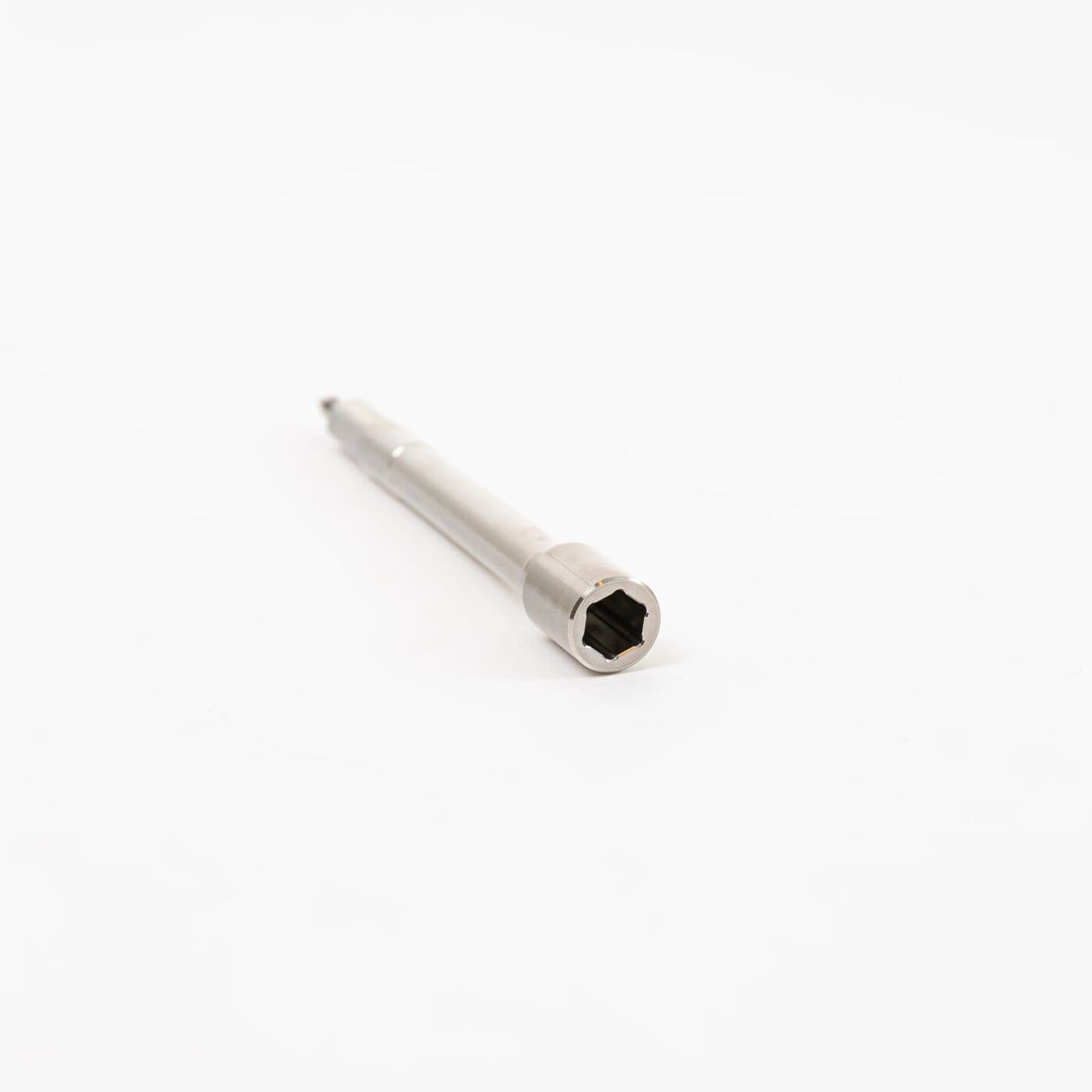

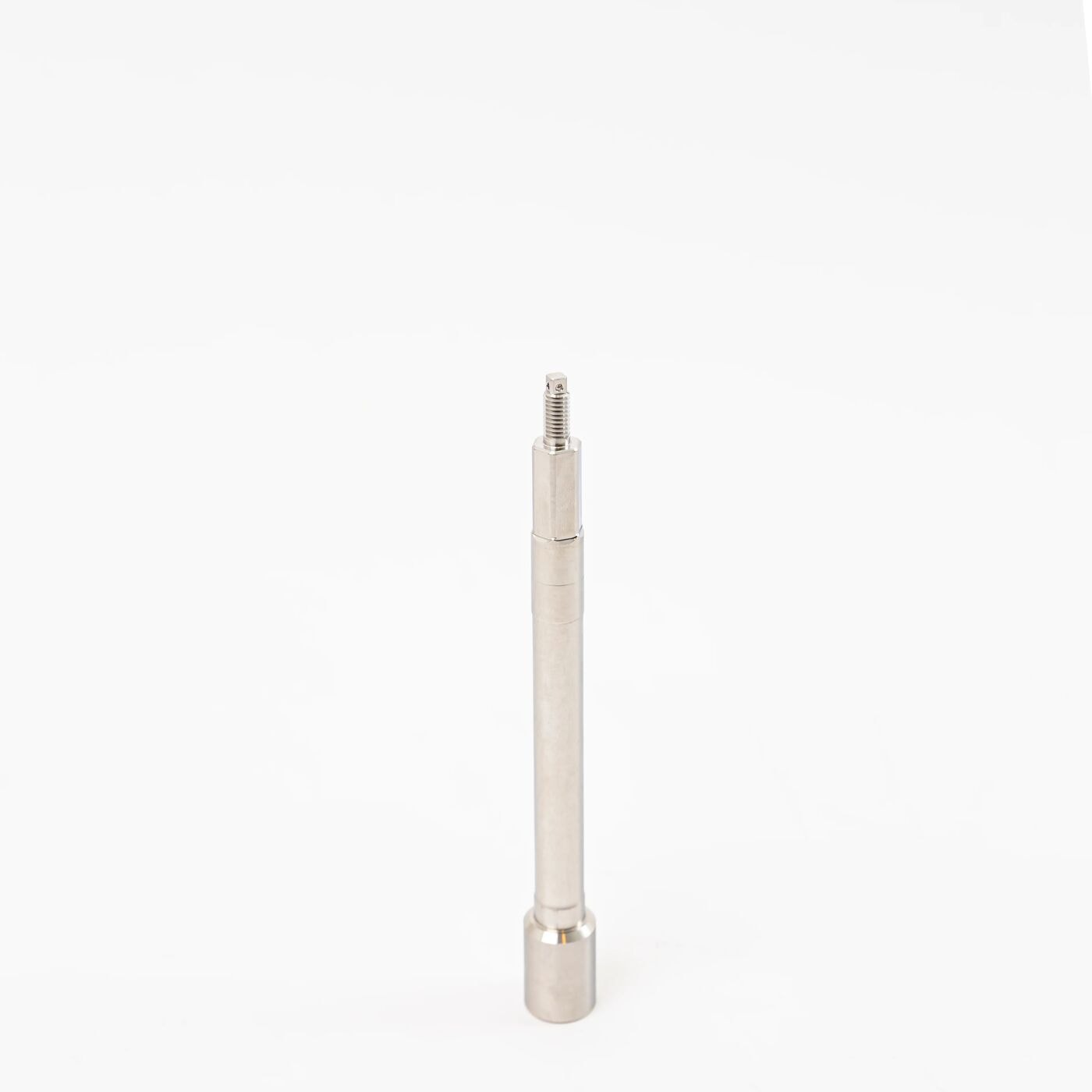

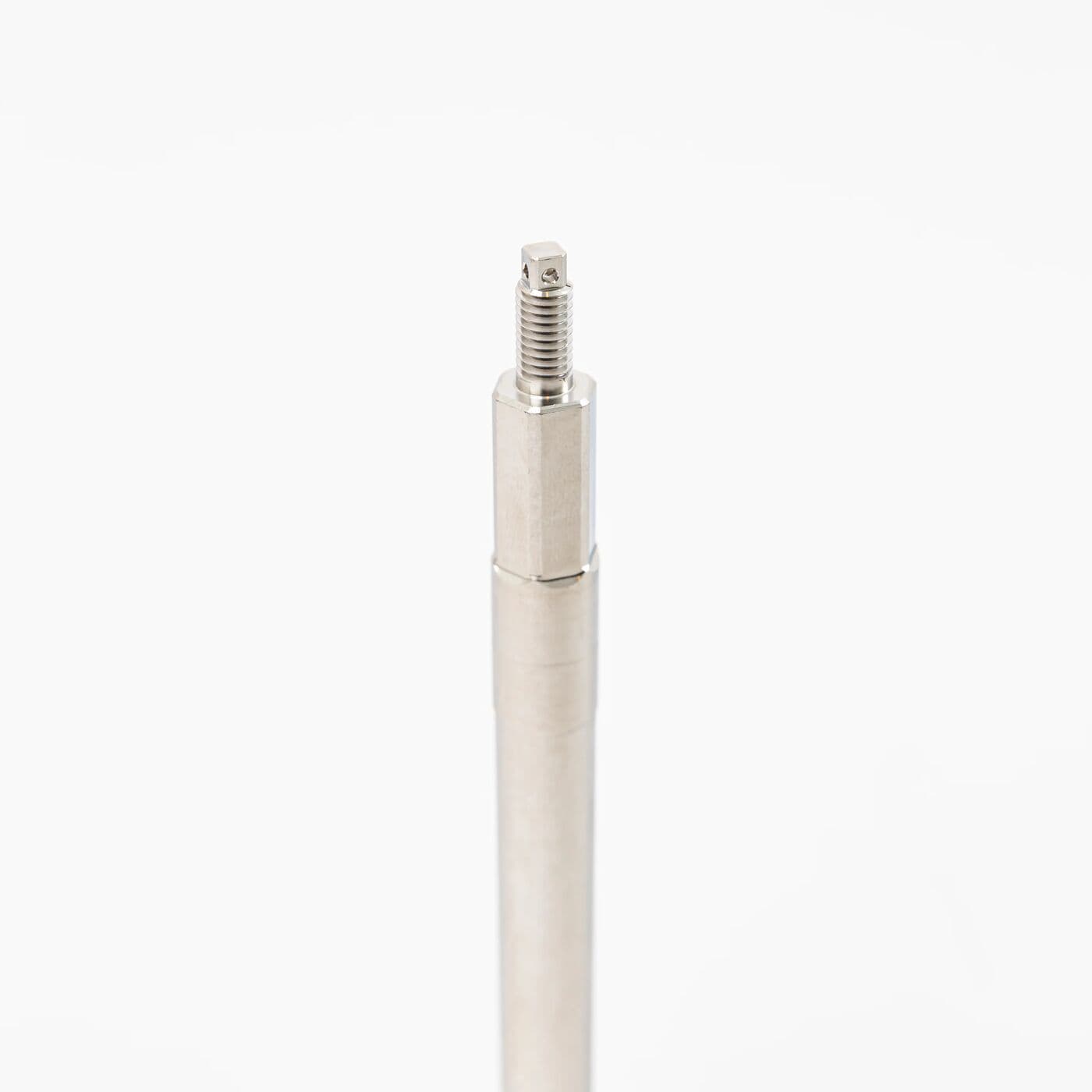

Spinner Disk Shaft (T100/T70P) YC.JG.QX004442
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
On DJI Agras T100 and T70P spreaders, the spinner disk shaft carries drive from the motor to the disk, so a bend or a damaged end here shows up as a disk that no longer runs true.
| Part number | YC.JG.QX004442 |
| Fits | DJI Agras T100, T70P |
| Parts diagram | T100 spreading spinner disk, callout 9; T70P spreading spinner disk, callout 9 |
A shaft that has taken a knock, from a hard landing or the disk striking the ground, can bend enough to make the disk wobble. Spin the disk slowly and watch its outer edge: visible run-out, new vibration or a disk that will not sit square points to the shaft or the disk itself. Replace a shaft with damaged ends or heavy corrosion where the disk locates.
DJI lists a shaft sealing ring (callout 13) and a shaft dustproof cover (callout 14) on the same sheet. Look both over while the shaft is out and renew either one if it is split, flattened or hardened, then check the 21 mm bearing and the thumb nut before everything goes back together.
