DJI

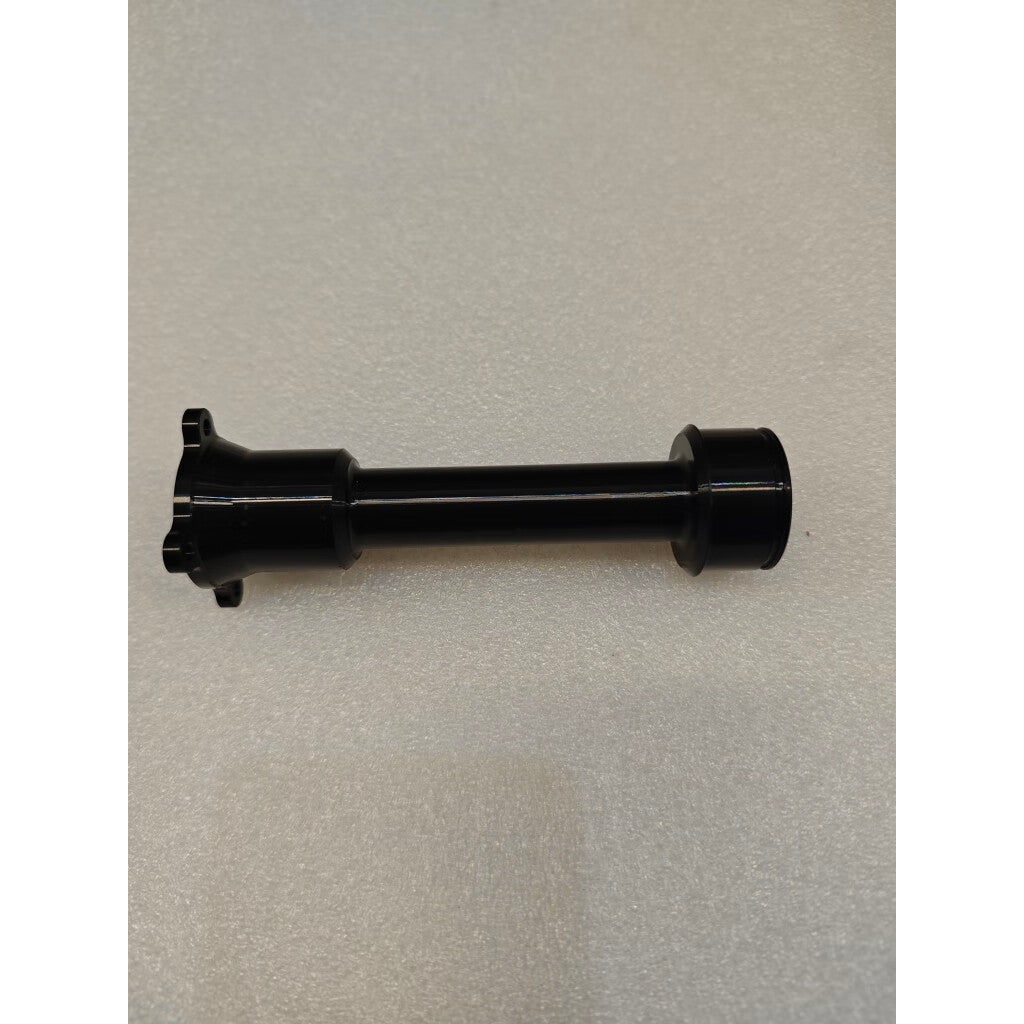

Shaft Sleeve Module (T100/T70P) BC.AG.SS001063
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
DJI supplies the shaft sleeve for the DJI Agras T100 and T70P spreader spinner as one complete module. It is callout 12 on the spinner disk sheet for both aircraft, listed with the spinner disk shaft and motor.
| Part number | BC.AG.SS001063 |
| Fits | DJI Agras T100, T70P |
| Parts diagram | T100 spreader spinner disk, callout 12; T70P spreader spinner disk, callout 12 |
As its name suggests, it is the sleeve around the spinner disk shaft, and because it is sold as a module it is replaced whole rather than rebuilt. Suspect it when the spinner has play or wobble that remains after the 21 mm bearing has been checked, or when the sleeve is cracked or visibly worn.
Brush off caked product before removal so grit does not drop into the shaft area, and note how the old module sits so the new one goes back the same way. Check the spinner disk shaft for scoring while it is exposed.
