DJI

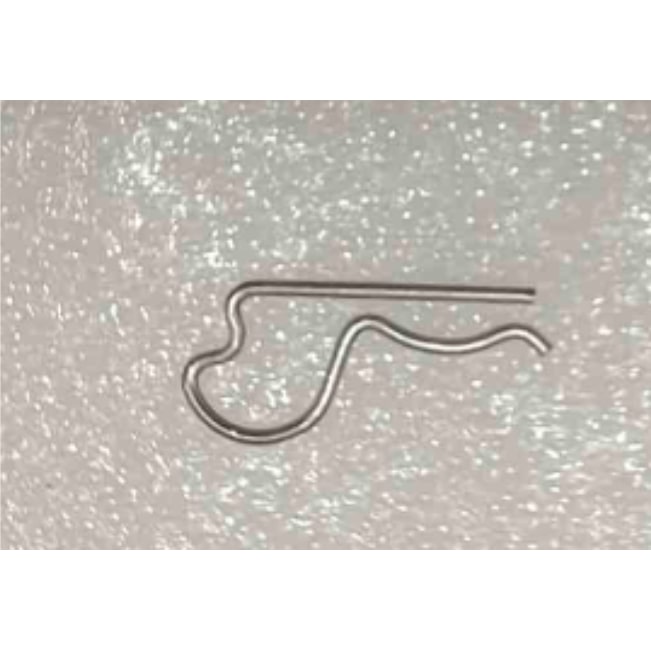

R-Type Pin (T100/T70P/T25P) YC.JG.TT000203
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Seven parts diagrams across the DJI Agras T100, T70P and T25P call for this R-type pin, a removable spring clip used on the spreader spinner disk, the mist kit and misting lance sprinklers, and the T25P spray lance.
| Part number | YC.JG.TT000203 |
| Fits | DJI Agras T100, T70P, T25P |
| Parts diagram | T100 spreader spinner disk, callout 2; T100 mist kit external spray boom, callout 2; T100 mist kit internal spray boom, callout 2; T70P misting spray lance, callout 1; T70P spreader spinner disk, callout 2; T25P spray lance, callout 5; T25P spreader (sheet 2), callout 3 |
An R-type pin pushes through a cross-drilled hole and hooks over the outside, stopping a nut or pin from working loose while still coming off by hand. On the T100 and T70P spinner disk sheets it is listed with the thumb nut, and on the sprinkler and lance sheets with the centrifugal sprinkler nut. Replace one that has sprung open, rusted or no longer grips, and keep a spare, since they are easily lost during field cleaning.
