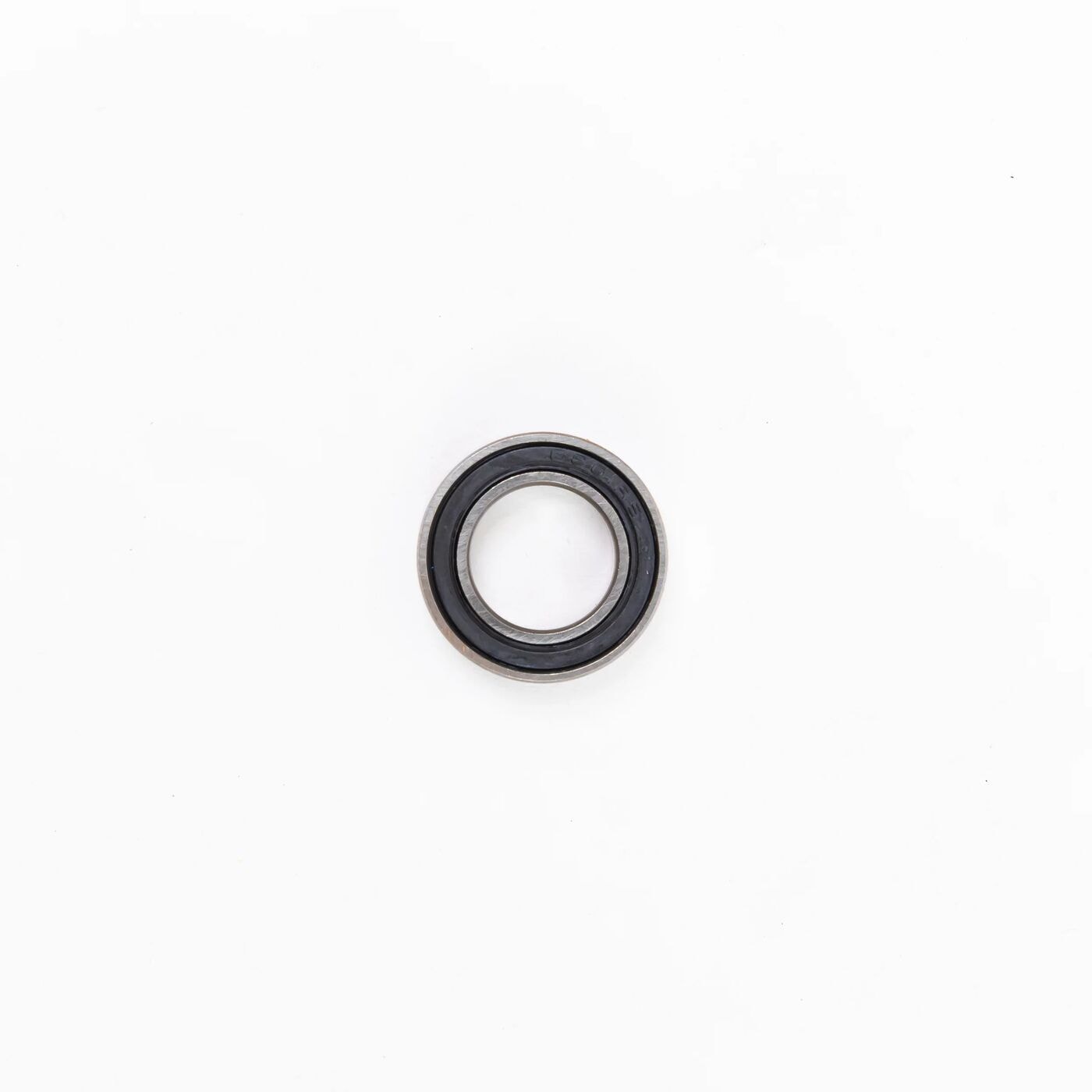

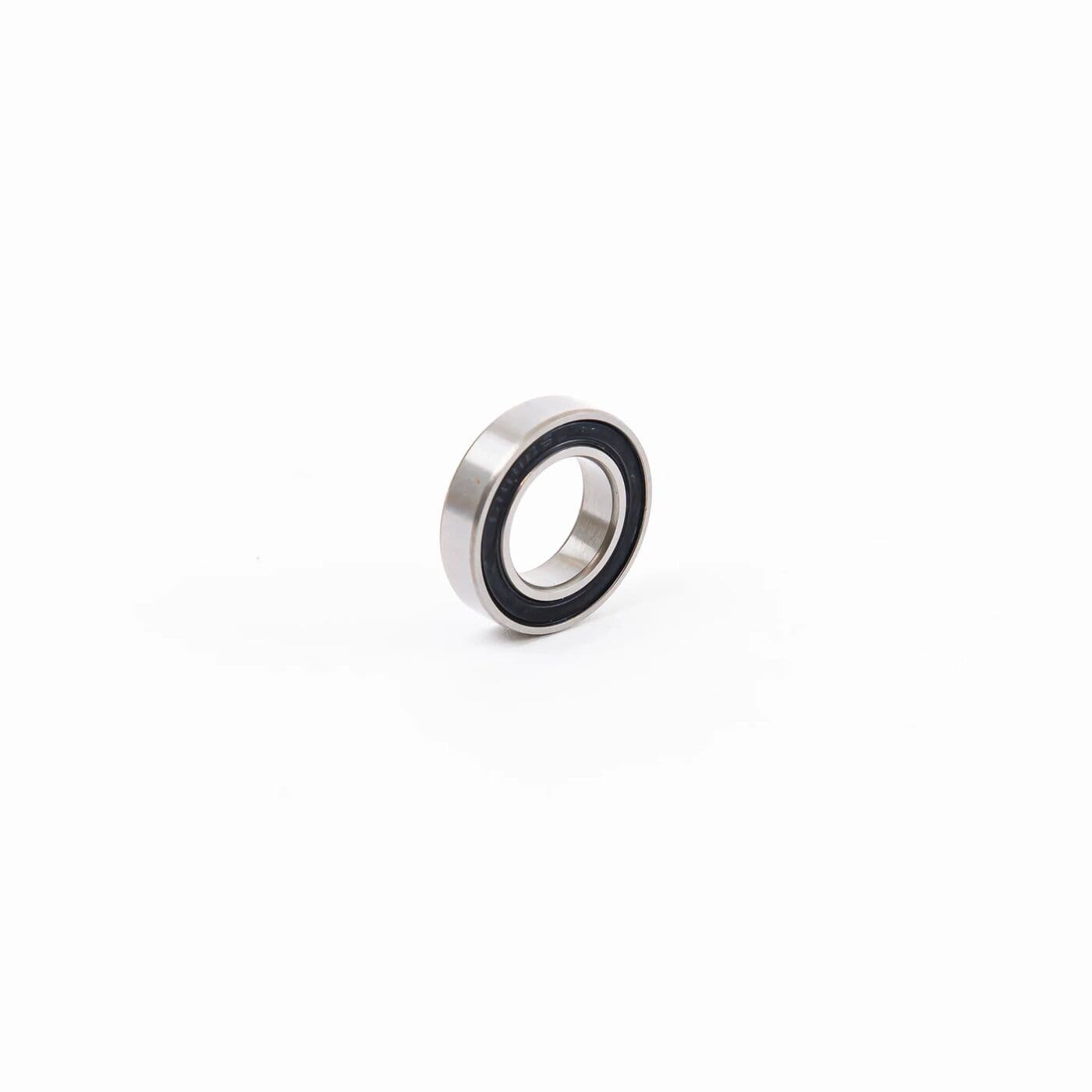

Bearing - OD 21 mm (T100/T70P) YC.ST.CT000163
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
This bearing, 21 mm across its outside diameter, is a rotating support in the spinner disk assembly of DJI Agras T100 and T70P spreaders and is callout 7 on both spinner disk sheets.
| Part number | YC.ST.CT000163 |
| Fits | DJI Agras T100, T70P |
| Parts diagram | T100 spreader spinner disk, callout 7; T70P spreader spinner disk, callout 7 |
The spinner runs at speed in fine, corrosive dust and then gets hosed down, a combination that is hard on its bearings. With the aircraft powered off, turn the disk by hand: grinding, a notchy feel, side play or a wobble at the rim can all suggest this bearing is on the way out.
Order by the DJI code, since the 21 mm figure alone does not describe a bearing fully. When fitting, apply force only to the ring being pressed in, and inspect the spinner disk shaft for wear. Renew the shaft sealing ring and dustproof cover from the same sheet if they are split, as they help keep dust out of that area.
