DJI Agras T50 M1 Aircraft Arm
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.
All T50 assemblies (15)

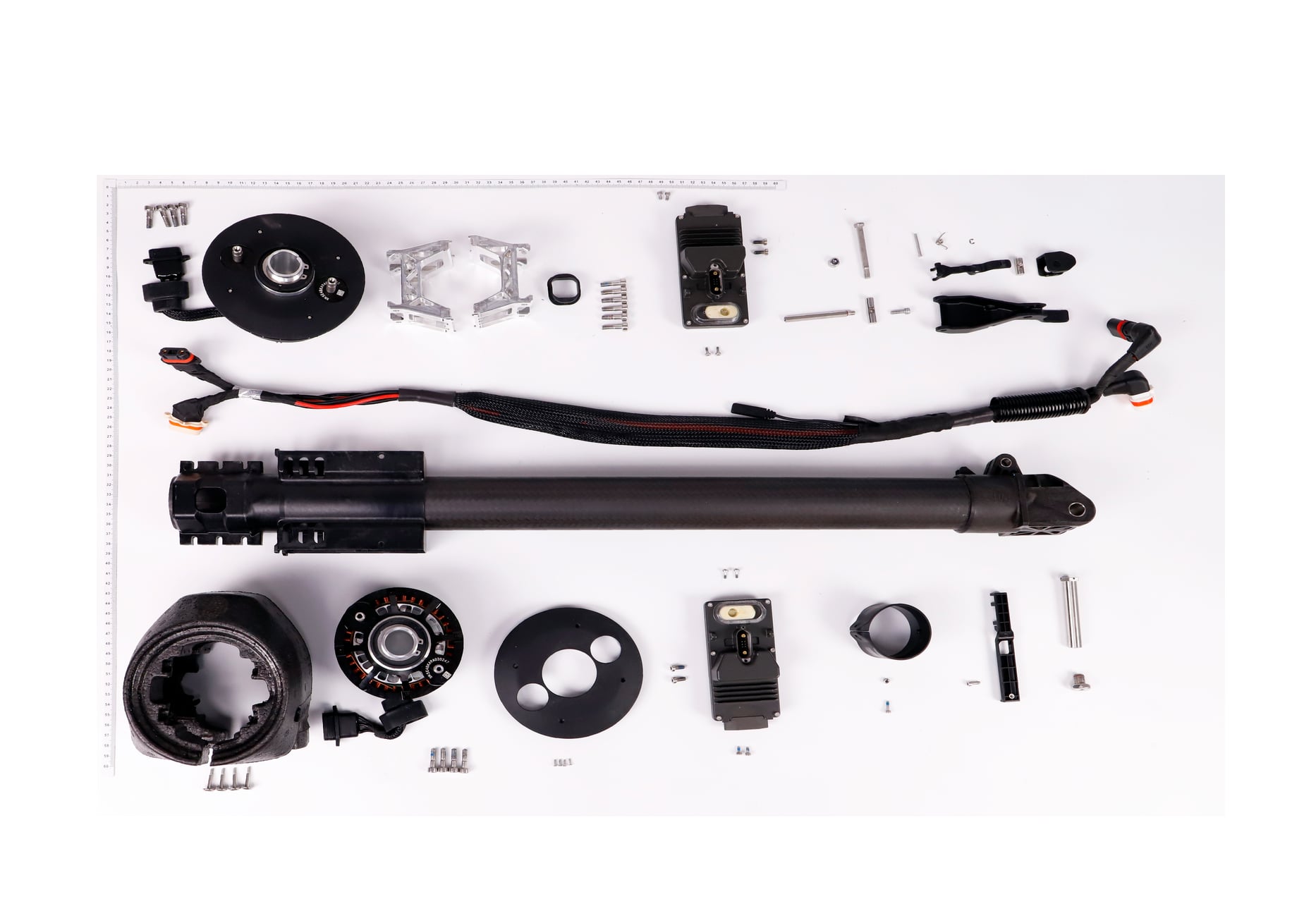

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.Tap a number to jump to it in the list. Use + to zoom in.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Screw M40-HC080080-68-85 YC.WJ.L01234 $3.60 | $3.60 | |
| 2 | ESC Module BC.AG.SS000700 $749.00 | $749.00 | |
| 3 | Cable Sealing Pad YC.JG.MY000399 $0.95 | $0.95 | |
| 4 | Screw M30-HC060060-55-85 YC.WJ.L00870 $2.05 | $2.05 | |
| 5 | Three Phase Cable Sealing Silicone Rubber YC.JG.MY000397 $0.95 | $0.95 | |
| 6 | Screw (M50-HF01900080-095050-5103-Y) YC.ST.LL000326 $0.95 | $0.95 | |
| 7 | Hose Rubber Sleeve YC.JG.MY001062 $6.00 | $6.00 | |
| 8 | Motor Base (Upper) YC.JG.QX003096 $35.00 | $35.00 | |
| 9 | Screw (M20-PC01200100-040010-0323-Y) YC.ST.LL000380 $2.50 | $2.50 | |
| 10 | Motor Base (Lower) YC.JG.QX003097 $35.00 | $35.00 | |
| 11 | 10033 Propulsion Motor BC.AG.SS000668 $580.00 | $580.00 | |
| 12 | Screw M25-HC00780040-040020-5108-N YC.ST.LL000122 $2.05 | $2.05 | |
| 13 | Motor Cover YC.JG.FP000028 $22.00 | $22.00 | |
| 14 | M30-HT01930060-110025-5103-Y YC.WJ.LL000213 $3.05 | $3.05 | |
| 15 | Screw (M20-PC01200100-040010-0323-Y) YC.ST.LL000380 $2.50 | $2.50 | |
| 16 | M20-TC00700060-033010-0004-Y YC.ST.LL000208 $0.95 | $0.95 | |
| 17 | Motor Upper Cover YC.JG.ZS002379 $11.00 | $11.00 | |
| 18 | Screw M30-HC100100-55-85 YC.WJ.L00871 $2.05 | $2.05 | |
| 19 | M3 Nut YC.WJ.L00877 $2.05 | $2.05 | |
| 20 | Anti-Wear Sleeve YC.JG.ZS003557 $13.00 | $13.00 | |
| 21 | Screw M30-HC100100-55-85 YC.WJ.L00871 $2.05 | $2.05 | |
| 22 | Aircraft Arm Fixing Screw YC.JG.LD000039 $4.40 | $4.40 | |
| 23 | In-Position Detector Bracket YC.JG.ZS002278 $11.00 | $11.00 | |
| 24 | Aircraft Arm Fixing Screw Bolt YC.JG.QX002314 $32.00 | $32.00 | |
| 25 | M1 Aircraft Arm (Front Right) BC.AG.SS000696 $469.00 | $469.00 | |
| 26 | M1&M2 Aircraft Arm ESC Composite Cable YC.XC.DD000573 $309.00 | $309.00 | |
| 27 | M40-HC01400140-070039-4105-Y YC.ST.LL000148 $11.95 | $11.95 | |
| 28 | Locking Piece Handle YC.JG.QX003012 $35.00 | $35.00 | |
| 29 | Locking Piece Handle Rubber Sleeve YC.JG.ZS003560 $13.00 | $13.00 | |
| 30 | Locking Piece_Handle Connecting Rod Shaft YC.JG.QX001243 (now supplied as YC.JG.QX004662) $16.00 | $16.00 | |
| 31 | Buckle Module BC.AG.SS000701 $2.50 | $2.50 | |
| 32 | E-Shaped Circlip (6 mm) YC.JG.BJ002409 $2.50 | $2.50 | |
| 33 | Buckle Torsion Spring YC.JG.TT000165 $2.50 | $2.50 | |
| 34 | Buckle Rotation Shaft YC.JG.QX003014 $56.80 | $56.80 | |
| 35 | Locking Piece Aircraft Arm Shaft YC.JG.QX002089 $13.00 | $13.00 | |
| 36 | Locking Piece Fixing Screw Bolt YC.JG.LD000041 $9.00 | $9.00 | |
| 37 | M60-HX100060-5103_01 YC.WJ.LM000044 $3.60 | $3.60 | |
| 38 | Locking Piece Connection Rod YC.JG.QX002088 $27.50 | $27.50 | |
| 25 | M2 Aircraft Arm (Front Left) BC.AG.SS000697 $469.00 | $469.00 | |
| (NEW) Locking Piece Handle YC.JG.BJ003468 $35.00 | $35.00 |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
