DJI Agras T50 Tank 2

Official DJI parts diagram and material list.

Pricing is per single item unless the part description says otherwise.

All T50 assemblies (15)

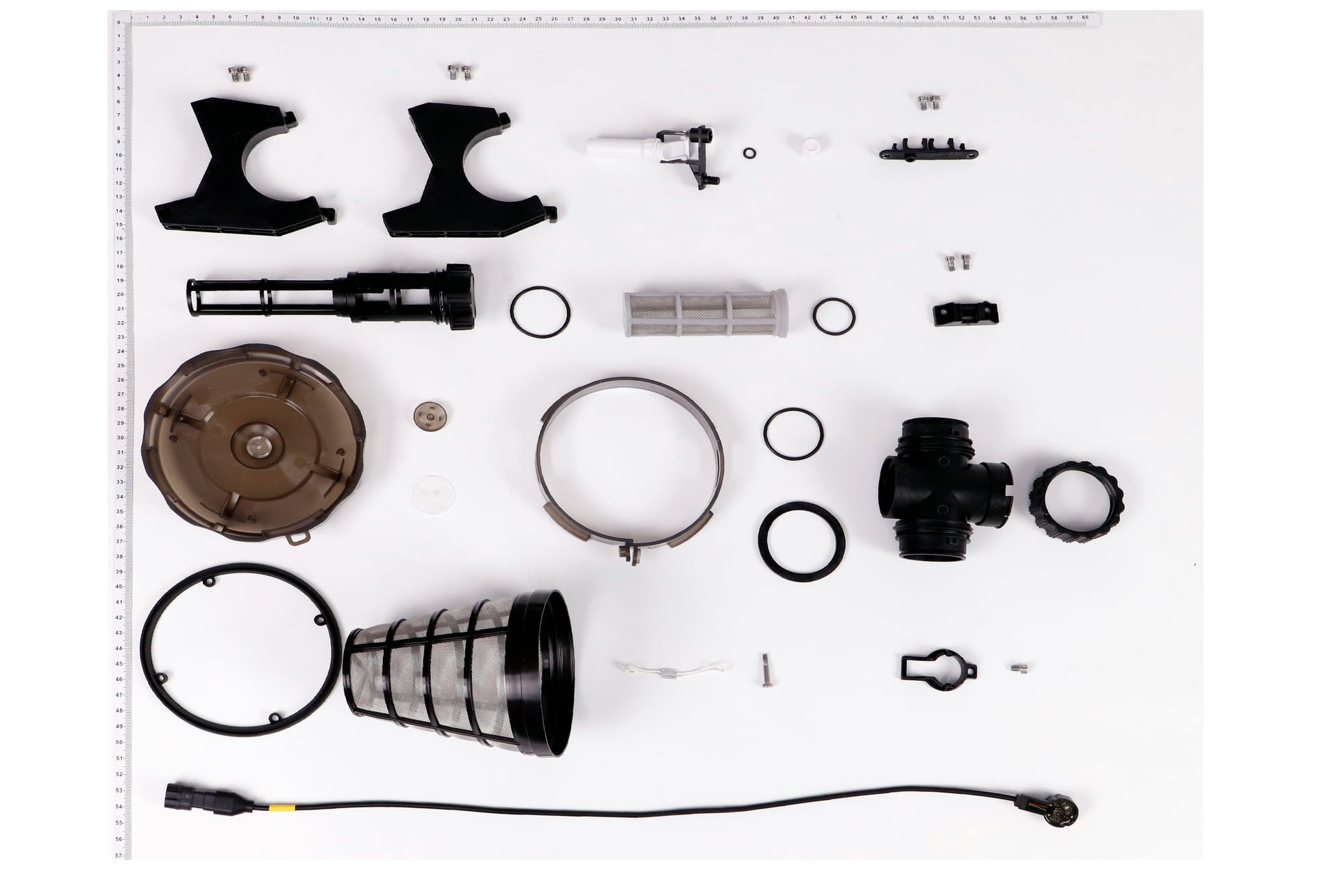

Parts Diagram

Hover a number to match it with the list. Double-click or use + to zoom.Tap a number to jump to it in the list. Use + to zoom in.

Open photo full size ↗

No.	Part	$ Each (inc. GST)
1	Screw M40-HC060060-55-85 YC.WJ.L00876 $2.05	$2.05
2	Impeller Pump Bracket YC.JG.ZS003392 $17.90	$17.90
3	Spray Tank Y-tee Part Sealing Ring YC.JG.MY000687 $3.80	$3.80
4	Quick-Release Filter YC.JG.ZS002235 $32.55	$32.55
5	Spray Tank Cover Waterproof Permeability Cover YC.JG.ZS002250 $0.95	$0.95
6	Spray Tank Cover YC.JG.ZS002251 $12.80	$12.80
7	Spray Tank Cover Waterproof Permeability Film YC.JG.MY000678 $2.85	$2.85
8	Spray Tank Cover Sealing Ring YC.JG.MY000679 $3.65	$3.65
9	Spray Tank Inlet Filter YC.JG.ZS001085 $27.95	$27.95
10	Liquid Level Gauge Sensor Module BC.AG.SS000709 $52.05	$52.05
11	Spread Tank Lanyard YC.BZ.RB000011 $3.60	$3.60
12	Screw M40-HC060060-55-85 YC.WJ.L00876 $2.05	$2.05
13	Liquid Level Gauge Bracket YC.JG.ZS002237 $0.95	$0.95
14	M30-HC02050080-070020-5103-Y_01 YC.WJ.LL000211 $2.05	$2.05
15	Damping Rubber Pad YC.JG.MY000845 $0.95	$0.95
16	Water Outlet Rotation Cover YC.JG.ZS002233 $9.50	$9.50
17	Spray Tank Y-tee Part YC.JG.ZS002232 $21.90	$21.90
18	Spray Tank Y-tee Part Sealing Ring YC.JG.MY000687 $3.80	$3.80
19	Spray Tank_Spray Tank Cover Ring YC.SJ.WS002423 $8.80	$8.80
20	Flow Meter Bracket YC.JG.ZS000984 $8.85	$8.85
21	Screw M40-HC00750040-060030-5103-N_01 YC.WJ.LL000188 $3.10	$3.10
22	Spray Tank_Filter Rubber Ring YC.SJ.J01186 $5.85	$5.85
23	Filter With 50 Holes YC.JG.ZS002429 $26.50	$26.50
24	Spray Tank_Liquid Level Meter Installation Nut Sealing Ring YC.XJ.QT000194 $3.05	$3.05
25	Spray Tank Cable Clip YC.JG.ZS003393 $6.00	$6.00
26	Screw M40-HC060060-55-85 YC.WJ.L00876 $2.05	$2.05
27	Spray Tank_Liquid Level Meter Installation Nut YC.SJ.WS002412 $8.85	$8.85
28	Spray Tank Liquid Level Meter BC.AG.SS000471 $32.60	$32.60

Can't spot your part? Search by part number on the search page or call 1300 916 075.
