DJI
Motor Base - Lower (T50) YC.JG.QX003097
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

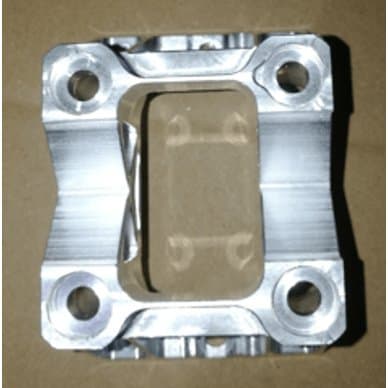

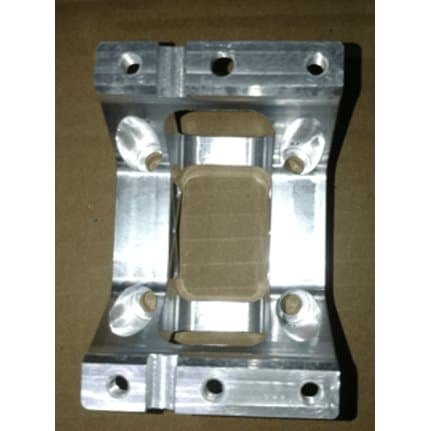

One of a pair of motor bases on the DJI Agras T50 arms, the lower motor base is drawn with the 10033 propulsion motor at callout 10 on the M1 aircraft arm sheet and callout 9 on the M3 sheet.
| Part number | YC.JG.QX003097 |
| Fits | DJI Agras T50 |
| Parts diagram | T50 M1 aircraft arm, callout 10; T50 M3 aircraft arm, callout 9 |
Its partner, the upper motor base, has a separate code, YC.JG.QX003096, so check which one is damaged before ordering. A propeller strike or heavy landing can crack a base or distort it; look for cracks around the screw holes, a propulsion motor that no longer sits square, or movement when the motor is rocked by hand.
Clean the mounting faces before the new base goes on and tighten its screws evenly. If the strike was hard, have the motor and arm looked at by our Horsham or Manjimup workshop as well.
