DJI Agras T50 Impeller Pump
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.
All T50 assemblies (15)

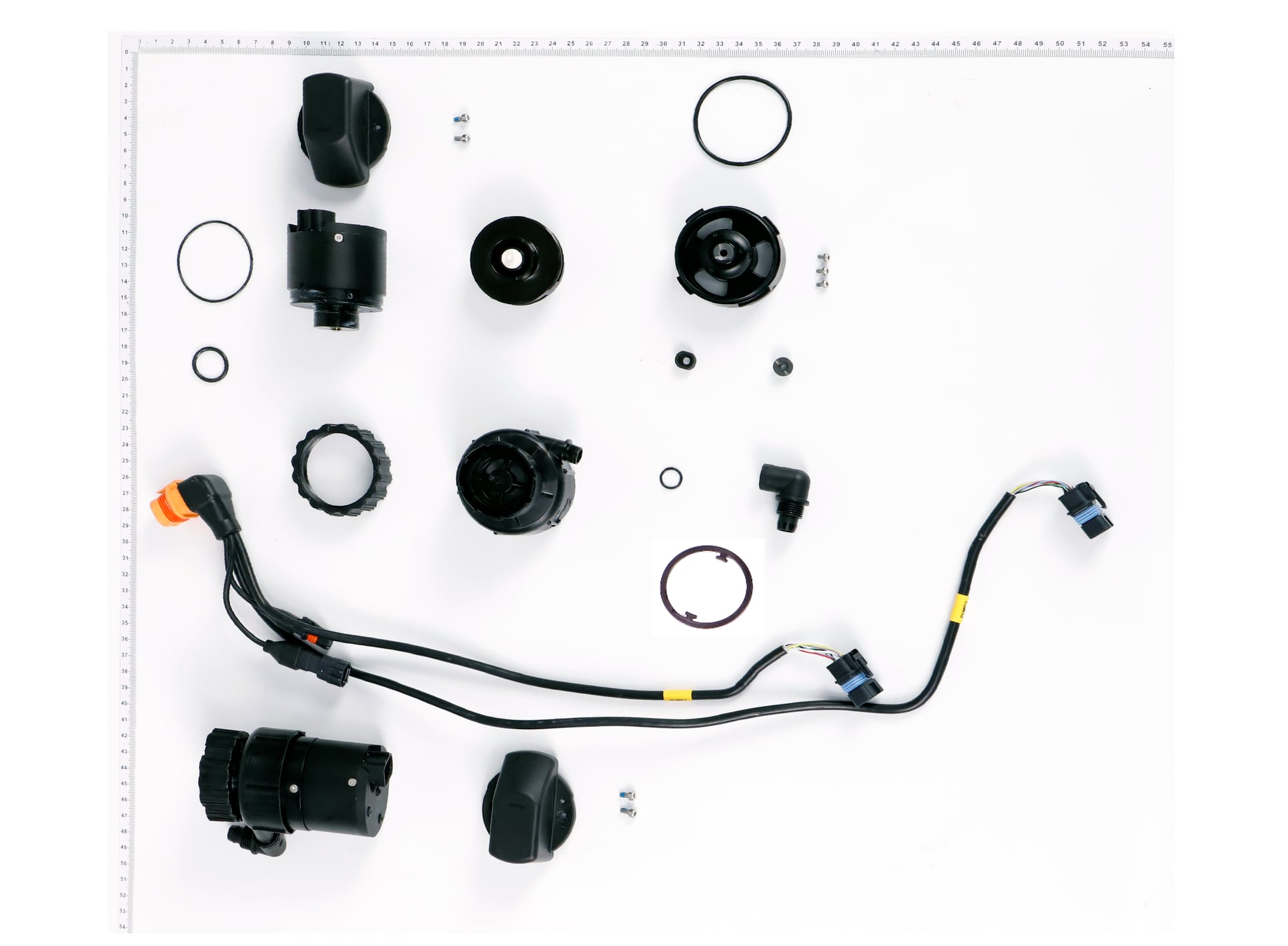

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.Tap a number to jump to it in the list. Use + to zoom in.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Screw M30-HC060060-55-85 YC.WJ.L00870 $2.05 | $2.05 | |
| 2 | Impeller Pump Protective Hood YC.JG.ZS002389 $11.00 | $11.00 | |
| 3 | Impeller Pump Motor BC.AG.SS000543 $449.00 | $449.00 | |
| 4 | Motor Sealing Ring YC.JG.MY000704 $5.50 | $5.50 | |
| 5 | Centrifugal Valve Rubber Pad YC.JG.MY000712 $2.85 | $2.85 | |
| 6 | Impeller Pump Shell YC.JG.ZS003418 $6.00 | $6.00 | |
| 7 | Water Outlet Rotation Cover YC.JG.ZS002233 $9.50 | $9.50 | |
| 8 | Pump Sealing Ring YC.JG.MY001052 $11.95 | $11.95 | |
| 9 | Spraying Signal Cable YC.XC.XX001002 $89.90 | $89.90 | |
| 10 | Y-tee Part Sealing Pad YC.JG.MY001053 $6.00 | $6.00 | |
| 11 | Impeller Pump Curving Connector YC.JG.ZS003420 $6.00 | $6.00 | |
| 12 | Pump_Connector Sealing Ring YC.XJ.QT000350 $2.50 | $2.50 | |
| 13 | Anti-Wear Gasket YC.JG.QX002485 $33.15 | $33.15 | |
| 14 | Damping Pad YC.JG.MY000832 $1.25 | $1.25 | |
| 15 | Screw M25-HC00400040-050020-0003-N YC.WJ.LL000138 $3.60 | $3.60 | |
| 16 | Impeller Pump Spacing Sleeve YC.JG.ZS003417 $37.85 | $37.85 | |
| 17 | Impeller Pump Module BC.AG.SS000710 $47.35 | $47.35 |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
