DJI Agras T50 Rear Frame
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.
All T50 assemblies (15)

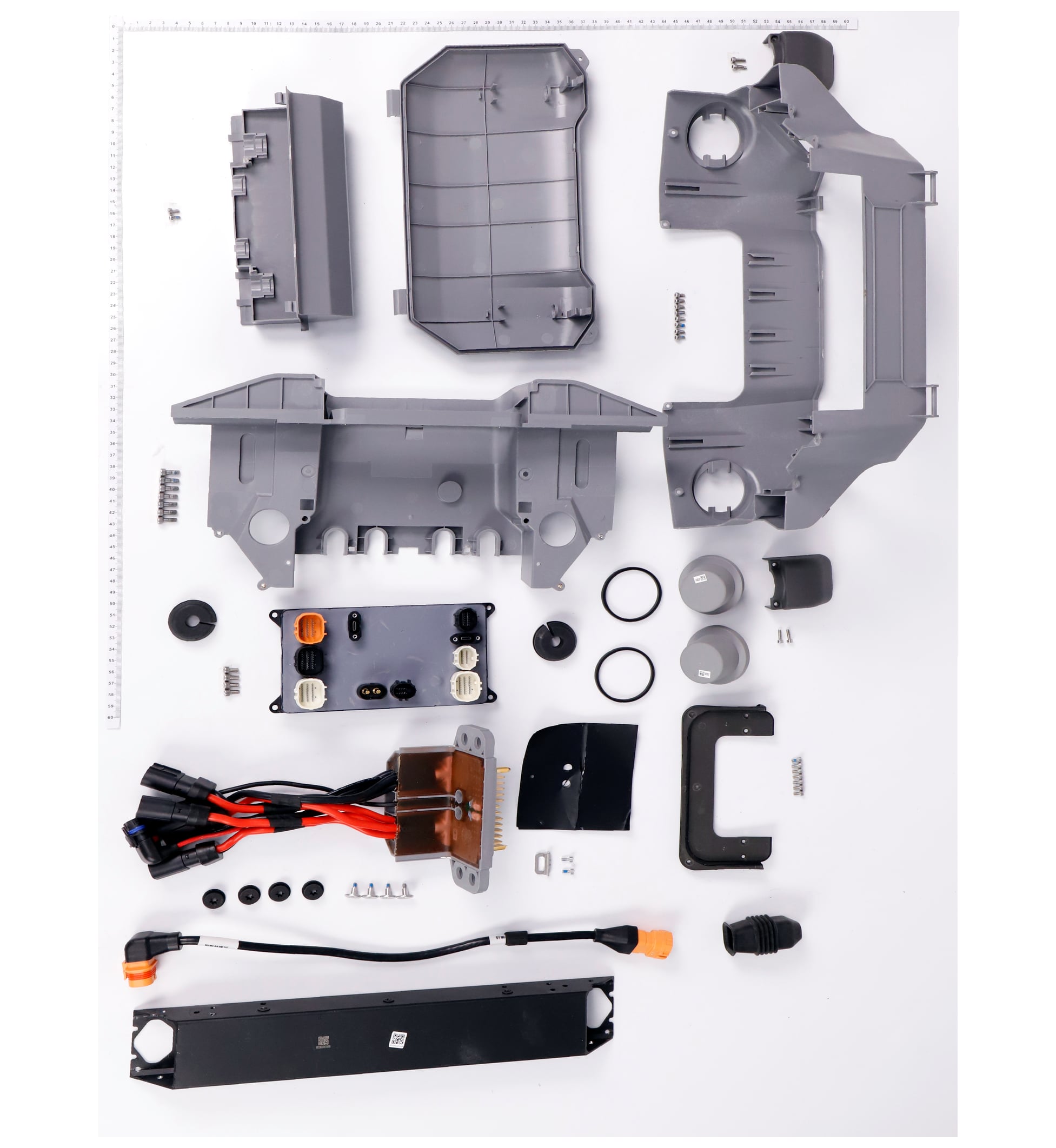

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.Tap a number to jump to it in the list. Use + to zoom in.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Rear Cover of Rear Shell YC.JG.ZS003396 $22.00 | $22.00 | |
| 2 | Lower Cover of Rear Shell YC.JG.ZS003443 $22.00 | $22.00 | |
| 3 | Screw M30-HC060060-55-85 YC.WJ.L00870 $2.05 | $2.05 | |
| 4 | Rear Shell Bottom Plate YC.JG.ZS003395 $43.00 | $43.00 | |
| 5 | M40-HC01000100-072028-5103-N_01 YC.WJ.LL000232 $2.05 | $2.05 | |
| 6 | Rear Shell Sealing Stopper YC.JG.MY001058 $2.50 | $2.50 | |
| 7 | Spraying Power Module BC.AG.SS000690 $769.00 | $769.00 | |
| 8 | M40-HC01000100-072028-5103-N_01 YC.WJ.LL000232 $2.05 | $2.05 | |
| 9 | Power Distribution Board Module BC.AG.SS000691 $659.00 | $659.00 | |
| 10 | Damping Pad YC.JG.MY001054 $2.50 | $2.50 | |
| 11 | Screw (M30-HC01150050-120020-5103-Y) YC.ST.LL000335 $2.50 | $2.50 | |
| 12 | Spraying Adaptive Cable YC.XC.XX001001 $80.45 | $80.45 | |
| 13 | Rear Frame Aluminum Tube BC.AG.SS000692 $80.45 | $80.45 | |
| 14 | Adaptive Cable Rubber Sleeve YC.JG.MY001057 $22.00 | $22.00 | |
| 15 | Battery Buckle YC.JG.FM000122 $17.90 | $17.90 | |
| 16 | Screw (M30-HC100100-55-85) YC.ST.LL000336 $2.50 | $2.50 | |
| 17 | Power Distribution Board Waterproof Cover YC.JG.ZS003588 $17.90 | $17.90 | |
| 18 | Screw (M30-HC00550045-055012-5103-Y) YC.ST.LL000382 $2.50 | $2.50 | |
| 19 | Glue Baffle Plate YC.JG.MQ001973 $6.00 | $6.00 | |
| 20 | RTK Antenna Module BC.AG.SS000694 $113.55 | $113.55 | |
| 21 | Screw M30-HC060060-55-85 YC.WJ.L00870 $2.05 | $2.05 | |
| 22 | Outer Shell Side Cover YC.JG.ZS003452 $11.95 | $11.95 | |
| 23 | RTK Rubber Ring YC.JG.MY001073 $2.50 | $2.50 | |
| 24 | Screw M30-HC060060-55-85 YC.WJ.L00870 $2.05 | $2.05 | |
| 25 | Rear Shell Module YC.JG.ZS003397 $43.00 | $43.00 |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
