DJI Agras T50 Cable Distribution Board Module
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.
All T50 assemblies (15)

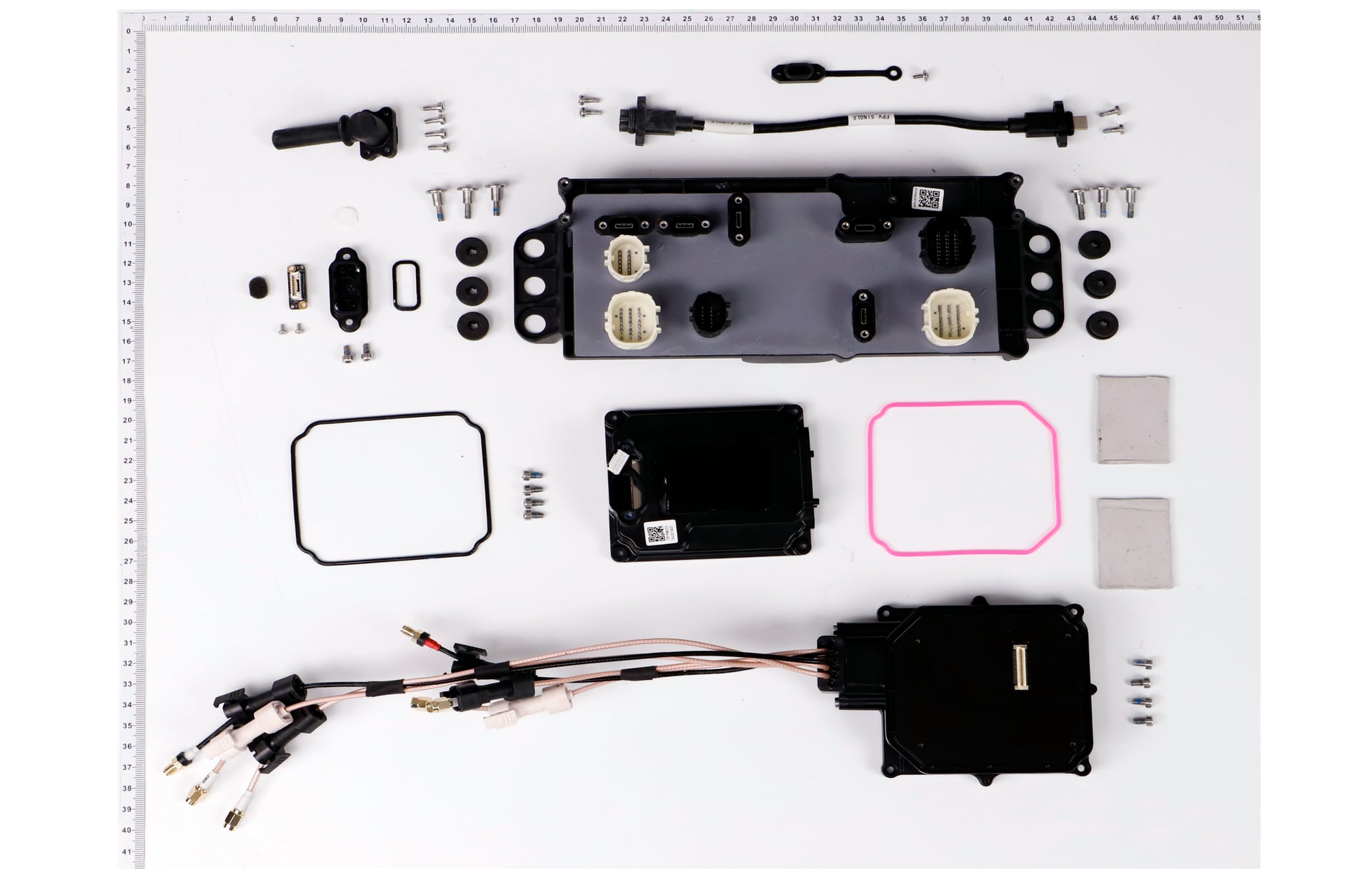

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.Tap a number to jump to it in the list. Use + to zoom in.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Screw M25-HC00780040-040020-5108-N YC.ST.LL000122 $2.05 | $2.05 | |
| 2 | Barometer Curving Connector YC.JG.MY000797 $11.95 | $11.95 | |
| 3 | Barometer Waterproof Permeability Film YC.QT.QT000167 $3.05 | $3.05 | |
| 4 | Barometer Outer Shell YC.JG.ZS002301 $6.00 | $6.00 | |
| 5 | Barometer Board BC.AG.PP000354 $23.90 | $23.90 | |
| 6 | Barometer Protection Foam YC.PM.QT000137 $2.05 | $2.05 | |
| 7 | T20-PC00400040-040010-5103-N YC.ST.LL000236 $0.95 | $0.95 | |
| 8 | Screw M30-HC060060-55-85 YC.WJ.L00870 $2.05 | $2.05 | |
| 9 | Barometer Module Sealing Ring YC.JG.MY000699 $0.95 | $0.95 | |
| 10 | Aerial-Electronics Module Sealing Ring YC.JG.MY001046 $2.50 | $2.50 | |
| 11 | Screw M30-HC060060-55-85 YC.WJ.L00870 $2.05 | $2.05 | |
| 12 | Aerial-Electronics System Module (L) BC.AG.SS000838 $1,999.00 | $1,999.00 | |
| 13 | Screw M30-HC060060-55-85 YC.WJ.L00870 $2.05 | $2.05 | |
| 14 | RF Module BC.AG.SS000675 $1,999.00 | $1,999.00 | |
| 15 | RF Sealing Ring YC.JG.MY001045 $2.50 | $2.50 | |
| 16 | Aerial-Electronics Module RF Thermal Conductive Pad YC.JG.MQ001294 $1.95 | $1.95 | |
| 17 | Cable Distribution Board Module BC.AG.SS000676 $609.00 | $609.00 | |
| 18 | Damping Pad YC.JG.MY000757 $2.50 | $2.50 | |
| 19 | M30-HC01450080-100020-5103-Y YC.ST.LL000226 $0.95 | $0.95 | |
| 20 | FPV Camera Signal Cable YC.XC.XX001014 $47.35 | $47.35 | |
| 21 | Screw M25-HC00780040-040020-5108-N YC.ST.LL000122 $2.05 | $2.05 | |
| 22 | M20-HPW00600060-065016-5103-Y_02 YC.WJ.LL000235 $0.75 | $0.75 | |
| 23 | Type-C Port Waterproof Cover YC.JG.MY000389 $3.05 | $3.05 |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
