DJI

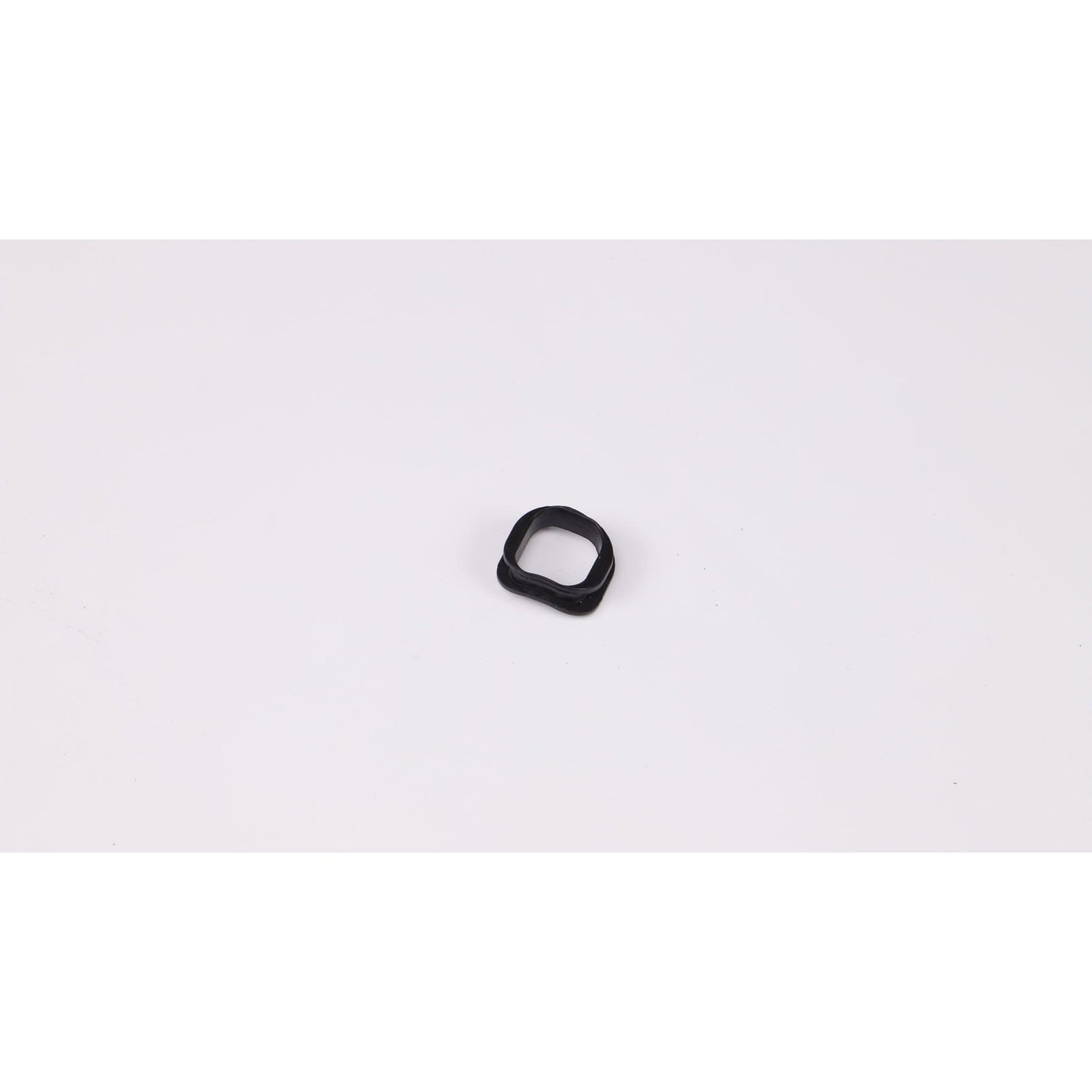

Hose Rubber Sleeve (T50) YC.JG.MY001062
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
The spray hose in a DJI Agras T50 arm is guarded by this rubber sleeve, callout 7 on the T50 M1 aircraft arm sheet and callout 6 on the M3 aircraft arm sheet.
| Part number | YC.JG.MY001062 |
| Fits | DJI Agras T50 |
| Parts diagram | T50 M1 aircraft arm, callout 7; T50 M3 aircraft arm, callout 6 |
Check it whenever the hose is taken out, or if the hose shows a worn patch or leaks near the arm. A sleeve that has split, perished or slid out of place no longer stops the hose chafing, and a chafed hose can leak mix inside the arm. Ease the new sleeve on with a little clean water and line it up where the old one sat.
On both arm sheets it is numbered between the M50-HF01900080-095050-5103-Y screw and the upper motor base.
