DJI

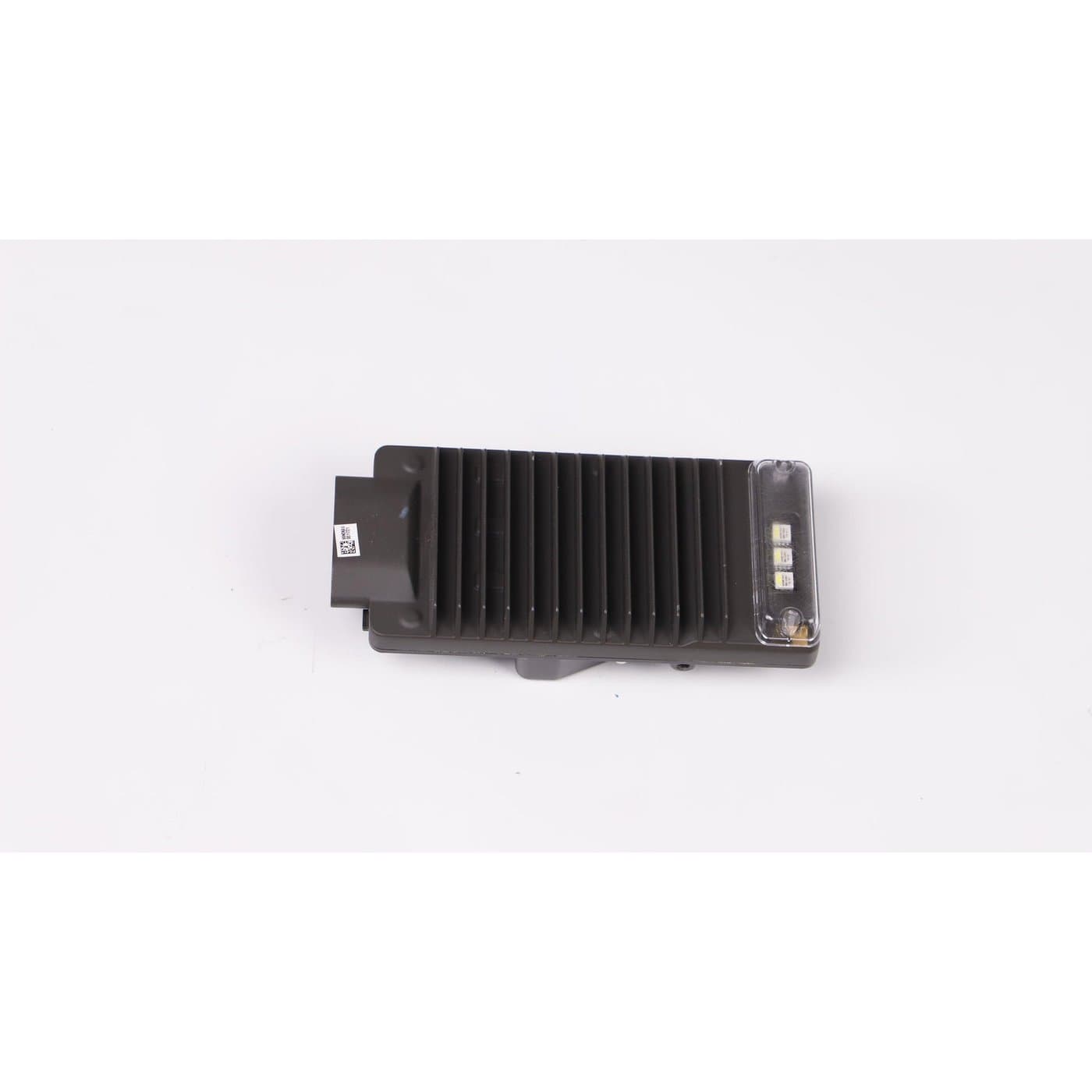

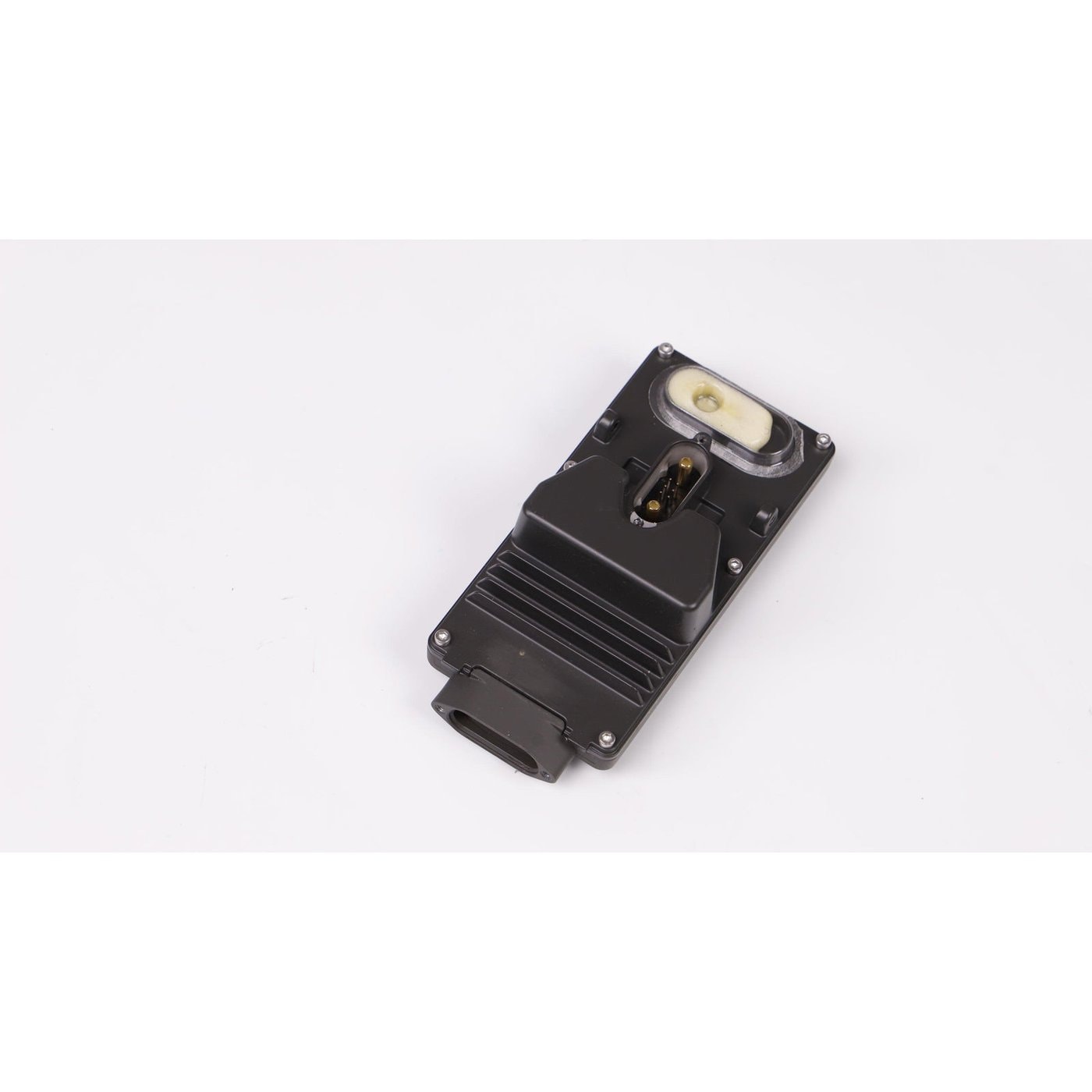

ESC Module (T50) BC.AG.SS000700
Shipping: Standard Parcel, $27 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
The ESC module drives the propulsion motor on a DJI Agras T50 arm. It is shown as callout 2 on the T50 M1 aircraft arm sheet and callout 3 on the M3 aircraft arm sheet.
| Part number | BC.AG.SS000700 |
| Fits | DJI Agras T50 |
| Parts diagram | T50 M1 aircraft arm, callout 2; T50 M3 aircraft arm, callout 3 |
An ESC fault often shows as a motor that will not spin up, an ESC or motor error in the app, or an arm that runs hot or stutters. The same symptoms can come from the 10033 propulsion motor, a wet connector or a damaged three-phase cable, so have the fault confirmed at our Horsham or Manjimup workshop before buying an ESC. Renew the cable sealing pad and three-phase silicone rubber when a new ESC is fitted.
Each model has its own ESC module: T70P BC.AG.SS001022, T25P BC.AG.SS000869 and T100 BC.AG.SS001189.
