DJI

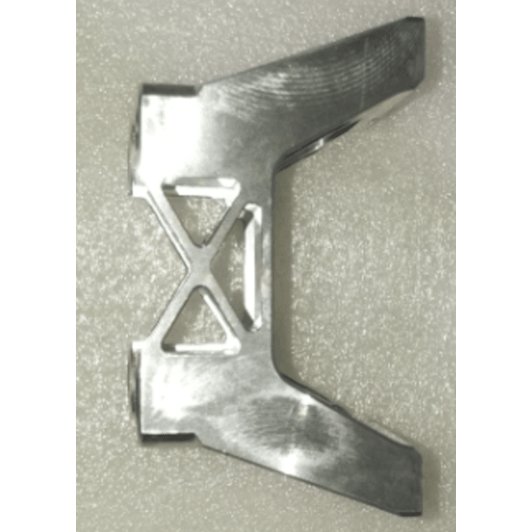

Motor Base - Upper (T50) YC.JG.QX003096
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
The upper half of the motor base on a DJI Agras T50 arm, callout 8 on the T50 M1 aircraft arm sheet and callout 7 on the M3 aircraft arm sheet. The lower half is a separate part.
| Part number | YC.JG.QX003096 |
| Fits | DJI Agras T50 |
| Parts diagram | T50 M1 aircraft arm, callout 8; T50 M3 aircraft arm, callout 7 |
Upper and lower halves have their own codes: this is YC.JG.QX003096 and the lower motor base is YC.JG.QX003097. Replace it if it is cracked, has a stripped thread or broken screw boss, or if the motor no longer sits square and still after a propeller strike.
A motor that moves in a damaged base puts extra strain on the propeller and the motor, so if the base took a hard knock, have the arm and the 10033 propulsion motor checked at our Horsham or Manjimup workshop. The motor cover is callout 13 on the M1 sheet.
