DJI Agras T50 Front Frame
Official DJI parts diagram and material list.
Pricing is per single item unless the part description says otherwise.
All T50 assemblies (15)

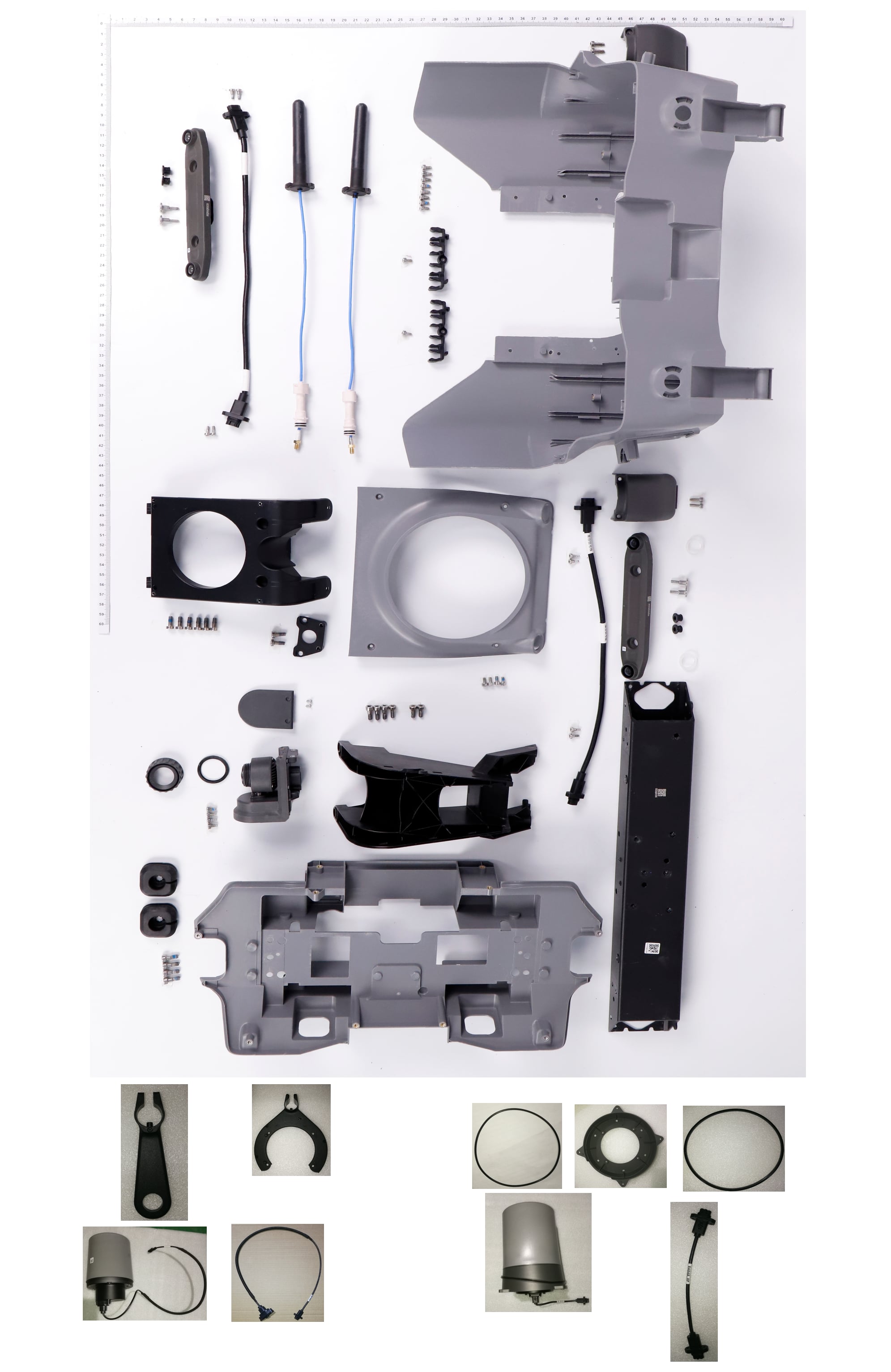

Parts Diagram
Hover a number to match it with the list. Double-click or use + to zoom.Tap a number to jump to it in the list. Use + to zoom in.
| No. | Part | $ Each (inc. GST) | |
|---|---|---|---|
| 1 | Screw M30-HC060060-55-85 YC.WJ.L00870 $2.05 | $2.05 | |
| 2 | SDR Antenna (Front) YC.DZ.AA000326 $37.85 | $37.85 | |
| 3 | Screw M25-HC00780040-040020-5108-N YC.ST.LL000122 $2.05 | $2.05 | |
| 4 | Forward Vision Sensor Signal Cable YC.XC.XX001013 $47.35 | $47.35 | |
| 5 | Damping Silicone Rubber YC.JG.MY001038 $2.50 | $2.50 | |
| 6 | Forward Vision Sensor Module (Incl. Signal Cable) BC.AG.SS000671 $208.80 | $208.80 | |
| 7 | M30-HC01450080-100020-5103-Y YC.ST.LL000226 $0.95 | $0.95 | |
| 8 | T30-HC00800080-057030-5103-N YC.ST.LL000235 $0.95 | $0.95 | |
| 9 | RF Cable Clip YC.JG.ZS003455 $2.50 | $2.50 | |
| 10 | Top Cover of Front Shell YC.JG.ZS003389 $11.95 | $11.95 | |
| 11 | Forward Radar Bracket YC.JG.YZ000671 $65.00 | $65.00 | |
| 12 | FPV Camera Bracket Supporting Piece YC.JG.QX003038 $6.00 | $6.00 | |
| 13 | Screw M40-HC01400140-070039-0003-Y YC.ST.LL000013 $2.05 | $2.05 | |
| 14 | M40-HC01000100-072028-5103-N_01 YC.WJ.LL000232 $2.05 | $2.05 | |
| 15 | M40-HC01000100-072028-5103-N_01 YC.WJ.LL000232 $2.05 | $2.05 | |
| 16 | M20-PC00400040-040010-5103-Y YC.ST.LL000228 $0.95 | $0.95 | |
| 17 | Auxiliary Arm YC.JG.ZS003435 $2.50 | $2.50 | |
| 18 | Lens Cap Sealing Gasket YC.JG.MY000985 $2.50 | $2.50 | |
| 19 | Lens Cap Module BC.AG.SS000682 $33.15 | $33.15 | |
| 20 | Screw M30-HC060060-55-85 YC.WJ.L00870 $2.05 | $2.05 | |
| 21 | FPV Camera Module BC.AG.SS000681 $659.00 | $659.00 | |
| 22 | Front Shell Sealing Stopper YC.JG.MY001079 $2.50 | $2.50 | |
| 23 | M40-HC01400140-070039-4105-Y YC.ST.LL000148 $11.95 | $11.95 | |
| 24 | Front Shell Bottom Plate YC.JG.ZS003388 $37.85 | $37.85 | |
| 25 | Front Frame Aluminum Tube BC.AG.SS000672 $108.85 | $108.85 | |
| 26 | FPV Camera Bracket YC.JG.ZS003425 $37.85 | $37.85 | |
| 27 | M40-HC01000100-072028-5103-N_01 YC.WJ.LL000232 $2.05 | $2.05 | |
| 28 | Screw M30-HC060060-55-85 YC.WJ.L00870 $2.05 | $2.05 | |
| 29 | Binocular Vision Sensors Sealing Ring YC.JG.MY001044 $6.00 | $6.00 | |
| 30 | Screw M30-HC060060-55-85 YC.WJ.L00870 $2.05 | $2.05 | |
| 31 | Outer Shell Side Cover YC.JG.ZS003452 $11.95 | $11.95 | |
| 32 | Front Shell Module YC.JG.ZS003387 $65.00 | $65.00 | |
| 33 | Radar Sealing Ring YC.JG.MY001041 $2.50 | $2.50 | |
| 34 | Forward Radar Base YC.JG.YZ000672 $59.00 | $59.00 | |
| 35 | Radar Base Sealing Ring YC.JG.MY001042 $2.50 | $2.50 | |
| 36 | Forward Radar Module (Incl. Signal Cable) BC.AG.SS000678 (now supplied as BC.AG.SS000939) $2,499.00 | $2,499.00 | |
| 37 | Forward Radar Signal Cable YC.XC.XX001011 $28.40 | $28.40 | |
| 38 | Radar Left Supporting Piece YC.JG.ZS003493 $6.00 | $6.00 | |
| 39 | Radar Right Supporting Piece YC.JG.ZS003492 $2.50 | $2.50 | |
| 40 | Rear Radar Module (Incl. Signal Cable) BC.AG.SS000693 (now supplied as BC.AG.SS000940) $2,299.00 | $2,299.00 | |
| 41 | Rear Vision Radar Signal Cable YC.XC.XX001012 $47.35 | $47.35 | |
| Screw M30-HC080080-55-85 YC.WJ.L00868 $3.05 | $3.05 |
Can't spot your part? Search by part number on the search page or call 1300 916 075.
