DJI Agras T50 Middle Frame

Official DJI parts diagram and material list.

Pricing is per single item unless the part description says otherwise.

All T50 assemblies (15)

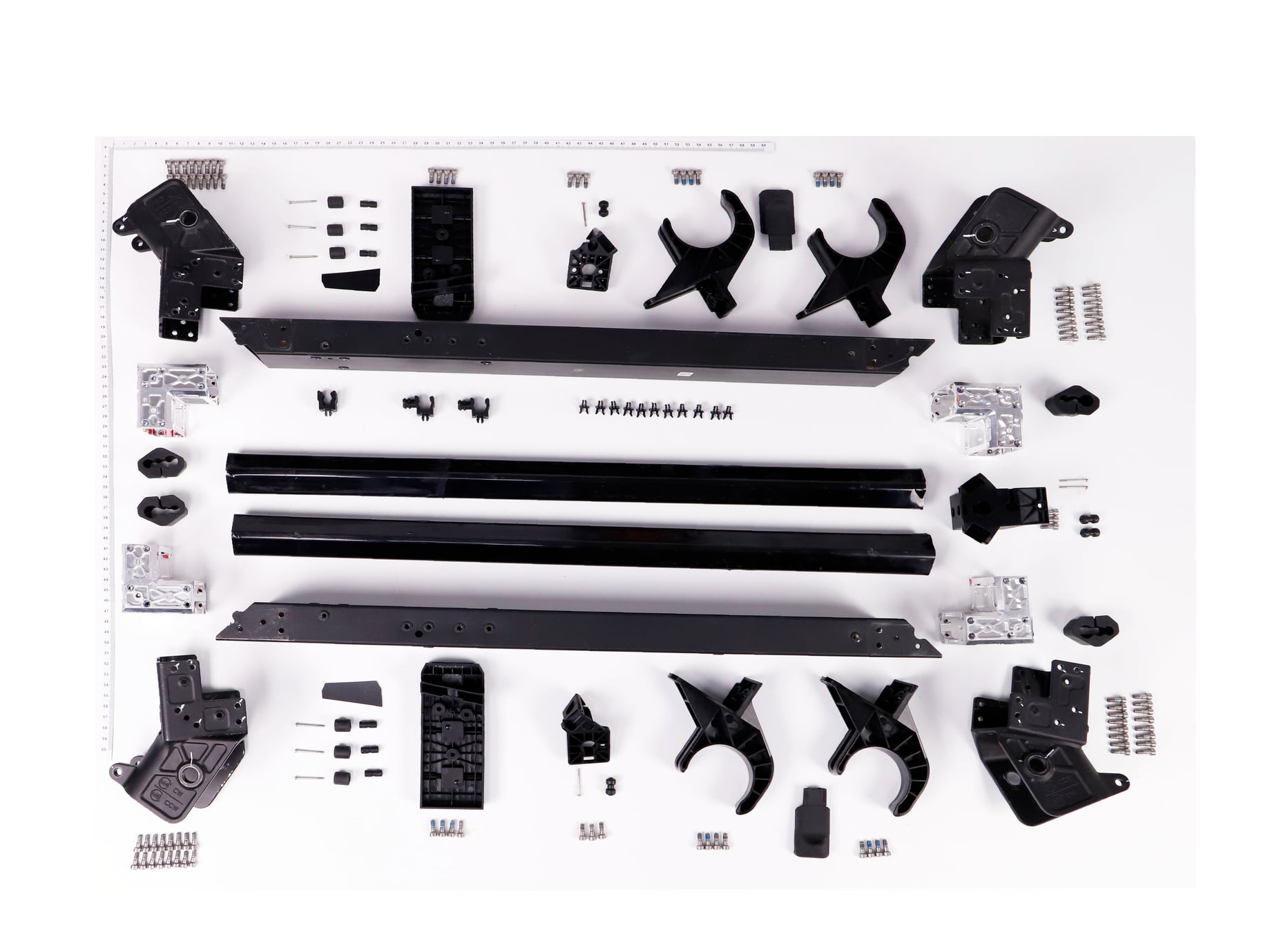

Parts Diagram

Hover a number to match it with the list. Double-click or use + to zoom.Tap a number to jump to it in the list. Use + to zoom in.

Open photo full size ↗

No.	Part	$ Each (inc. GST)
1	Battery Supporting Piece (Left) YC.JG.ZS003438 $8.00	$8.00
2	M40-HC01000100-072028-5103-N_01 YC.WJ.LL000232 $2.05	$2.05
3	Battery Supporting Piece Patch (Left) YC.JG.MQ001385 $0.95	$0.95
4	Spray Tank Fixing Piece_Internal Roller YC.SJ.WS002500 $9.00	$9.00
5	Battery Fixing Piece_External Roller YC.XJ.QT000247 $7.90	$7.90
6	Spray Tank Fixing Piece_Roller Shaft YC.WJ.ZZ002618 $3.05	$3.05
7	M3 Aircraft Arm Connector BC.AG.SS000685 $165.60	$165.60
8	Middle Frame Aluminum Tube (Left) BC.AG.SS000687 $127.75	$127.75
9	Cable Clip YC.JG.ZS003589 $1.25	$1.25
10	Middle Frame Insert Part YC.JG.QX003017 $25.90	$25.90
11	Hose Clip YC.JG.ZS003479 $3.10	$3.10
12	Cable Tube Rubber Stopper YC.JG.MY001051 $6.00	$6.00
13	Cable Tube YC.JG.JS000035 $23.90	$23.90
14	Middle Frame Aluminum Tube (Right) BC.AG.SS000688 $127.75	$127.75
15	M4 Aircraft Arm Connector BC.AG.SS000686 $165.60	$165.60
16	Battery Supporting Piece Patch (Right) YC.JG.MQ001386 $0.95	$0.95
17	Battery Supporting Piece (Right) YC.JG.ZS003439 $8.00	$8.00
18	Weighing Sensor Bracket (Right) YC.JG.ZS003599 $11.95	$11.95
19	Aircraft Arm Fixing Piece (Right) YC.JG.ZS003463 $6.00	$6.00
20	M1 Aircraft Arm Connector BC.AG.SS000683 $165.60	$165.60
21	Weighing Sensor Bracket (Front) YC.JG.ZS003601 $11.95	$11.95
22	Load Sensor Cable Clip YC.JG.ZS002229 $0.95	$0.95
23	Screw (M40-HC01050056-070039-5103-Y) YC.ST.LL000327 $2.50	$2.50
24	M2 Aircraft Arm Connector BC.AG.SS000684 $165.60	$165.60
25	Aircraft Arm Fixing Piece (Left) YC.JG.ZS003462 $6.00	$6.00
26	M40-HC01400140-070039-4105-Y YC.ST.LL000148 $11.95	$11.95
27	Anti-Collision Pad YC.JG.MY001055 $2.50	$2.50
28	Weighing Sensor Bracket (Left) YC.JG.ZS003600 $11.95	$11.95
29	Weighing Sensor Bracket Roller YC.JG.ZS003602 $6.00	$6.00
30	M40-HC01000100-072028-5103-N_01 YC.WJ.LL000232 $2.05	$2.05
31	Spray Tank Fixing Piece_Roller Shaft YC.WJ.ZZ002618 $3.05	$3.05

Can't spot your part? Search by part number on the search page or call 1300 916 075.
