DJI

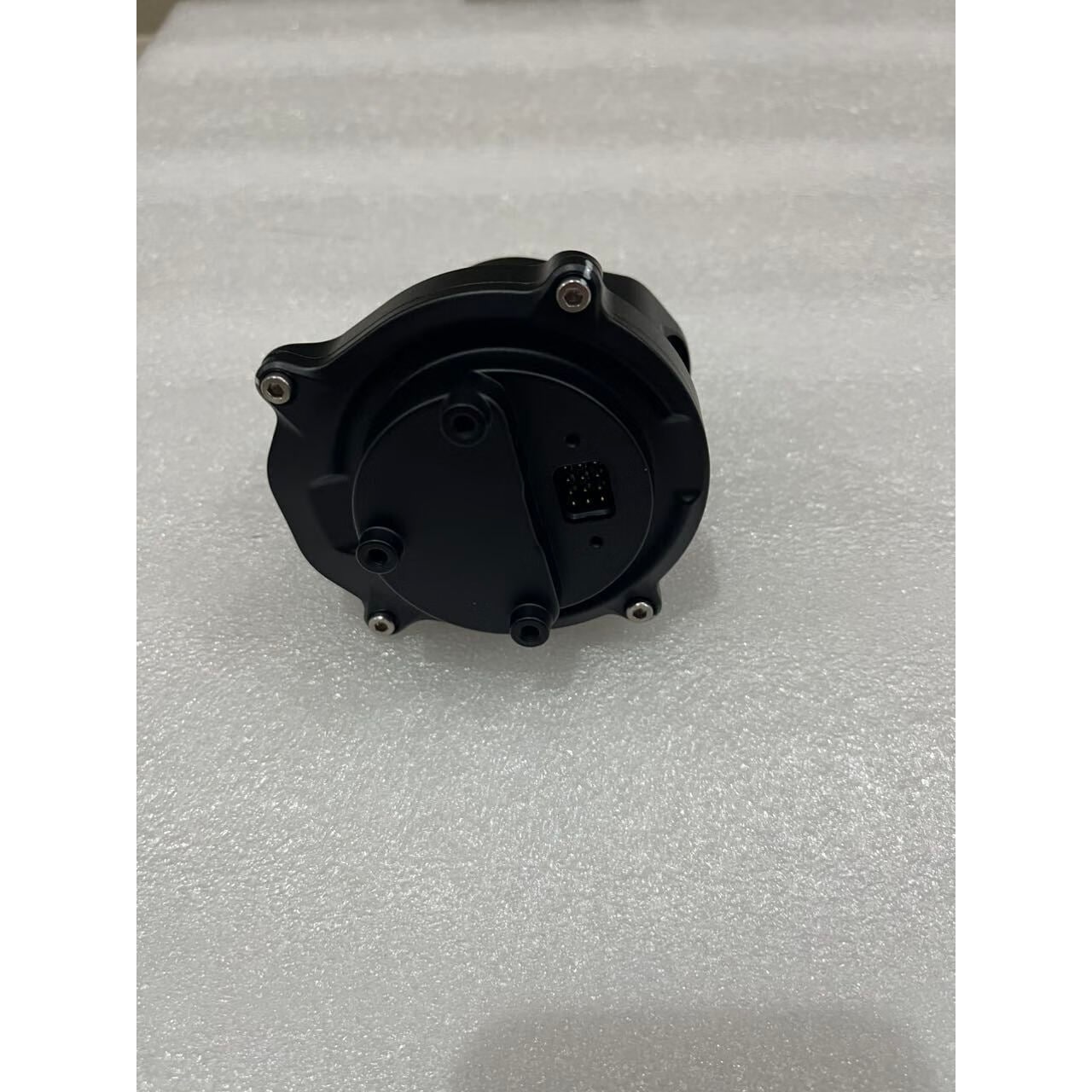

4212 Mist Sprinkler Upper Motor (T100) BC.AG.SS001174
Shipping: Standard Parcel, $27 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
The 4212 upper motor is one of two motors in the centrifugal mist sprinkler of the DJI Agras T100 Mist Kit, used on both the external and internal mist spray booms.
| Part number | BC.AG.SS001174 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 Mist Kit external spray boom, callout 10; T100 Mist Kit internal spray boom, callout 11 |
DJI's sheets draw it with the 4810 lower motor, the upper and lower disks, sealing rings L and S and the mist sprinkler funnel. A centrifugal sprinkler spins to break liquid into fine droplets, so a motor that is slow to start, runs rough or noisy, or brings up a sprinkler error needs attention. Dried spray residue can bind moving parts, so rinse the head at the end of each day.
Order by the 4212 code; the 4810 lower motor is separate. The 4212 is listed for the T100 only: the T70P's optional mist nozzle is a different model (LX09550SX, not the T100's LX09510DX), and its parts lists give no upper motor code. Whenever the head is apart, inspect sealing ring L and sealing ring S, and replace them if they have taken a set or are damaged.
