DJI
Mist Sprinkler Lower Disk (T100/T70P) YC.JG.ZS006907
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

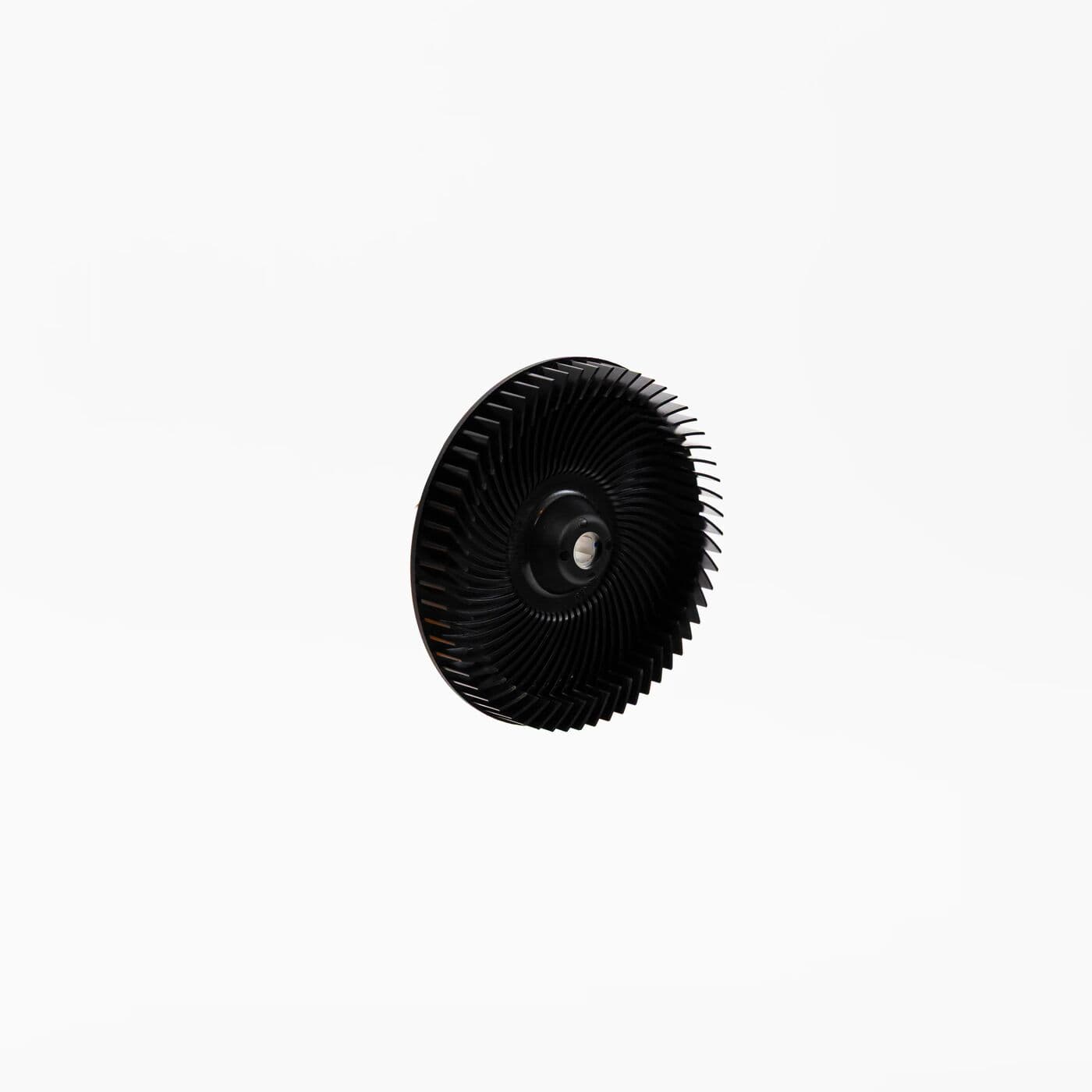

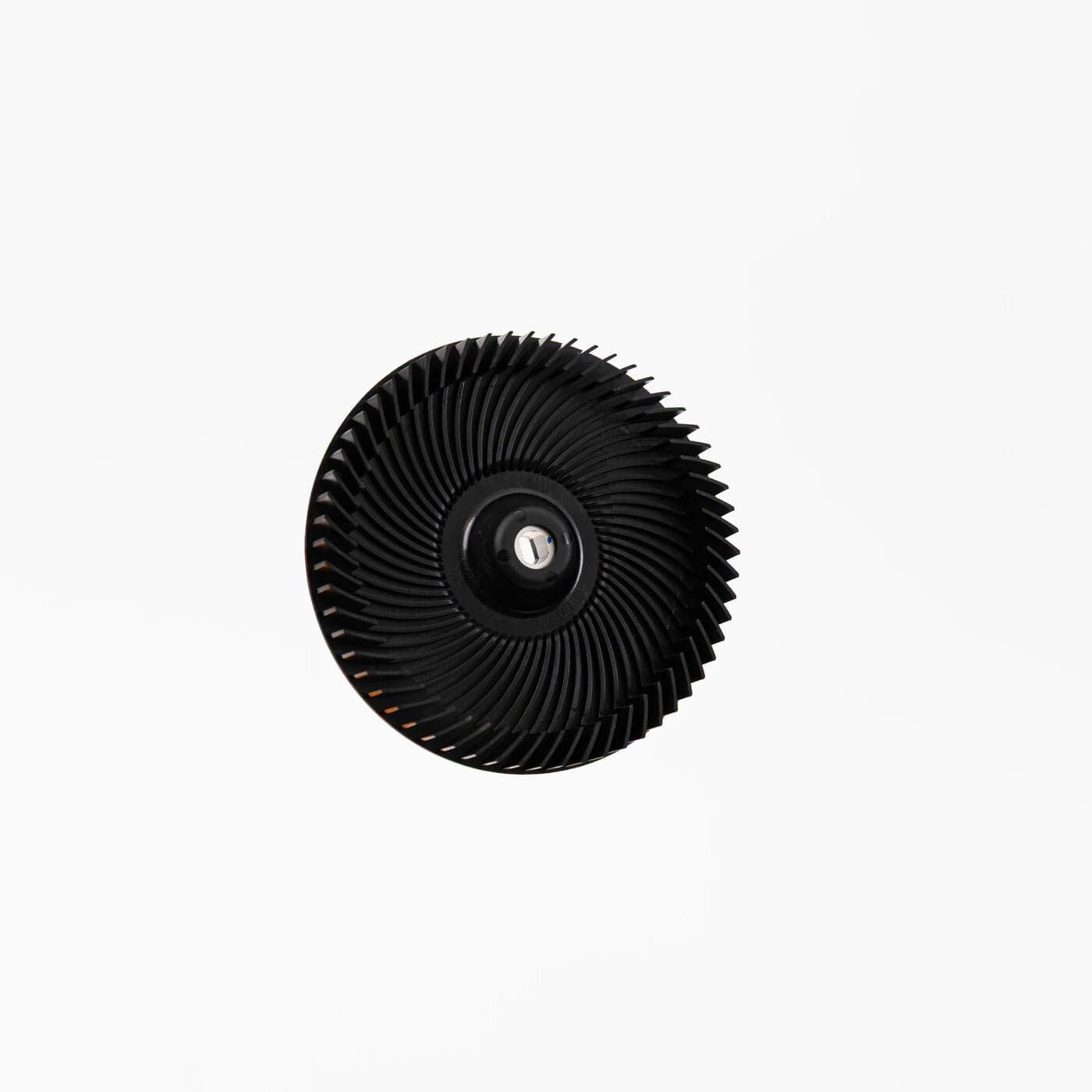

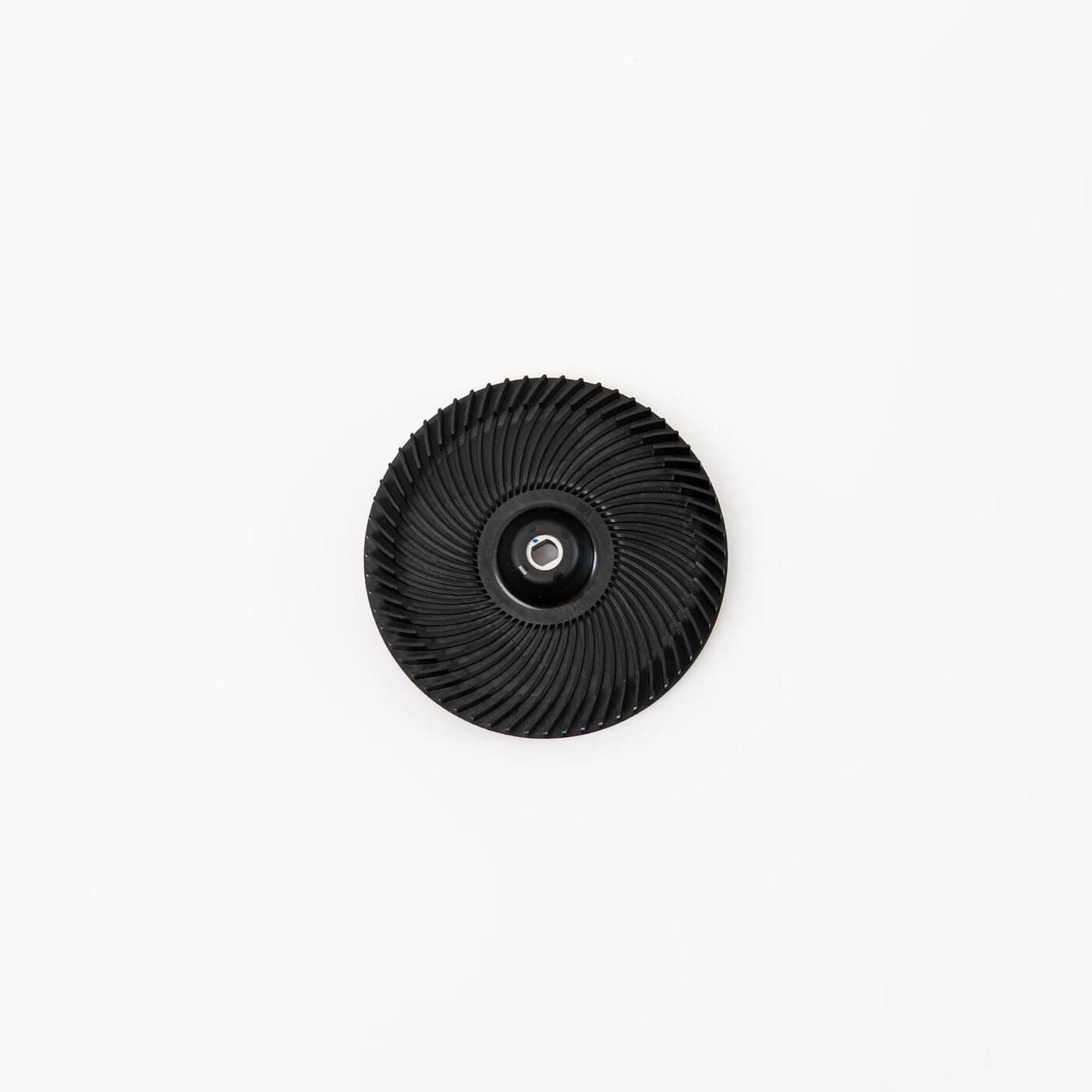

Spinning beneath the upper disk in the DJI Agras T100 and T70P mist sprinkler, this lower disk is one of the pair that throws spray liquid outward as fine droplets at the end of the spray lance.
| Part number | YC.JG.ZS006907 |
| Fits | DJI Agras T100, T70P |
| Parts diagram | T100 mist kit external spray boom, callout 3; T100 mist kit internal spray boom, callout 3; T70P misting spray lance, callout 3 |
A centrifugal disk only produces an even droplet spectrum while it runs true. Chips or cracks from contact with crop, trees or the ground, a distorted rim, or a crust of dried chemical all put it out of balance, which tends to show as extra vibration or noise from the head and an uneven swath. Replace a damaged disk rather than filing or gluing it.
All three sheets number the centrifugal sprinkler nut and R-type pin at callouts 1 and 2, just ahead of this disk. Look both over when the disk is off, and swap a pin that is bent or has lost its tension.
