Screw - M40-HC04800220-088047-5103-Y (T100) YC.ST.LL000731
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

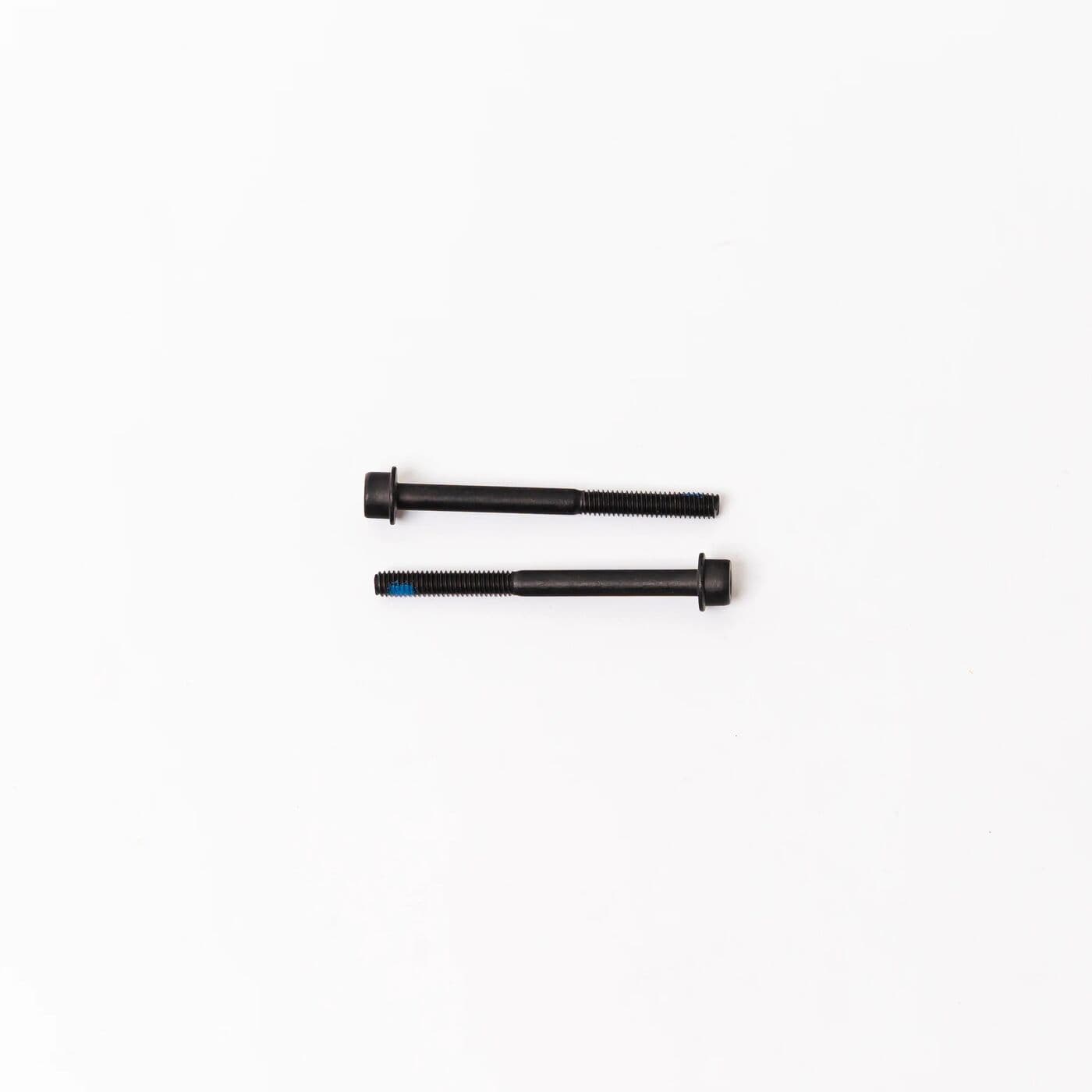

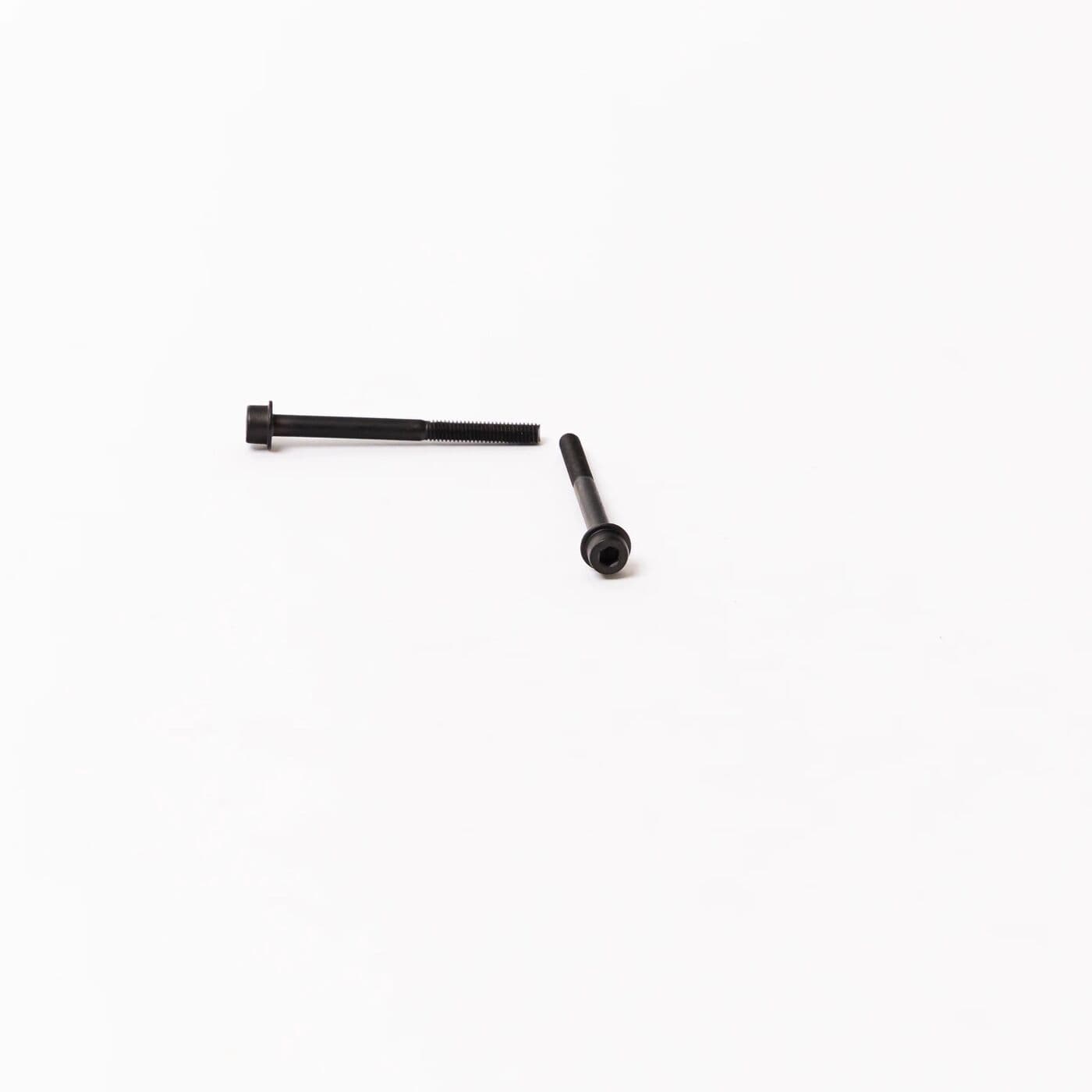

YC.ST.LL000731 is a landing gear screw for the DJI Agras T100. DJI lists it on the spraying, spreading and lift-system landing gear diagrams, and in two places on sheet 2.
| Part number | YC.ST.LL000731 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 landing gear (sheet 2), callouts 6 and 10; T100 spreading landing gear (sheet 2), callout 4; T100 lift-system landing gear (sheet 1), callout 3 |
On sheet 2 each one is followed by M40-HX088065-5103 (callouts 7 and 11), which DJI's parts photo shows as a small hex nut, so check it too whenever a screw comes out. The callouts just before it on that sheet are the Y-tee cover (5) and the spray lance connector (9).
The same sheets also use a different screw, M40-HC01400115 (YC.ST.LL000730), which is much shorter in DJI's photo. Keep the two apart during a strip-down, order by the DJI code rather than by eye, and fit a new screw if the drive is rounded or the thread is crossed.
