DJI
Nut - M40-HX088065-5103 (T100) YC.ST.LM000107
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
M40-HX088065-5103 is a small fastener used throughout the DJI Agras T100 landing gear, frame connectors and spreading frame, appearing on nine diagram sheets across the spray, spreading and lift set-ups.
| Part number | YC.ST.LM000107 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 landing gear (sheet 1), callout 9; T100 landing gear (sheet 2), callouts 7 and 11; T100 aircraft frame connector, callout 1; T100 spreading landing gear, callout 6; T100 spreading landing gear (sheet 2), callout 2; T100 spreading frame, callout 2; T100 lift system frame connector, callout 2; T100 lift system landing gear (sheet 1), callout 2; T100 lift system landing gear (sheet 2), callout 6 |

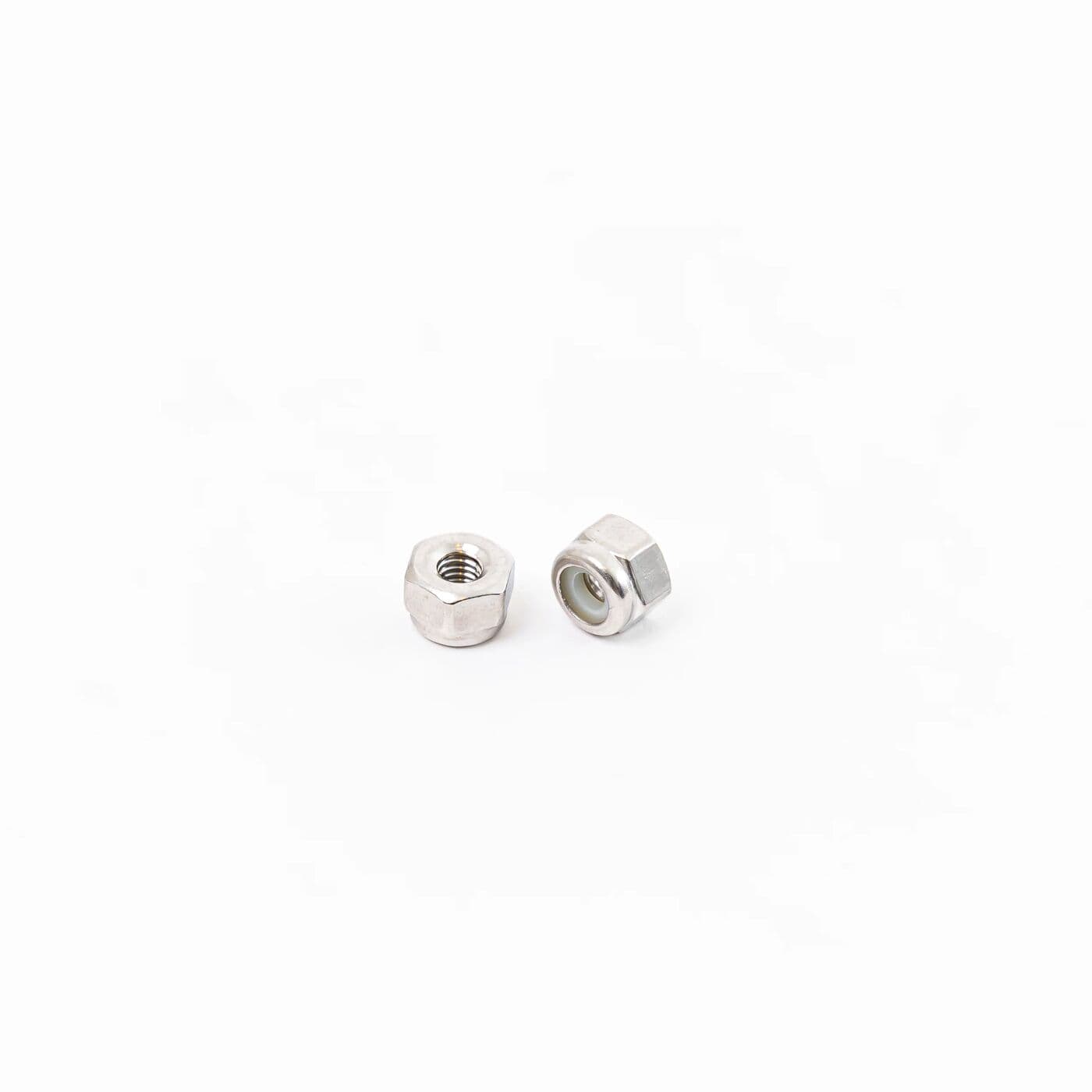

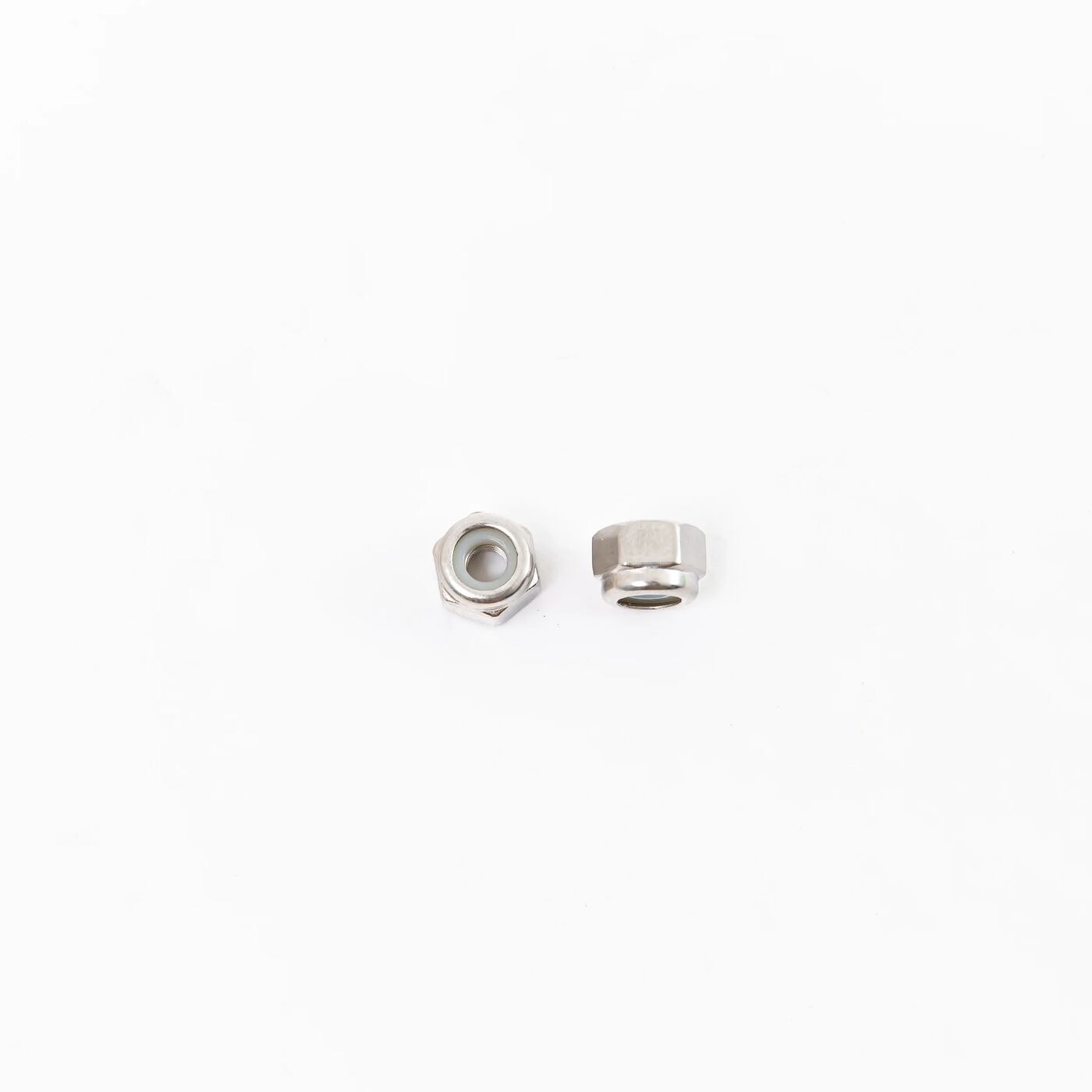

DJI's parts photos show it as a small hex nut, and on every one of these sheets it is listed alongside the M40-HC01400115-085047-4203-Y screw. Parts lists name it inconsistently, sometimes as a screw and sometimes by the code alone, so order by matching YC.ST.LM000107. Hardware at these joints takes load on every landing; renew any piece with damaged threads or corrosion rather than refitting it.
