DJI

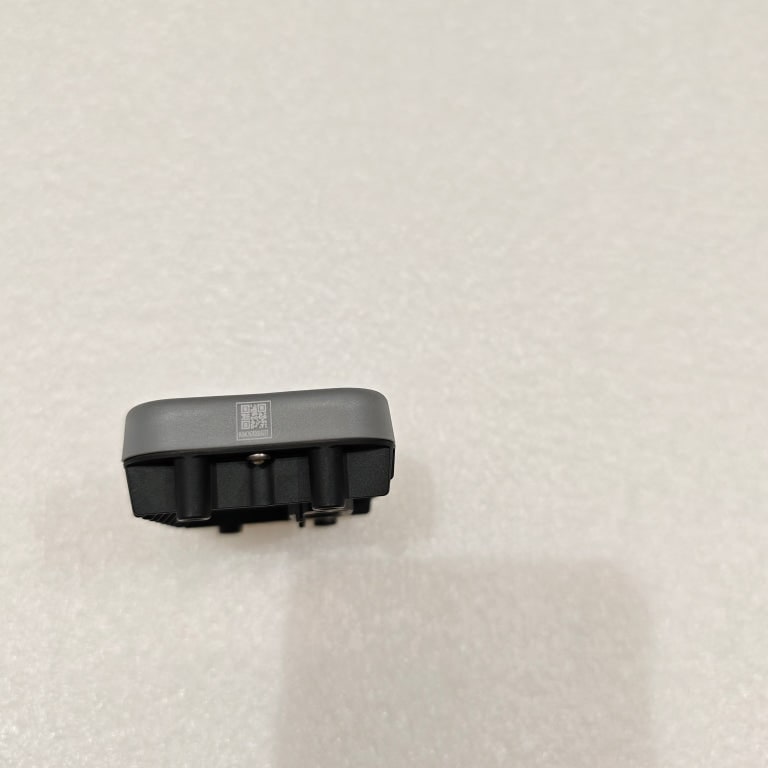

Rear Radar Module (T100) BC.AG.SS001107
Shipping: Standard Parcel, $27 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Rear obstacle sensing on the DJI Agras T100 comes from this radar module. It is fitted to the landing gear, or to the spread tank when the spreading system is installed.
| Part number | BC.AG.SS001107 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 landing gear (sheet 2), callout 15; T100 spread tank, callout 4; T100 lift-system landing gear (sheet 1), callout 8 |
Replace the module if its housing is cracked, or if the remote controller keeps reporting a rear radar fault after the cable and plugs have been checked and cleaned. Once it is fitted, confirm the rear radar shows as working before the next job.
The signal cable depends on the setup: the landing gear (sheet 2) diagram uses the short rear radar signal cable, while the lift-system and spread tank diagrams use the long rear radar signal cable. On both landing gear diagrams the module sits on the rear radar bracket.
