DJI
Payload Adapter Cable (T100) YC.XC.DD000815
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Part of the DJI Agras T100 landing gear, the payload adapter cable is listed on the spray, spreading and lift-system versions of the gear. Its name points to the wiring link between the aircraft and the payload system fitted, though DJI's documents do not describe its route.
| Part number | YC.XC.DD000815 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 landing gear (sheet 2), callout 4; T100 spreading landing gear (sheet 2), callout 6; T100 lift-system landing gear (sheet 1), callout 6 |

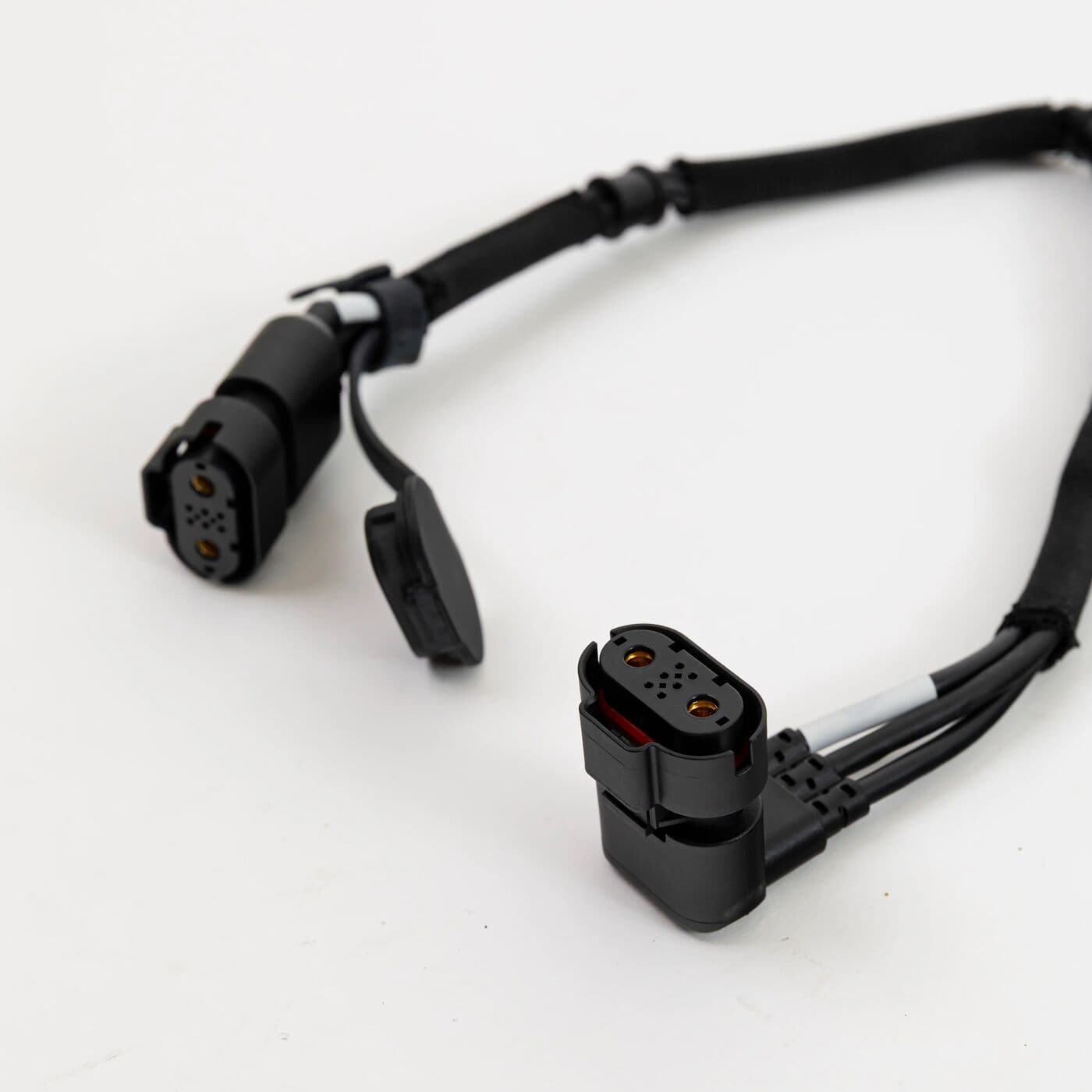

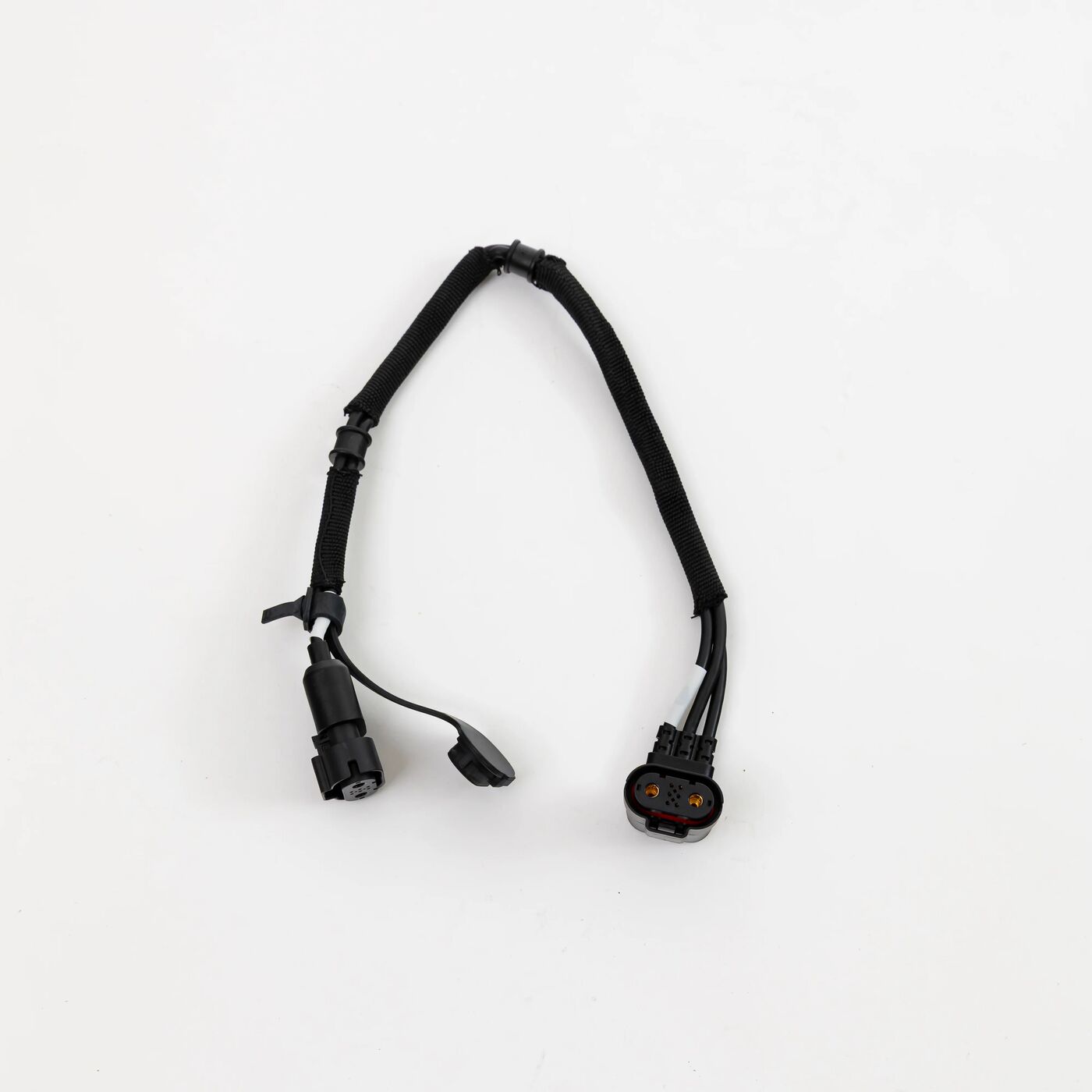

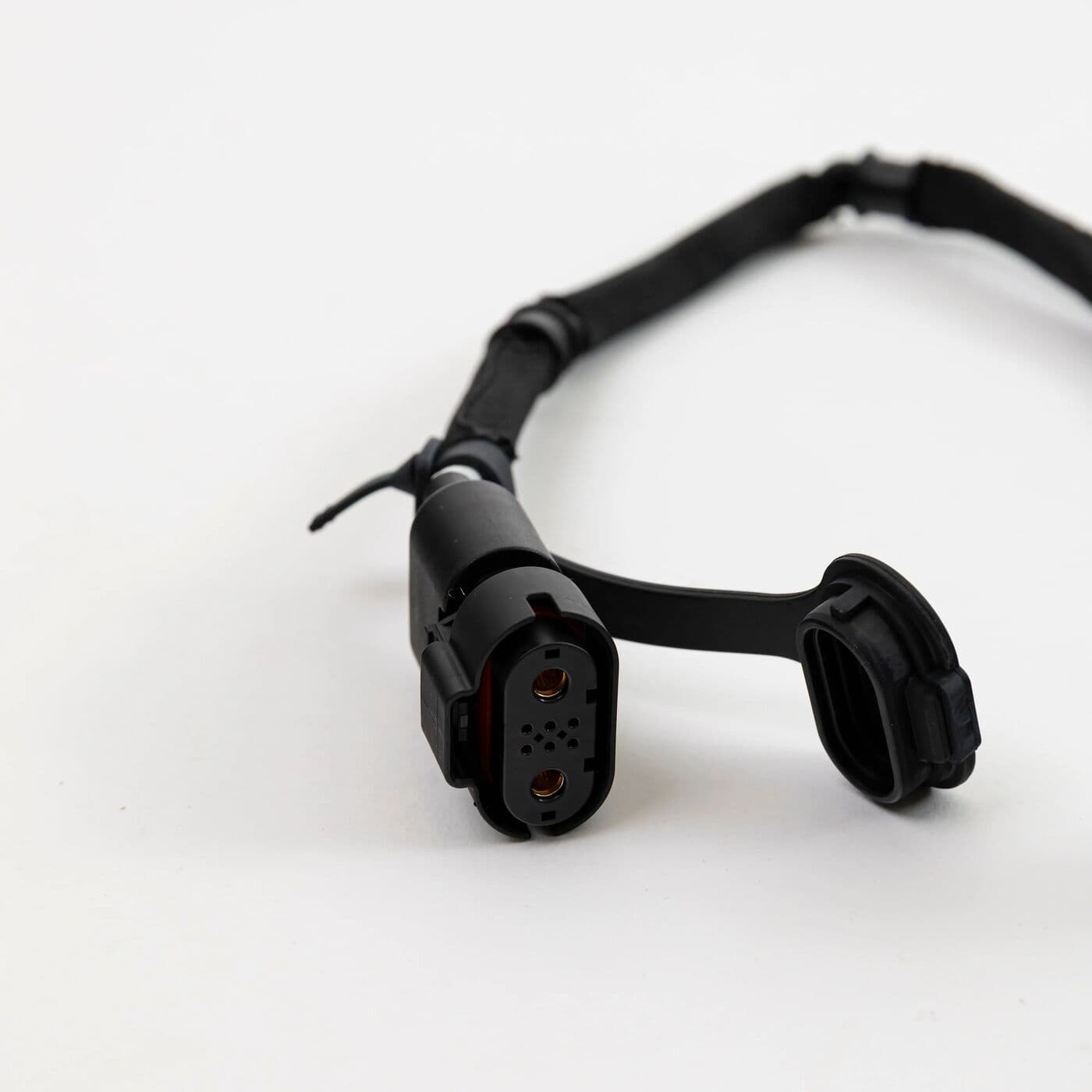

DJI's parts photo shows a harness in a braided sleeve with several fittings along its length and a plug at each end, one end also carrying a tethered rubber cover.
Check it whenever a payload fault appears, particularly one that comes and goes with vibration. Look for a split sleeve, spray residue packed into the plugs, and pins that are bent or corroded. Power the aircraft down and remove the battery before unplugging it, and route the new cable exactly as the old one ran so it cannot be pinched or rubbed through. If a fault is hard to pin down, our workshops can help trace it; start through the contact page.
