DJI
Landing Gear Crossbeam - Rear (T100) YC.JG.ZS006693
Shipping: Standard Parcel, $27 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

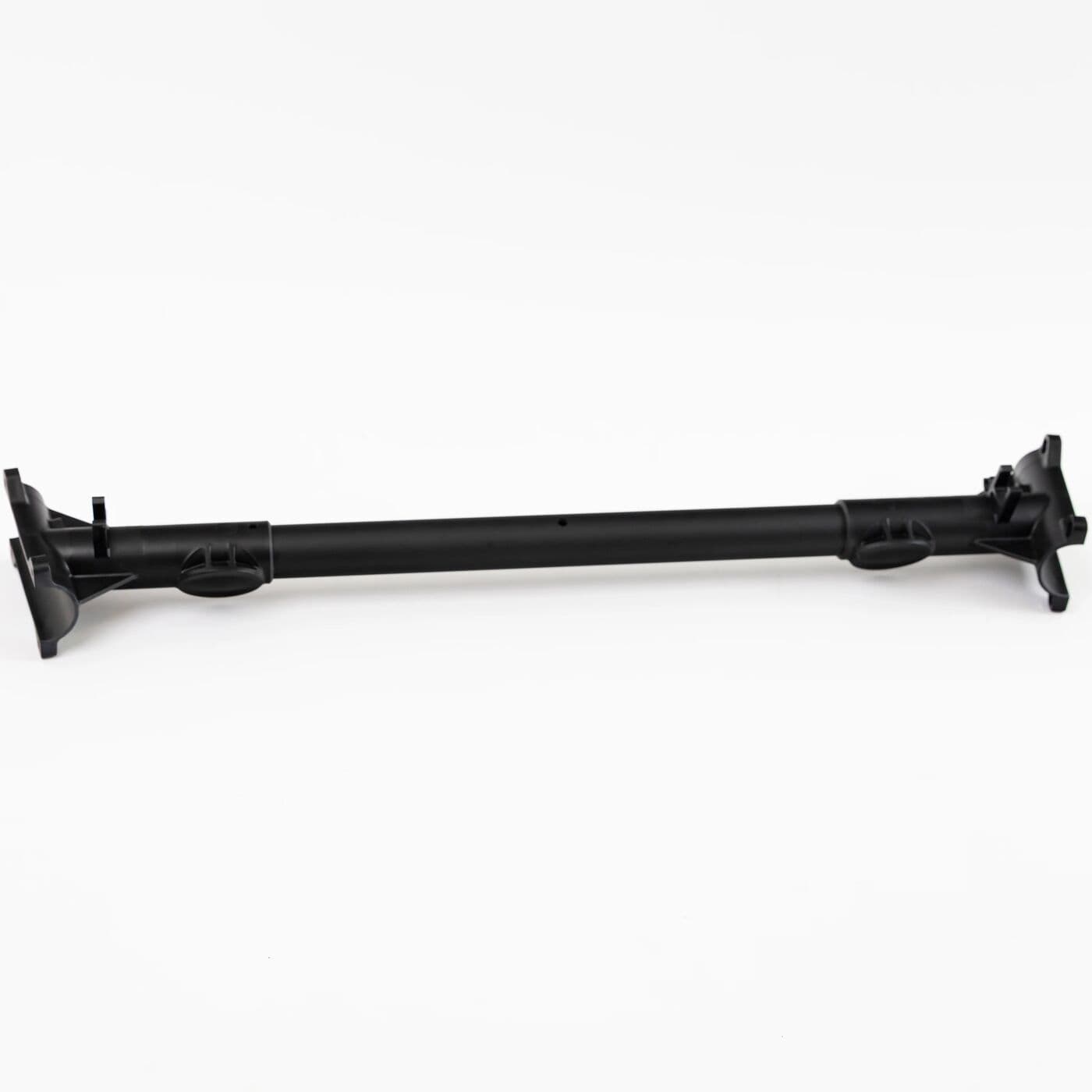

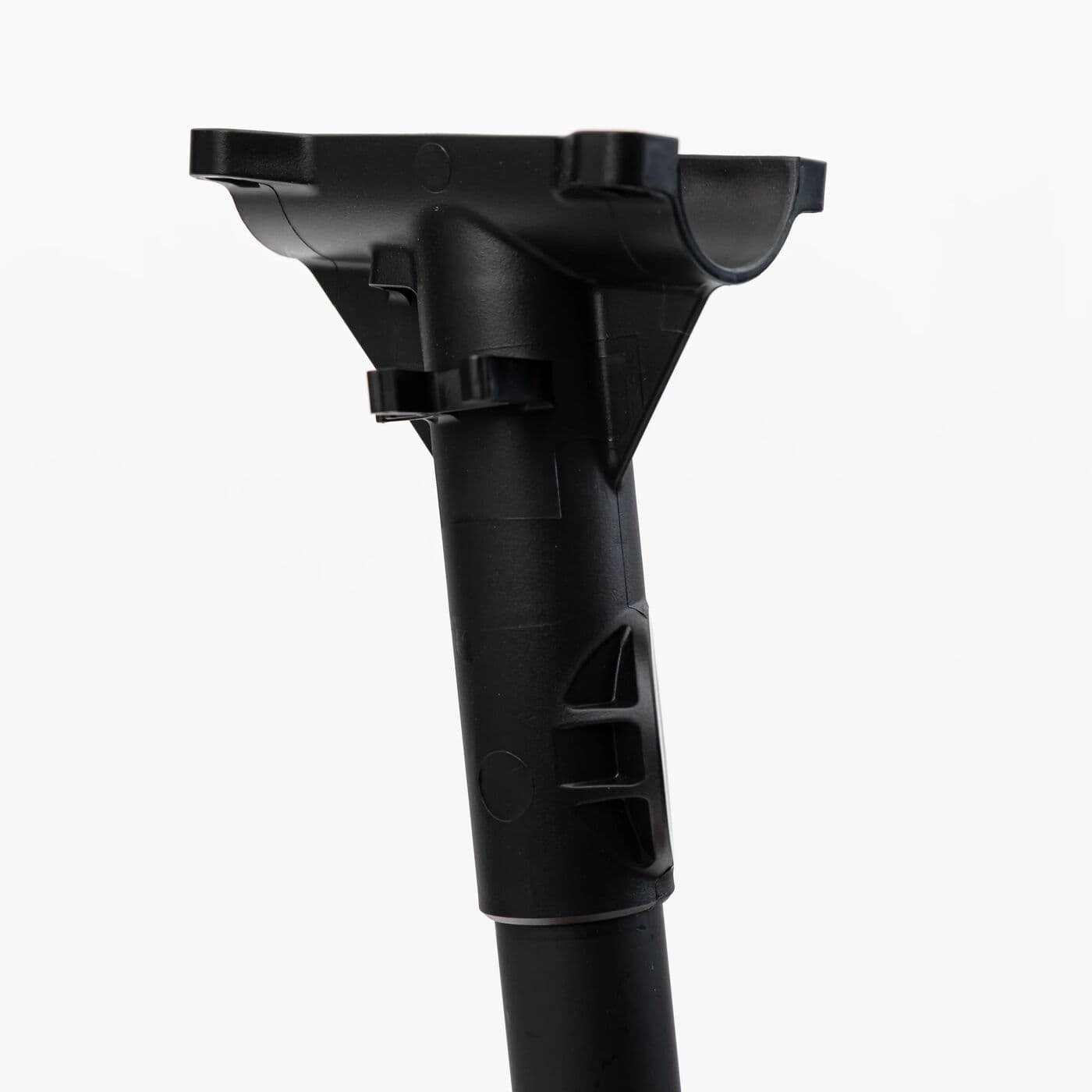

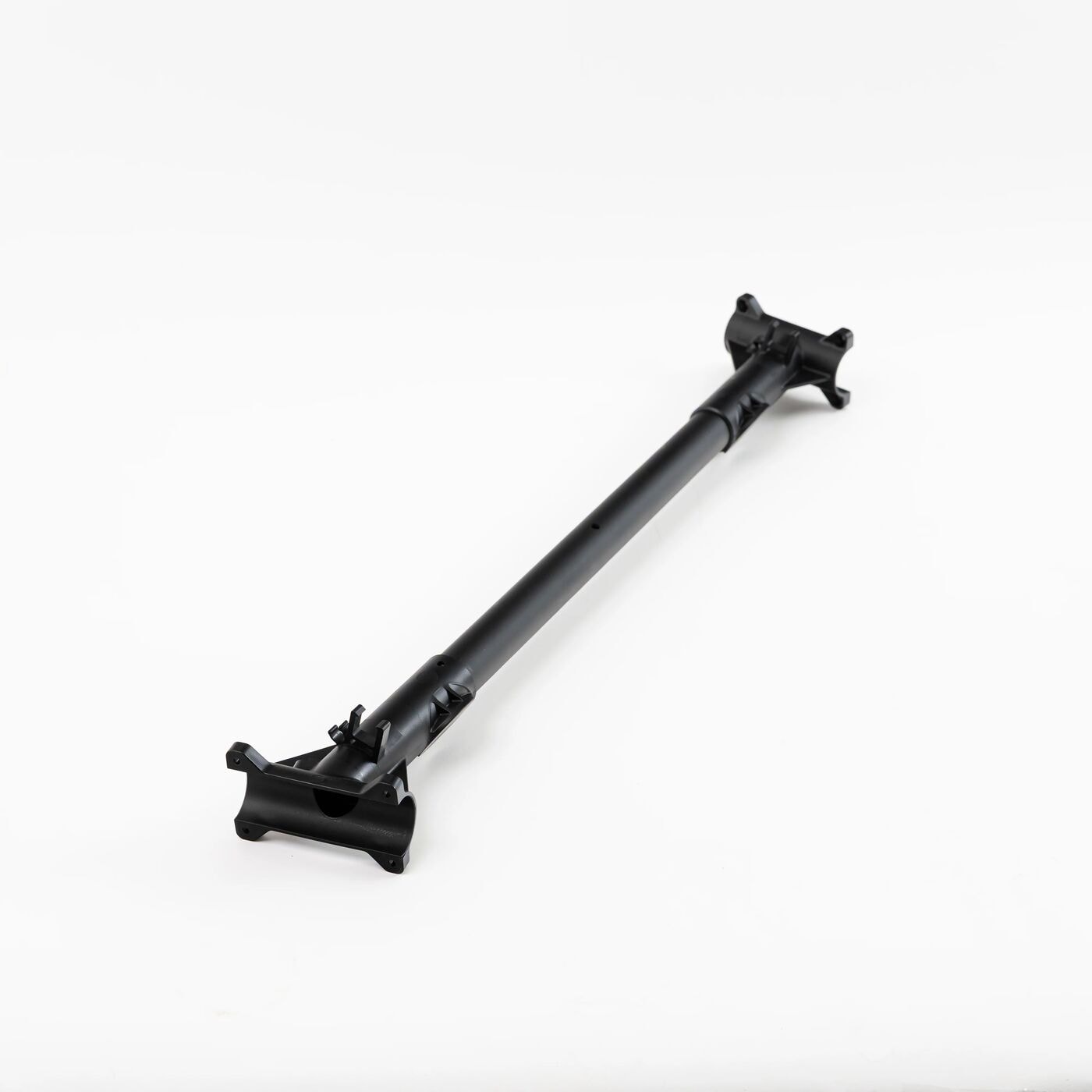

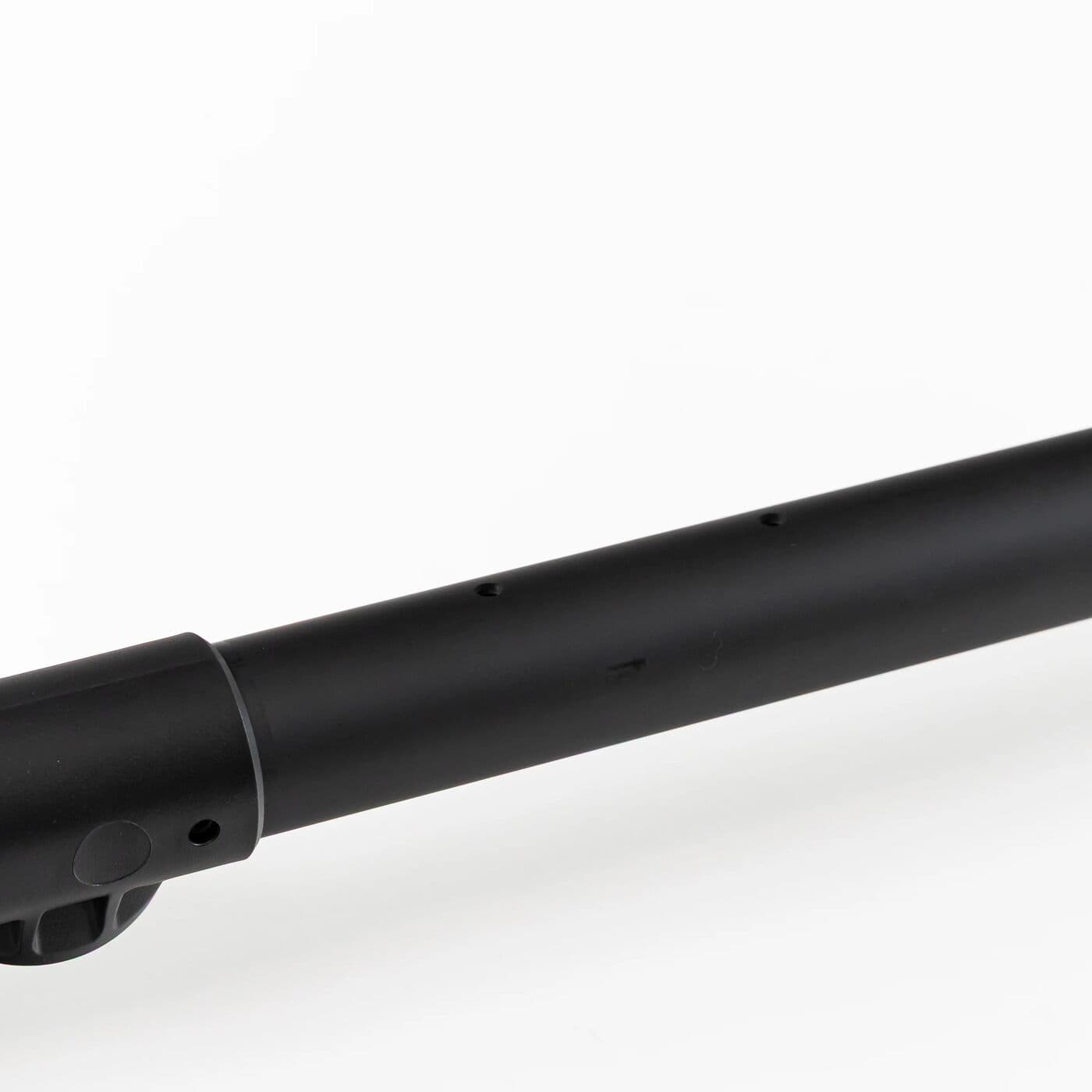

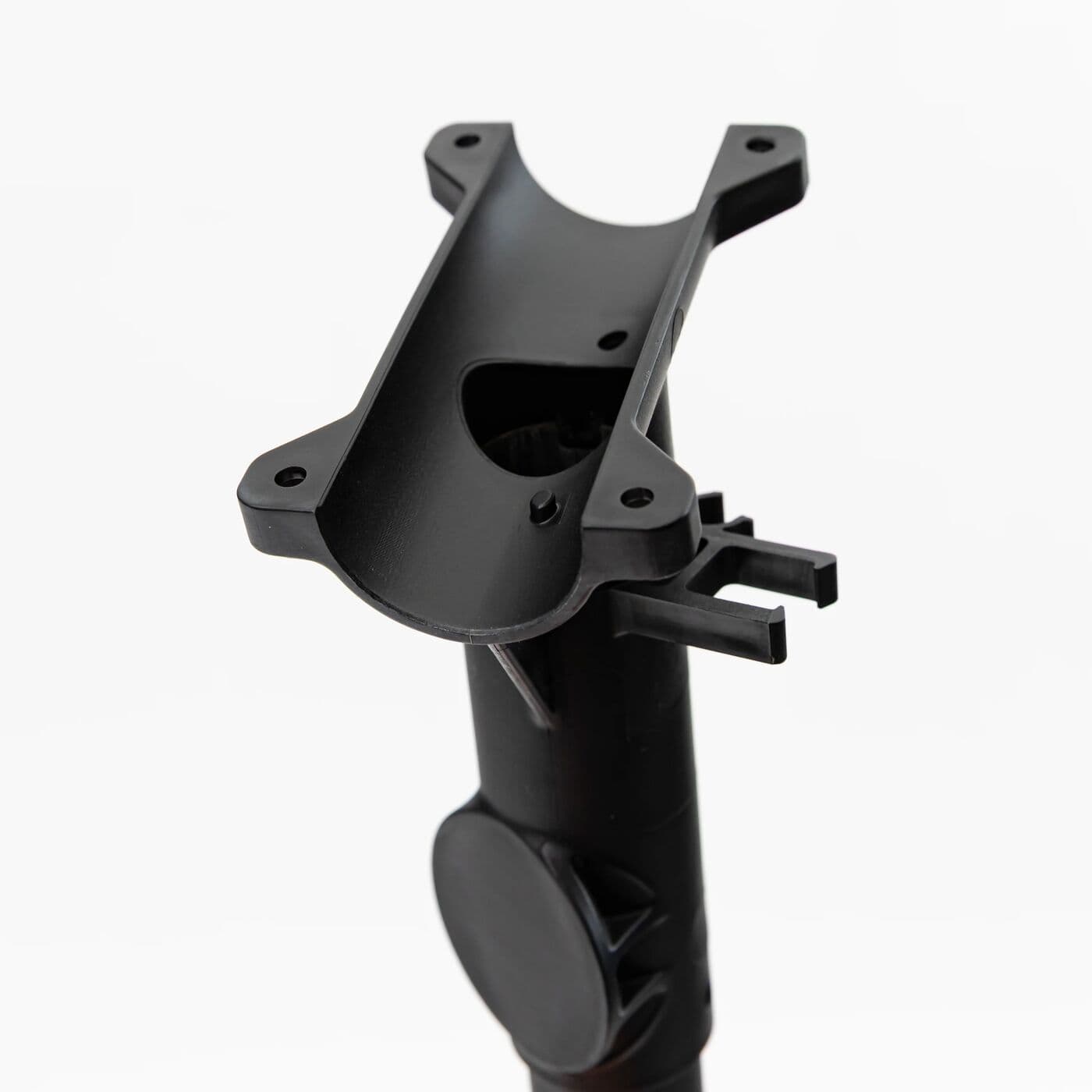

This is the rear crossbeam of the DJI Agras T100 landing gear, the cross member spanning the back of the undercarriage. DJI uses the same part on the landing gear (sheet 2) and lift-system landing gear diagrams, so one beam covers both layouts.
| Part number | YC.JG.ZS006693 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 landing gear (sheet 2), callout 13; T100 lift system landing gear (sheet 1), callout 7 |
As part of the landing gear it shares the load of every touchdown, so heavy landings, tip-overs and knocks while loading onto a trailer or ute are the likely causes of damage. Look for cracks near the ends, any bow along its length, and fixings that keep working loose.
Check the code on the damaged beam before ordering. The front landing gear crossbeam is a different part with its own listing, and the spreading landing gear uses its own rear crossbeam, YC.JG.ZS007106.
