DJI

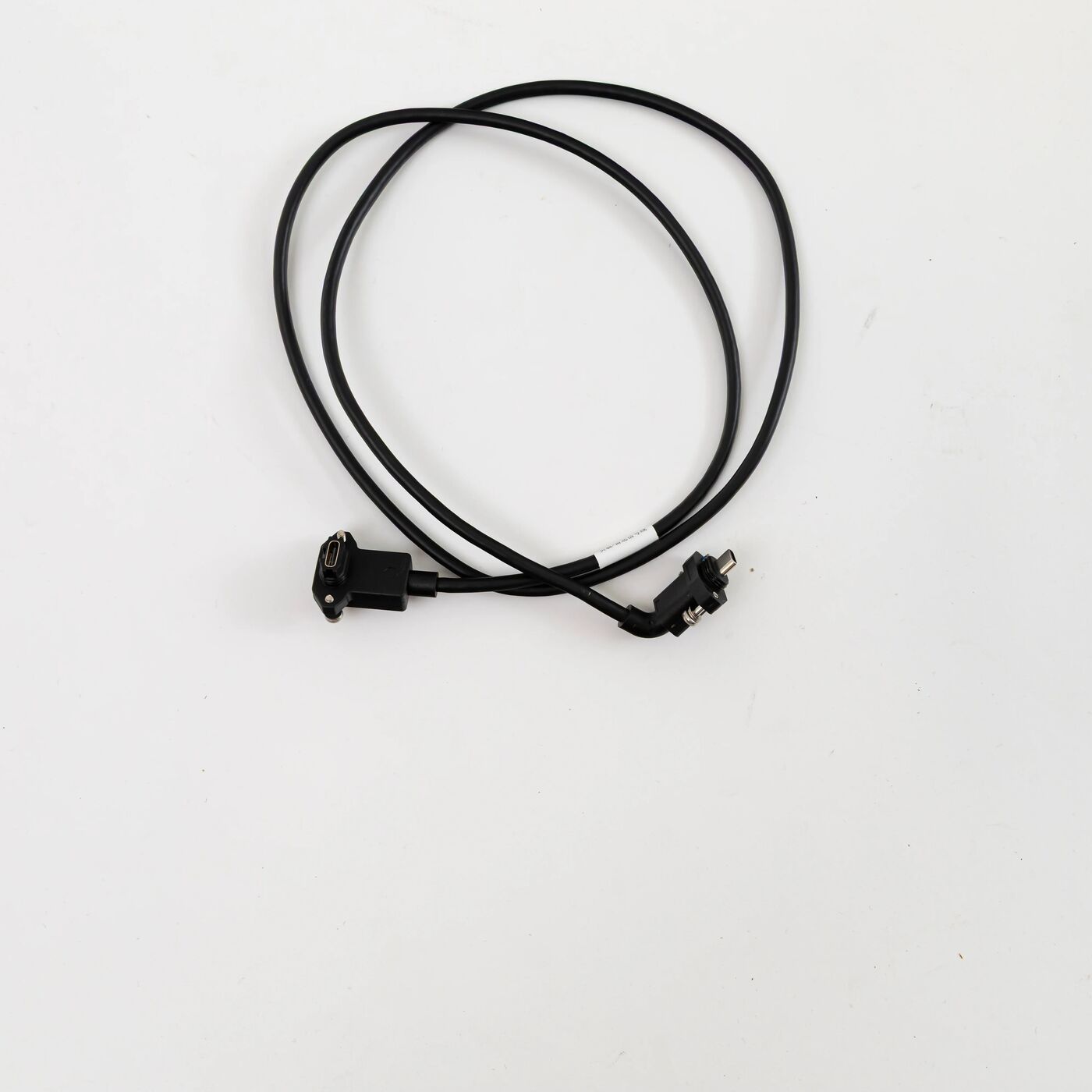

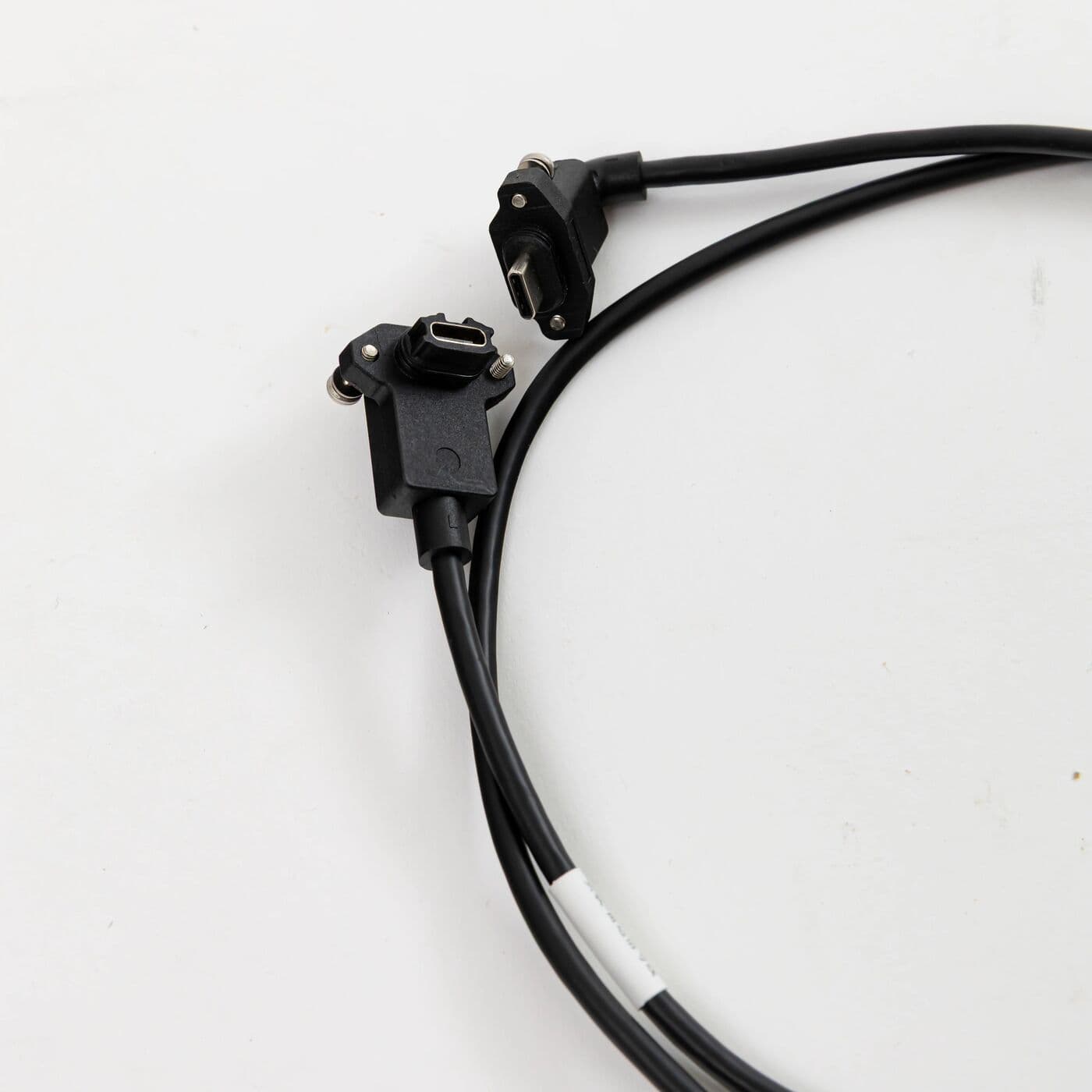

Rear Radar Signal Cable - Long (T100) YC.XC.XX001522
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
The DJI Agras T100's rear radar module sends its data over this long signal cable, which DJI draws on both the spreading tank sheet and the first lift system landing gear sheet.
| Part number | YC.XC.XX001522 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 spreading tank, callout 7; T100 lift system landing gear (sheet 1), callout 10 |
The rear radar handles obstacle sensing behind the aircraft. Suspect this cable if the app reports the rear radar as missing or loses it intermittently, or if the jacket is chafed where it is clamped or the connector pins are bent.
The T100 rear radar cable comes in two lengths. DJI's parts sheets list this long one with the 150 L spreading tank and the lift system landing gear, and the short cable (YC.XC.XX001523) with the standard landing gear, so the aircraft's setup decides which it needs. If in doubt, match the code on the old cable.
Route the new cable along the original path. On a spreading setup, secure it with the spread tank radar cable clamp; on a lift setup, check the rear radar bracket. Look over the rear radar module connector while it is exposed.
