Front Weight Sensor Module (T100) BC.AG.SS001118
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

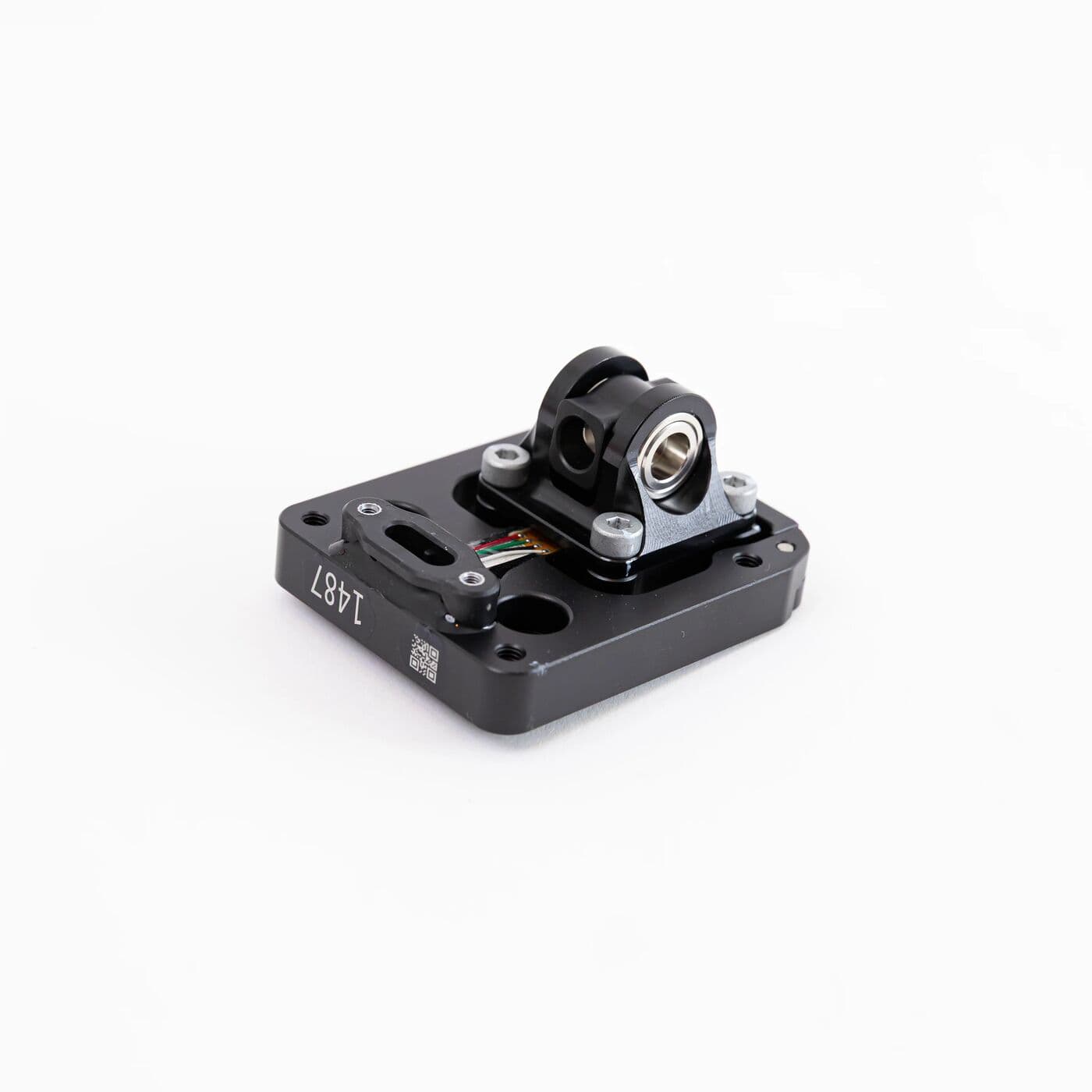

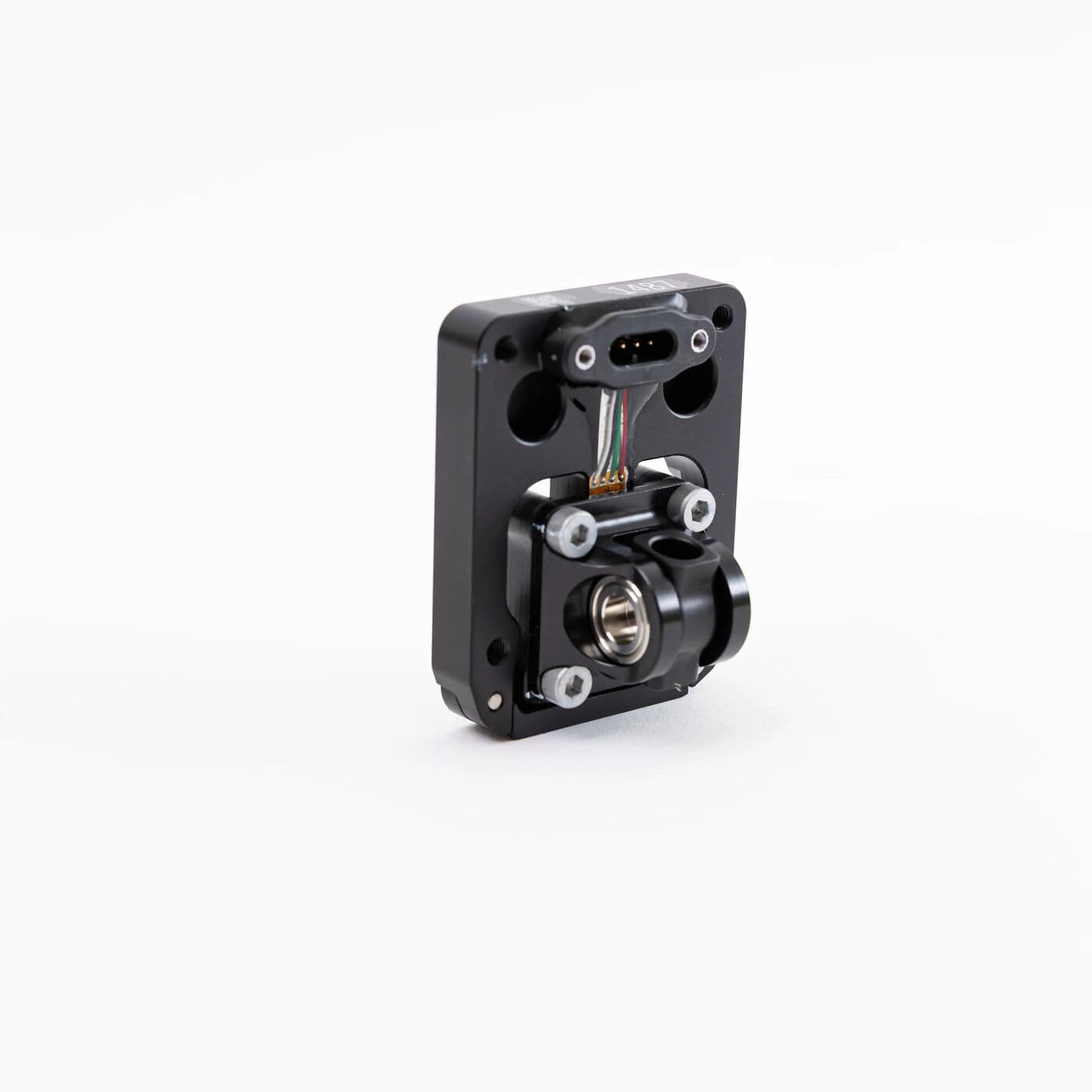

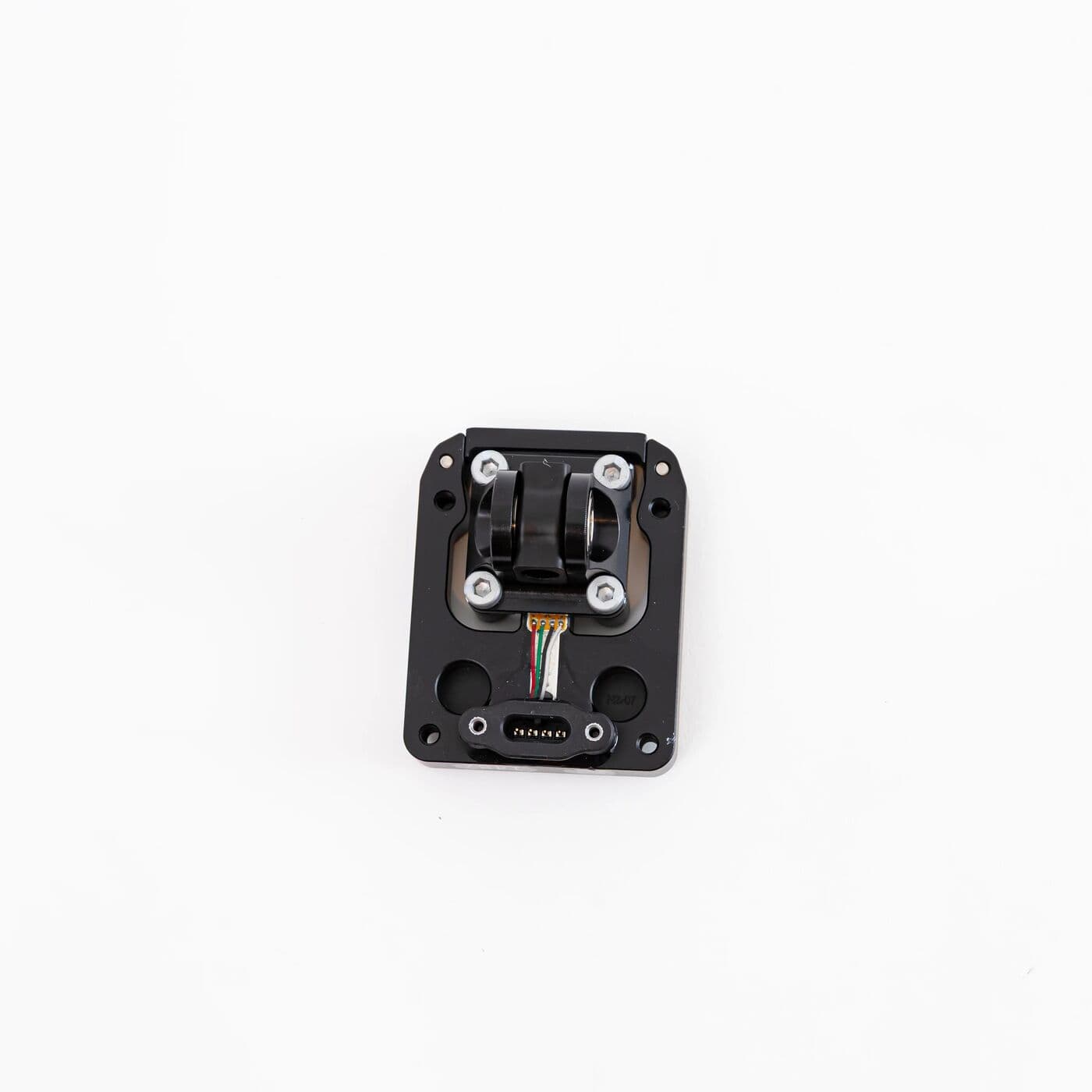

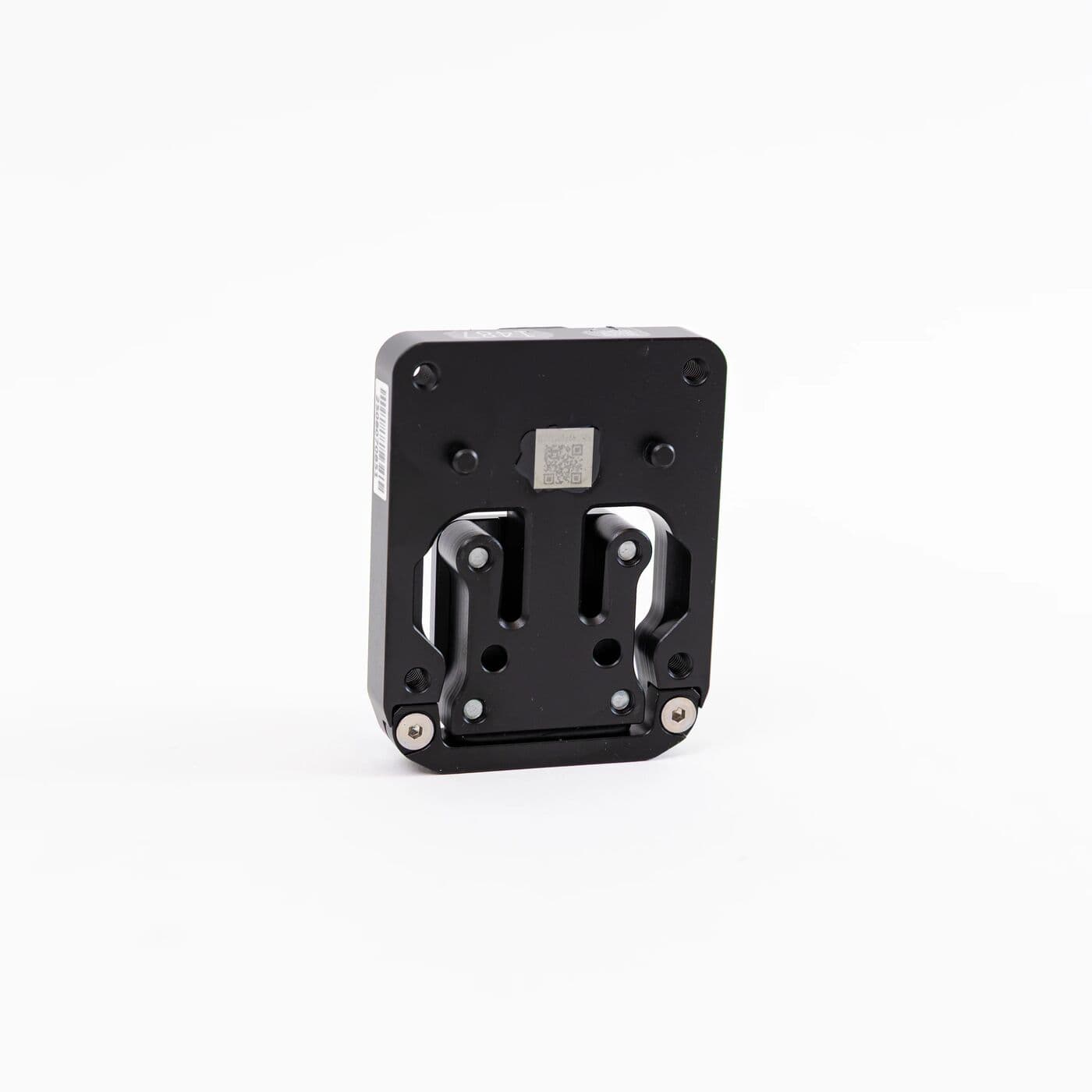

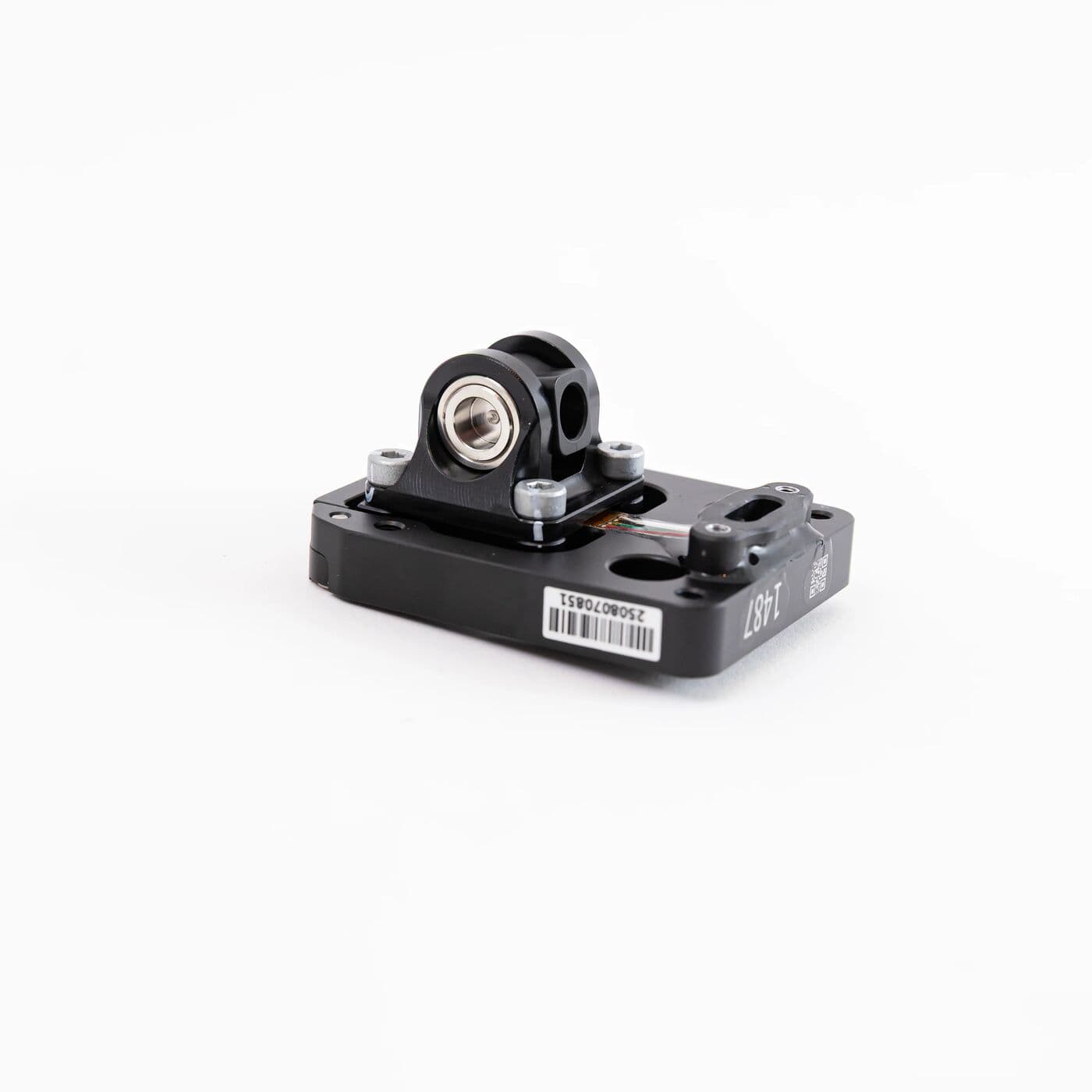

One of the weighing parts in the DJI Agras T100 spreading system, the front weight sensor module lets the aircraft measure how much product is left in the spread tank. It is callout 2 on DJI's weight sensor diagram.
| Part number | BC.AG.SS001118 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 spreading weight sensor, callout 2 |
Suspect it when the payload weight shown in the app does not match what went in, drifts while the aircraft is sitting still, or drops out. Rule out the weight sensor signal cable and its plugs first, since a damaged cable or a dirty plug can produce the same symptoms.
The rear module is a different part (BC.AG.SS001119), so confirm which one has failed before ordering. Renew the damping rubber pad drawn below it if the old one is hard or split. Once the new module is in, complete any calibration the DJI Agras app asks for, then check the reading with a bag of known weight before the first job.
