DJI

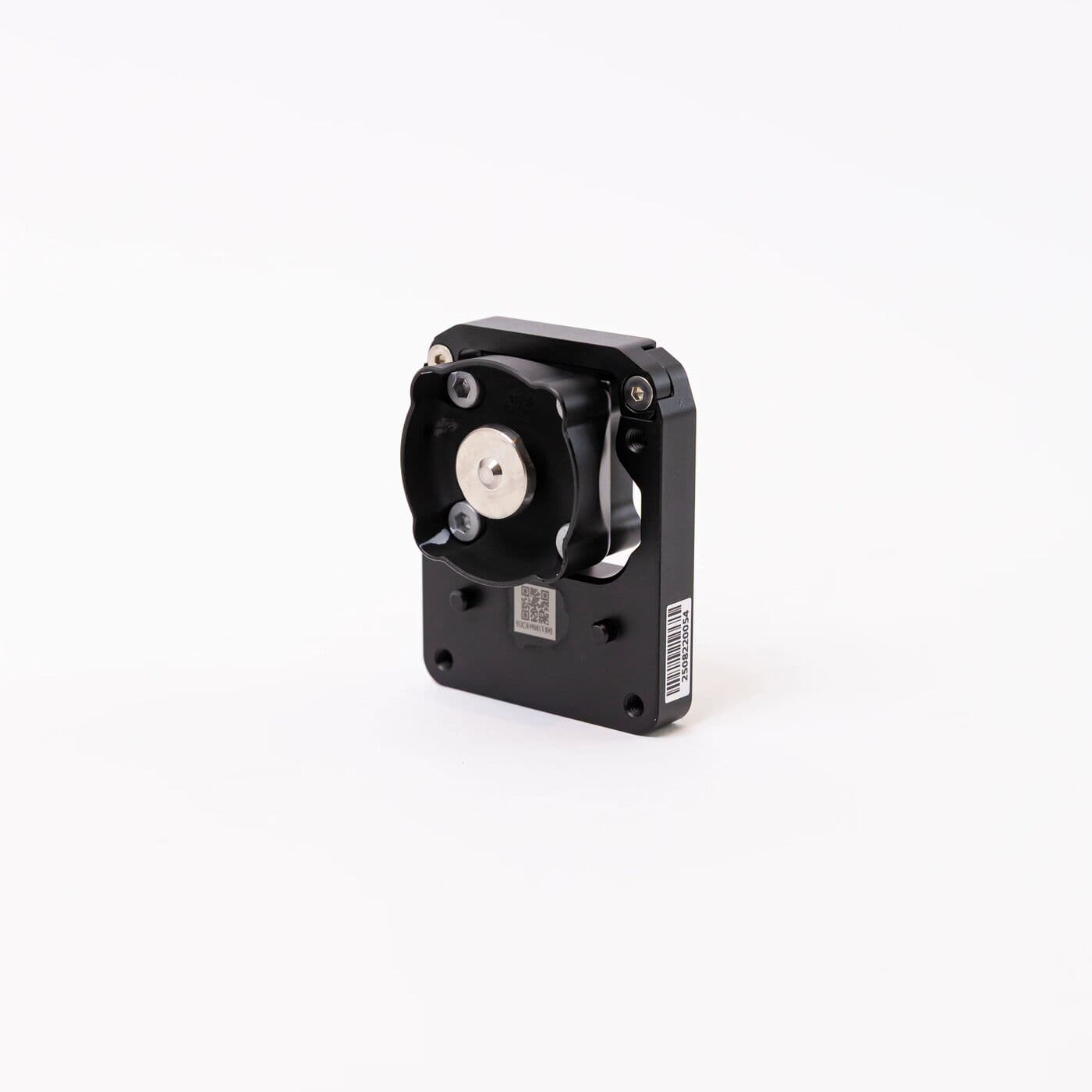

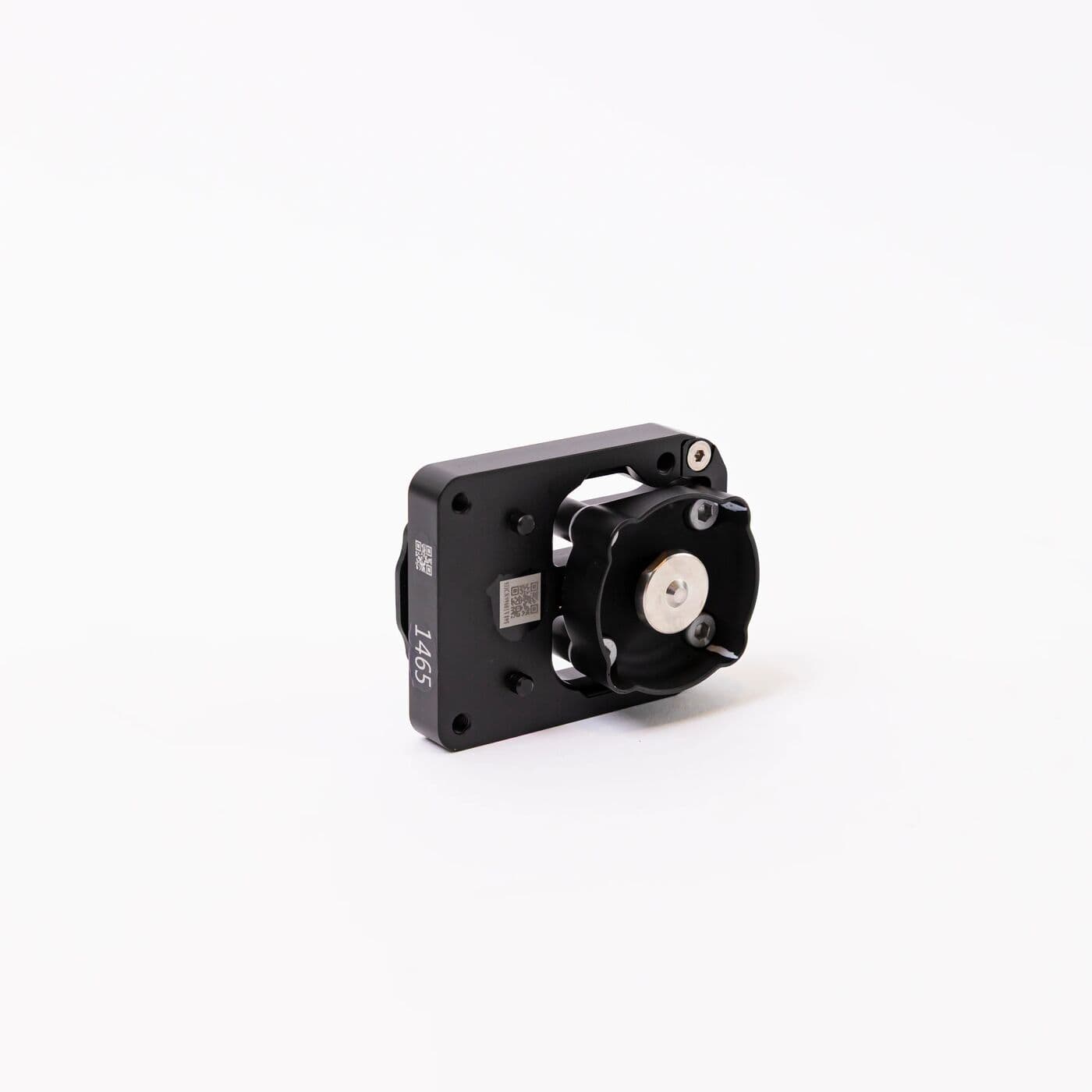

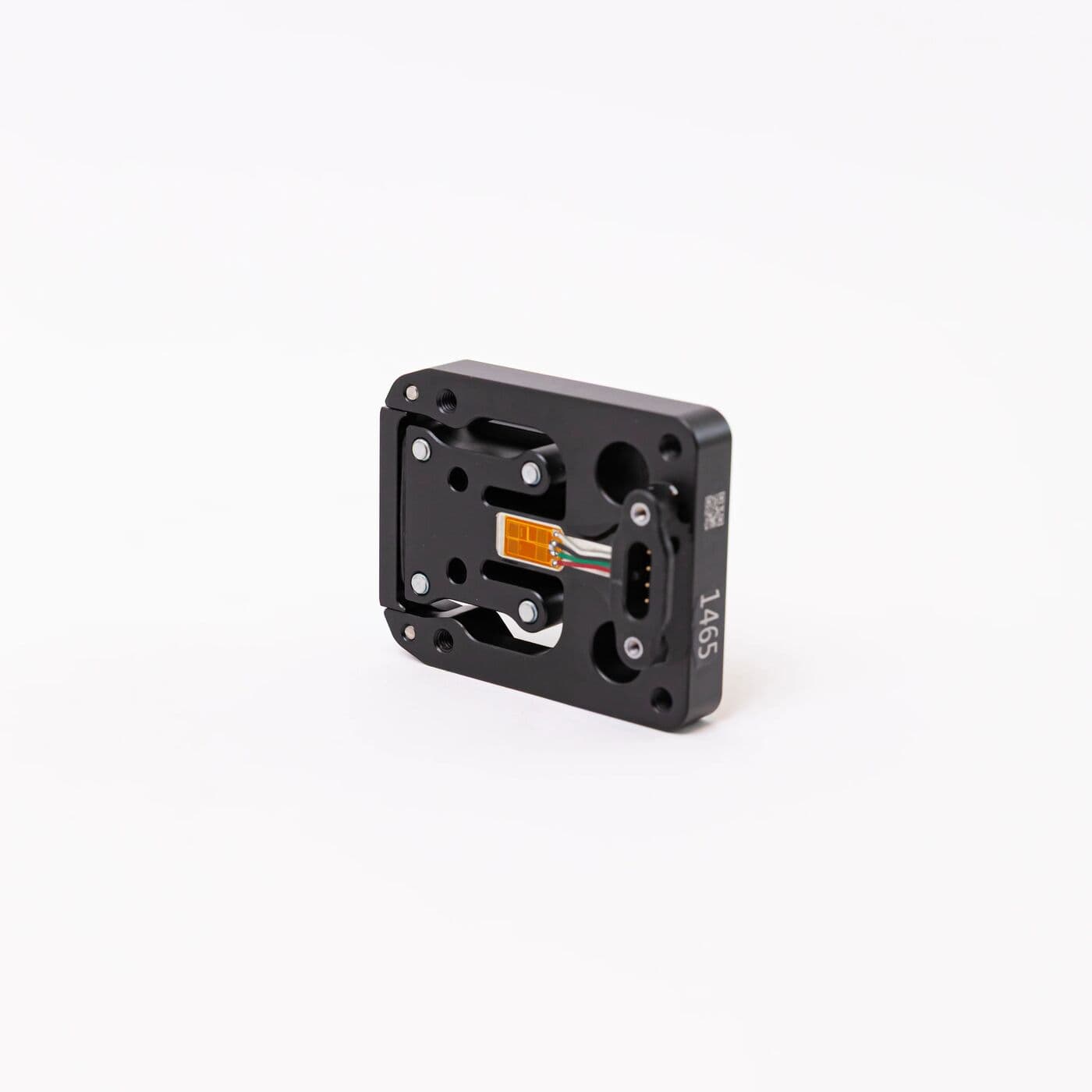

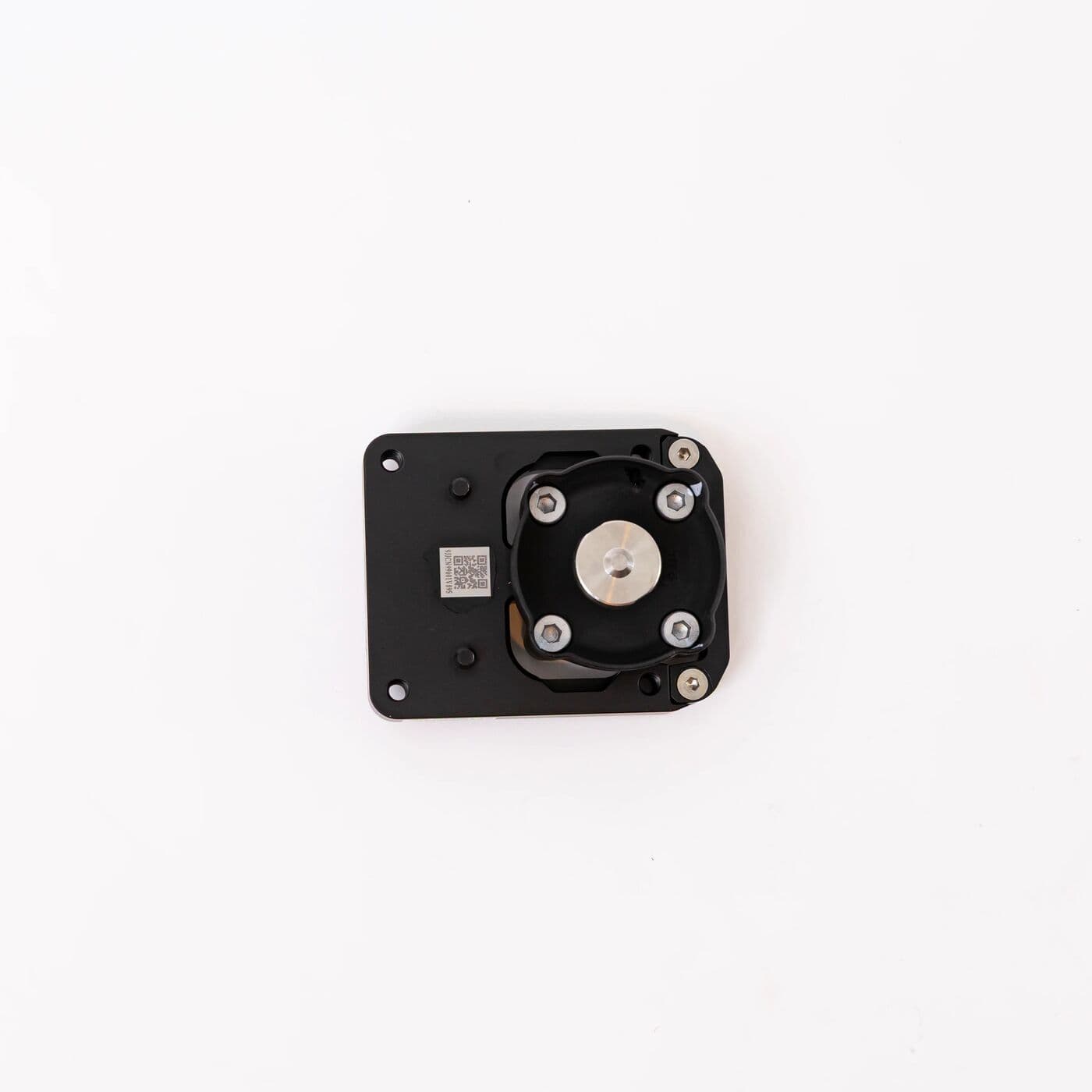

Rear Weight Sensor Module (T100) BC.AG.SS001119
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Front and rear modules share the job of weighing the product in the DJI Agras T100 spread tank, and this is the rear one, callout 12 on the spreading weight sensor diagram. The rubber cover (callout 13) is drawn directly below it.
| Part number | BC.AG.SS001119 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 spreading weight sensor, callout 12 |
A fault usually shows up as a remaining-payload figure that is wrong, jumps about or is missing. Before condemning the module, unplug its connector and the signal cable and look for bent pins, corrosion or packed-in dust.
The two positions carry different codes, and the front module is BC.AG.SS001118, so order by position. Look over the weight sensor rubber cover at the same time and replace it if it has split or hardened. Once the new module is fitted, complete any calibration the DJI Agras app asks for and check the payload reading against a known weight before the first job.
