DJI
Weight Sensor Pin Shaft (T100) YC.JG.QX004544
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

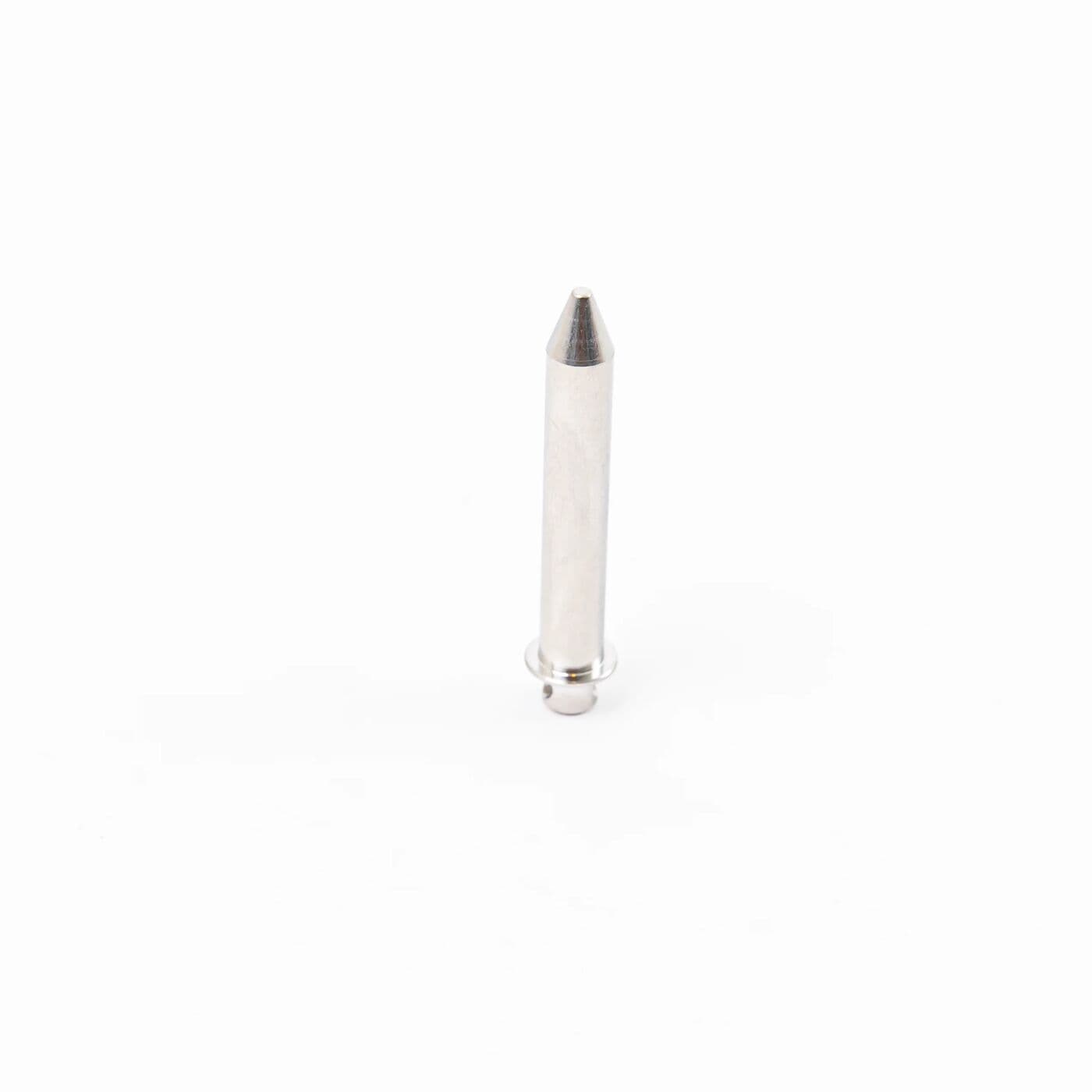

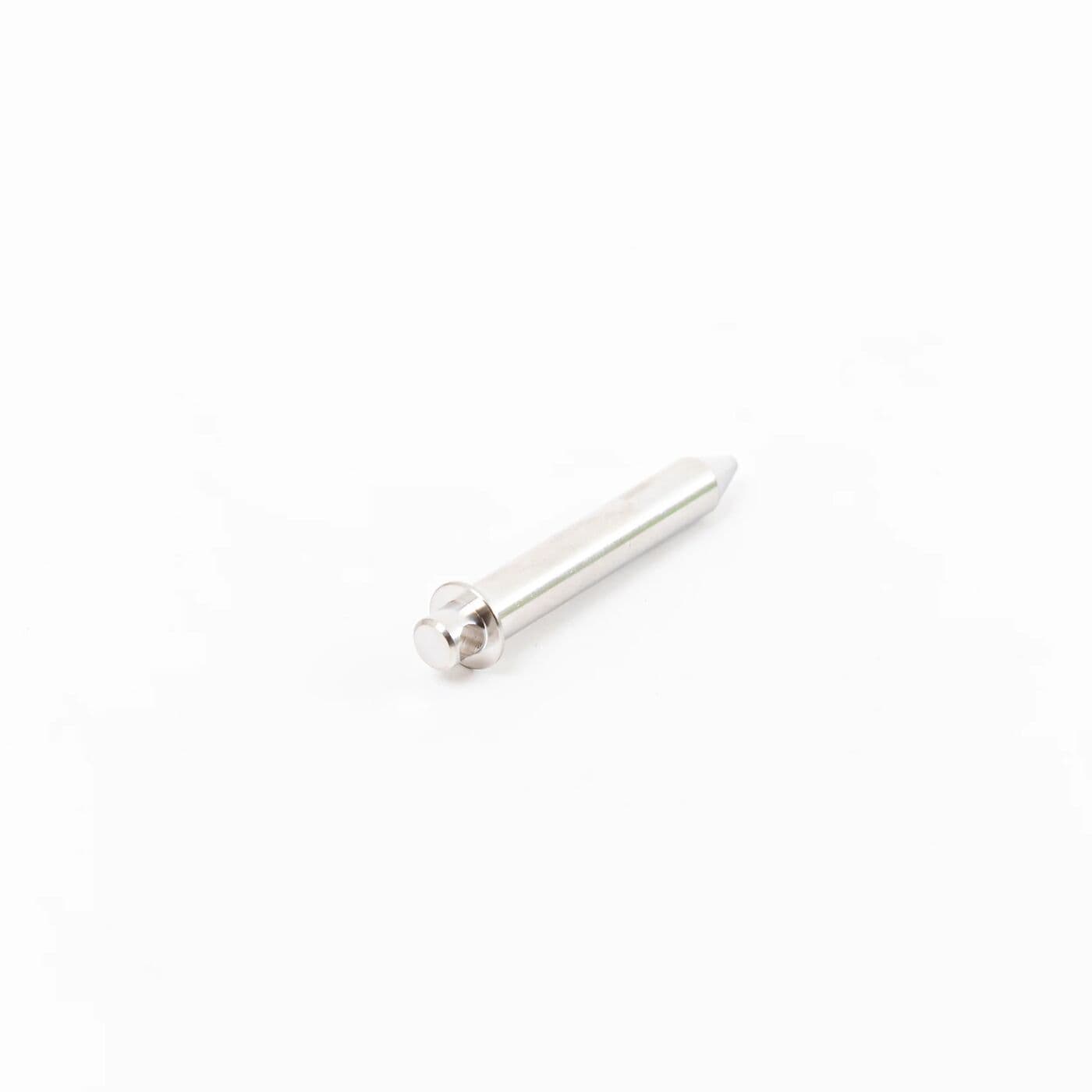

Weight sensor pin shaft for the DJI Agras T100 spreading system: a long pin with a tapered tip, shown at callout 6 on the weight sensor diagram with its washer (callout 4) and a small screw (callout 5) drawn just above it.
| Part number | YC.JG.QX004544 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 spreading weight sensor, callout 6 |
Spreader hardware works in abrasive, corrosive dust, and a pin wears where it bears. Replace this one if it is bent, scored, pitted or loose in its bore. Clean out the bore and check it for wear before the new pin goes in, since a worn hole will quickly loosen a new pin as well.
Order a new pin shaft washer if the old one is bent, and replace the callout 5 screw if its thread or drive is damaged.
