DJI
Spray Lance Bottom Shell (T100) YC.JG.ZS006807
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Callout 7 on DJI's spray lance sheet is this bottom shell for the DJI Agras T100 spray lance. The T100 mist kit's mist spray boom sheet draws the same part at callout 22, so one code covers both set-ups.
| Part number | YC.JG.ZS006807 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 spray lance, callout 7; T100 mist kit mist spray boom, callout 22 |

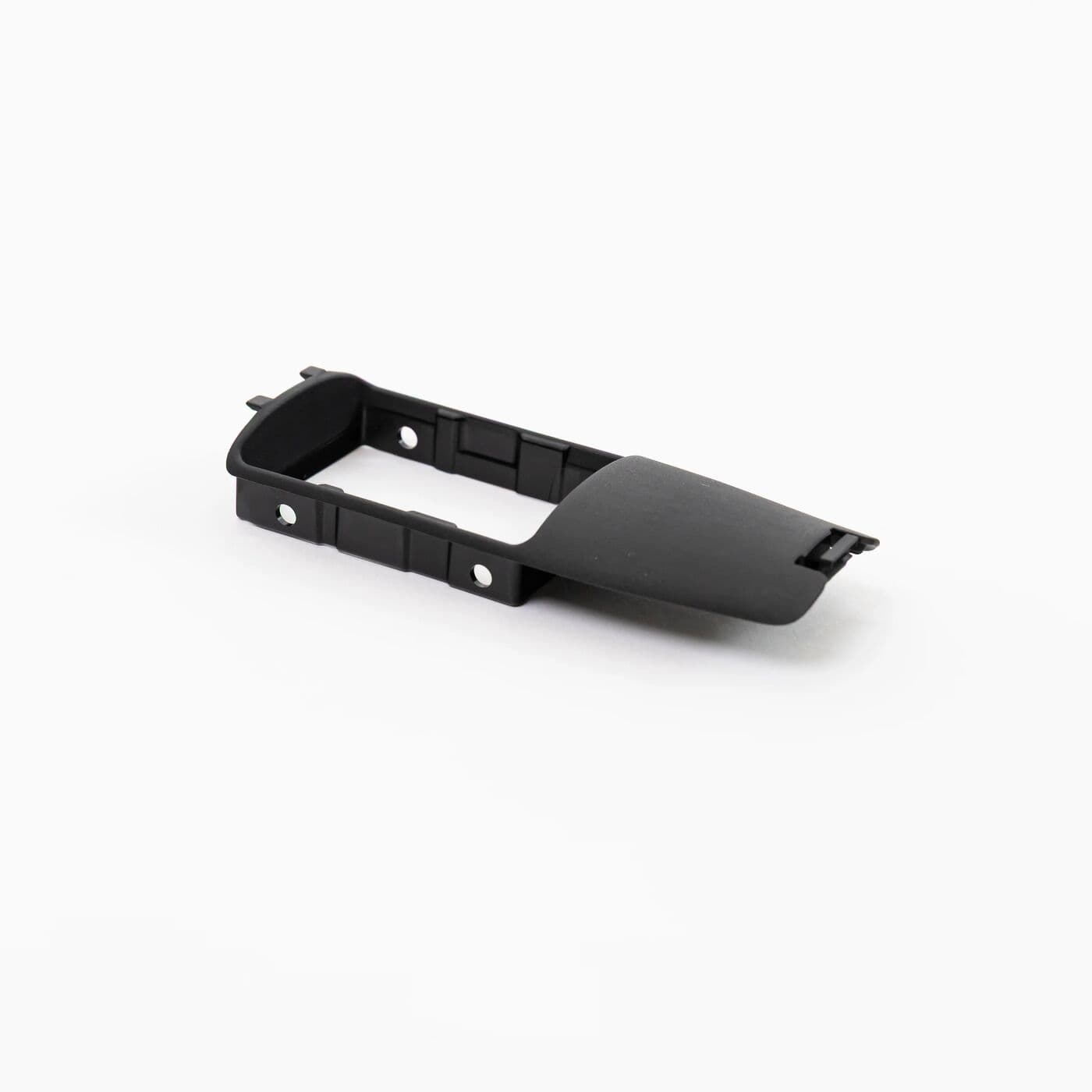

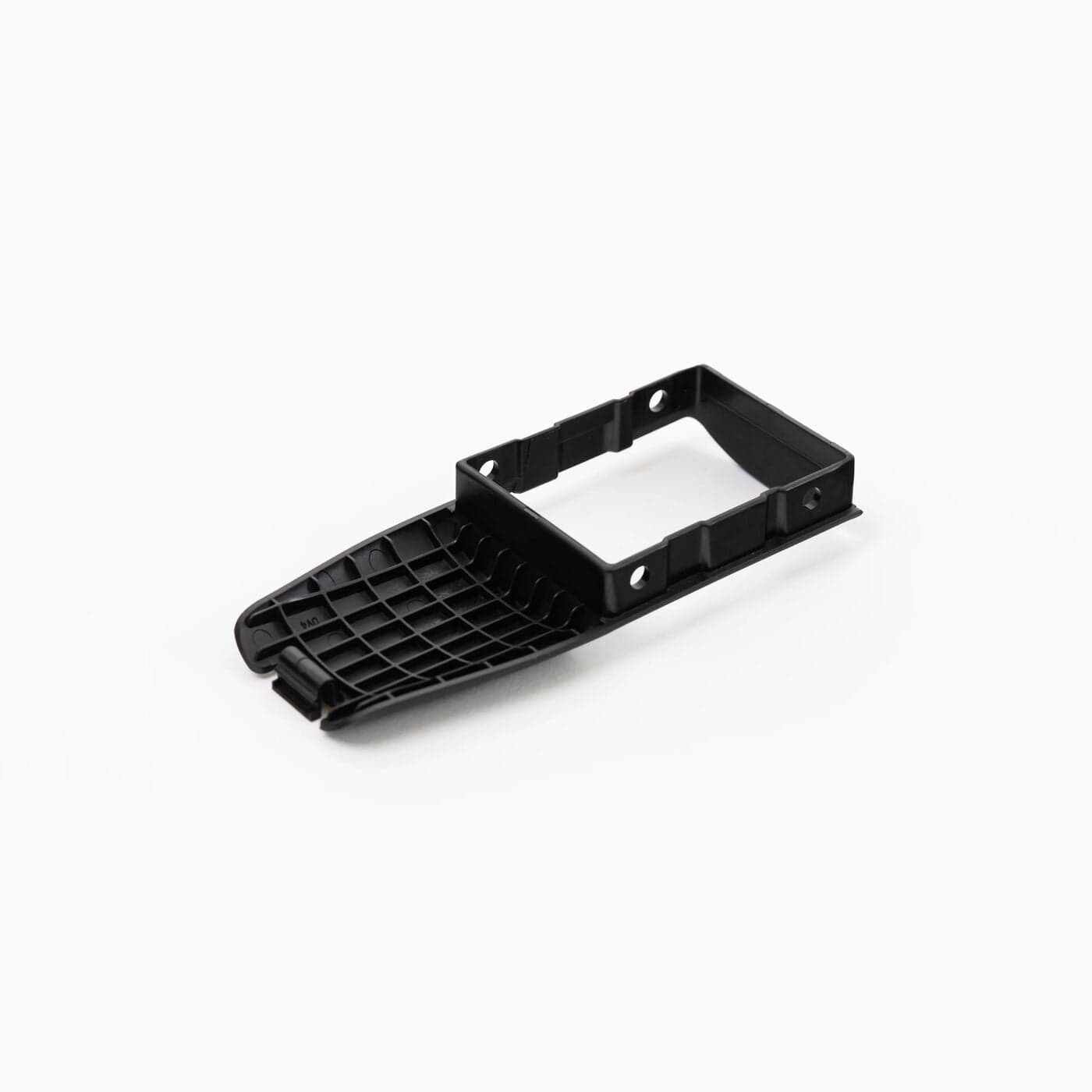

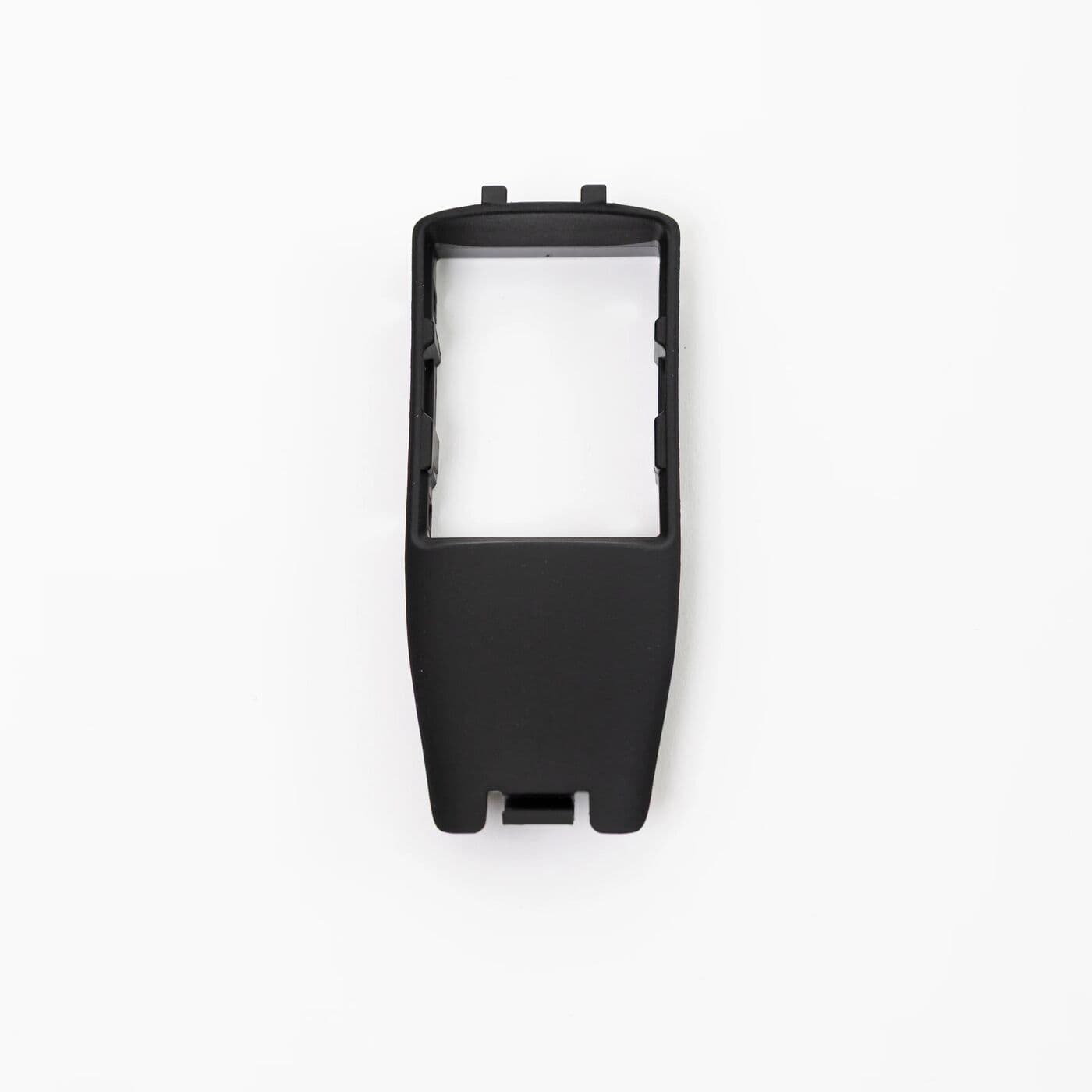

In DJI's parts photo it is a short black moulding: a curved, closed upper section above an open rectangular frame, with small tabs at its ends. That makes it easy to tell from the long, tapered outer shell listed next at callout 8.
Light scuffing does no harm. A crack that runs right through, a broken corner or tab, or a shell that leaves a gap along its edge is what calls for a new one, since grit and spray residue can then work their way in.
Clean dried mix off the joining edges before the new shell goes on. If the spray lance outer shell took the same knock, look it over for cracks and change it at the same time if needed.
