DJI
Flow Meter Adapter Sealing Ring (T100/T70P) YC.JG.MY001790
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

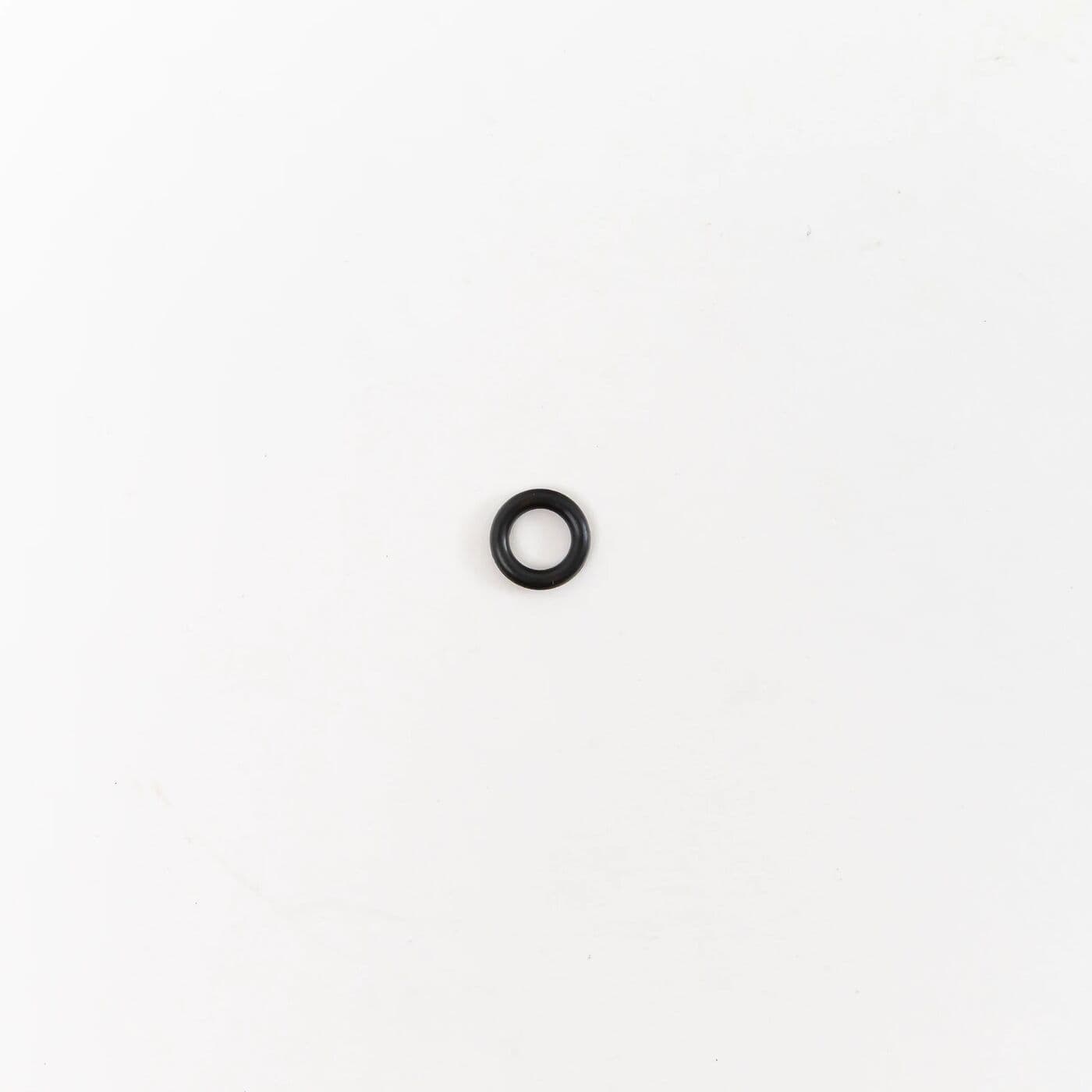

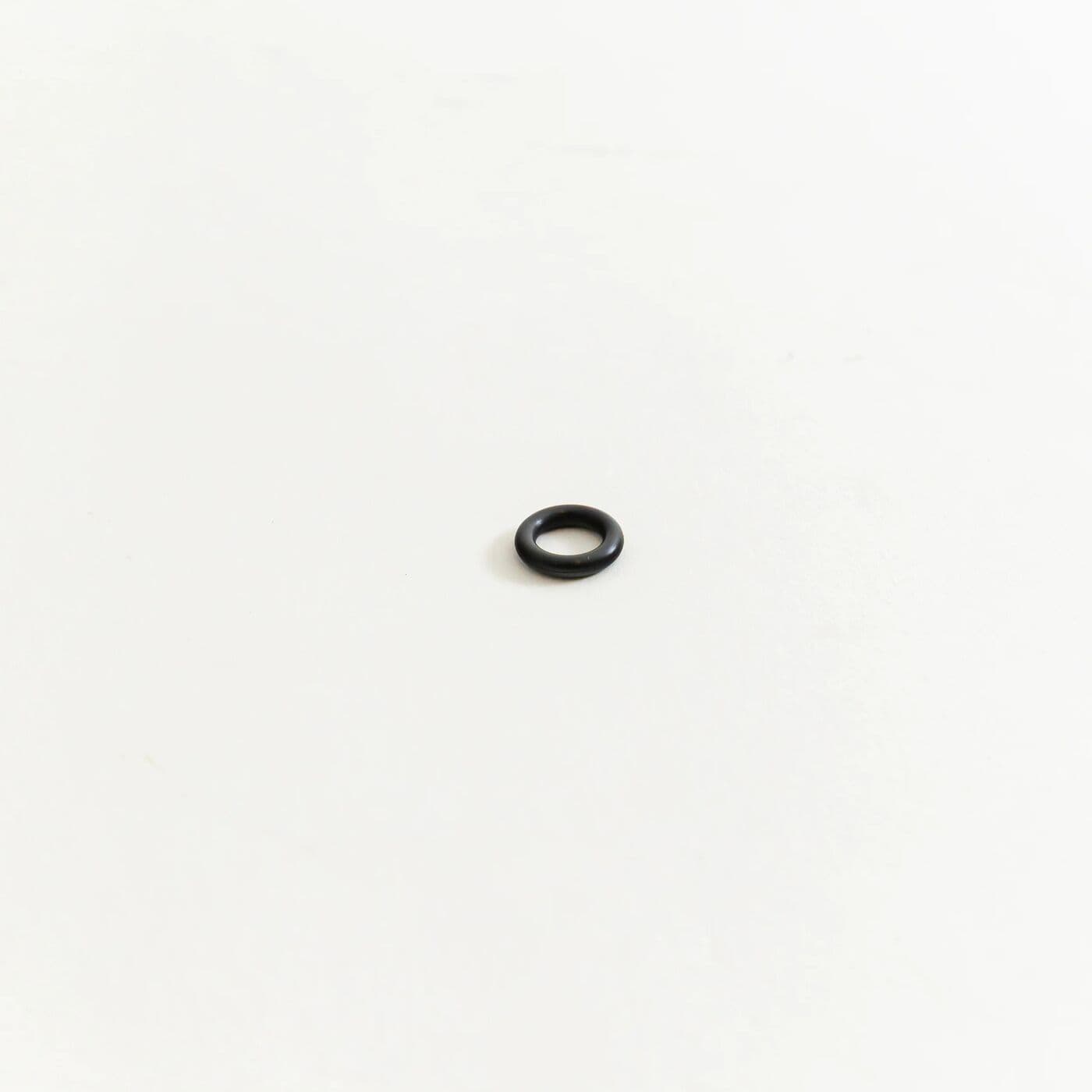

This sealing ring makes the joint between the flowmeter adapter and the flowmeter module liquid-tight on the DJI Agras T100 and T70P spray system. A worn or pinched ring shows up as drips or weeping around the flowmeter.
| Part number | YC.JG.MY001790 |
| Fits | DJI Agras T100, T70P |
| Parts diagram | T100 flowmeter, callout 3; T70P flowmeter, callouts 12 and 16 |
Chemical exposure, and being squeezed each time the joint is tightened, wear the ring over time. Renew it whenever the adapter is removed, and straight away if it looks flattened, nicked, swollen or hard. Wipe both mating faces clean, seat the ring squarely so it cannot roll out of place, then tighten the joint evenly.
Both diagram photos lay out four of these rings, one between each of the four adapters and the flowmeter module. The T70P sheet numbers an upper and a lower ring (callouts 12 and 16), while the T100 sheet numbers only the upper pair, so count the joints you are opening before you order. The flowmeter adapter itself is listed separately.
