DJI

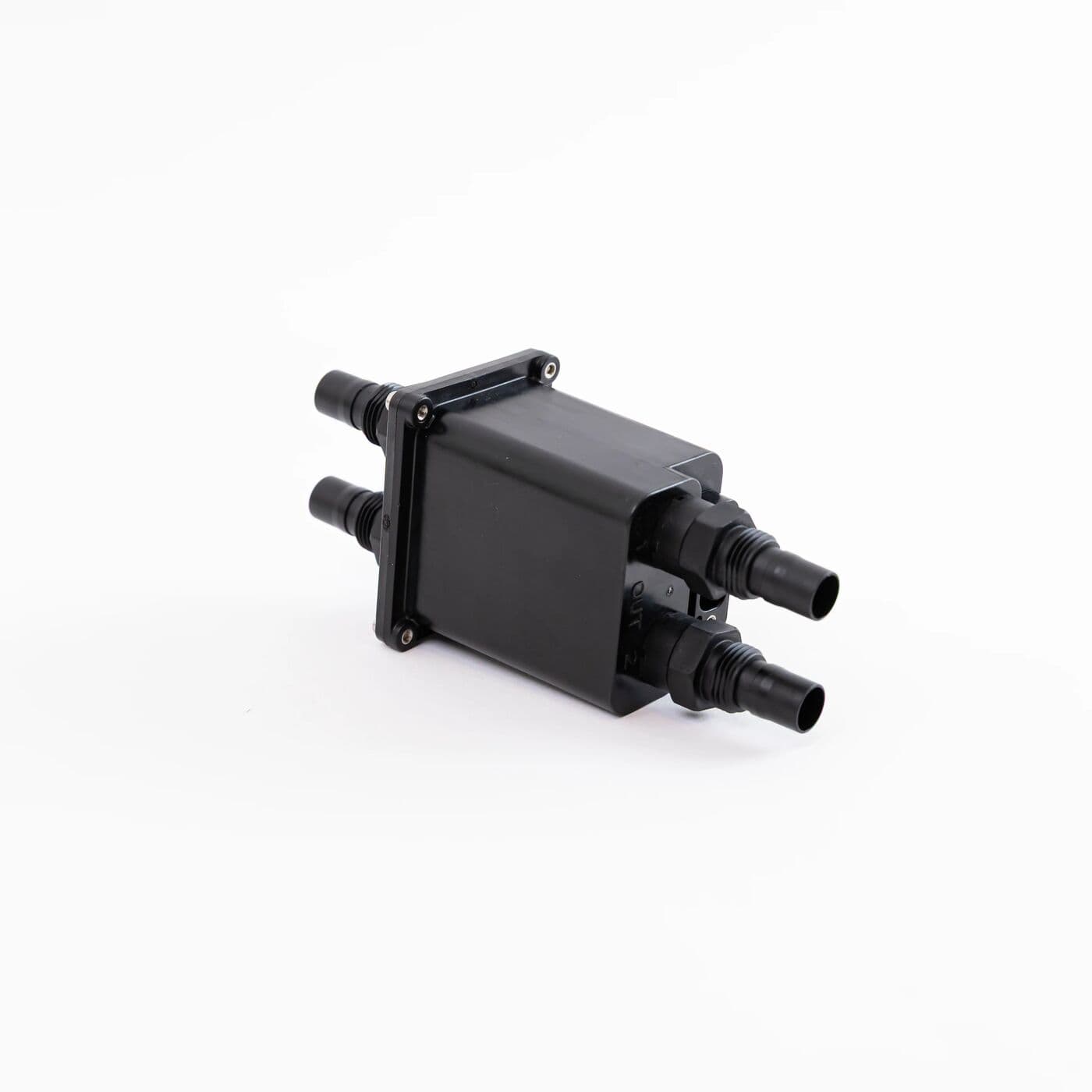

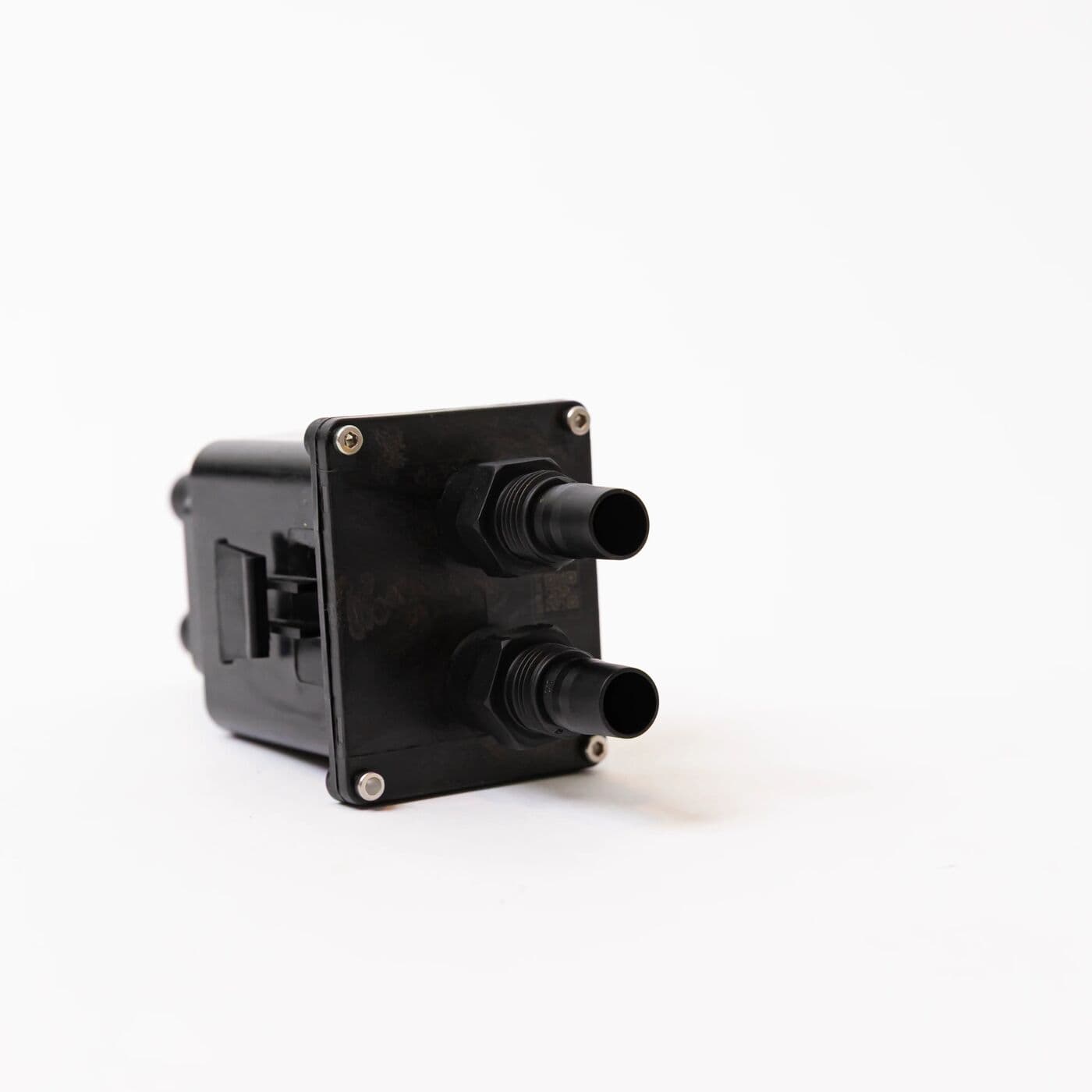

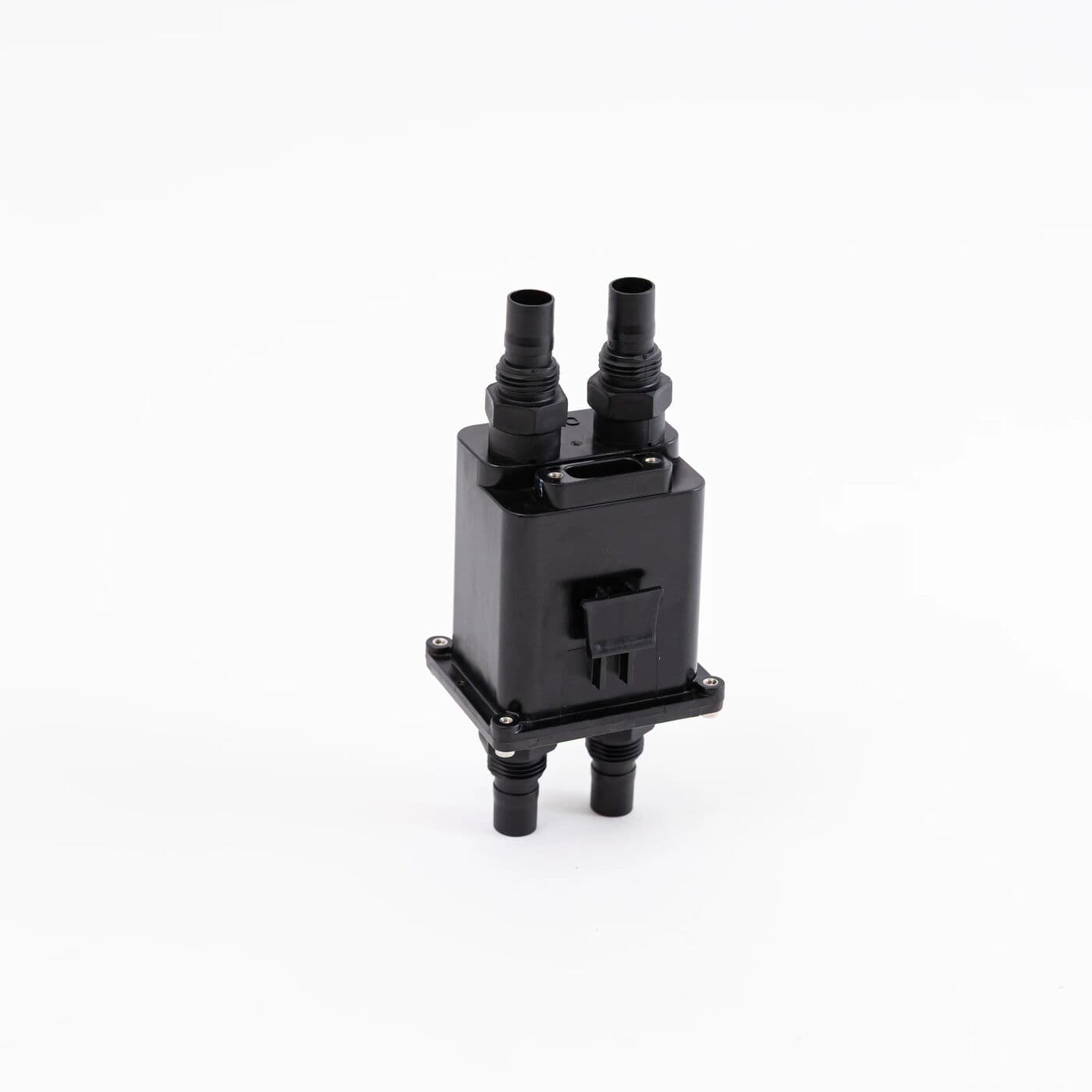

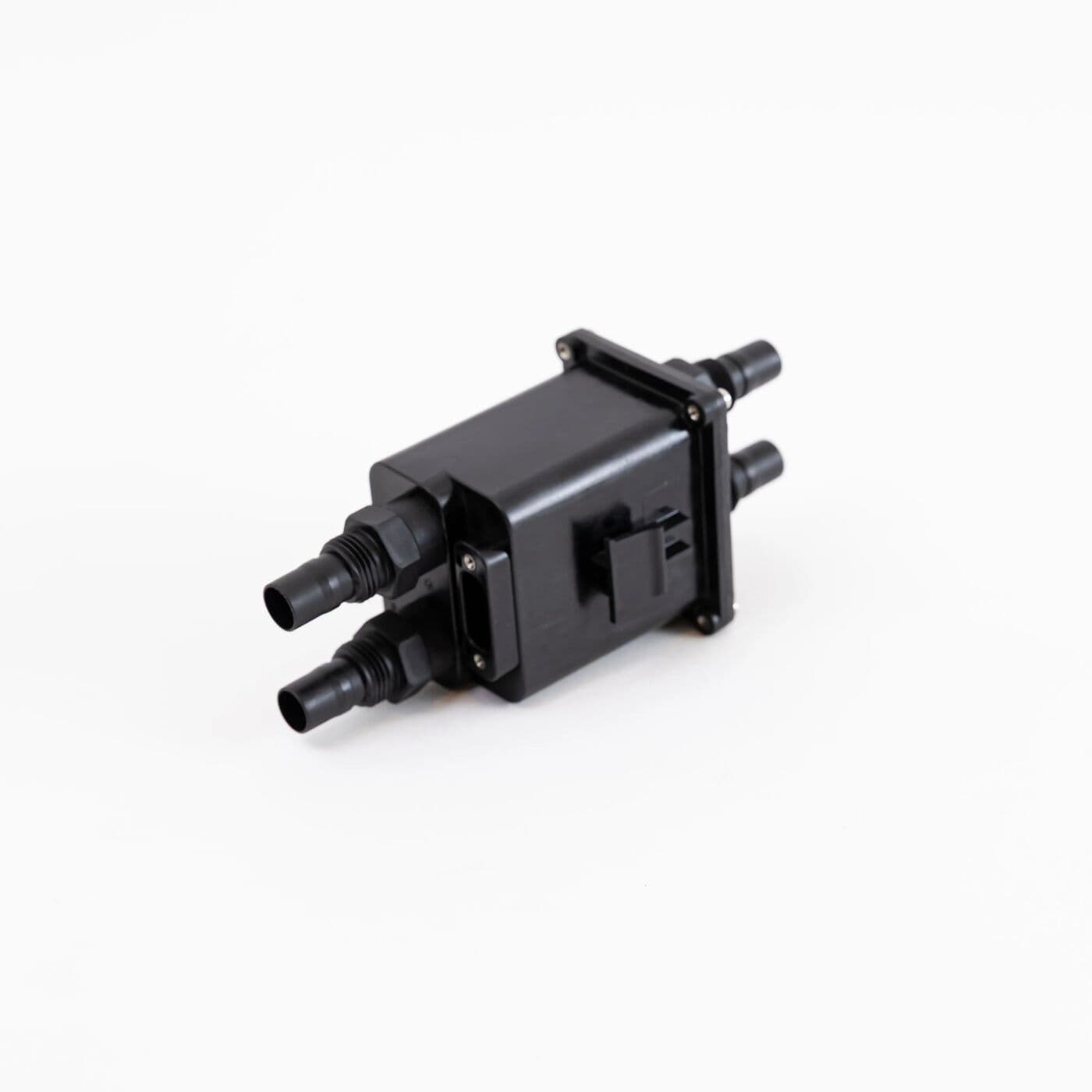

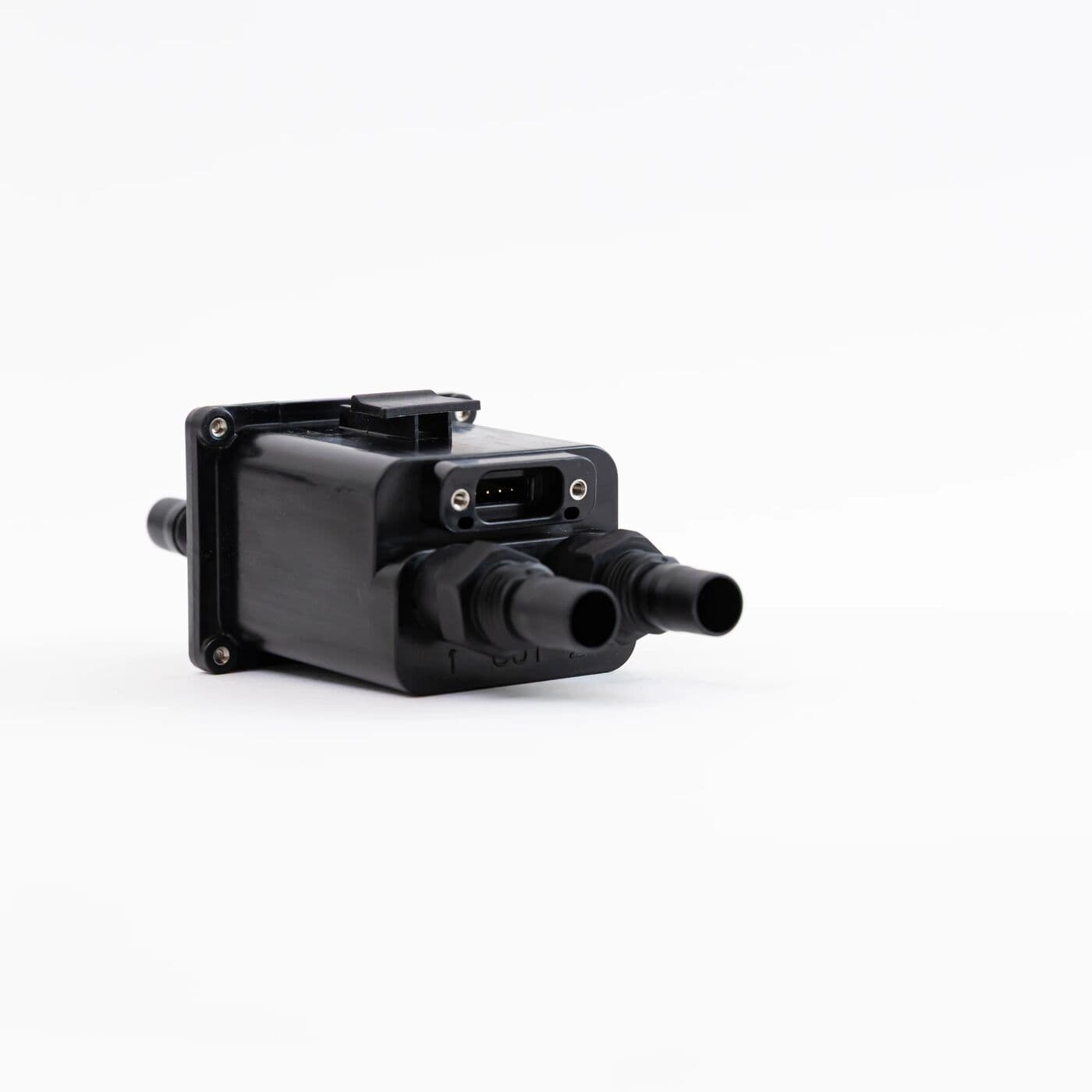

Flow Meter Module (T100/T70P) BC.AG.SS001031
Shipping: Standard Parcel, $27 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Spray rate control on the DJI Agras T100 and T70P depends on this flowmeter module, which measures the liquid passing through the spray line so the aircraft can hold the rate set for the job. DJI's T100 manual identifies it as an electromagnetic flowmeter.
| Part number | BC.AG.SS001031 |
| Fits | DJI Agras T100, T70P |
| Parts diagram | T100 flowmeter, callout 4; T70P flowmeter, callout 13 |
If the amount applied no longer matches the planned amount, recalibrate first: DJI's T100 and T70P manuals recommend it for that and for a change to a liquid of different viscosity. Suspect the module when the error returns after a successful calibration, when flow alerts keep appearing with clean filters and nozzles, or when the housing is cracked. Blocked strainers, air in the lines and leaking joints can cause similar faults.
The adapters, nuts and seals are separate callouts on the diagram. Renew the adapter sealing ring at each joint during the swap, inspect the flowmeter adapter and hose nut, then check for leaks with water only. Finish with the flow calibration in the DJI Agras app, run with about 2 L of water in the tank.
