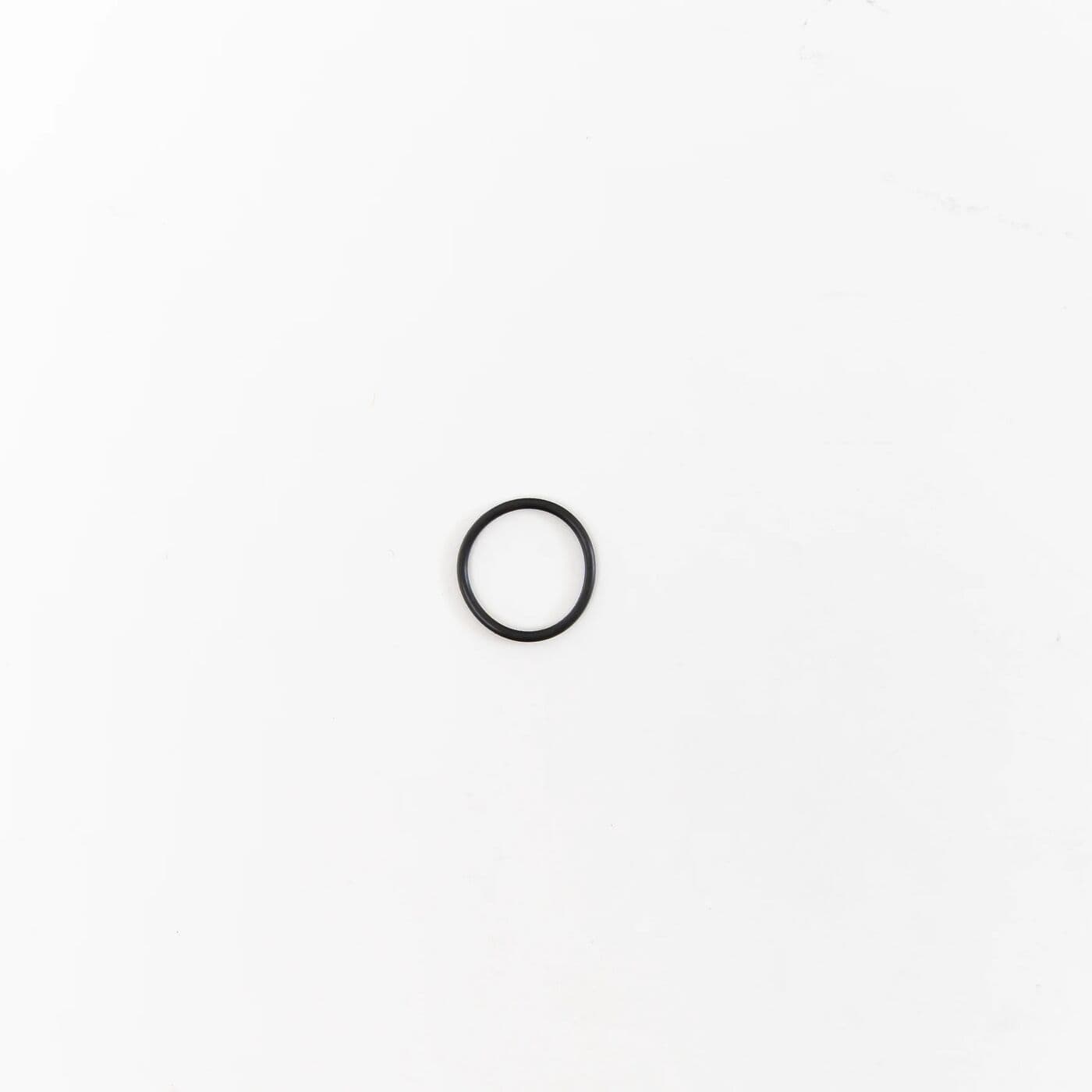

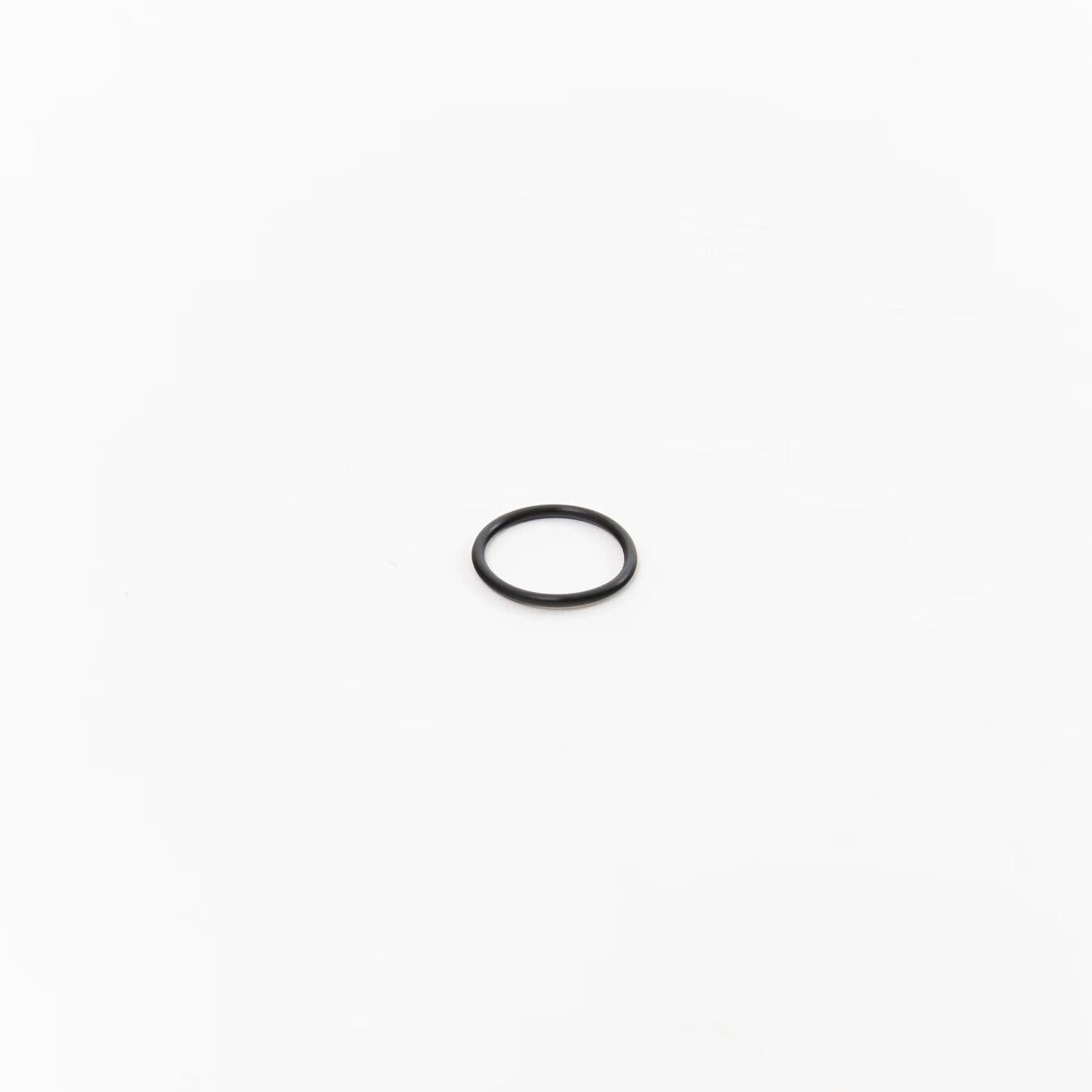

One-Way Valve Sealing Ring (T100/T70P) YC.JG.MY001774
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Of the two sealing rings drawn with the one-way valve in the DJI Agras T100 and T70P flowmeter assembly, this is the valve's own ring, a separate part from the valve core sealing ring.
| Part number | YC.JG.MY001774 |
| Fits | DJI Agras T100, T70P |
| Parts diagram | T100 flowmeter, callout 9; T70P flowmeter, callout 6 |
It seals the valve so liquid cannot seep past it. Check it whenever you see wet patches or residue around the one-way valve after a job, and look for a ring that is cut, flattened, swollen or has lost its stretch.
A disturbed ring rarely reseals as well as a fresh one, so fit a new one every time the one-way valve comes out. With the valve apart, the valve core sealing ring is worth replacing as well.
