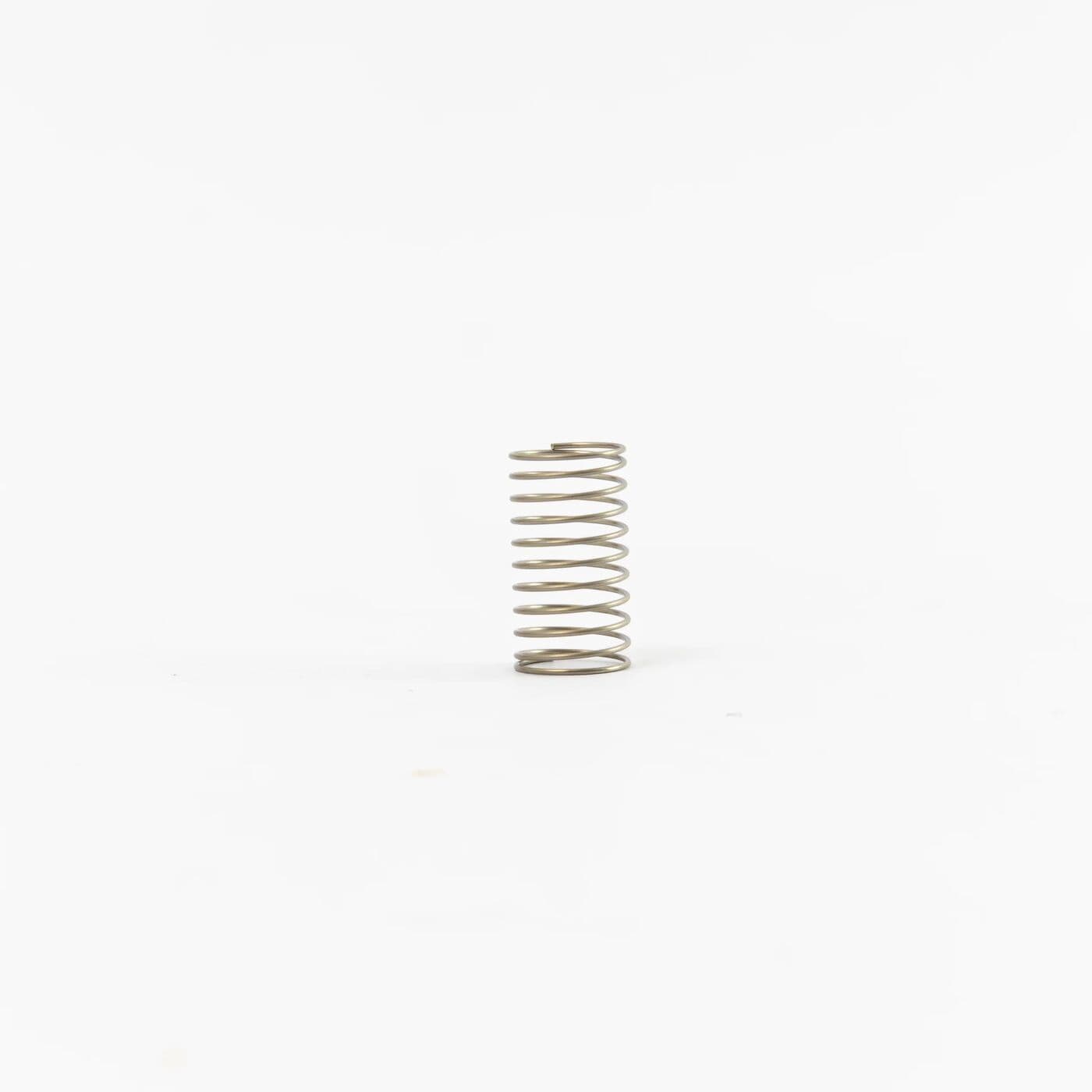

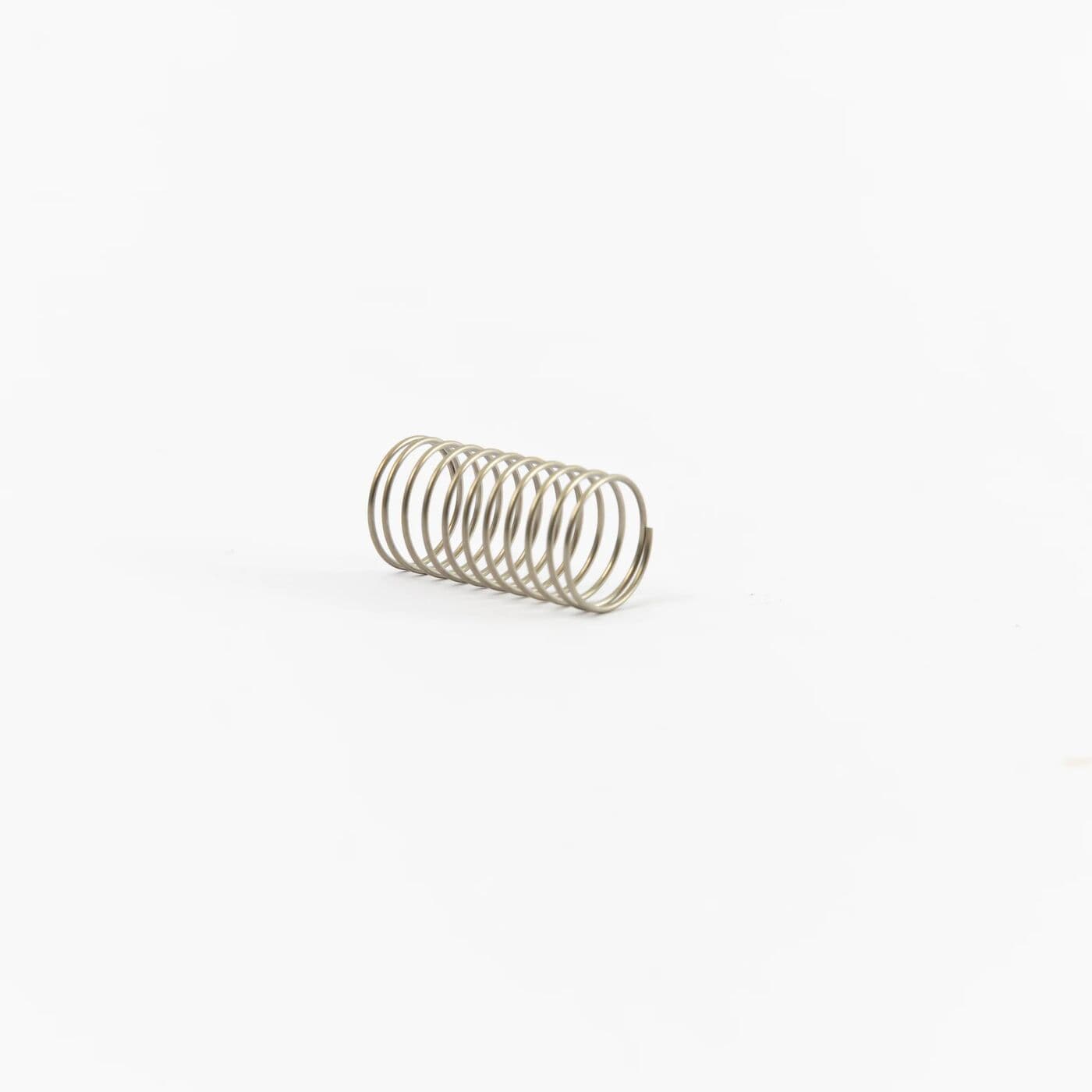

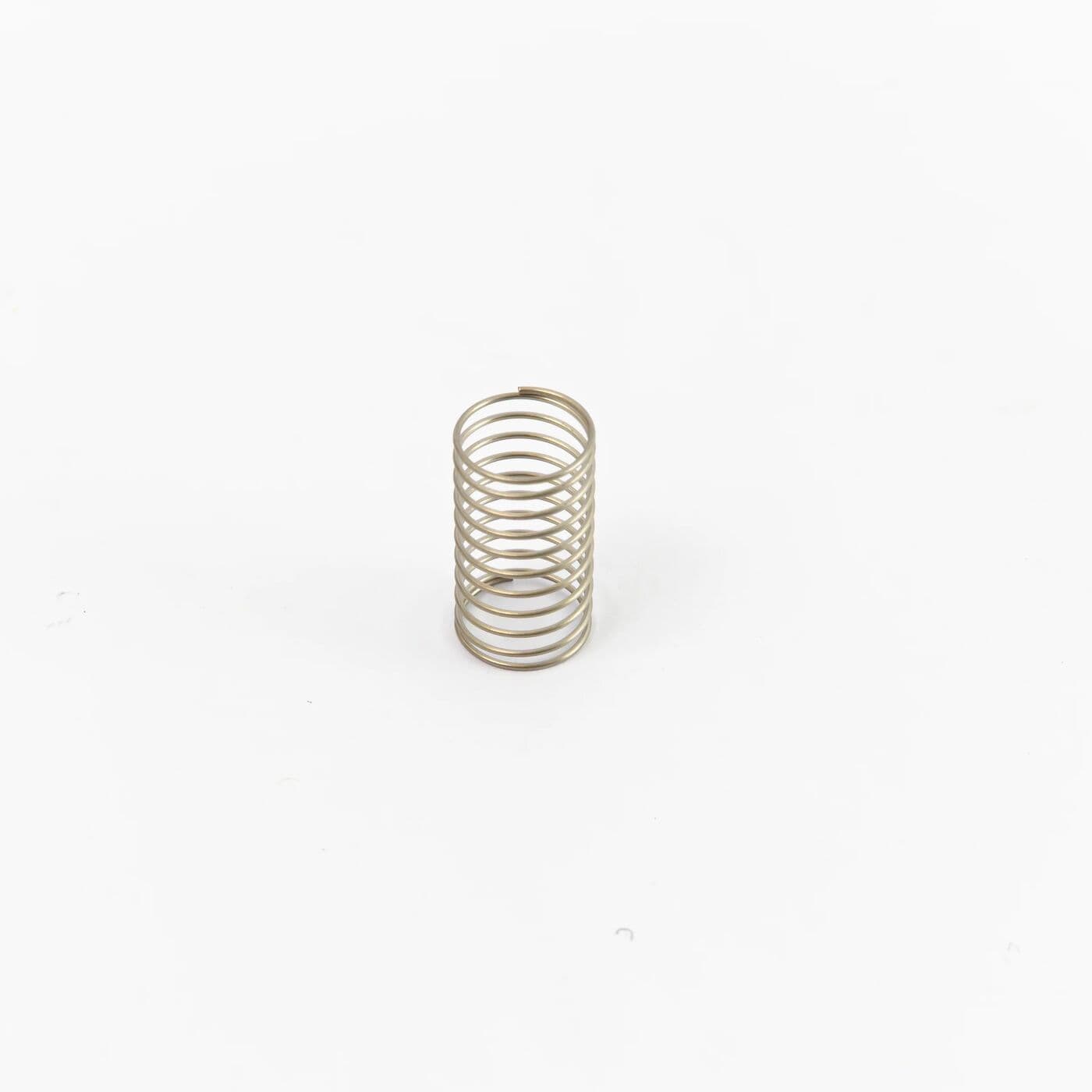

One-Way Valve Spring (T100/T70P) YC.JG.TT000285
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Pressure in the spray line has to overcome this spring before the one-way valve on a DJI Agras T100 or T70P flowmeter will open. The rest of the time it holds the valve shut, which is what stops liquid running backwards.
| Part number | YC.JG.TT000285 |
| Fits | DJI Agras T100, T70P |
| Parts diagram | T100 flowmeter, callout 11; T70P flowmeter, callout 4 |
A weak, corroded or broken spring lets the valve close poorly, so liquid can creep back past it. Clean the valve parts before reassembly, make sure the spring sits squarely, and renew the valve core sealing ring while the one-way valve is apart.
