DJI

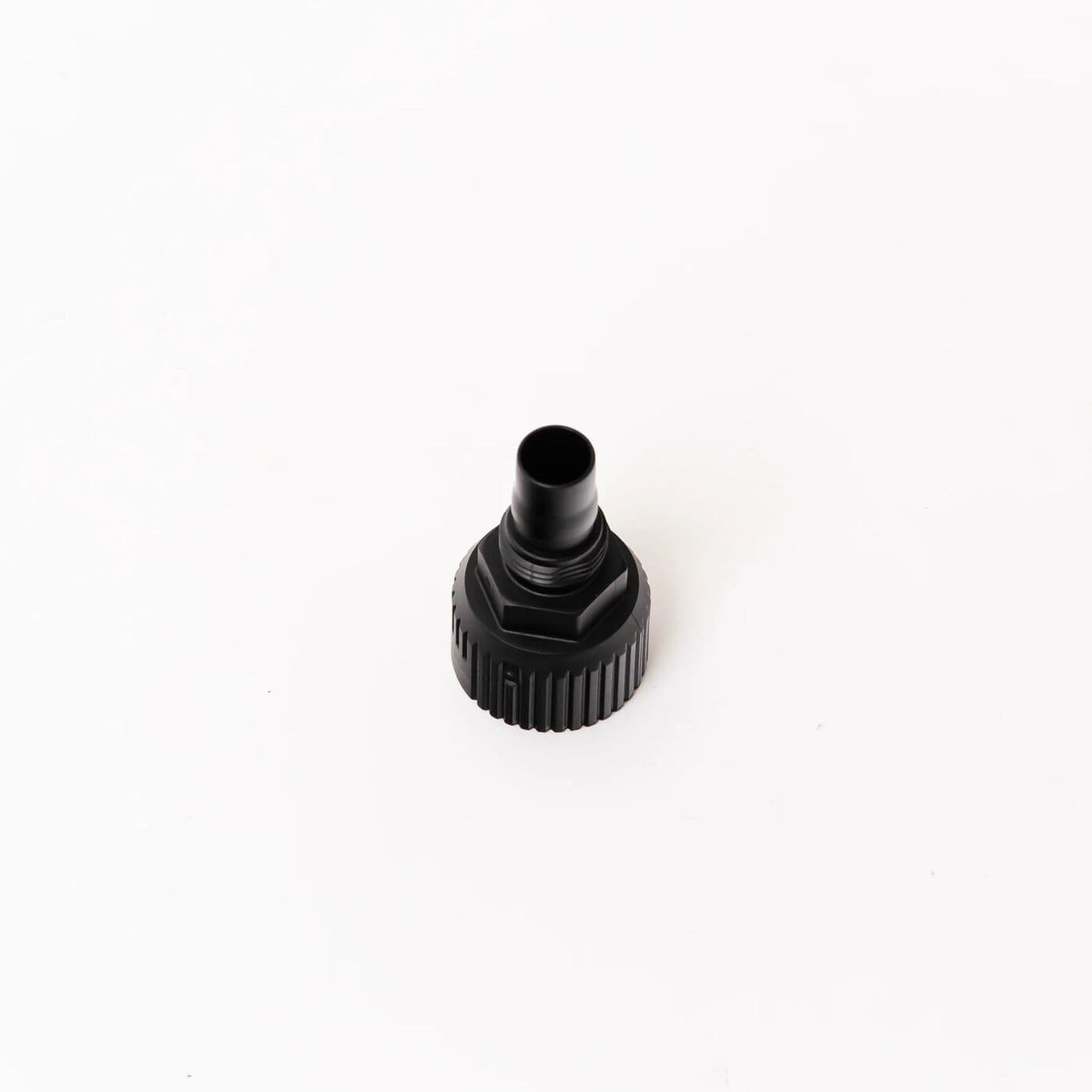

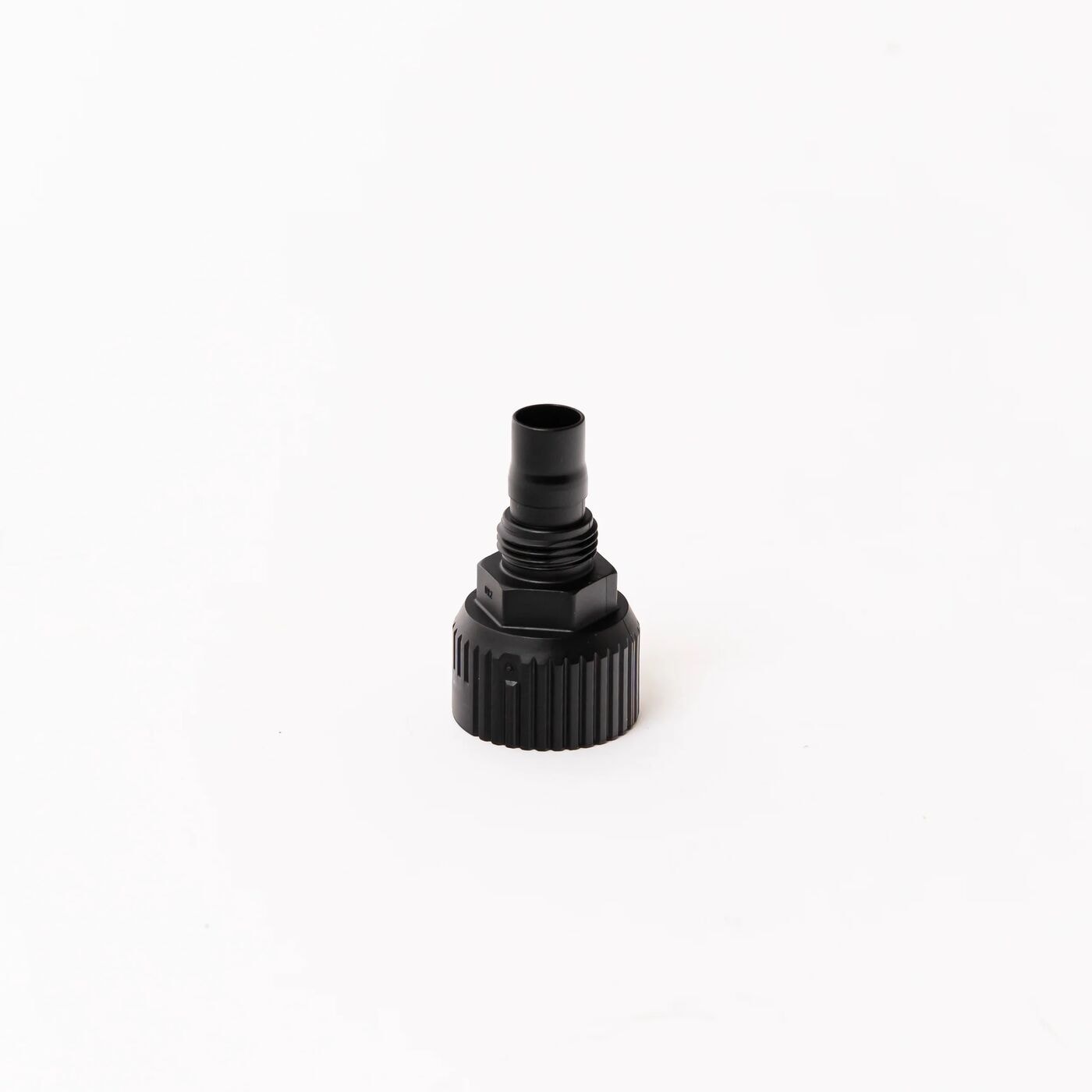

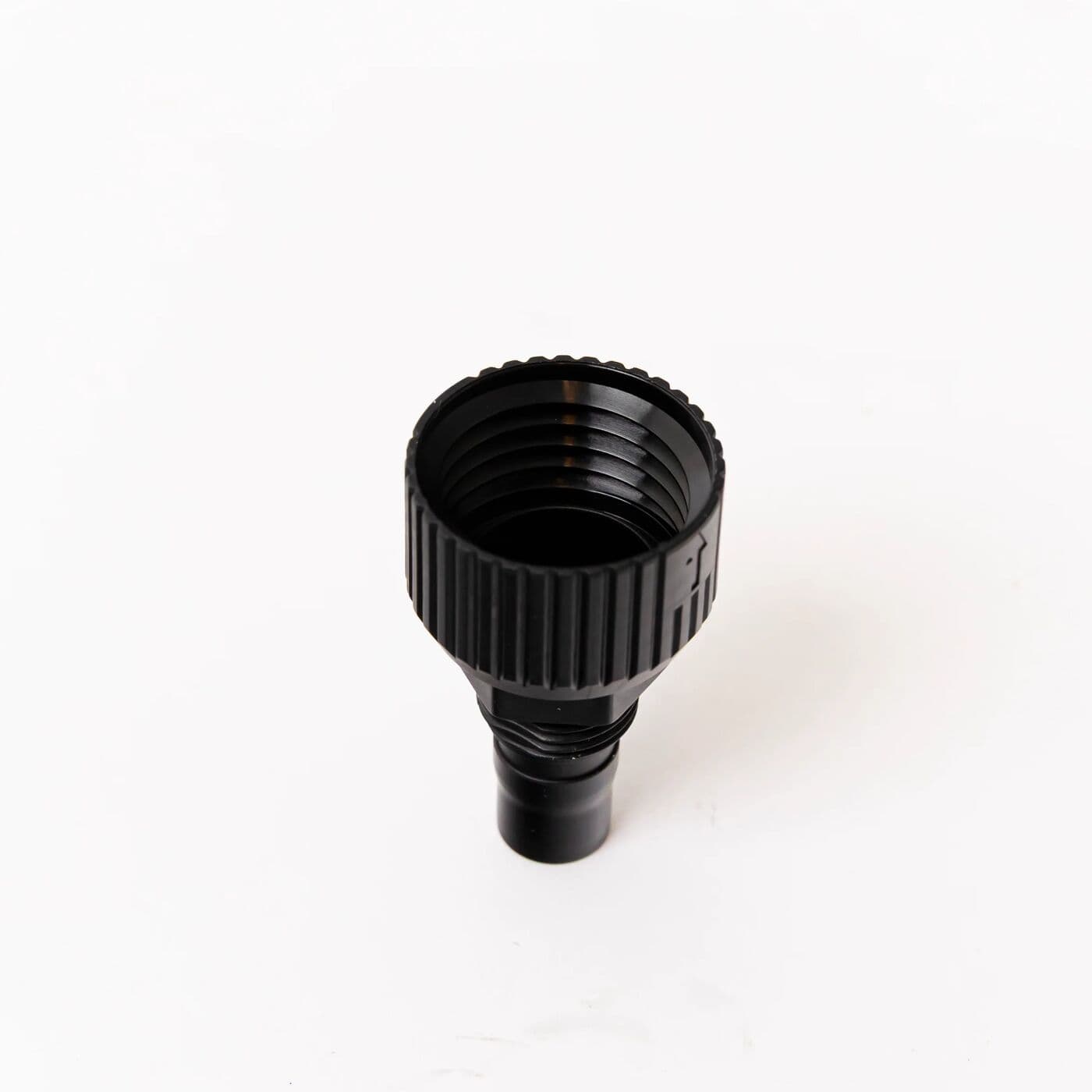

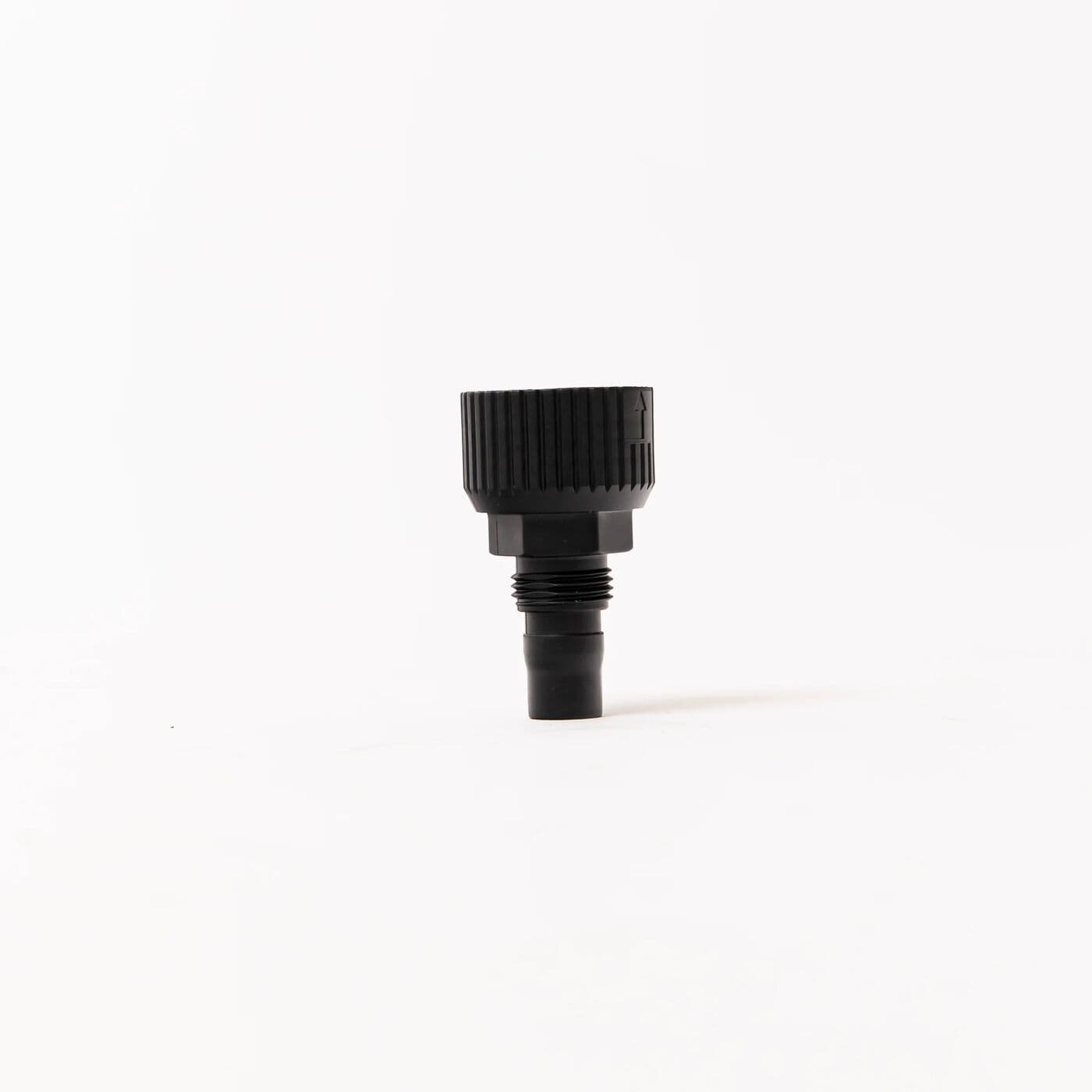

One-Way Valve (T100/T70P) YC.JG.ZS006170
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Fitted in the flowmeter plumbing of the DJI Agras T100 and T70P, the one-way valve lets spray liquid pass in one direction only and stops it flowing back through the line.
| Part number | YC.JG.ZS006170 |
| Fits | DJI Agras T100, T70P |
| Parts diagram | T100 flowmeter, callout 8; T70P flowmeter, callout 7 |
If the valve sticks open, liquid can run back through it; if it sticks shut or only partly opens, flow is restricted and the spray rate can fall away. Dried residue from spray mixes can cause either fault, so flush the system with clean water at the end of each job.
When rebuilding it, fit a new one-way valve sealing ring and valve core sealing ring, and check the one-way valve spring for corrosion or lost tension.
