DJI

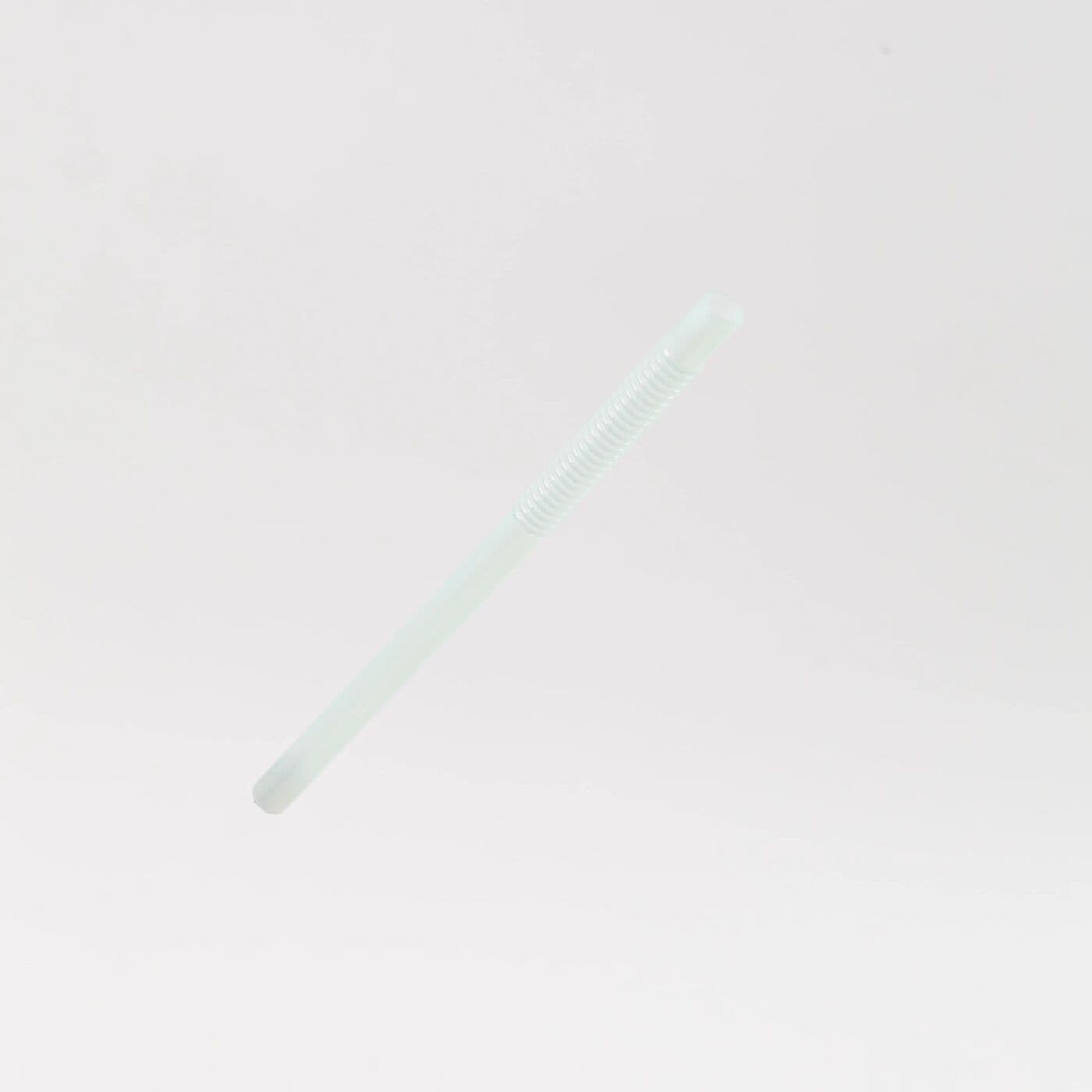

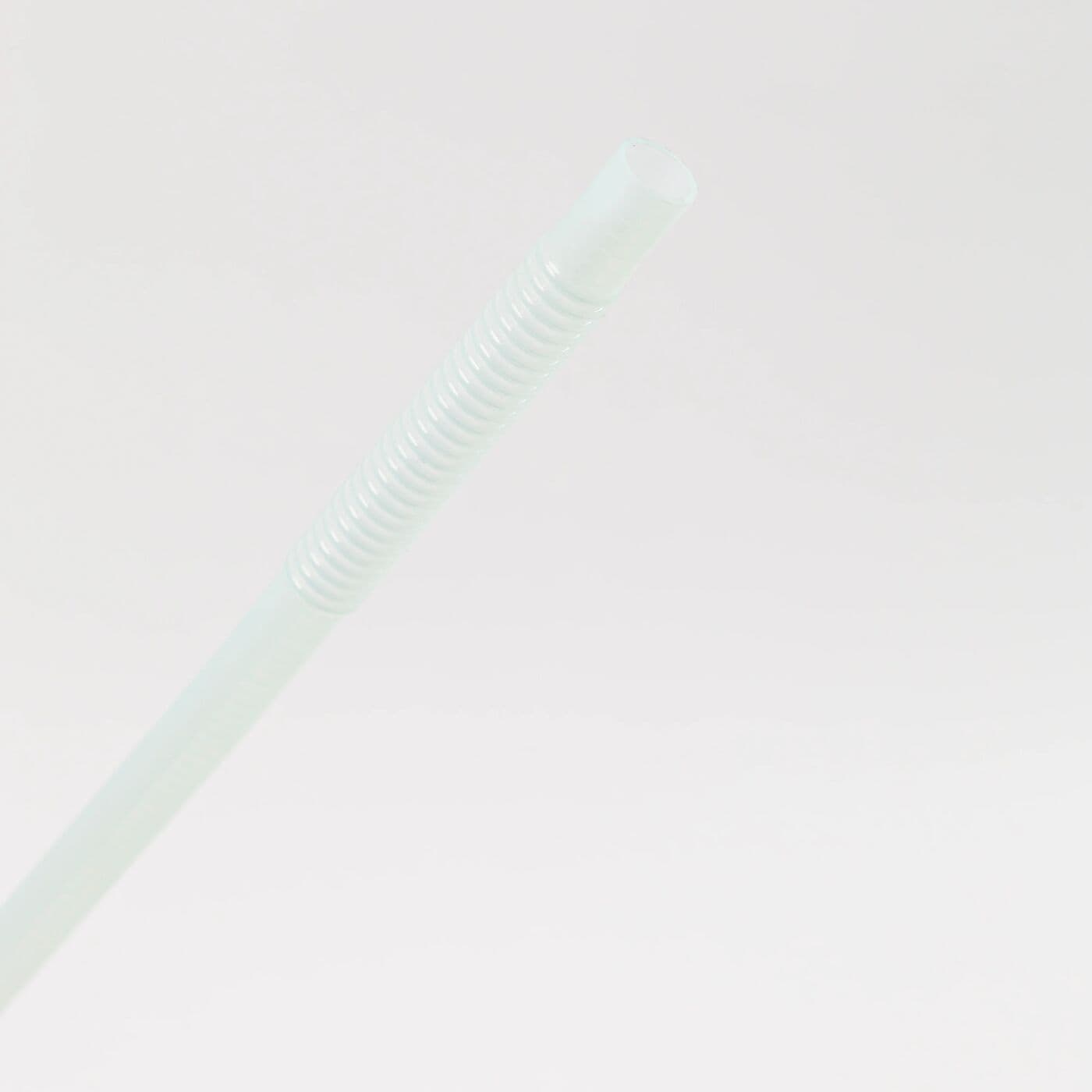

Flow Meter Water Inlet Hose (T100) YC.JG.JS000088
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Anyone replacing the hose that feeds spray liquid into the flowmeter of a DJI Agras T100 needs this inlet hose, which the parts diagram lists as the flowmeter water inlet hose at callout 14.
| Part number | YC.JG.JS000088 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 flowmeter, callout 14 |
This code is specific to the T100. The T70P flowmeter uses an inlet hose with a different part number, YC.JG.JS000072, so read the code off the old hose or the diagram before ordering.
Replace it if it is split, kinked, flattened or rubbed through, or if it has gone stiff and no longer seals at its ends. Route the new hose the same way as the old one, with no tight bends, and run water through the system to check both ends for leaks. The outlet side uses the flowmeter water outlet hose, which is worth checking while the section is open.
