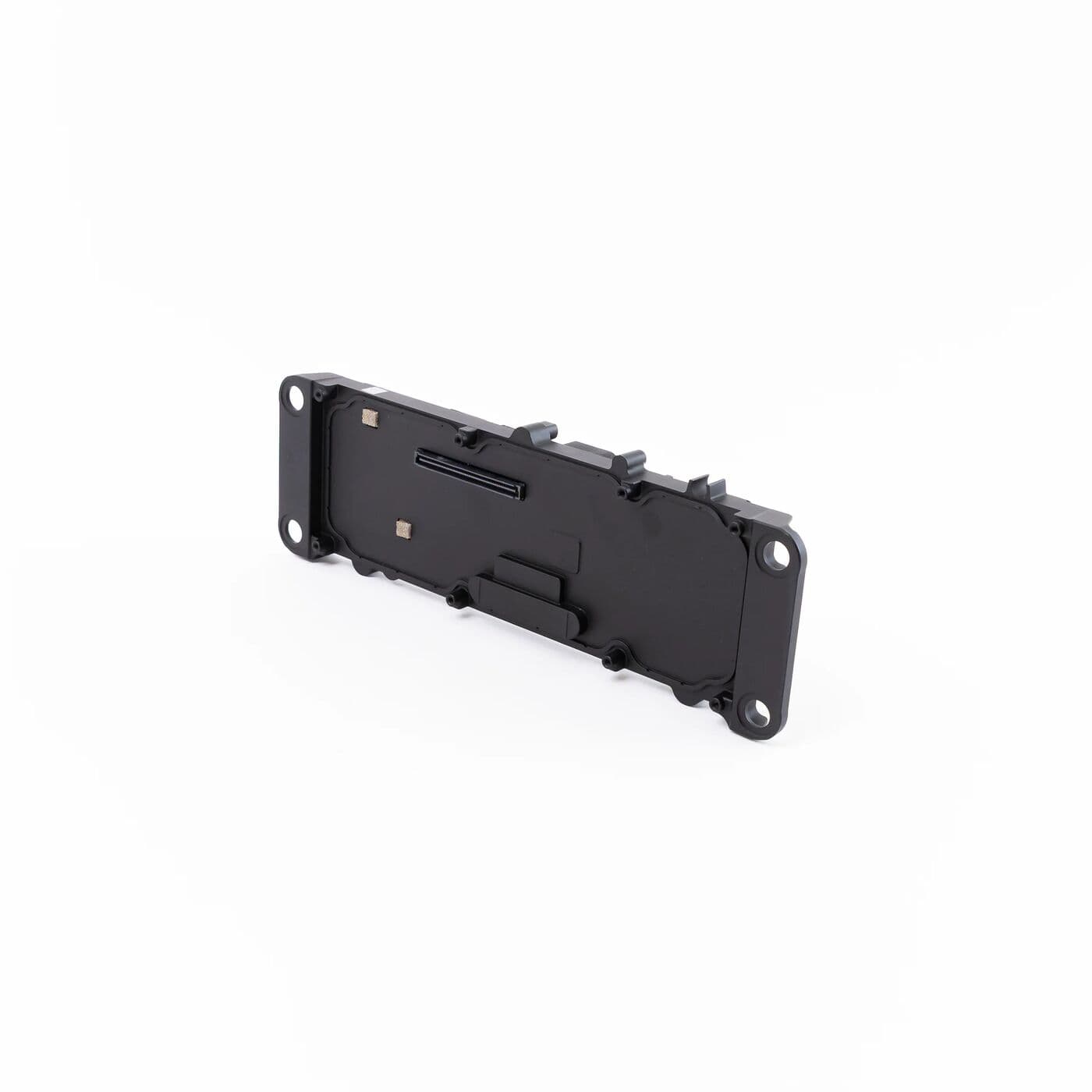

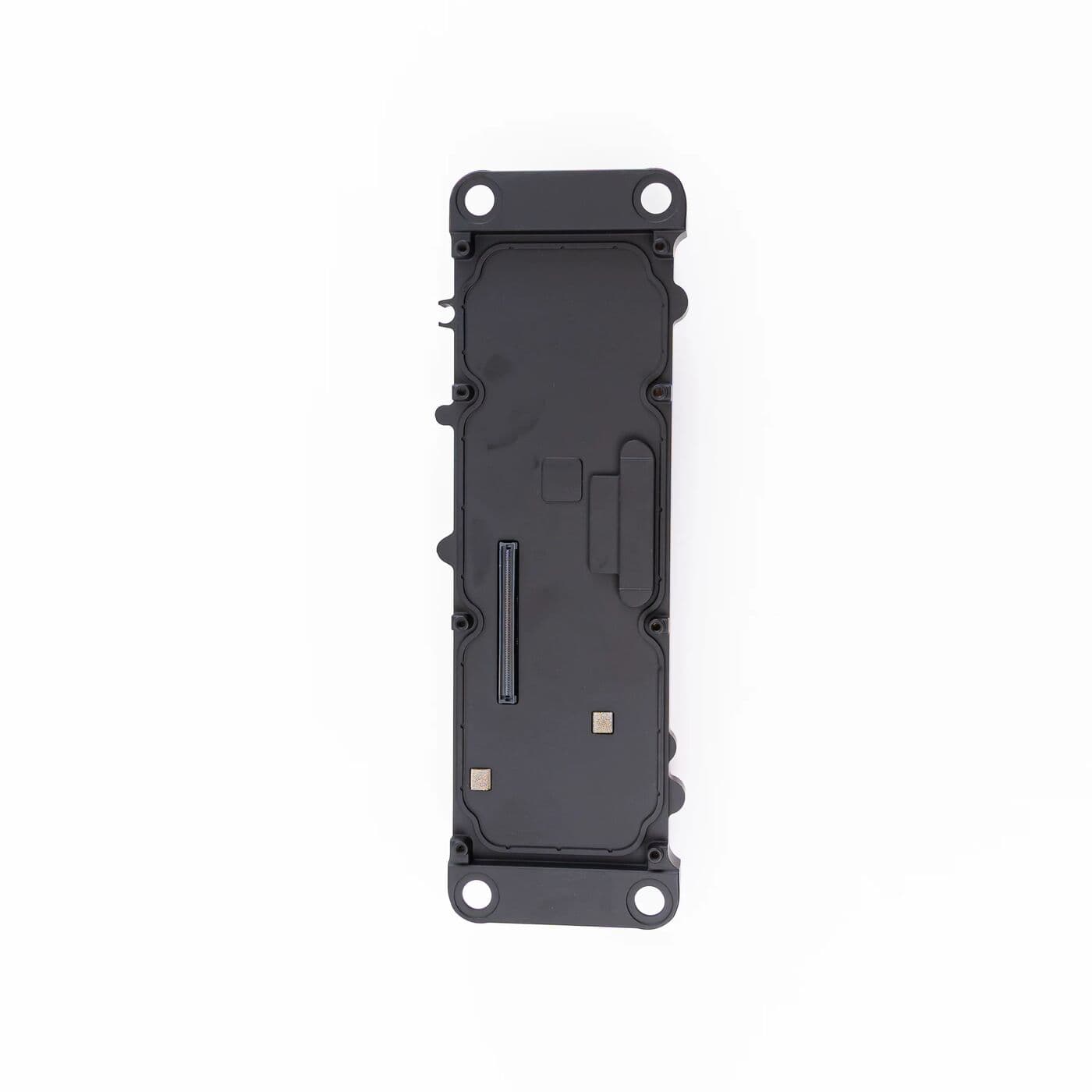

Cable Distribution Board Module (T100) BC.AG.SS001091

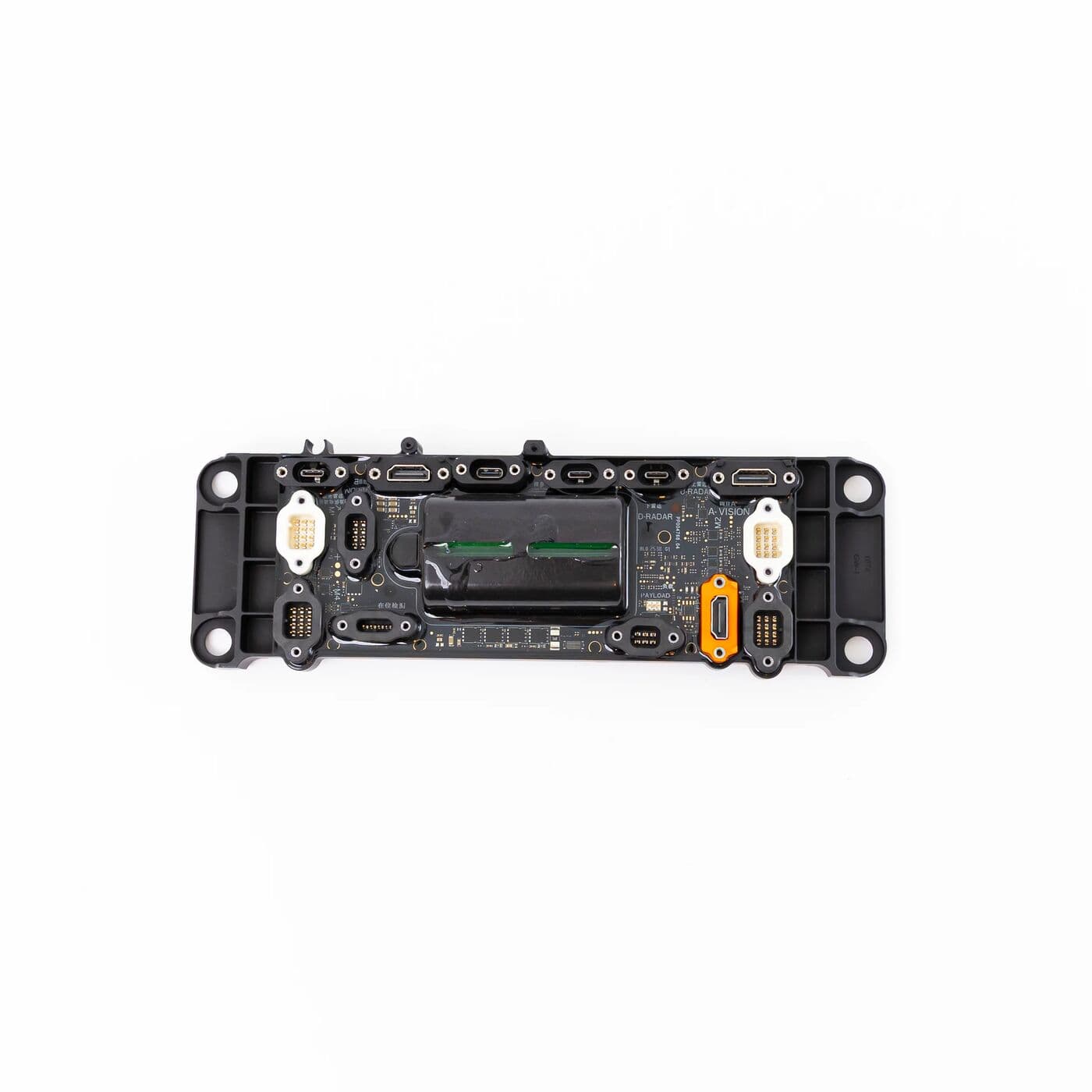

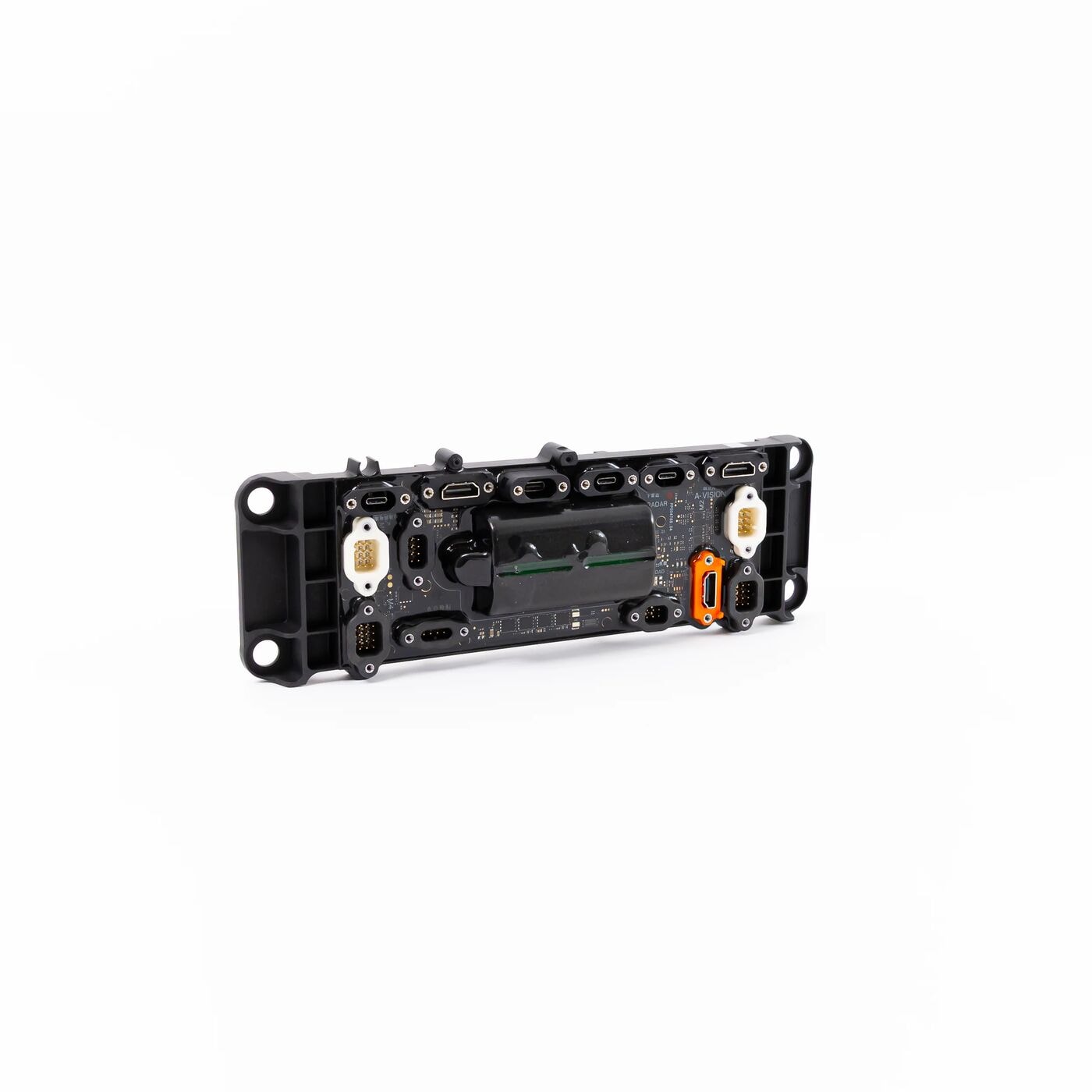

Replacement cable distribution board module for the DJI Agras T100, the callout 2 board in the cable distribution board assembly. Its connector sockets are marked for connections such as the radar, vision system and payload.

A new board may be needed after water or spray chemical has got into the electronics, after a hard landing has cracked the board or a connector, or when diagnosis traces a fault back to it. The diagram groups it with the aerial-electronics module, the thermal and damping pads, the Type-C port cover and the barometer parts.

Remove the flight battery first and photograph every plug before disconnecting anything, so each cable returns to the same socket. The diagram draws the 11 × 42 mm thermal pad above this board; the 162 × 23.5 mm and 53.1 × 12.9 mm pads are drawn below the aerial-electronics module. Replace a pad that lifts during the swap rather than reusing it, and check Damping Pad B while the board is out. Power up and check the app for warnings before the first flight.
