DJI
Type-C Port Waterproof Cover (T100/T70P/T50/T25P) YC.JG.MY000389
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

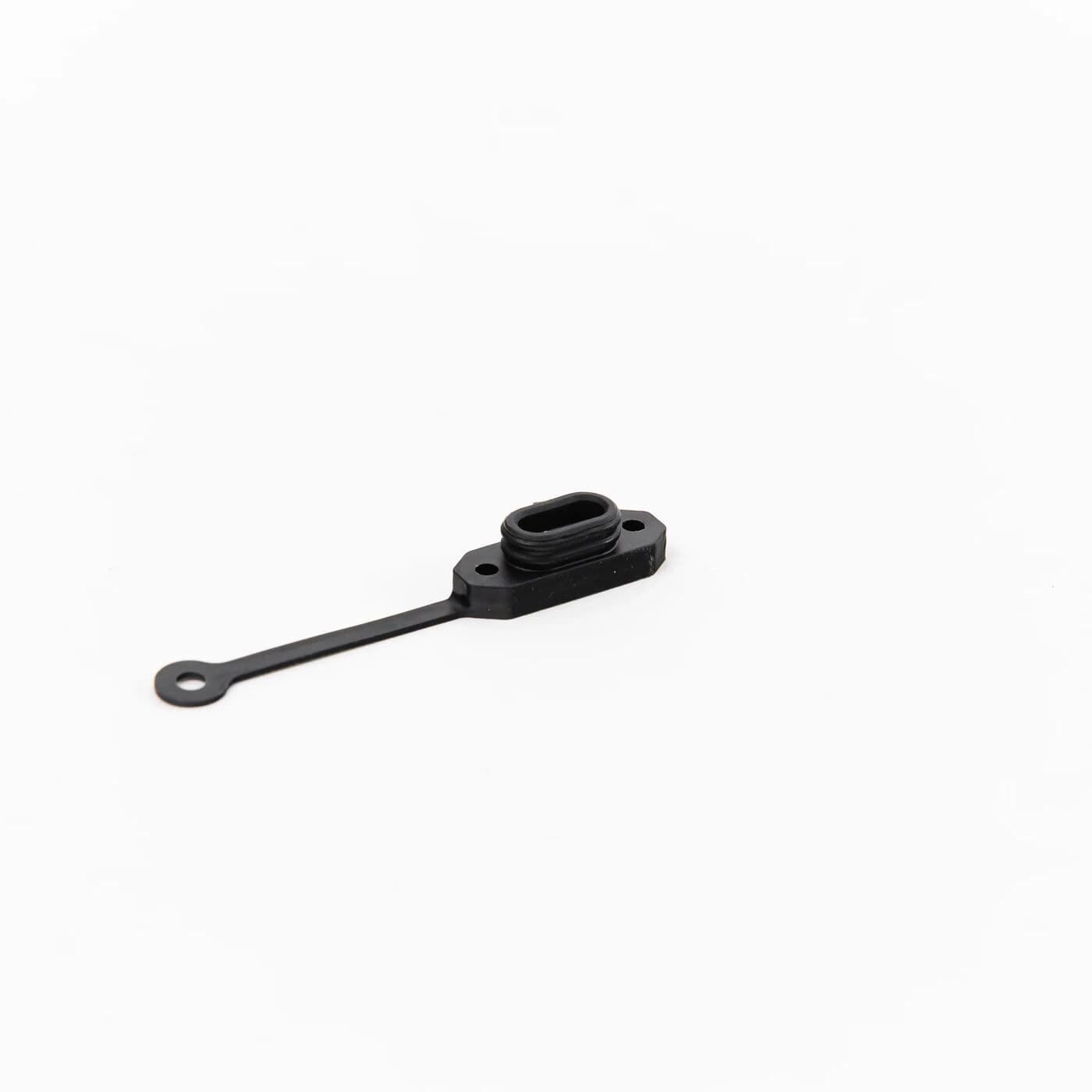

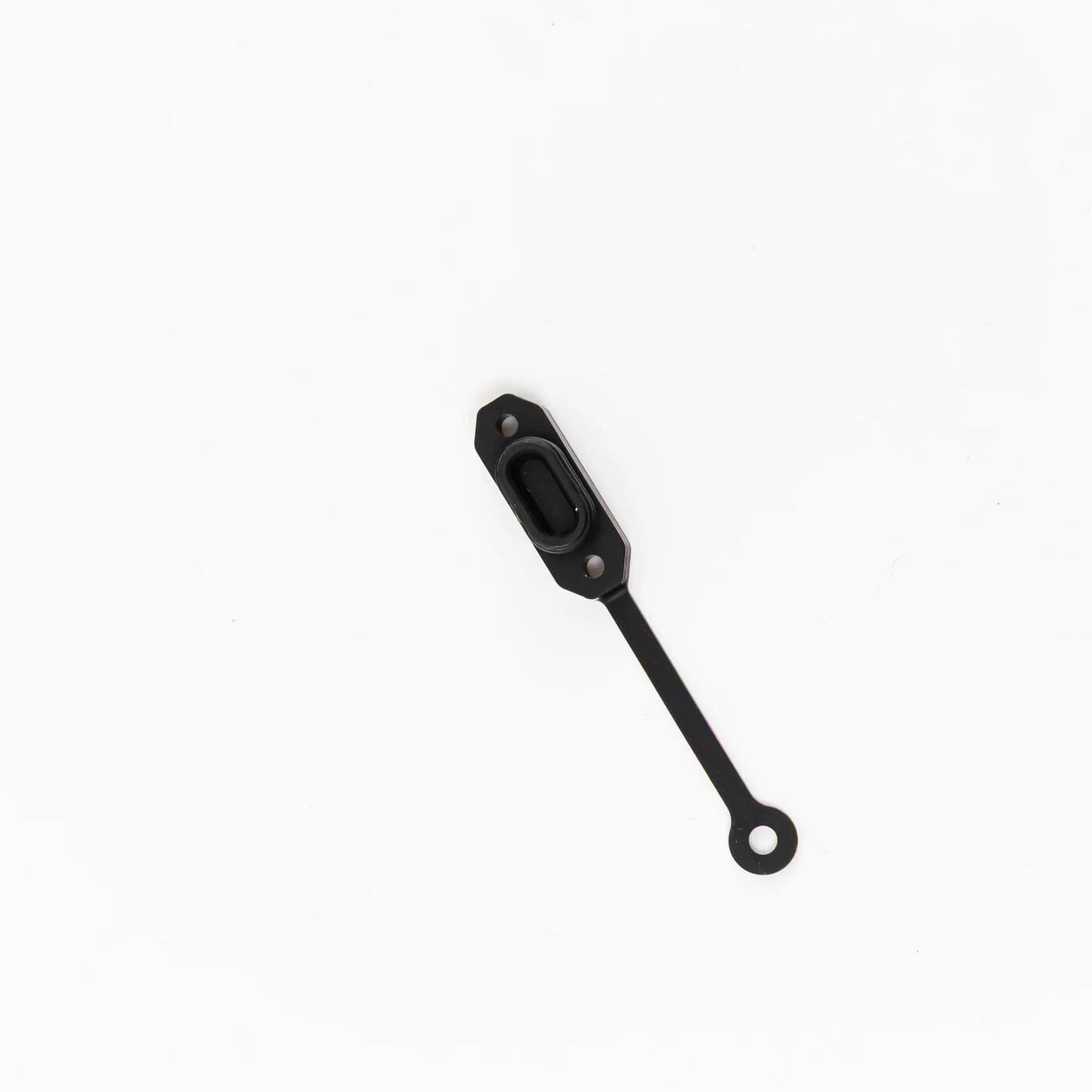

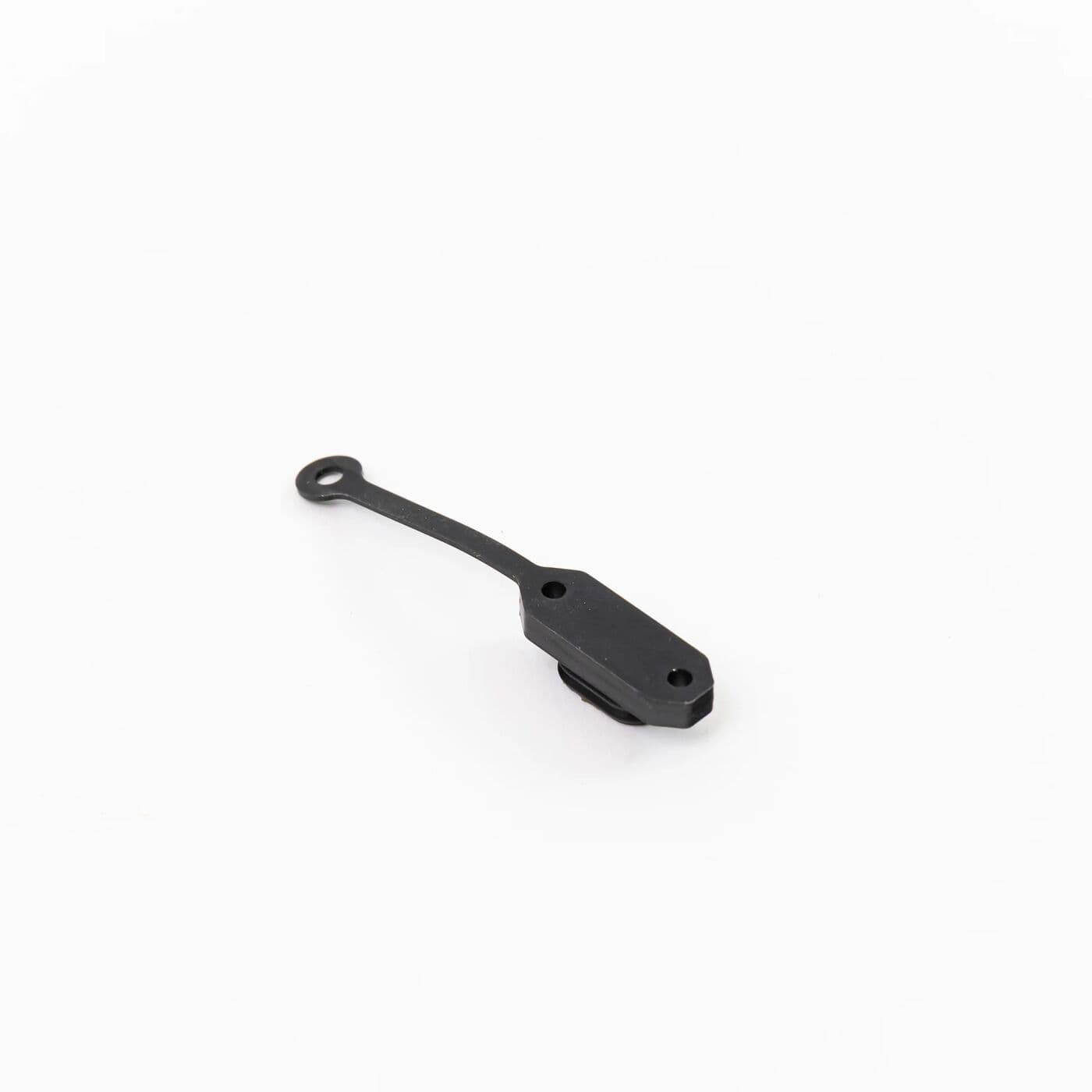

Waterproof cover for the USB-C port in the cable distribution board assembly of a DJI Agras T100, T70P, T50 or T25P. It closes the port whenever no cable is plugged in, keeping wash water, dust and spray residue off the contacts.
| Part number | YC.JG.MY000389 |
| Fits | DJI Agras T100, T70P, T50, T25P |
| Parts diagram | T100 cable distribution board, callout 5; T70P cable distribution board, callout 14; T50 cable distribution board module, callout 23; T25P cable distribution board, callout 13 |
The same code is used on all four aircraft, so one spare in the workshop drawer covers a mixed fleet. Replace the cover if it is torn, stretched so it no longer stays shut, or lost after the port was last used. On the T100 and T70P the port sits under the front bottom cover and is used to connect a computer. DJI's manuals for both say to keep this cover fitted whenever the port is idle, as water getting in can short it.
Before pressing a new cover home, check the port is dry and free of residue or corrosion, then make sure it sits flush all the way round.
