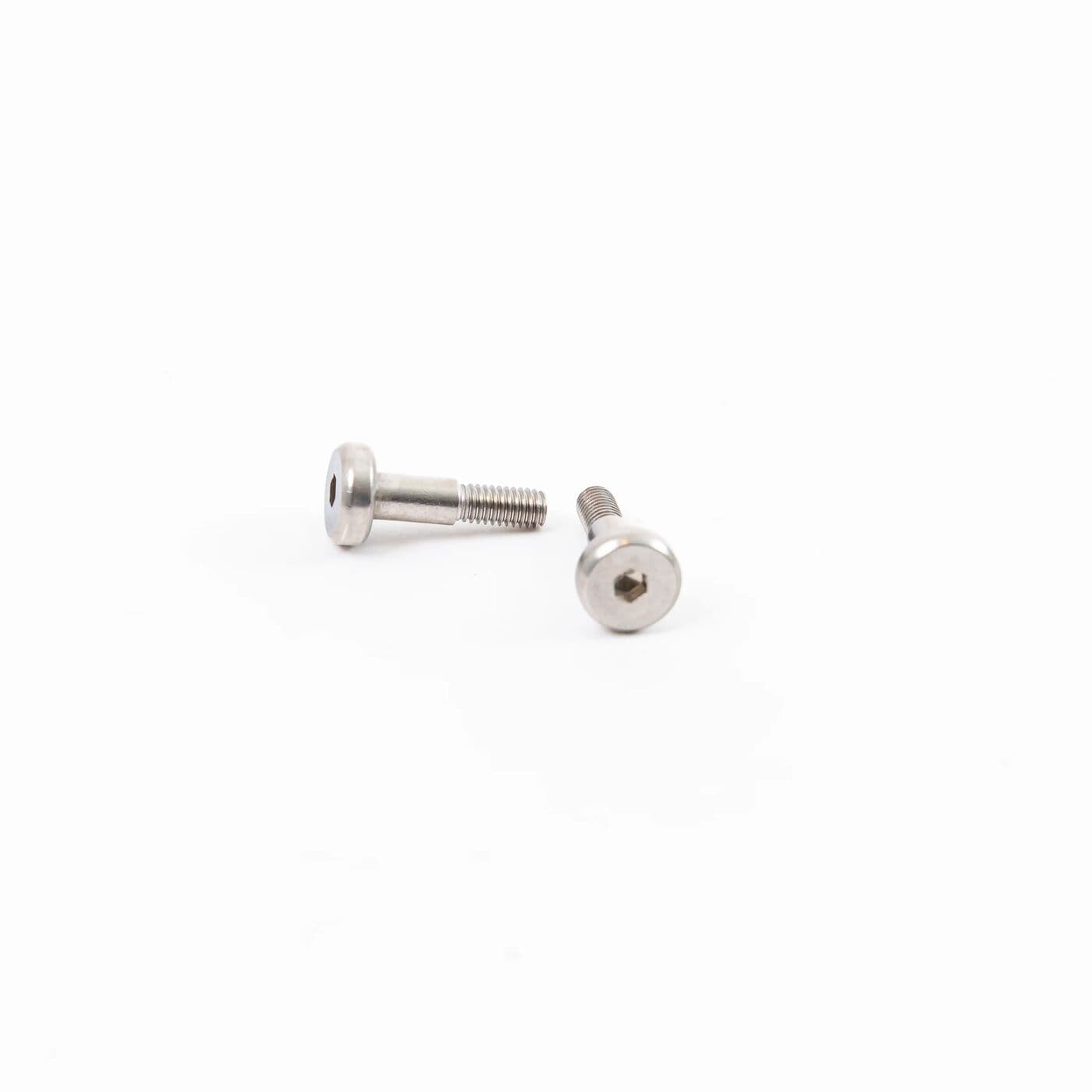

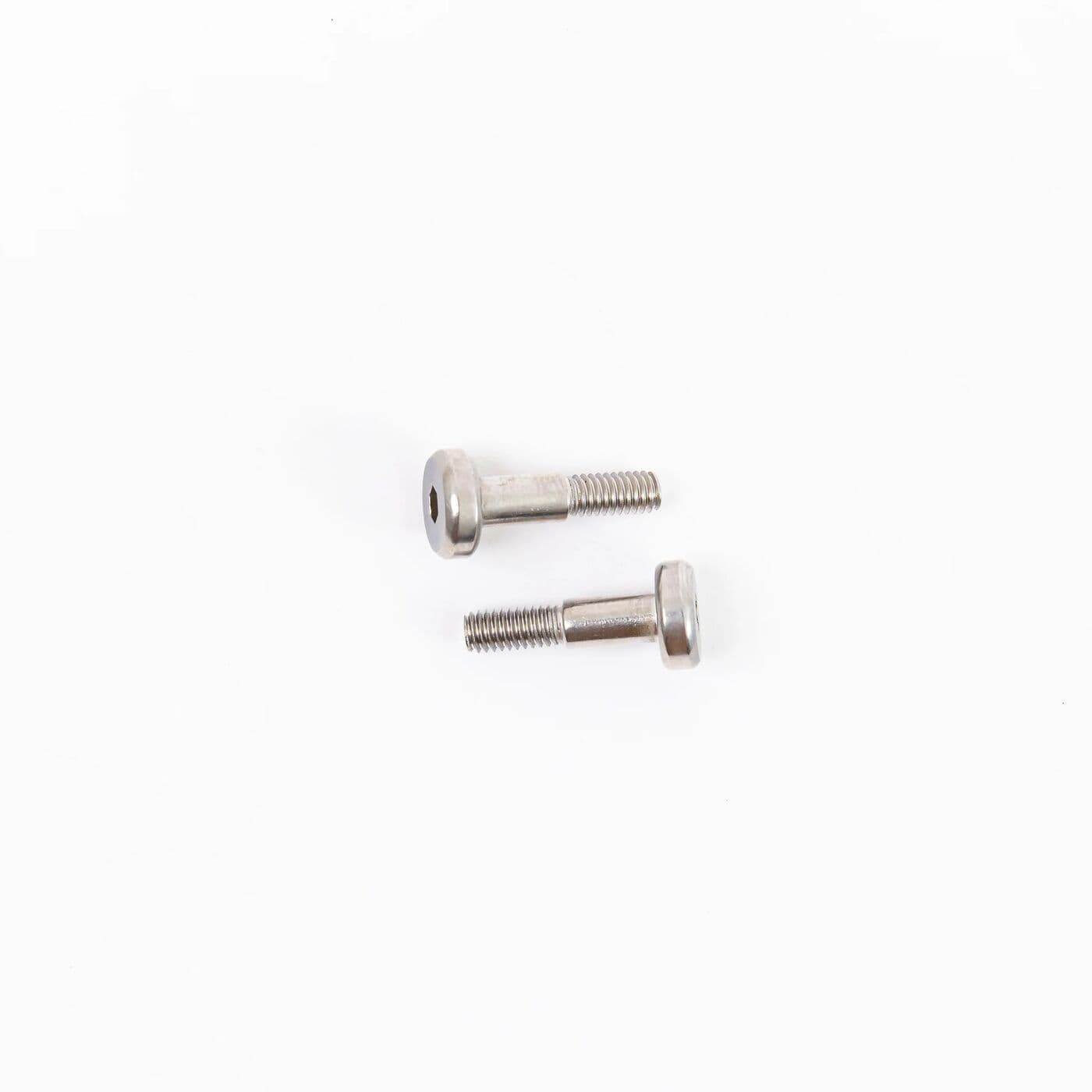

Screw - M40-HC01750080-100034-5103-Y (T100) YC.ST.LL000718
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Only the DJI Agras T100 uses screw M40-HC01750080-100034-5103-Y, the fastener at callout 17 on that aircraft's cable distribution board diagram, which also covers the board module, avionics module and pads.
| Part number | YC.ST.LL000718 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 cable distribution board, callout 17 |
The other screws drawn in this group are shared with the T70P, T50 and T25P, but this one is listed for the T100 alone. EE Group's T100 diagram pictures it beside the right-hand damping pads as a silver screw with a blue thread-locking patch on its thread. DJI screw codes differ by only a few digits, so check the full code against the diagram rather than matching by eye on the bench.
Replace a screw with a stripped head, a damaged thread or a worn-off locking patch instead of refitting it, and clean any corrosion or residue out of the threaded hole first. Drive it in until snug and stop there rather than forcing it into the mating part.
