DJI
Aerial-Electronics Module Sealing Ring (T100) YC.JG.MY001920
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

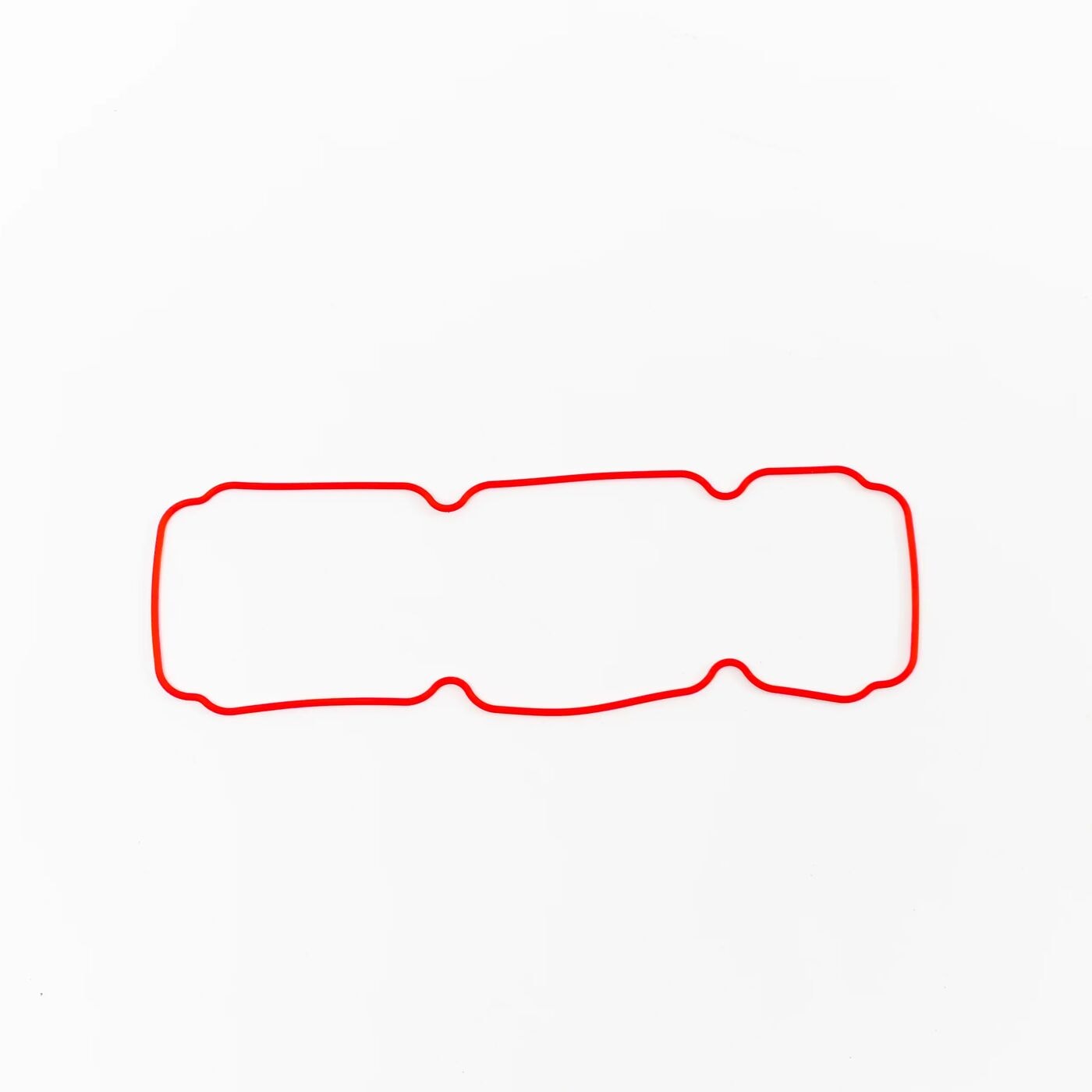

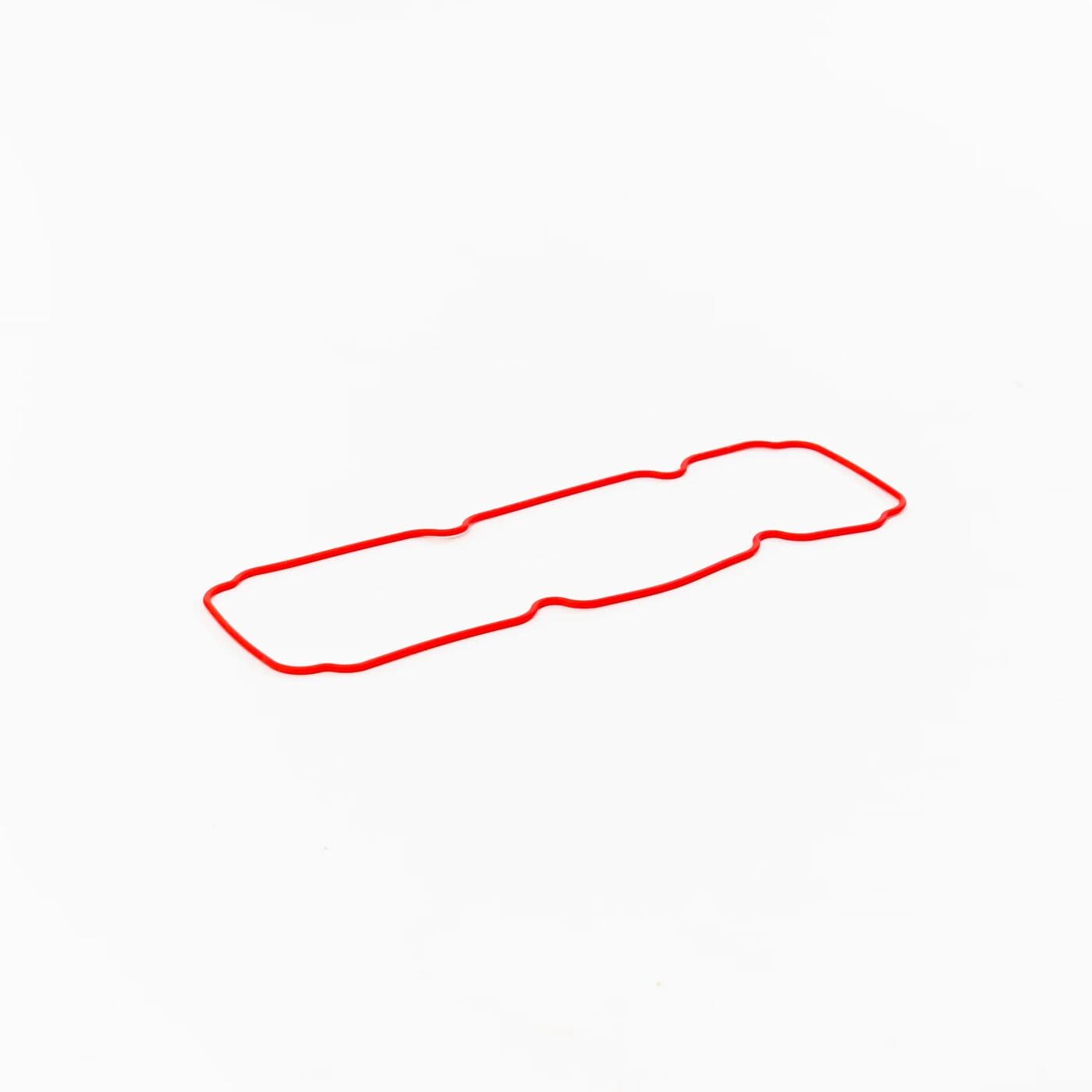

This sealing ring closes the joint around the aerial-electronics (avionics) module on the DJI Agras T100, keeping water and dust away from the electronics in the cable distribution board assembly.
| Part number | YC.JG.MY001920 |
| Fits | DJI Agras T100 |
| Parts diagram | T100 cable distribution board, callout 12 |
Fit a new ring whenever the avionics module is removed, because a seal that has already been compressed once may not seal as well the second time. Before fitting, clean the sealing faces and check they are not scratched or chipped, then seat the ring evenly so it is not twisted or pinched as the module goes back in.
Flattening, cracks or swelling in the old ring, or moisture marks inside the housing, are signs the seal has failed.
