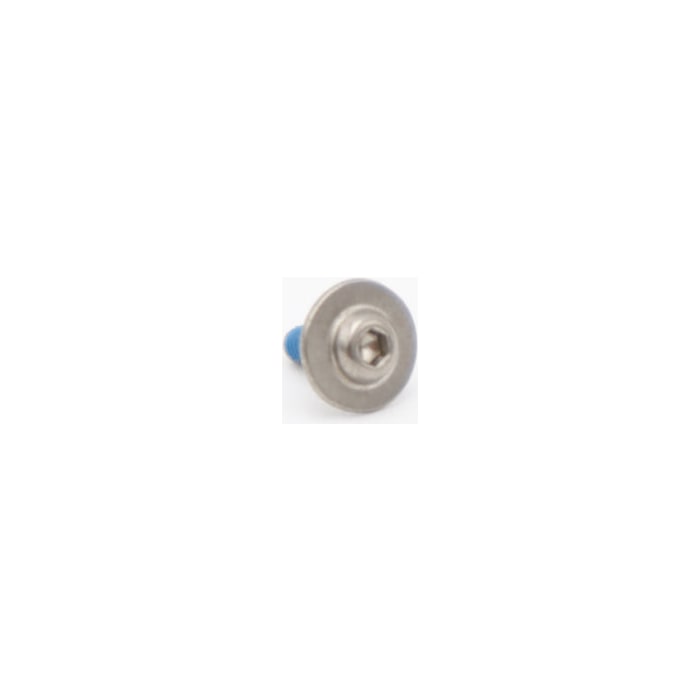

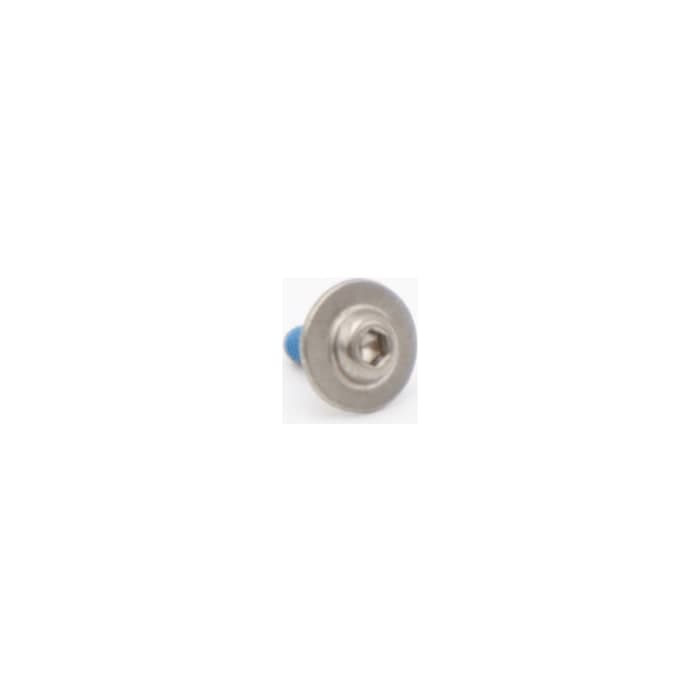

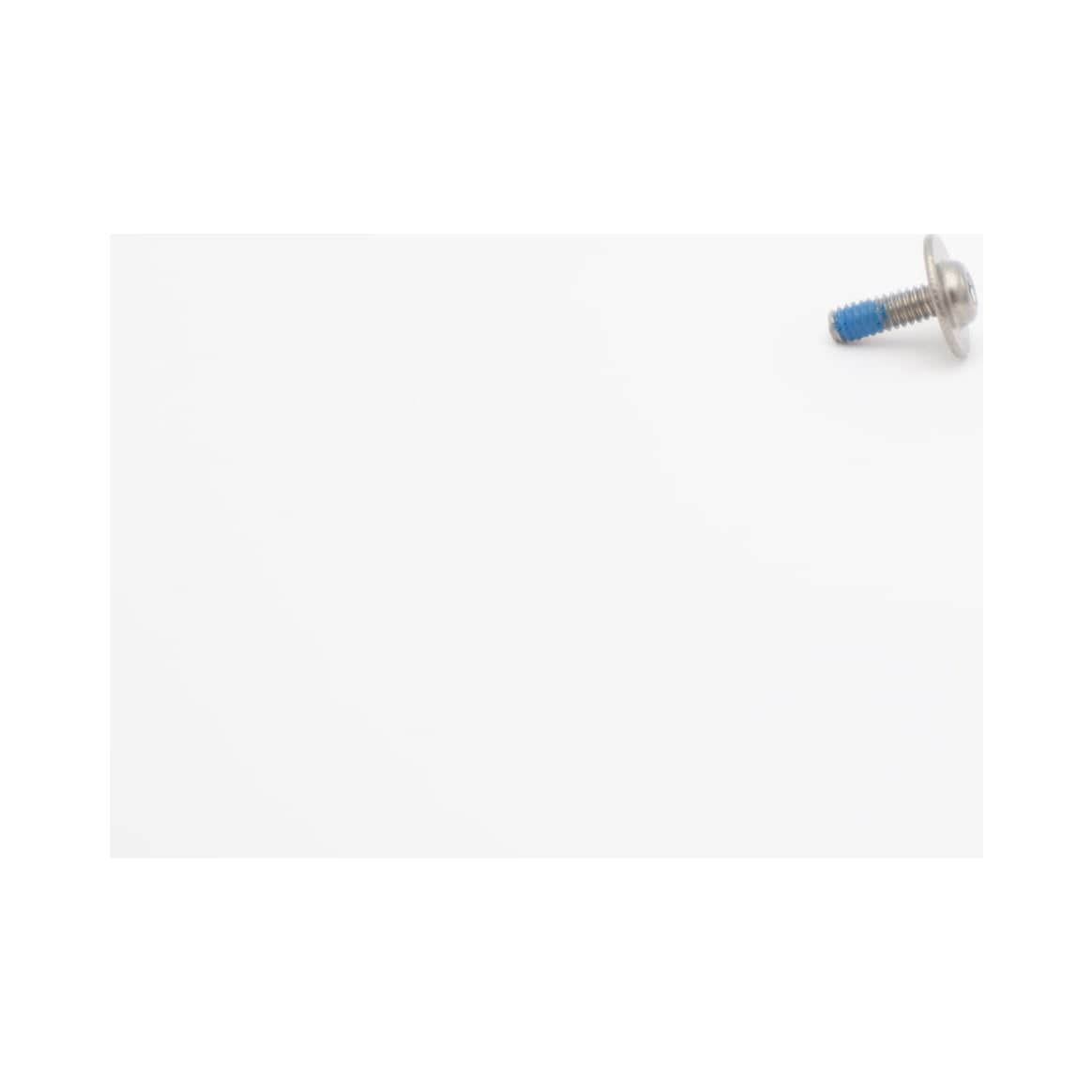

Screw M20-HPW00600060-065016-5103-Y_02 (T100/T70P/T50/T25P) YC.WJ.LL000235
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Four DJI Agras aircraft, the T100, T70P, T50 and T25P, use this M20-HPW00600060-065016-5103-Y_02 screw in their cable distribution board assembly, at a different callout on each diagram.
| Part number | YC.WJ.LL000235 |
| Fits | DJI Agras T100, T70P, T50, T25P |
| Parts diagram | T100 cable distribution board, callout 16; T70P cable distribution board, callout 12; T50 cable distribution board module, callout 22; T25P cable distribution board, callout 11 |
A screw like this is easy to drop or misplace when the assembly is opened, and each removal wears the head a little more, particularly with a worn driver bit.
Swap out any screw with a chewed head or a damaged thread, and use a bit that fully engages the head. Order by the part number YC.WJ.LL000235, since the M20 prefix is shared with other, different DJI screws.
The T70P diagram prints this screw as M20-HPW00600060-055016-5103-Y, but the part number is the same, and EE Group's parts list names it for the T70P as well as the T100.
