DJI
Centrifugal Sprinkler Lower Disk (T100/T70P) YC.JG.ZS006219
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

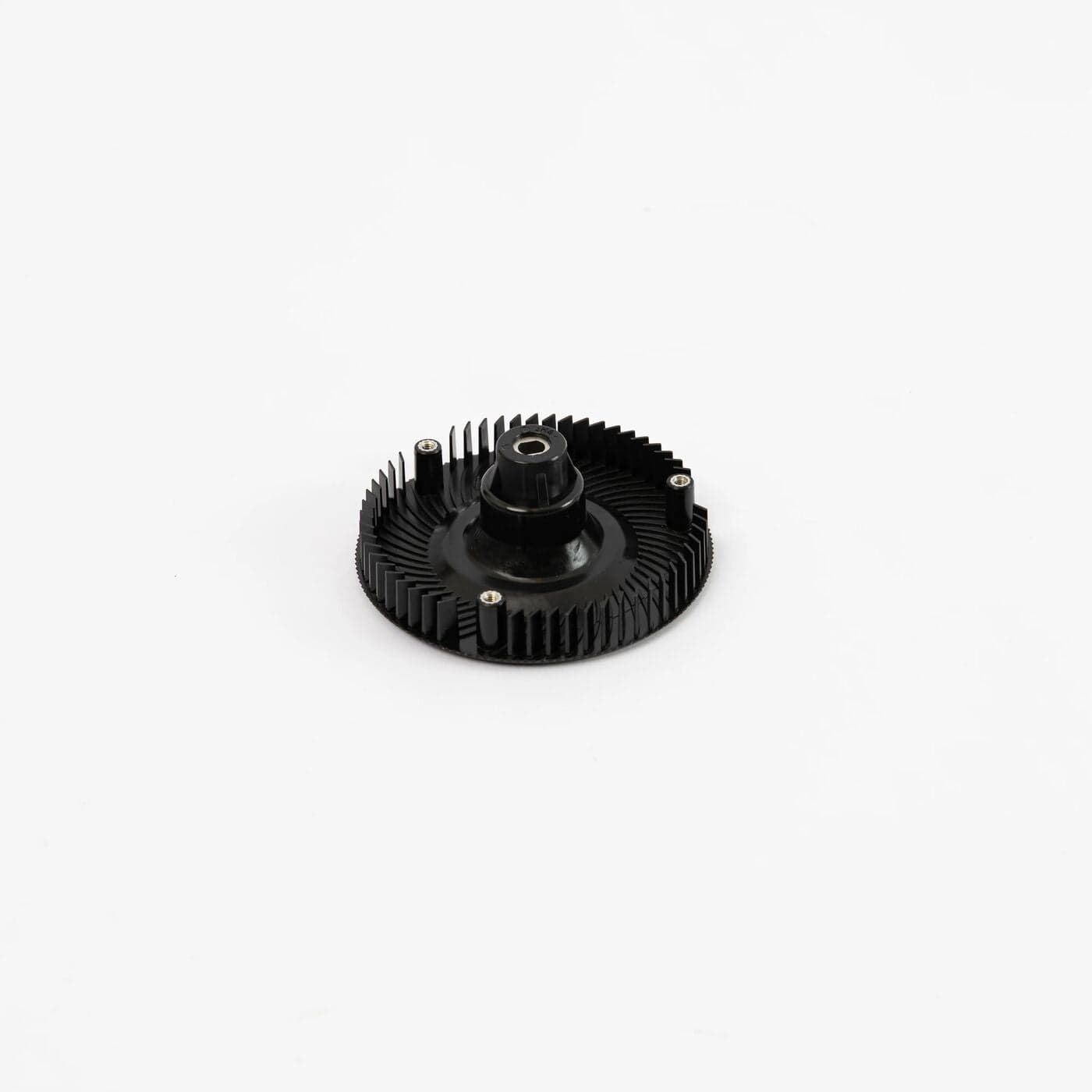

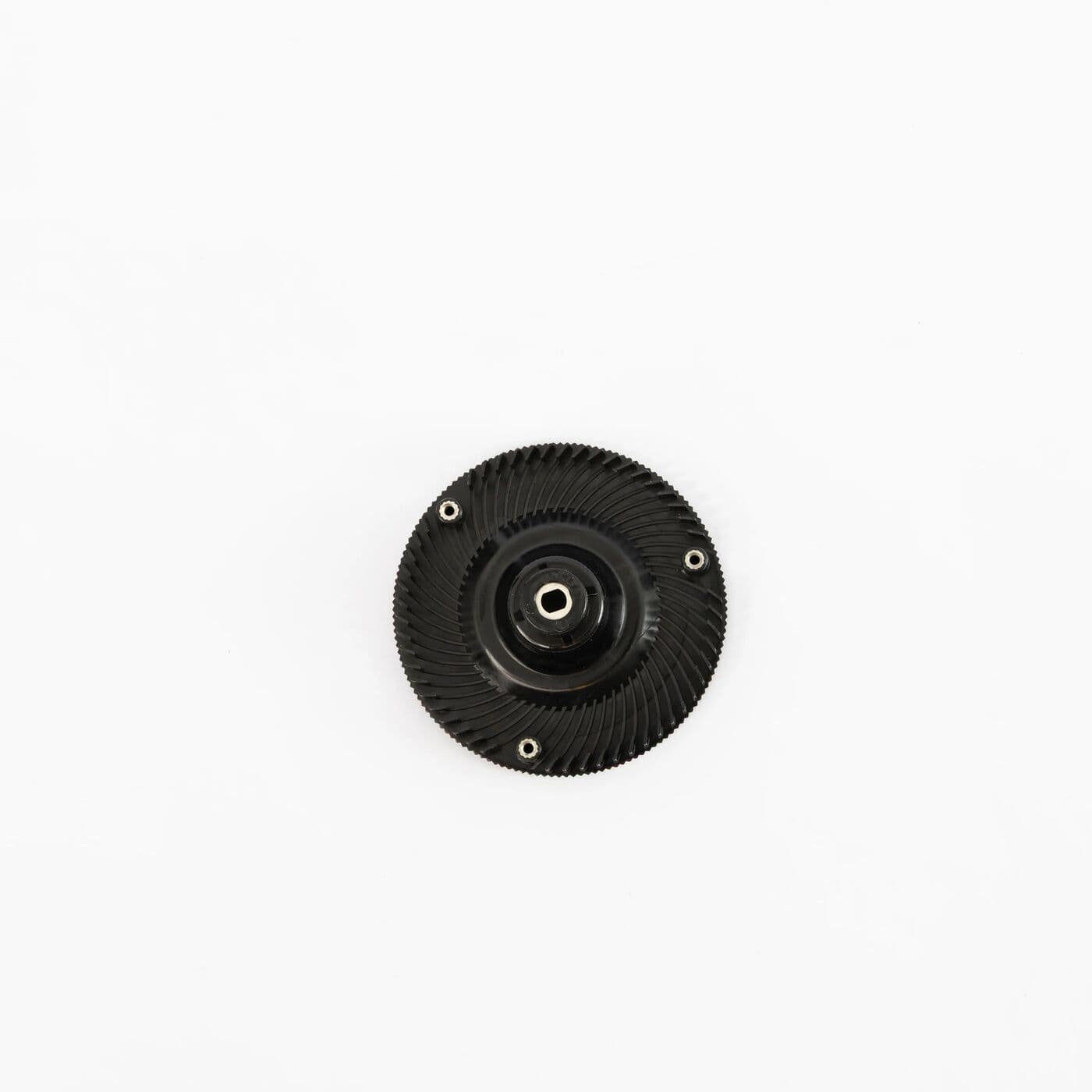

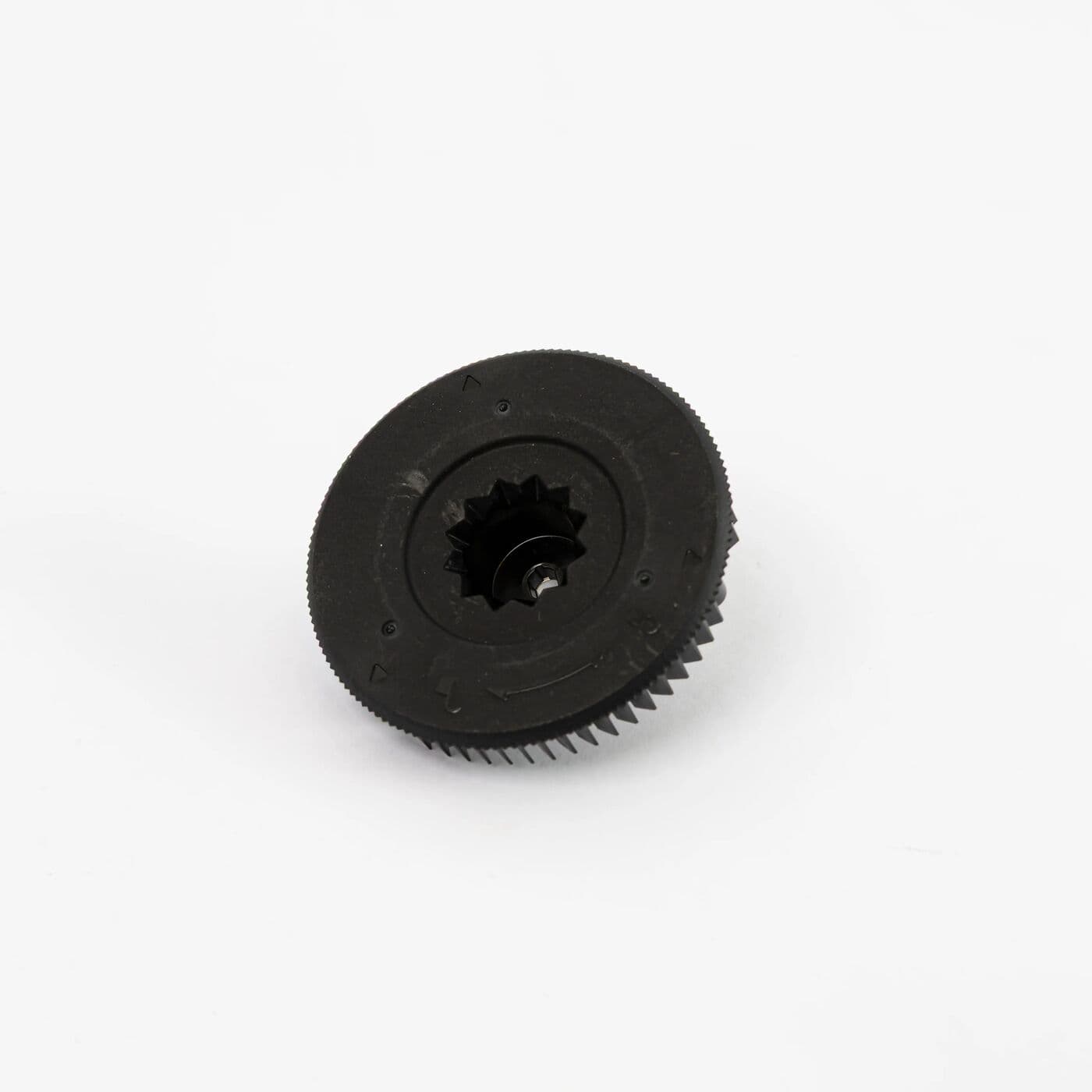

Spun by the centrifugal motor, this lower disk works with the upper disk to atomise spray liquid on DJI Agras T100 and T70P spray lances, forming the bottom half of the sprinkler pair.
| Part number | YC.JG.ZS006219 |
| Fits | DJI Agras T100, T70P |
| Parts diagram | T100 spray lance, callout 30; T70P spray lance, callout 2 |
A chip, crack or warp throws the disk out of balance at working speed, which shows up as vibration at the lance and an uneven droplet pattern. Inspect it after any ground strike and replace it if the edge is damaged. Clean off chemical build-up before judging it, as residue can both hide and mimic wear.
On both sheets the sprinkler thumb nut is numbered right next to this disk; check its thread while the disk is off, and fit the new disk the same way up as the old one.
