Sprinkler Funnel Bracket (T100/T70P) YC.JG.ZS006215
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

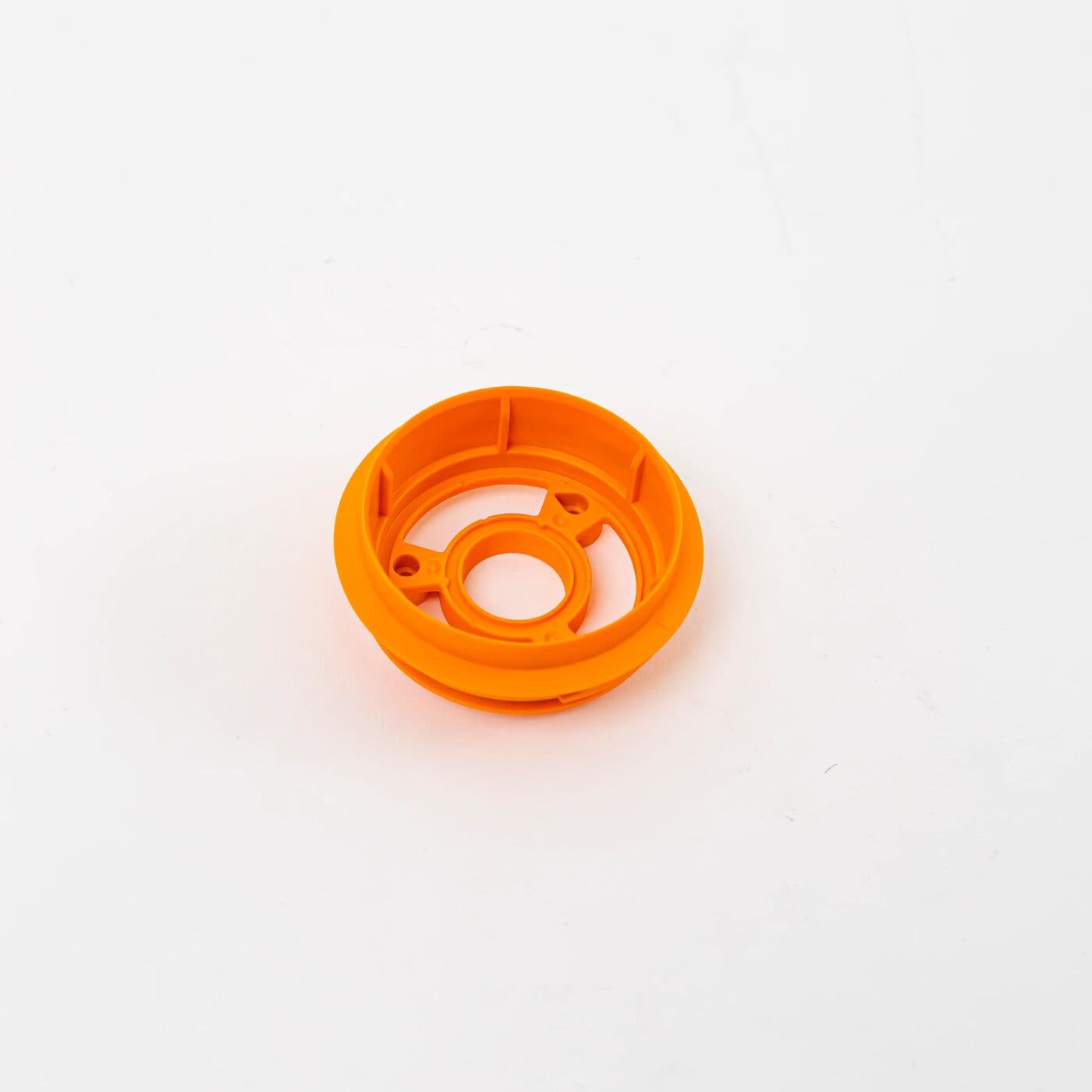

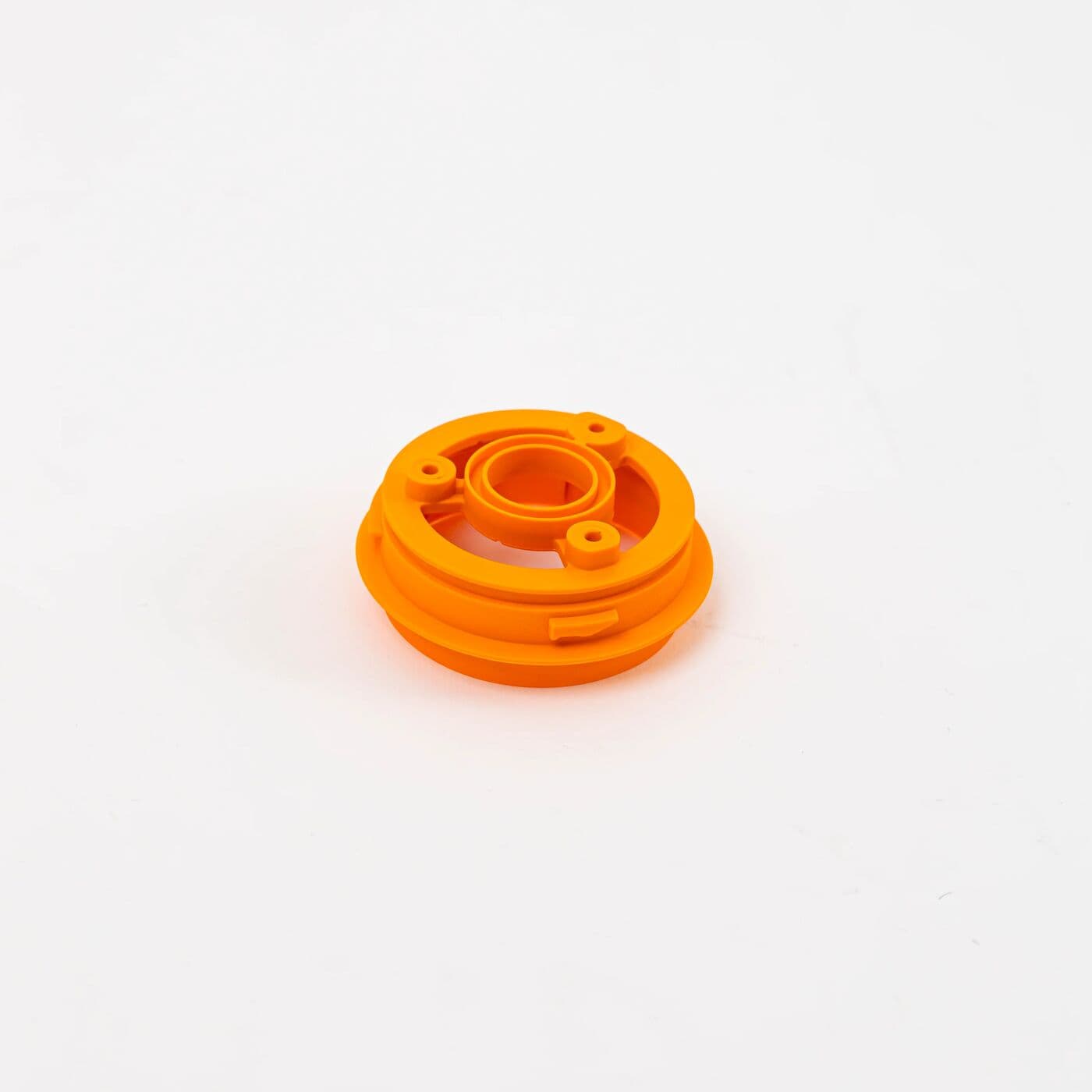

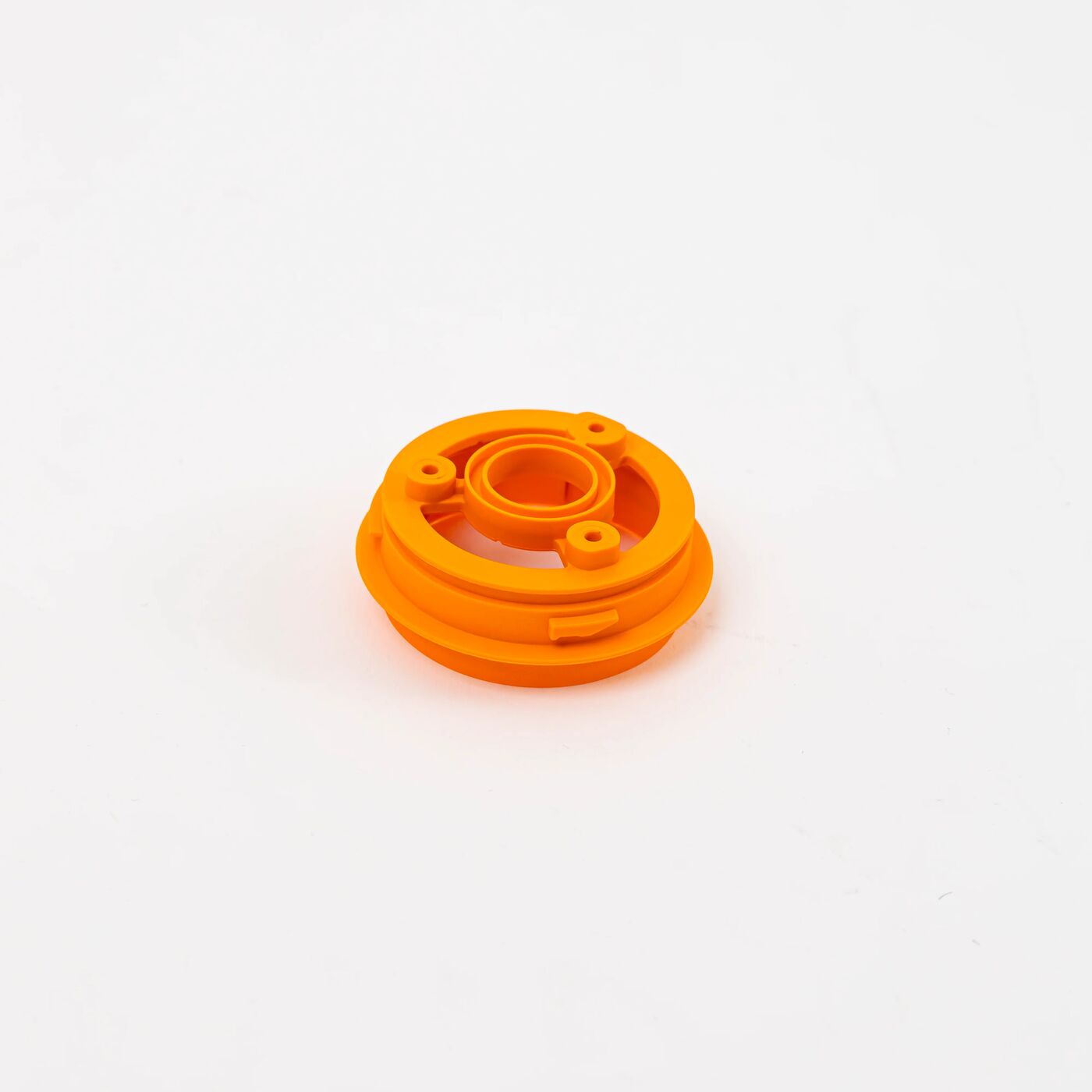

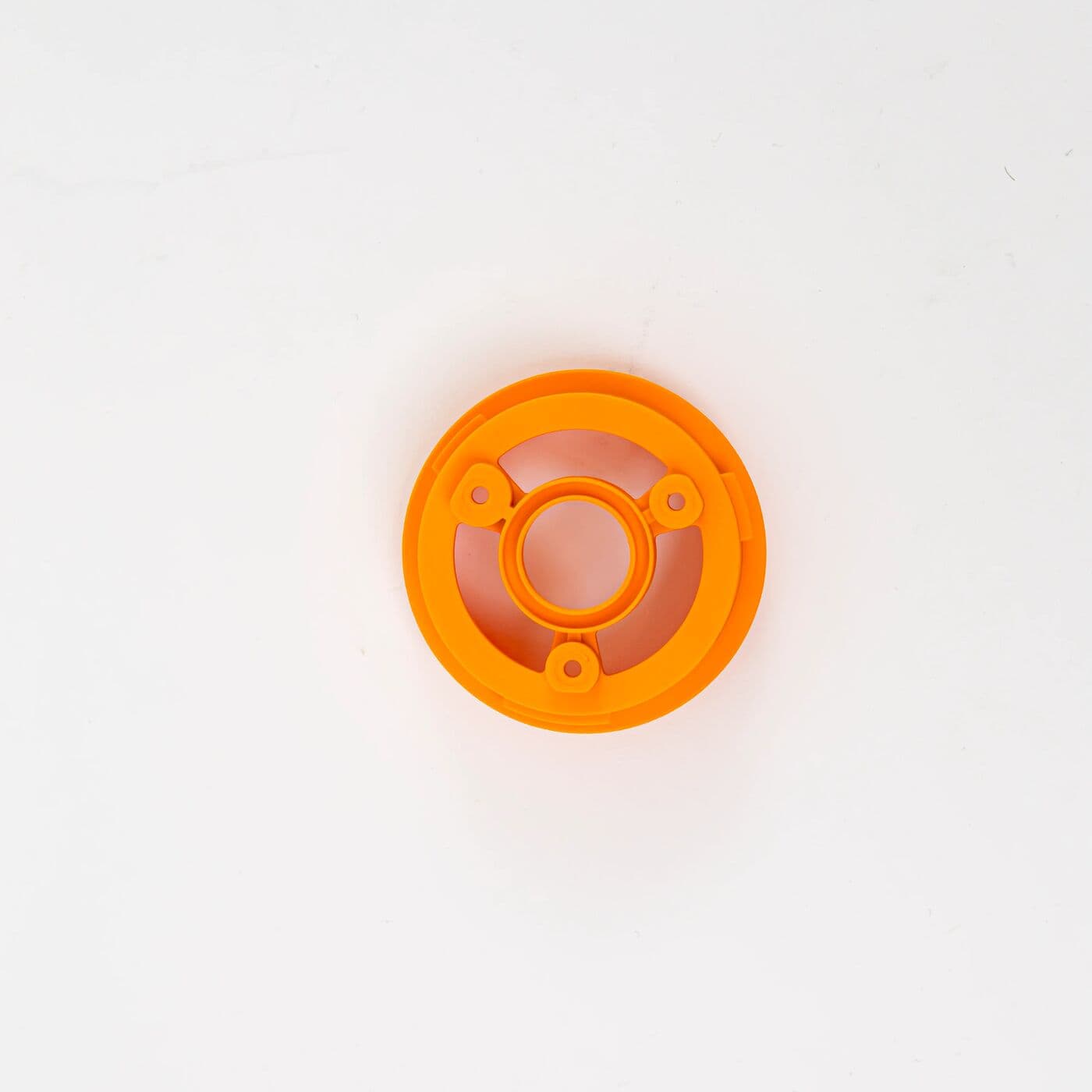

On DJI Agras T100 and T70P spray lances, this bracket holds the sprinkler funnel in position. The same part code is used on both aircraft, at callout 6 on the T100 sheet and callout 9 on the T70P sheet.
| Part number | YC.JG.ZS006215 |
| Fits | DJI Agras T100, T70P |
| Parts diagram | T100 spray lance, callout 6; T70P spray lance, callout 9 |
If the bracket cracks or distorts, the funnel may no longer sit square, so inspect it closely around its fixing points after any knock to the sprinkler.
The T70P sheet lists a small screw straight after it at callout 10, and the T100 sheet shows the same screw code at callout 3. Seat the funnel evenly before tightening anything, and have a new sprinkler funnel or 23.6 mm inner sealing ring ready if the old one is marked.
