DJI

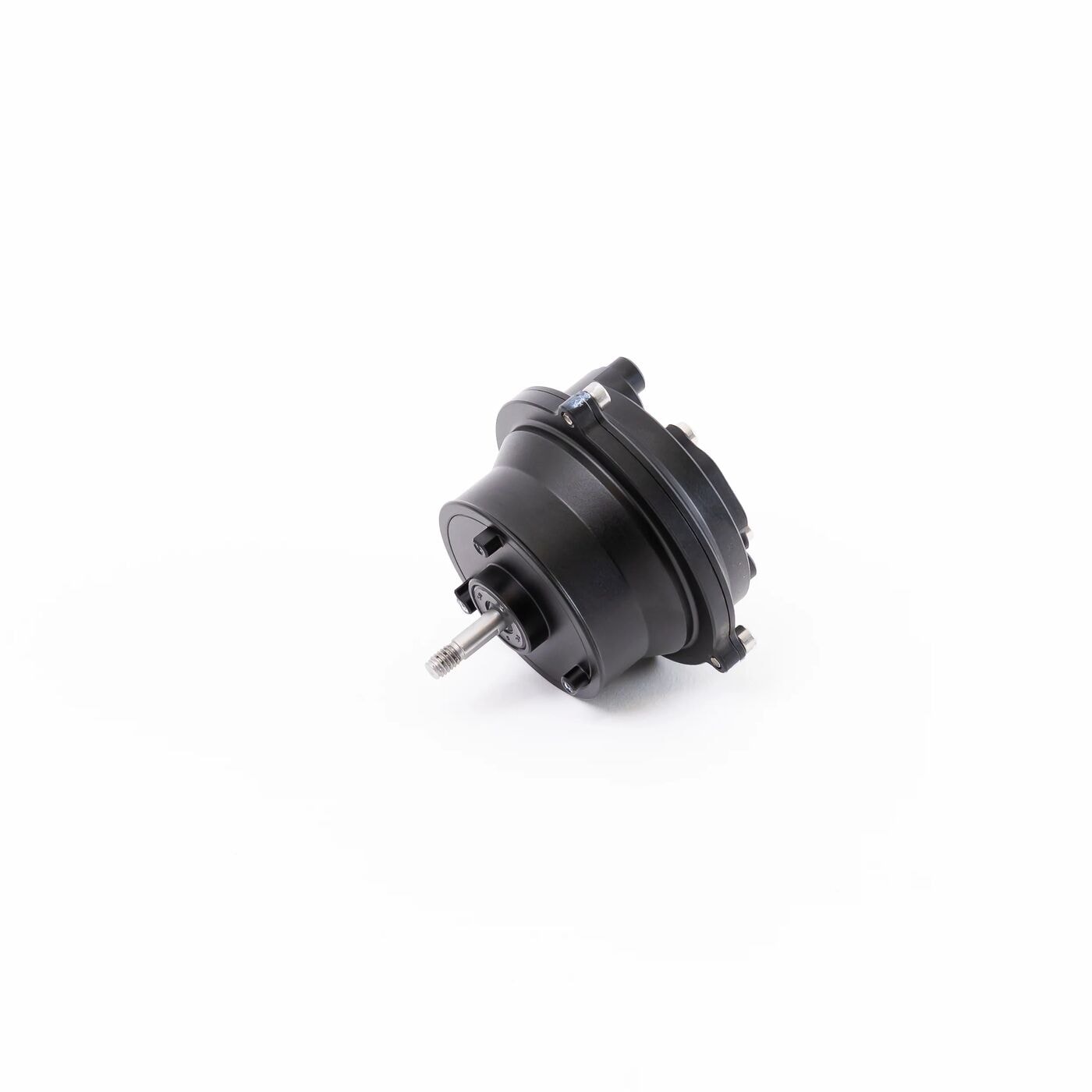

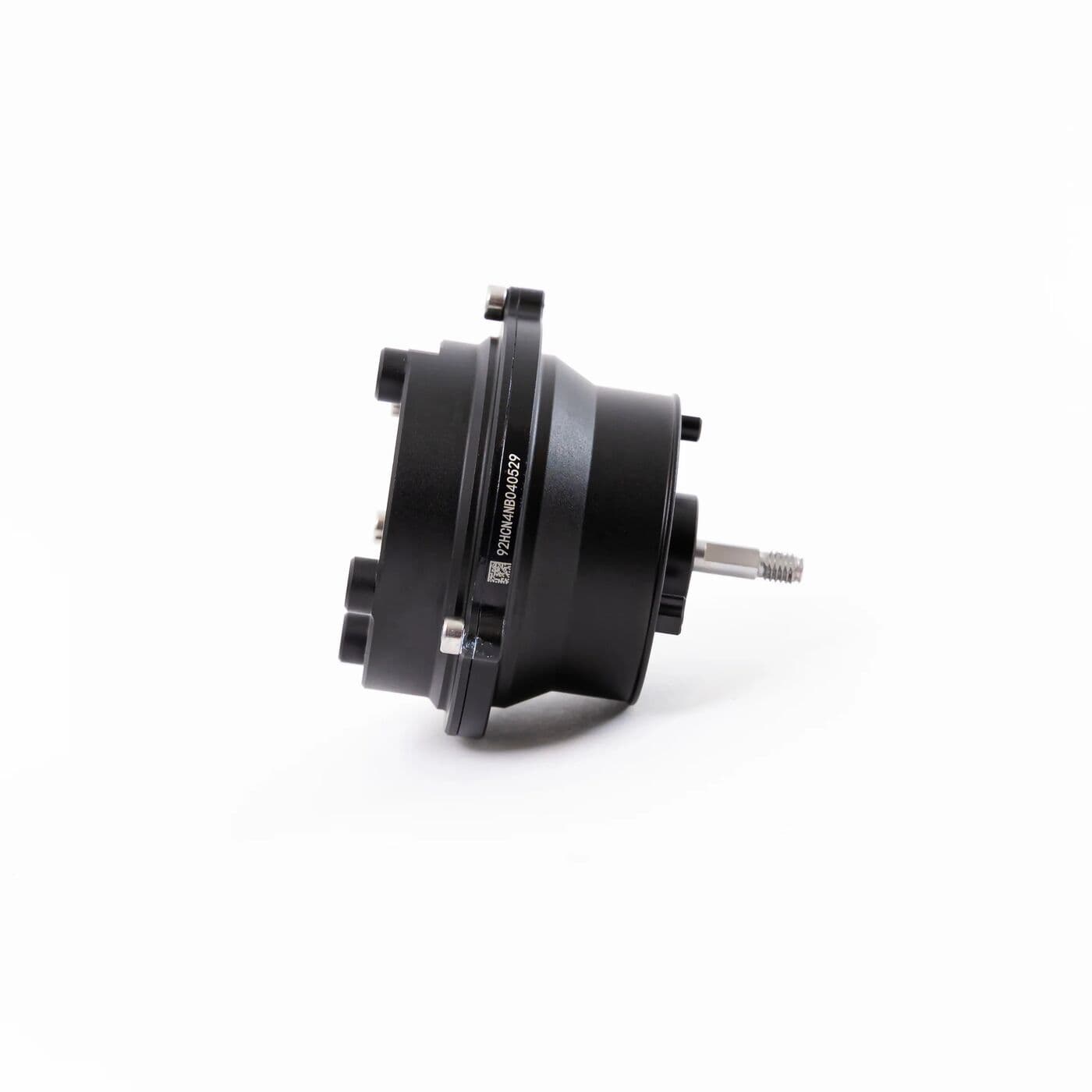

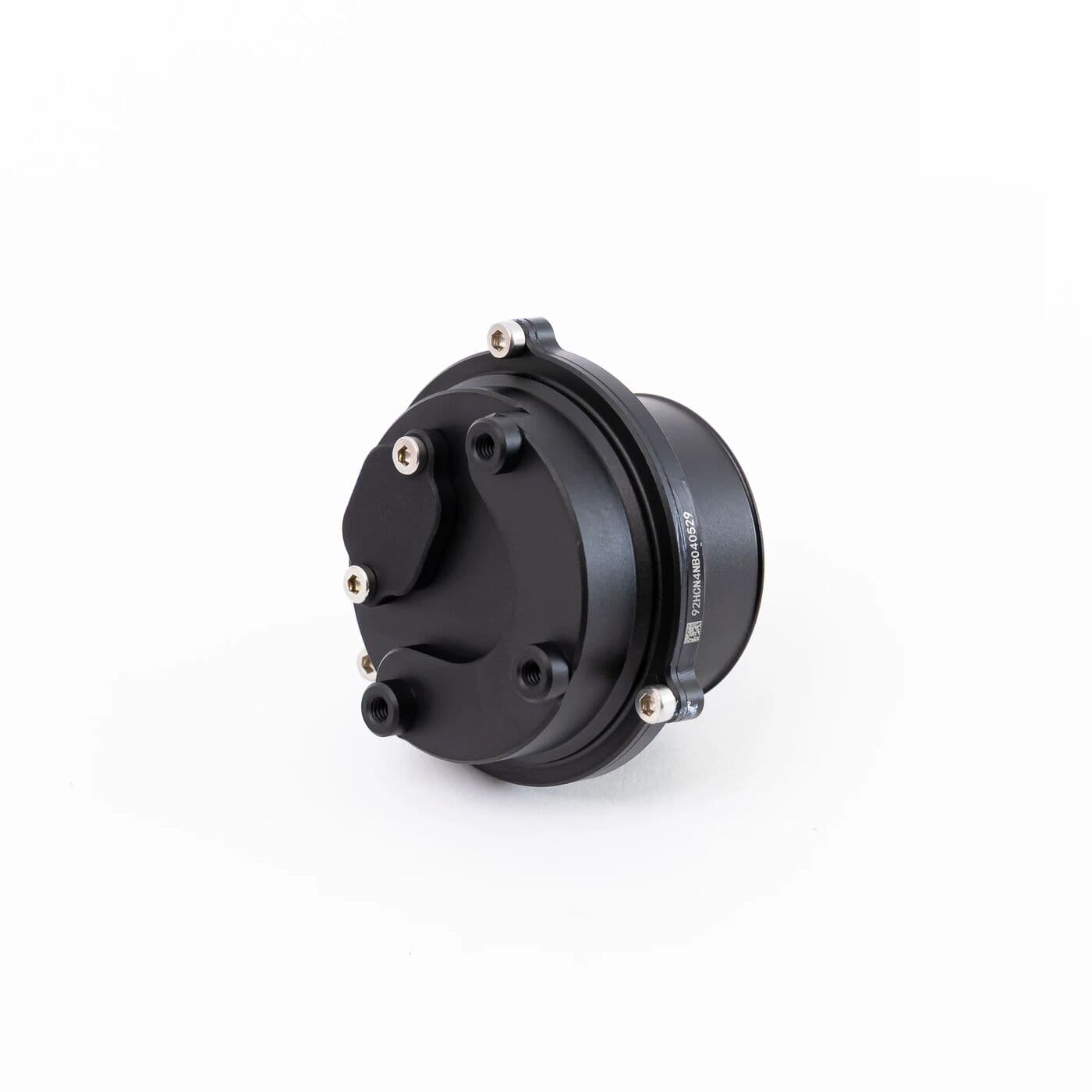

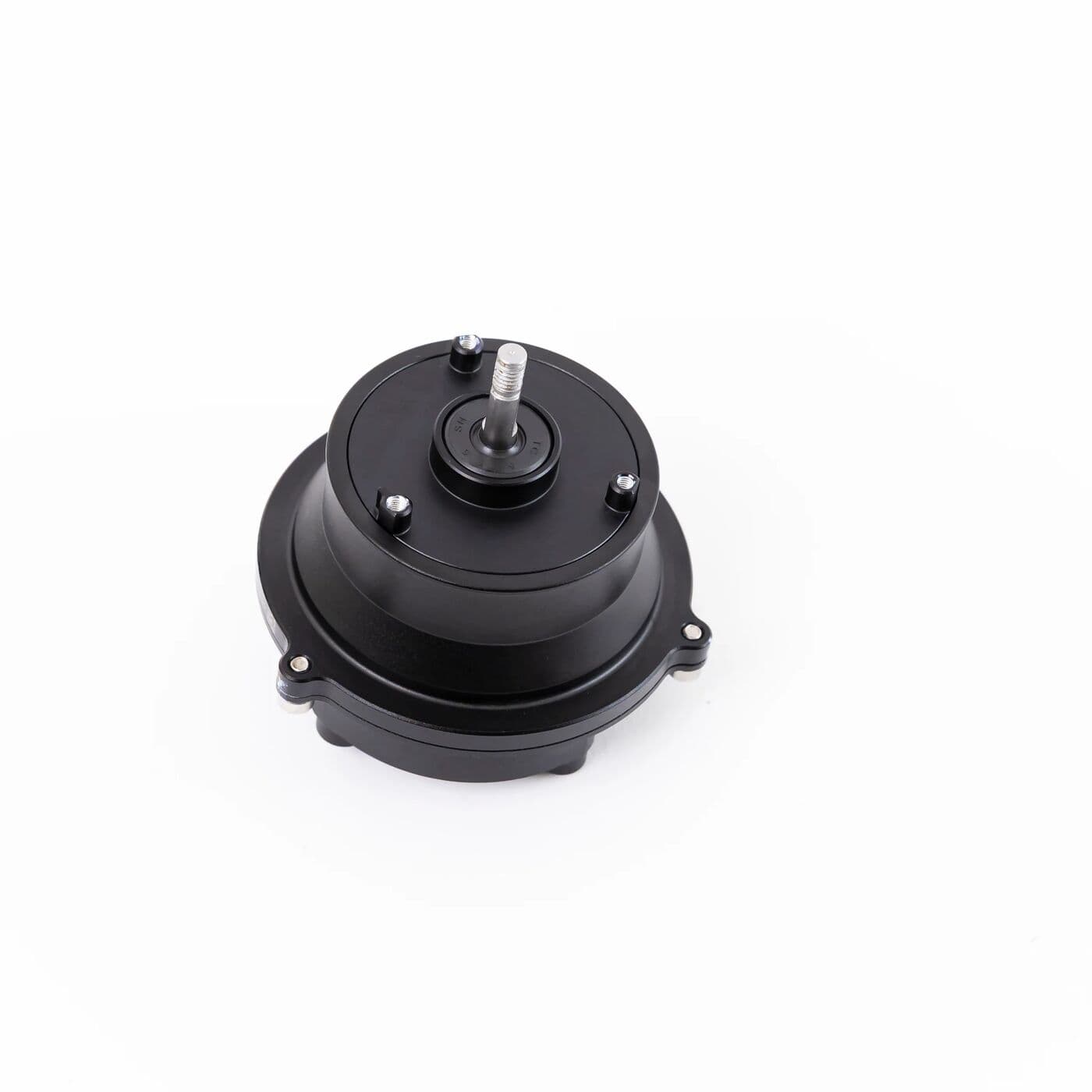

Centrifugal Motor (T100/T70P) BC.AG.SS001028
Shipping: Standard Parcel, $27 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Centrifugal motor for the spray lances on DJI Agras T100 and T70P aircraft. It spins the sprinkler disks fast enough to break the spray liquid into fine droplets.
| Part number | BC.AG.SS001028 |
| Fits | DJI Agras T100, T70P |
| Parts diagram | T100 spray lance, callout 1; T70P spray lance, callout 13 |
Signs a motor is wearing out: a gritty or notchy feel when the disks are turned by hand, play in the shaft, or a sprinkler that slows or stalls once liquid is flowing even though its cabling checks out. Dried chemical around the shaft adds drag, so rinse the sprinklers through with clean water at the end of every job.
Both diagrams show a 46.8 mm motor sealing ring with it (T100 callout 27, T70P callout 14), and that ring should be renewed whenever the motor comes out. The lower disk and upper disk come off during the swap, so inspect them before refitting.
