DJI
Sprinkler Funnel (T100/T70P) YC.JG.ZS006216
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment

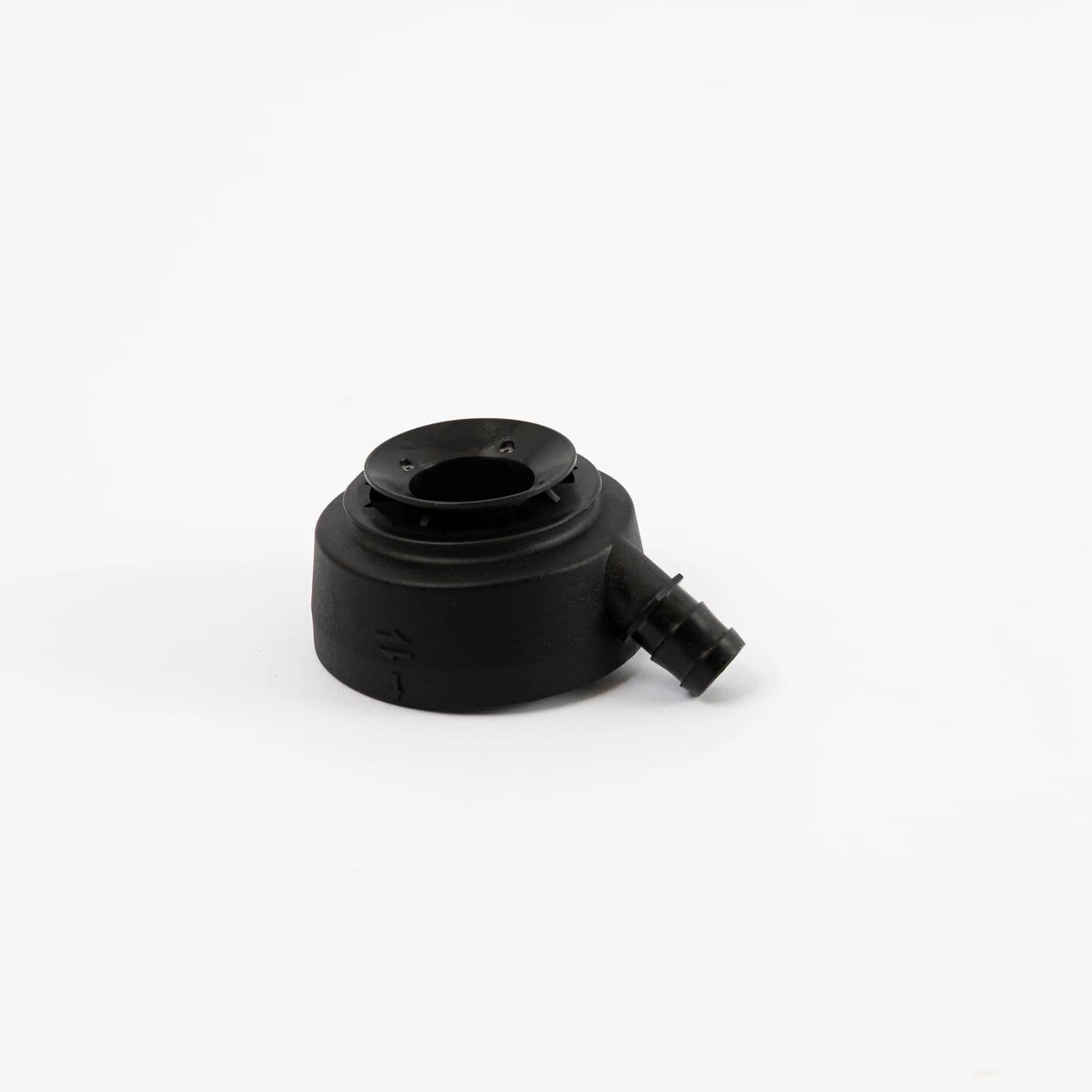

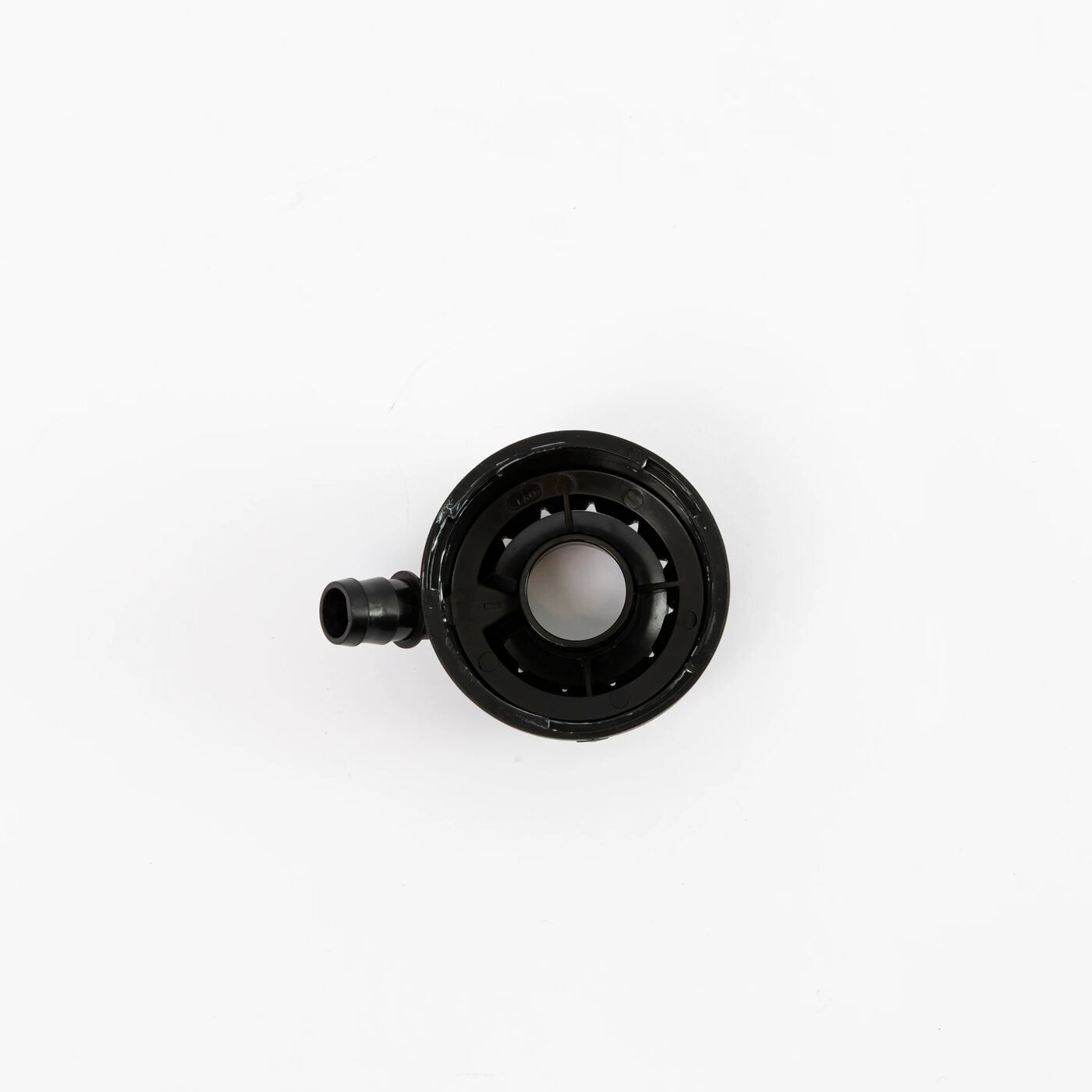

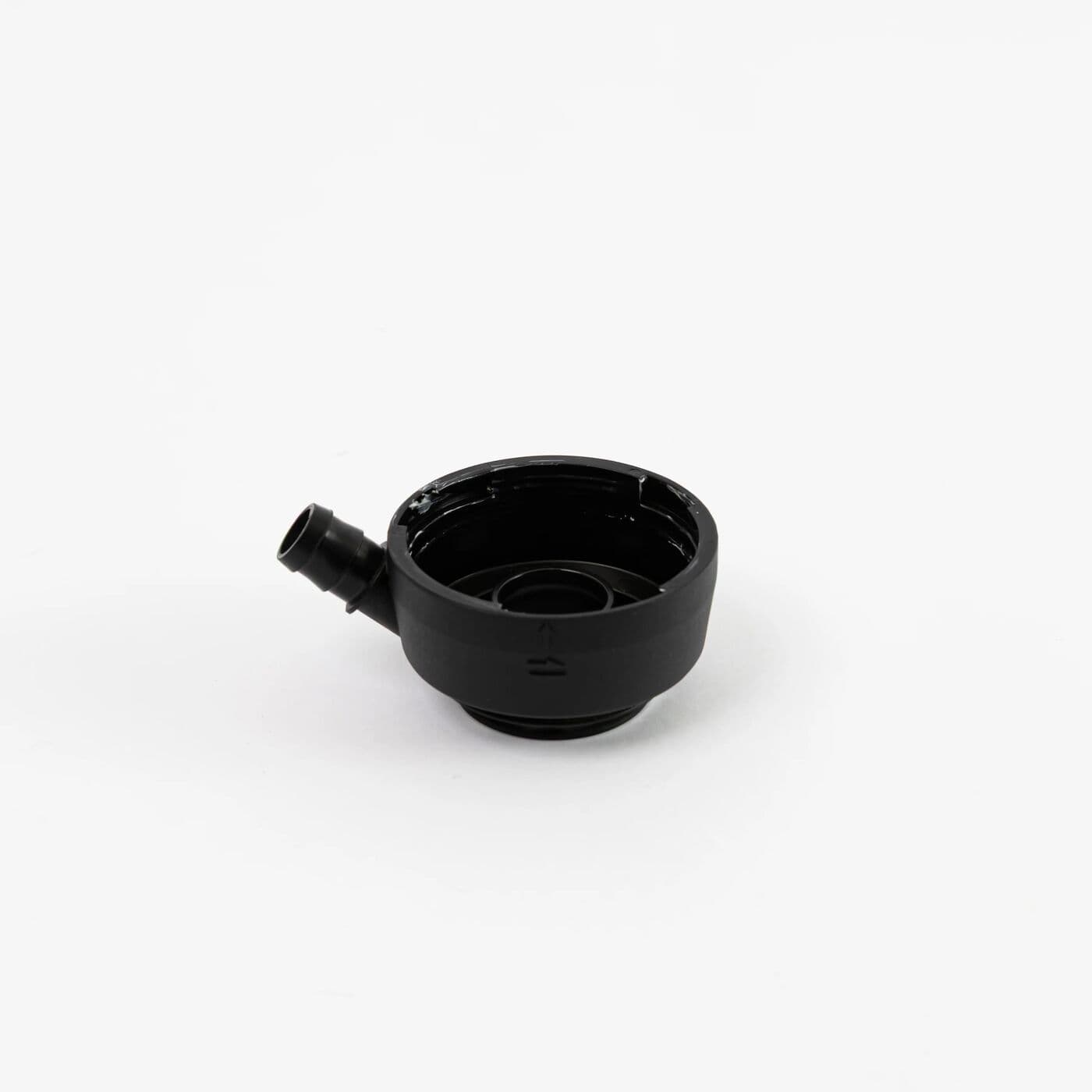

This is the sprinkler funnel from the centrifugal sprinklers on DJI Agras T100 and T70P spray lances. DJI's maintenance tables for both aircraft list it by name: inspect the funnel, then run water through the sprinkler and check that the flow comes out evenly.
| Part number | YC.JG.ZS006216 |
| Fits | DJI Agras T100, T70P |
| Parts diagram | T100 spray lance, callout 2; T70P spray lance, callout 7 |
A cracked body, a damaged hose connection or a crust of dried product inside are all reasons to replace it, as each can upset that sprinkler's output. Flushing the sprinklers with clean water at the end of each spraying day keeps residue from hardening in the funnel.
The 23.6 mm inner sealing ring is listed with it on both sheets. Renew the sprinkler inner sealing ring whenever the funnel comes out, and check the sprinkler funnel bracket for cracks before refitting.
