DJI

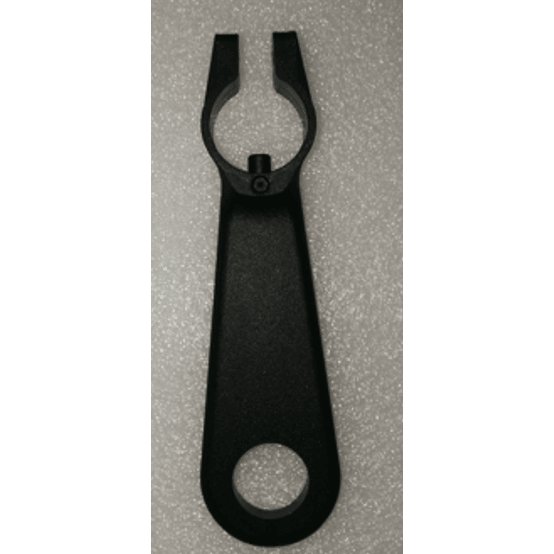

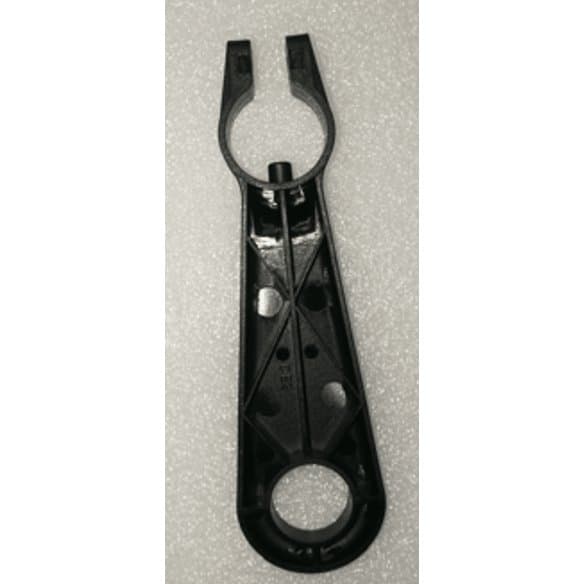

Radar Supporting Piece - Right (T70P/T50/T25P) YC.JG.ZS003492
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
This right-hand radar supporting piece is shared by the DJI Agras T70P, T50 and T25P. It appears on the T70P and T25P landing gear sheets and on the T50 front frame sheet, where it is called the radar right supporting piece.
| Part number | YC.JG.ZS003492 |
| Fits | DJI Agras T70P, T50, T25P |
| Parts diagram | T70P landing gear, callout 21; T25P landing gear, callout 23; T50 front frame, callout 39 |
It is a handed part, and the left side differs between aircraft: the T70P and T25P use the left radar supporting piece, while the T50 takes the radar left supporting piece shown at callout 38 on its front frame.
Look for cracks at the screw holes or a twist that leaves the radar sitting crooked, and replace the piece after any impact that has moved the radar. Once it is refitted, confirm the radar reads normally on the remote controller before the next job.
