DJI

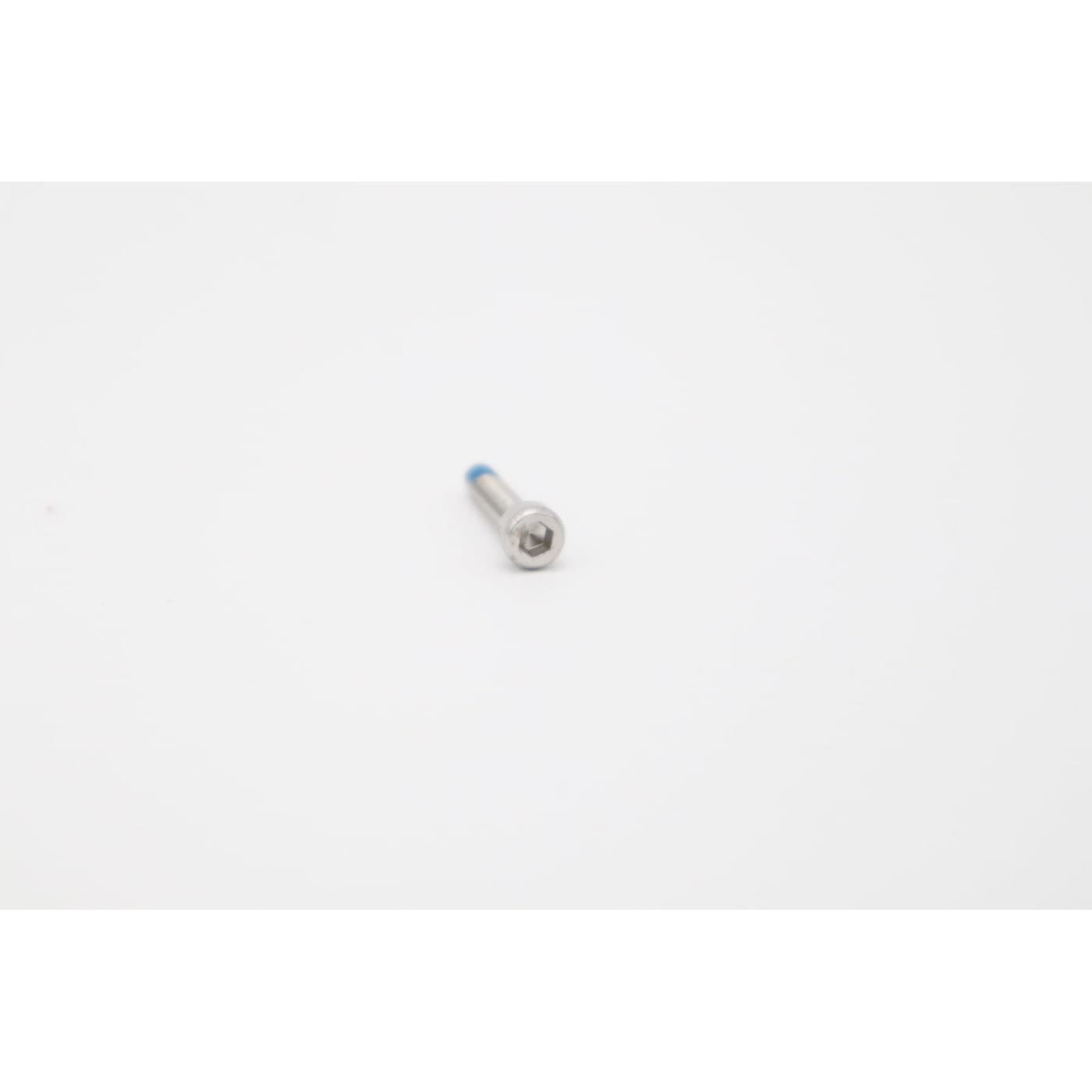

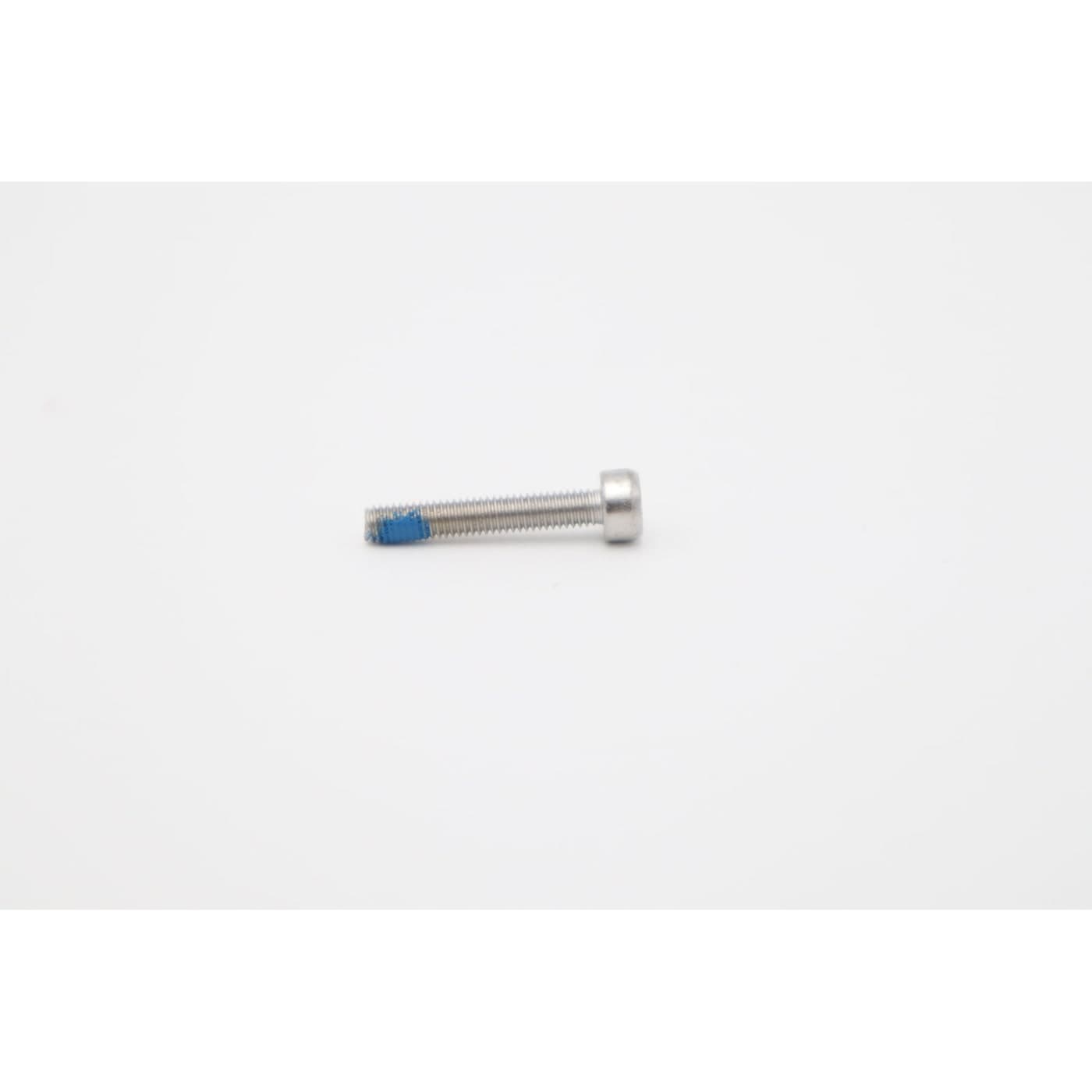

Screw M30-HC180180-55-85 V2 (T100/T70P/T50/T25P) YC.WJ.L00873
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Landing gear screw used across the DJI Agras T70P, T50 and T25P, listed near the landing gear Y-tee, radar supporting pieces and rubber pads, and on the T25P also beside the propulsion cable clip on the front frame.
| Part number | YC.WJ.L00873 |
| Fits | DJI Agras T100, T70P, T50, T25P |
| Parts diagram | T70P landing gear, callouts 9, 16, 22, 24, 29 and 35; T50 landing gear, callout 2; T25P front frame (sheet 2), callout 22; T25P landing gear, callouts 4, 6, 19 and 24 |
| Supplied as | One screw |
The sheets label it M30-HC1880-55-85. EE Group lists it for the T100 as well, although no T100 diagram sheet shows it. Several of the positions above have an M3 nut (YC.WJ.L00877) listed next to the screw. Landing gear fixings take the jolt of every touchdown plus the dust and moisture of paddock work, so replace any that have loosened, bent or corroded, and renew the nut if its thread is tired.
A similar M30-HC100100-55-85 V2 screw appears on the same landing gear sheets, so match the code on the screw you are replacing.
