DJI

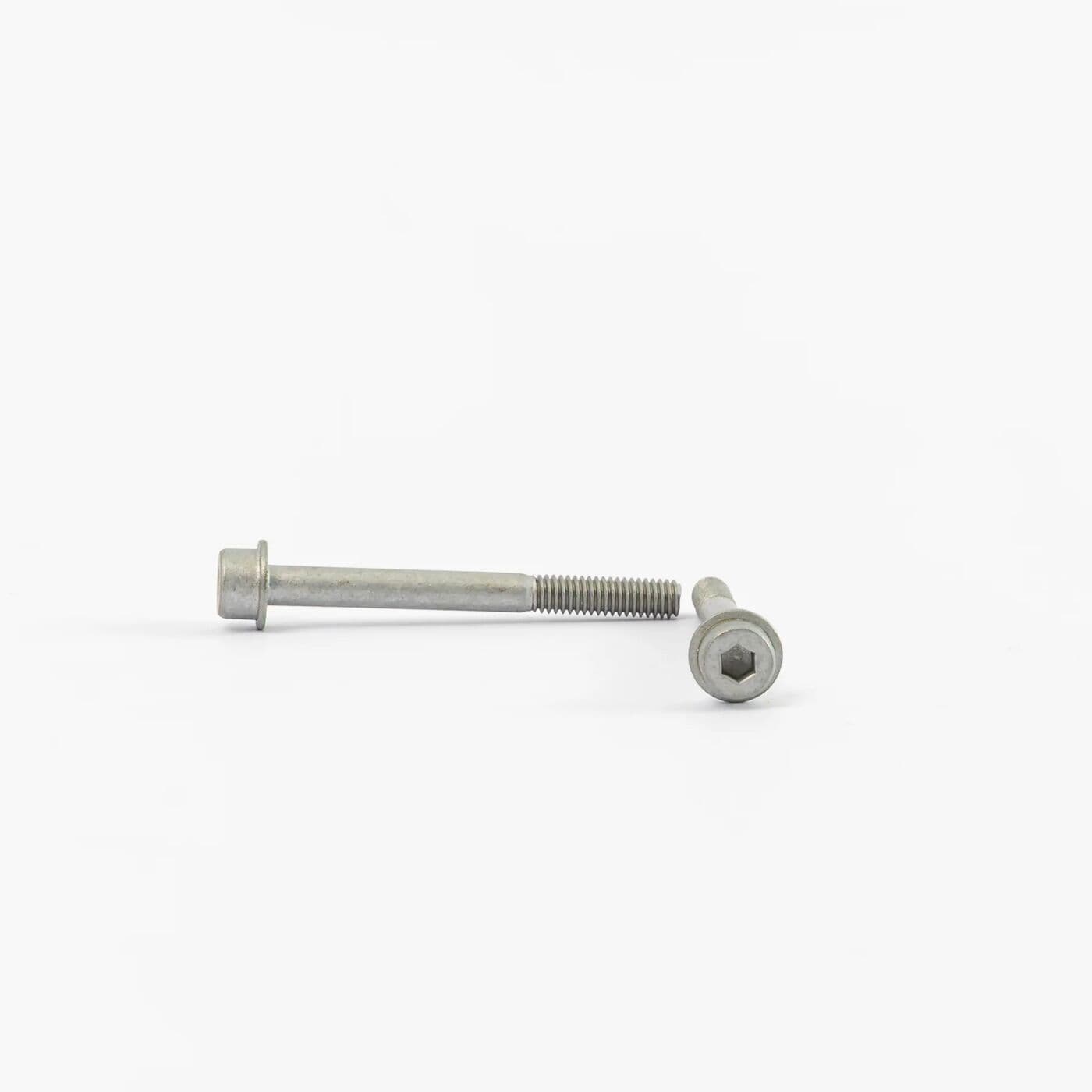

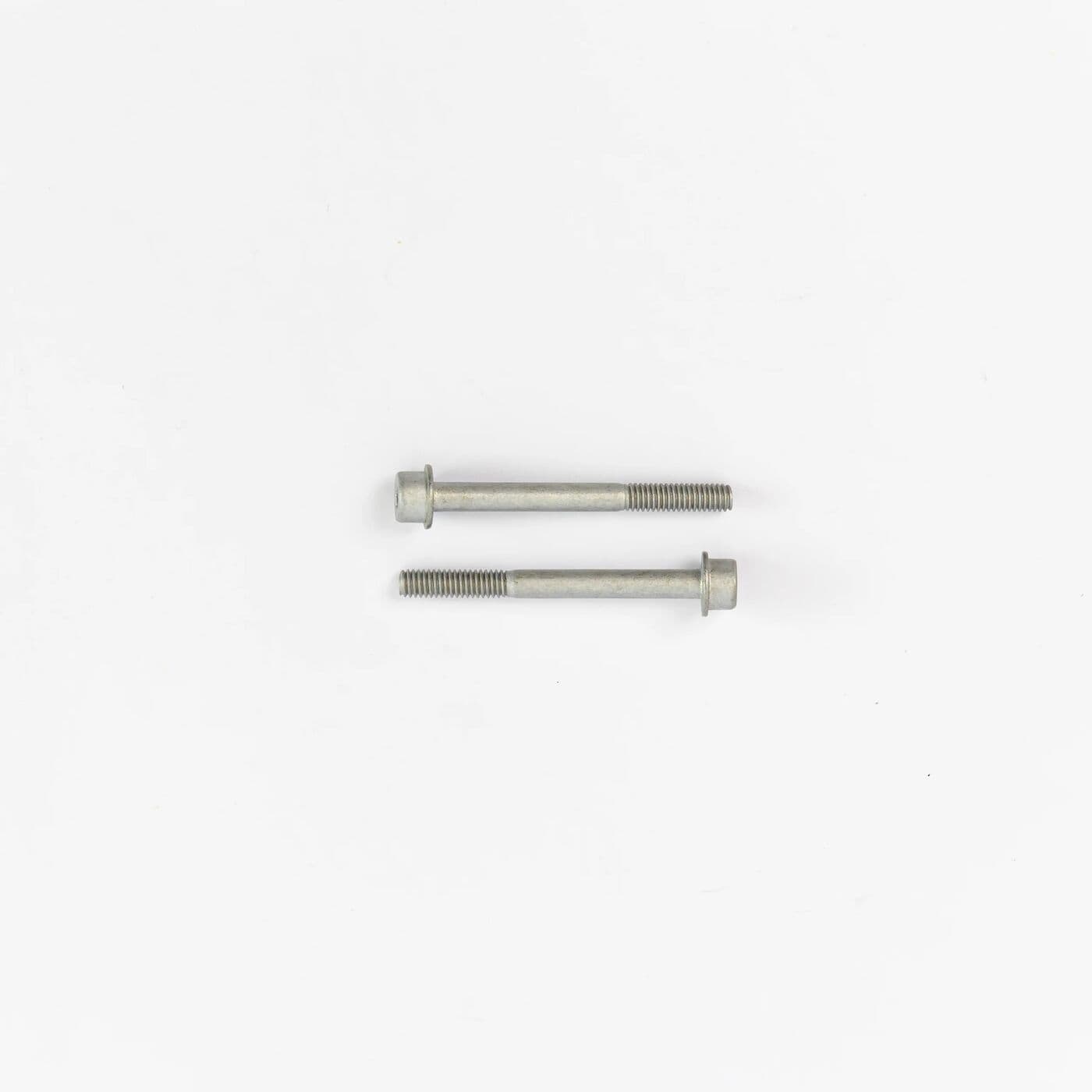

Screw M40-HC04000140-070040-5103-Y (T100/T70P) YC.ST.LL000607
Shipping: Small Parcel, $15 Australia-wide
Call AGX Drone Distributors: 1300 916 075
About
Specifications and fitment
Screw M40-HC04000140-070040-5103-Y is shared by two aircraft: it is used in the DJI Agras T100 frame connector assemblies and in the DJI Agras T70P landing gear.
| Part number | YC.ST.LL000607 |
| Fits | DJI Agras T100, T70P |
| Parts diagram | T100 aircraft frame connector, callout 2; T100 spreading frame, callout 1; T100 lift system frame connector, callout 1; T70P landing gear, callout 3 |
Each of these diagrams lists it beside a nut: M40-HX088065-5103 at callout 1 or 2 on the T100 frame sheets, and M40-HX055030-5103 at callout 4 on the T70P landing gear. Fasteners in the frame and landing gear are loaded on every touchdown, so replace any with a rounded drive, damaged thread or corrosion instead of refitting it.
Order by the full code in the title rather than by appearance, because two screws of the same thread size can differ in length. Check the mating nut or thread for damage before fitting the new screw.
